This Incredible Drill Set Includes One Piece Each of These 50 Sizes:
| Drill Size |

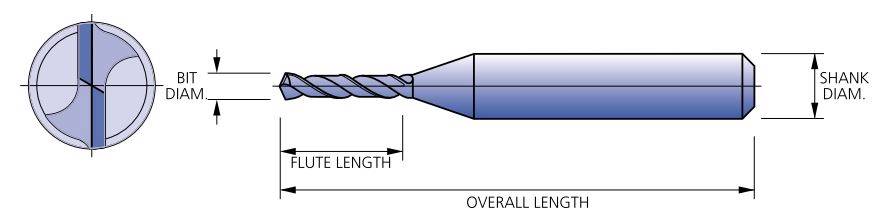

Flute Length (Drill Depth)
Please allow +/- .050"
Variance
|
| #97 0.15mm - 0.0059" |
.125 |
| #96 - 0.0063" |
.100 |
| #92 0.20mm - 0.0079" |
.125 |
| #89 - 0.0091" |
.200 |
| #87 0.25 mm - 0.0100" |
.200 |
| #86 - 0.0105" |
.200 |
| #85 - 0.0110" |
.200 |
| #83 0.30 mm - 0.0120" |
.200 |
| #82 - 0.0125" |
.225 |
| #81 - 0.0130" |
.250 |
| #80 0.35 mm - 0.0135" |
.250 |
| #79 - 0.0145" |
.250 |
| #78 0.40 mm - 0.0160" |
.200 |
| #77 - 0.45mm - 0.0180" |
.250 |
| #76 0.50 mm - 0.0200" |
.250 |
| #75 - 0.0210" |
.250 |
| 0.55 mm - 0.0217" |
.350 |
| #74 - 0.0225" |
.300 |
| #73 0.60 mm - 0.0240" |
.300 |
| #72 - 0.0250" |
.300 |
| #71 0.65 mm - 0.0260" |
.400 |
| #70 0.70 mm - 0.0280" |
.400 |
| #69 0.75 mm - 0.0292" |
.300 |
| #68 0.80 mm – 1/32” - 0.031" |
.380 |
| #67 0.80 mm - 0.0320" |
.400 |
| #66 0.85 mm - 0.0330" |
.380 |
| #65 0.90 mm - 0.0350" |
.400 |
| #64 - 0.0360" |
.400 |
| #63 - 0.0370" |
.400 |
| #62 0.95 mm - 0.0380" |
.400 |
| #61 1.00 mm - 0.0390" |
.400 |
| #60 1.00 mm - 0.0400" |
.400 |
| #59 1.05 mm - 0.0410" |
.400 |
| #58 - 0.0420" |
.400 |
| #57 1.10 mm - 0.0430" |
.400 |
| 1.12 mm - 0.0433" |
.400 |
| 1.15 mm - 0.0453" |
.400 |
| #56 - 0.0465" |
.400 |
| 1.20 mm - 0.0472" |
.400 |
| 1.25 mm - 0.0492" |
.400 |
| 1.30 mm - .051” |
.400 |
| #55 1.30 mm - 0.0520" |
.400 |
| 1.35 mm - 0.0531" |
.450 |
| #54 1.40 mm - 0.0550" |
.400 |
| 1.45 mm - 0.0571" |
.400 |
| #53 1.50 mm - 0.0595" |
.400 |
| 1.55 mm - 0.0610" |
.400 |
| 1/16" 1.60 mm - 0.0625" |
.400 |
| #52 - 0.0635" |
.400 |
| 1.65 mm - 0.0650" |
.450 |
