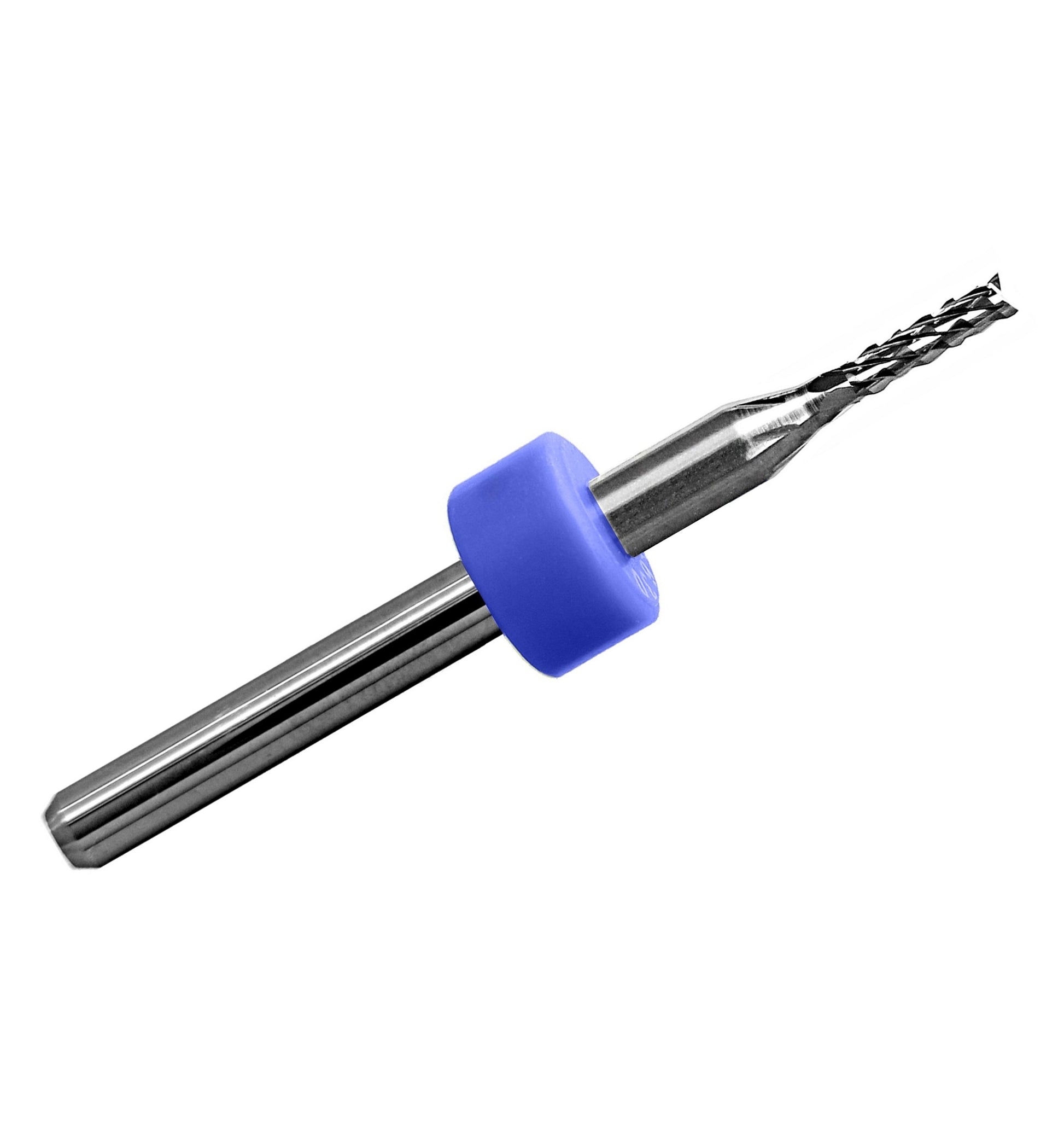

0.0551" (1.40mm) Diamond Flute Carbide Router, .250" LOC, Up Cut, Fish Tail, 1/8" Shank R127

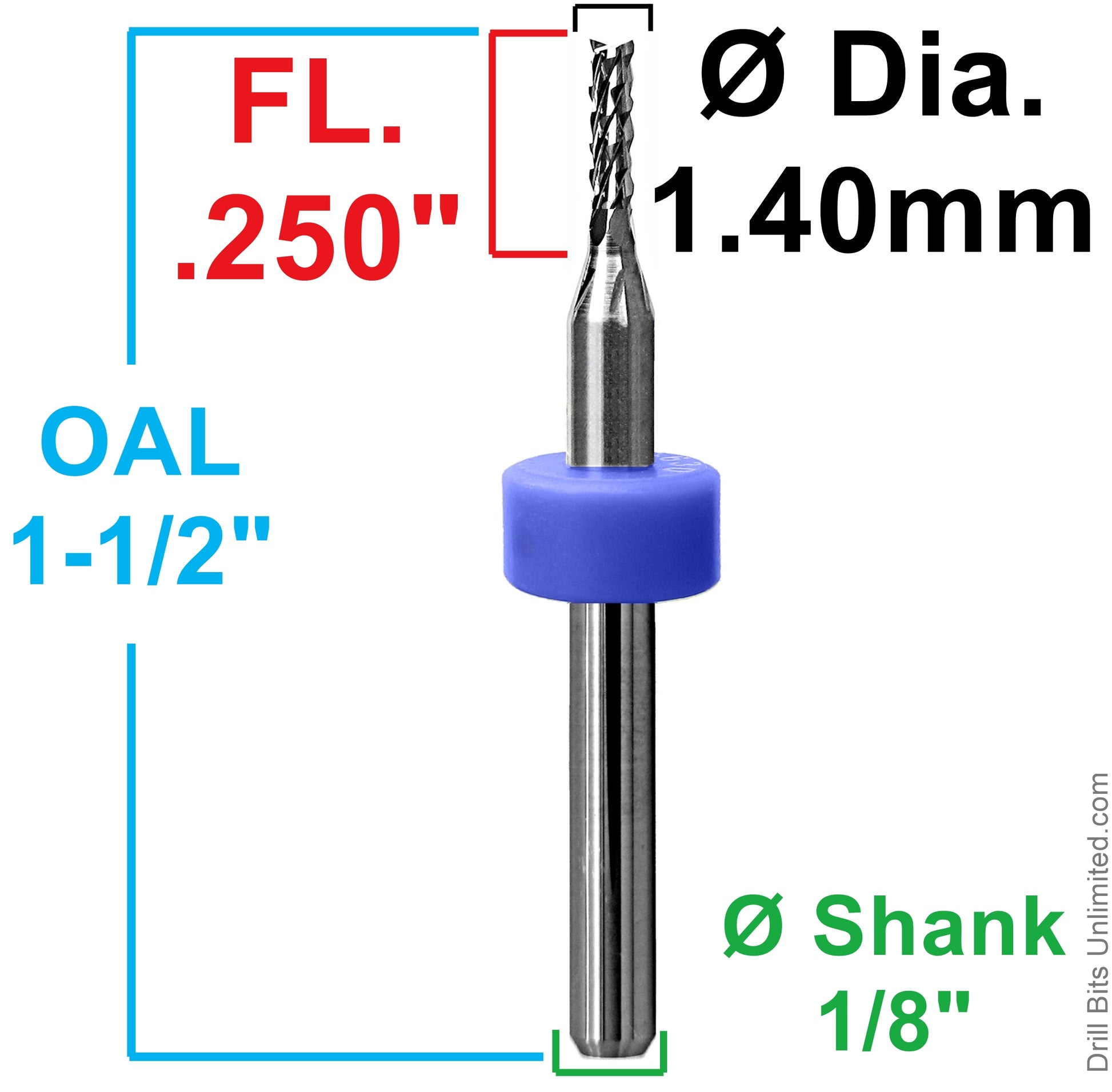

This 1.40mm (0.0551") diamond flute carbide router features a .250" length of cut, 1-1/2" overall length, and a 1/8" shank, offering excellent rigidity and control for precision routing applications.

The diamond flute geometry uses a fine, multi-edge cutting structure that is gentler on brittle and layered materials, helping reduce chipping, delamination, and edge damage.

Optimized for PCB materials (FR-4, G10), fiberglass, phenolic laminates, carbon fiber, and other abrasive composites, this tool delivers clean edges and consistent performance in demanding applications.

For extended tool life in highly abrasive materials, explore our diamond-coated (PCD) routers →

The up-cut design improves chip evacuation and enhances bottom-edge cut quality, making it ideal for through-cuts and general routing.

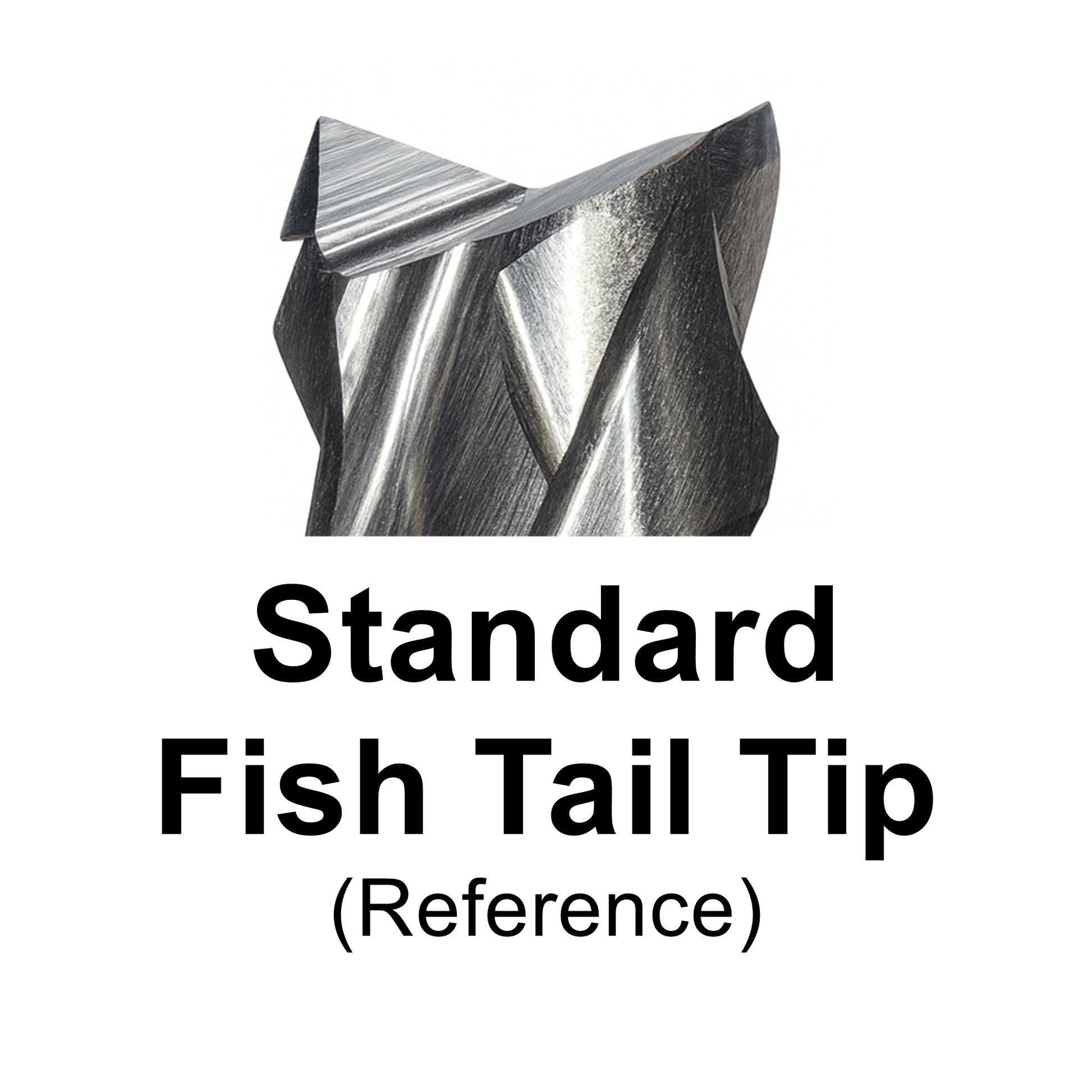

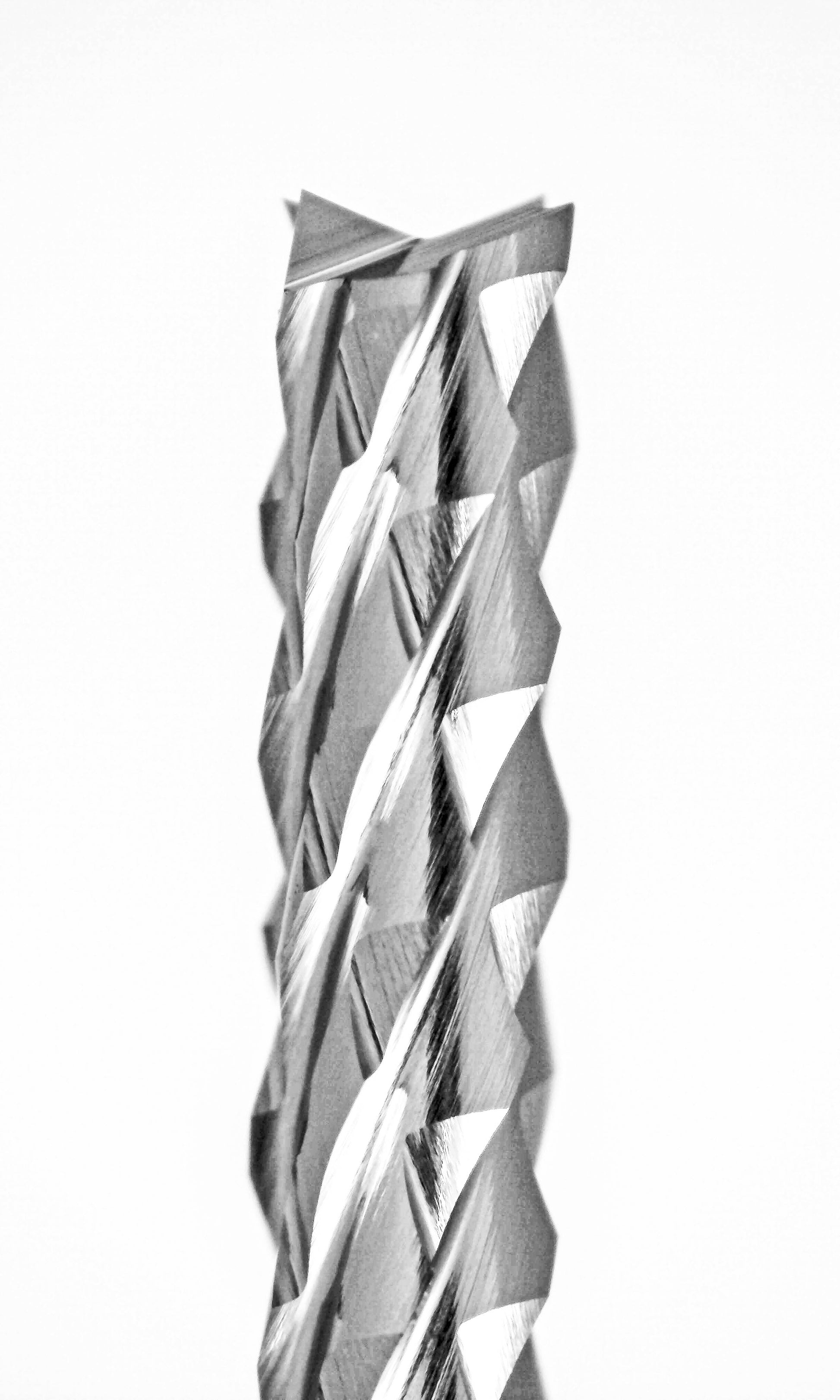

This tool features a fish tail tip, designed for gentle entry and reduced delamination in brittle or layered materials.

The .250" LOC provides greater rigidity and reduced tool deflection, making it well suited for precision work and controlled-depth cutting.

👉 View Diamond Flute Router Feed & Speed Chart

Typical Applications

• PCB routing (1.40mm tool size)
• Fiberglass and laminate cutting
• Carbon fiber machining
• Abrasive composite routing
• Precision CNC work

Benefits

• Diamond flute geometry minimizes chipping and delamination
• Shorter LOC improves rigidity and reduces deflection
• Up-cut design improves chip evacuation and bottom-edge finish
• Fish tail tip reduces entry damage in brittle materials
• Solid carbide construction ensures long tool life

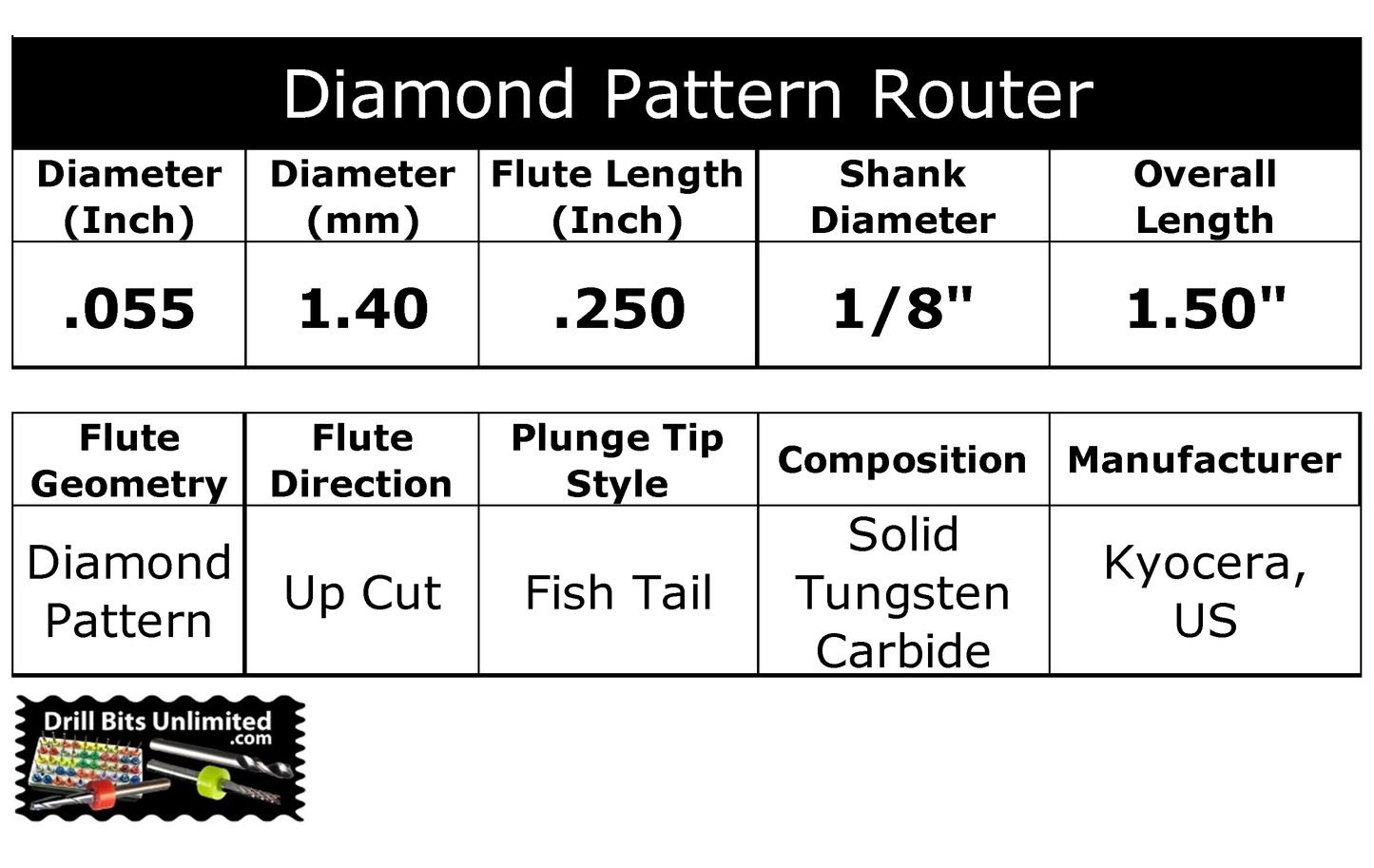

Specifications

Tip style: Fish Tail — gentle entry to reduce delamination in brittle or layered materials.
