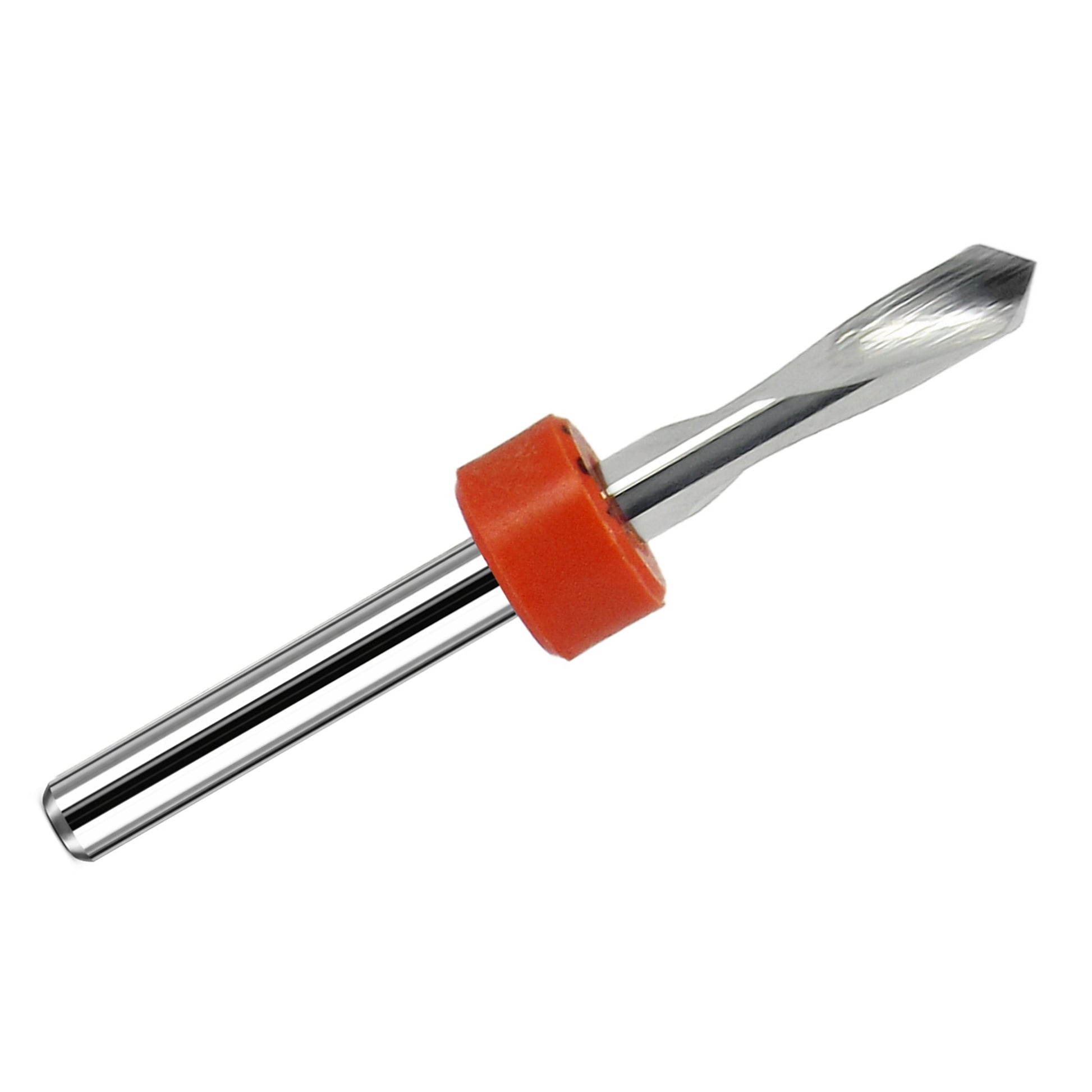

1/8" 90° 2-Flute Spiral V-Engraver Carbide CNC Bit for Engraving & Chamfering Made in USA. E106

90° 2-flute spiral carbide V-engraver designed for precision engraving, chamfering, and clean edge finishing.

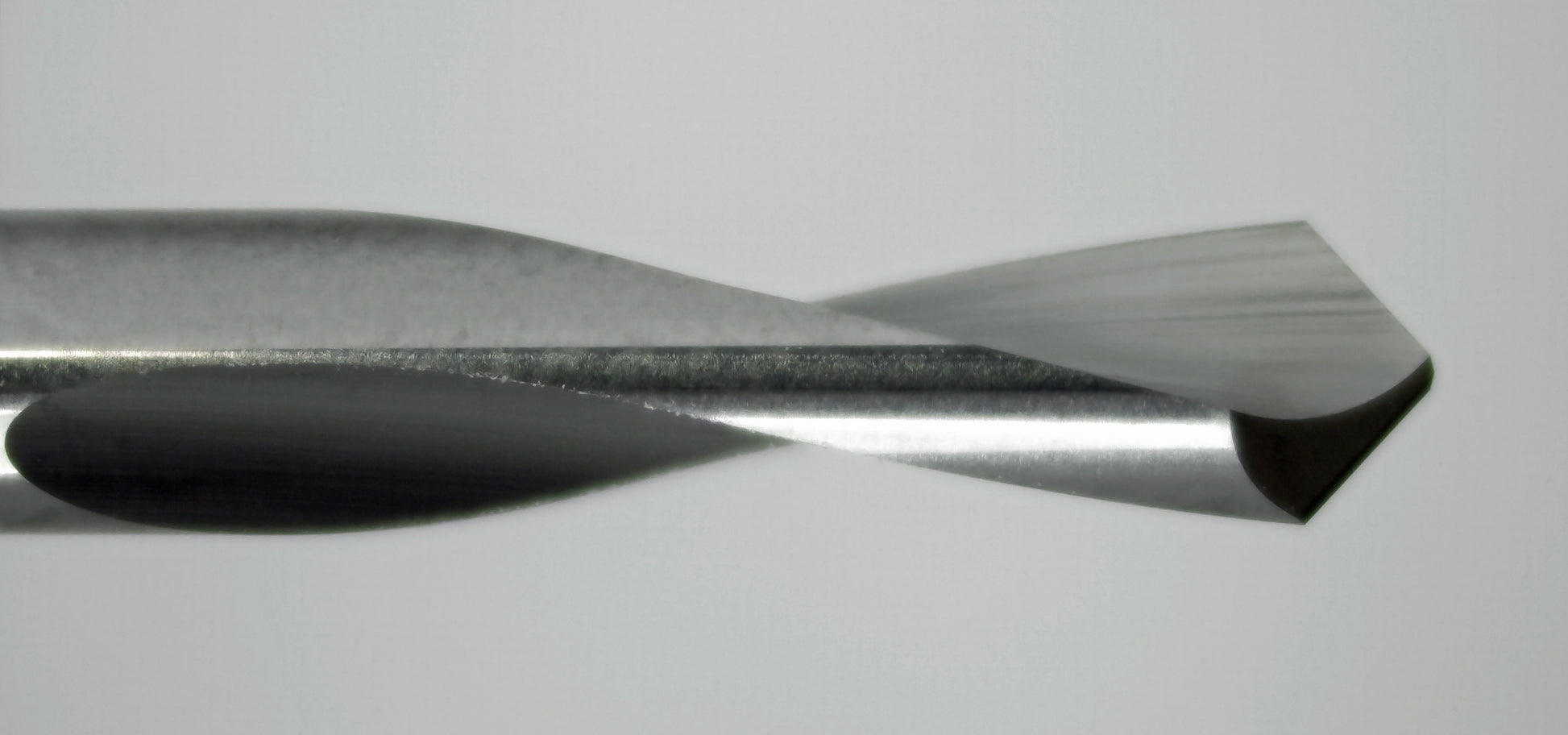

This tool features a true 2-flute spiral cutting geometry, providing smoother cutting action, improved chip evacuation, and reduced chatter compared to standard straight V-bits. The result is cleaner edges, better surface finish, and more consistent performance across a wide range of materials.

Why choose a spiral V-engraver?
The spiral flute design actively pulls chips away from the cutting zone, reducing heat buildup and improving cut quality. This allows higher feed rates, longer tool life, and significantly cleaner engraving results compared to conventional V-bits.

Why a 90° angle?
A 90° tip angle produces wider engraving lines and a stronger cutting edge, making it ideal for chamfering, edge breaking, and general-purpose engraving where durability is more important than ultra-fine detail.

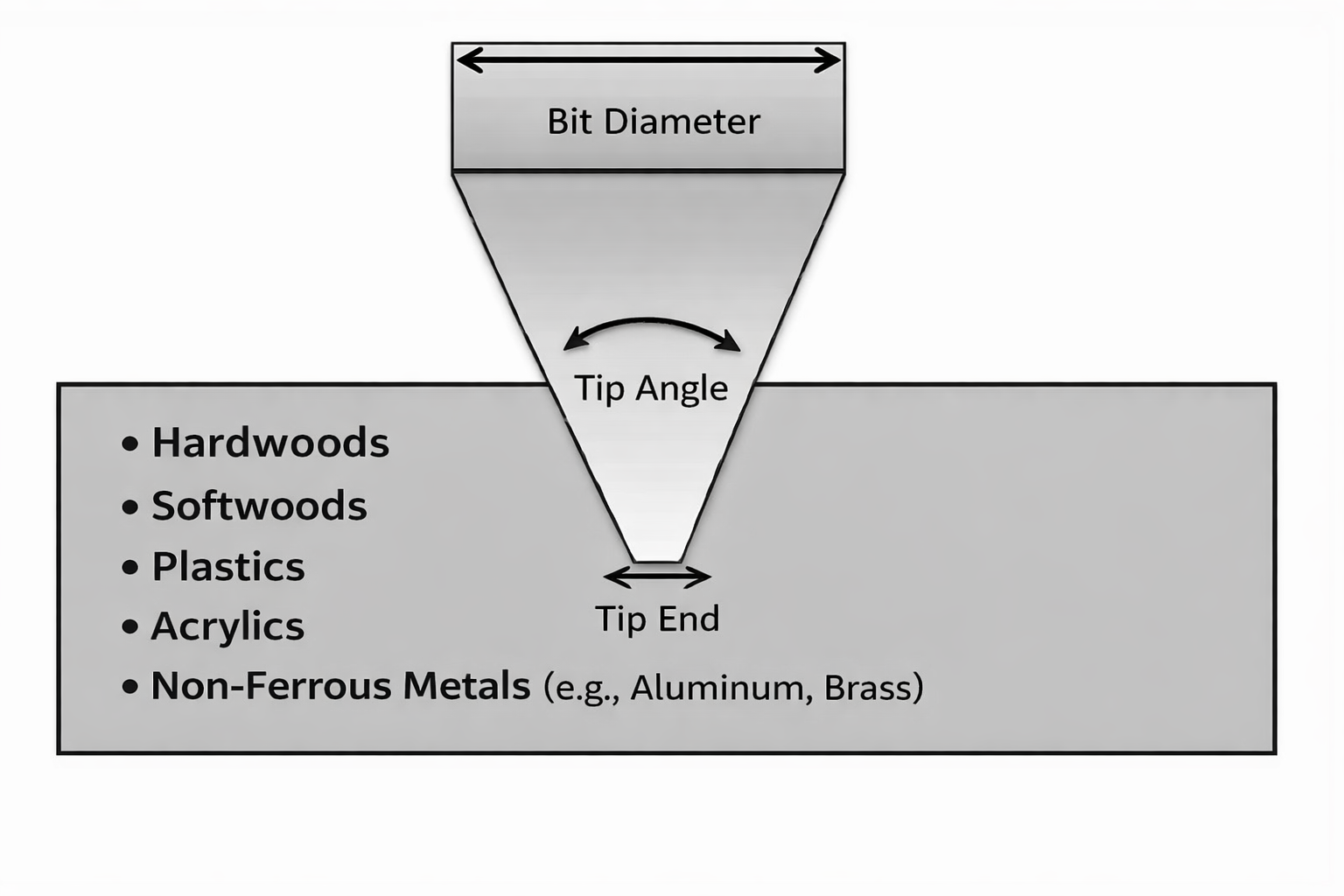

Typical Applications

• Chamfering and edge breaking
• General engraving and lettering
• Plastic and acrylic engraving with clean edges
• Wood engraving and sign making
• Light-duty engraving in aluminum and brass

Benefits

• 2-flute spiral design for smoother cutting and reduced chatter
• Improved chip evacuation for cleaner results
• Stronger 90° tip for durability and longer tool life
• Higher feed capability compared to standard V-bits
• Solid carbide construction for extended wear resistance
• Made in USA for consistent quality and performance
• 1/8" shank fits most CNC routers and engraving machines

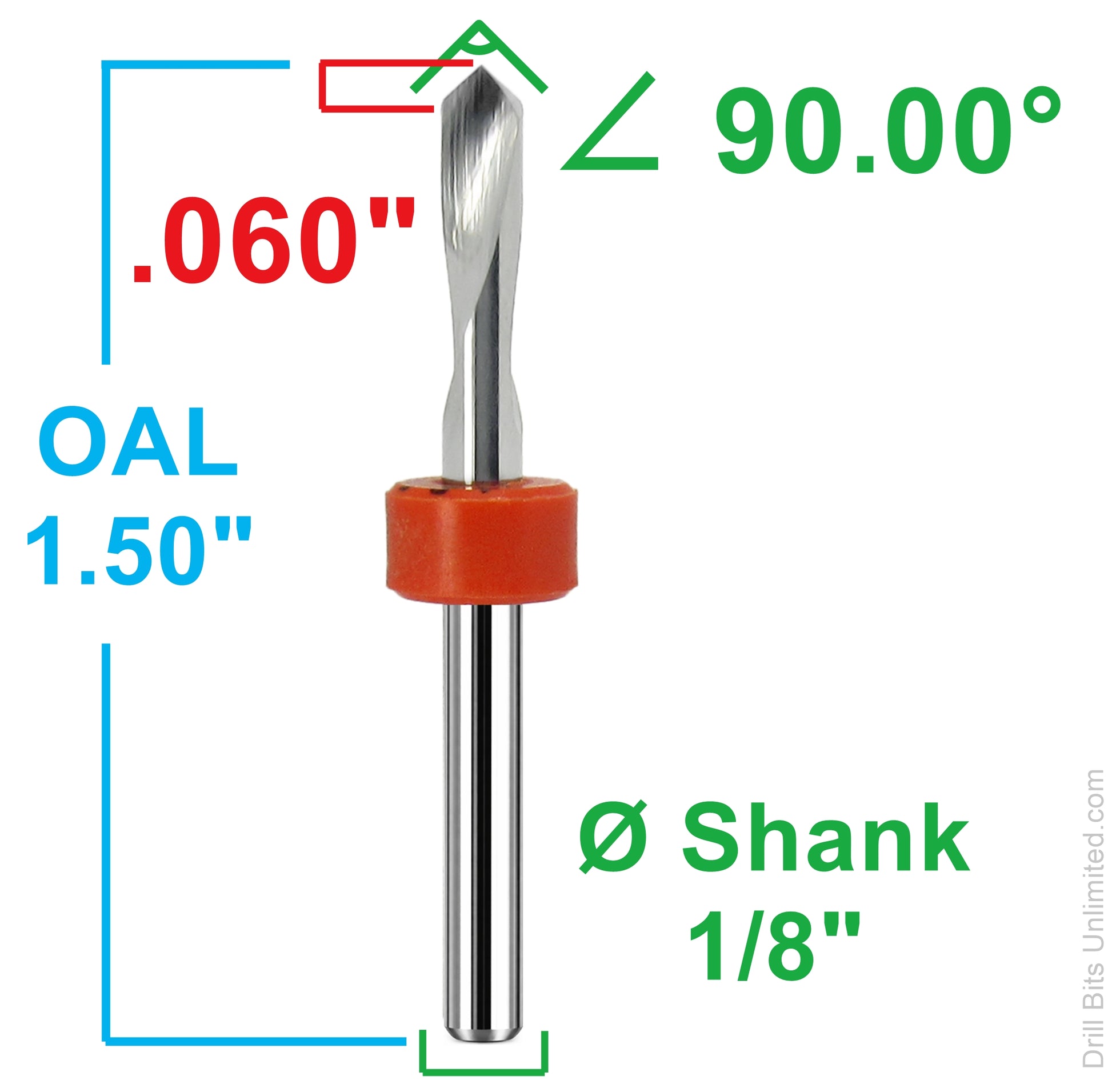

Specifications
