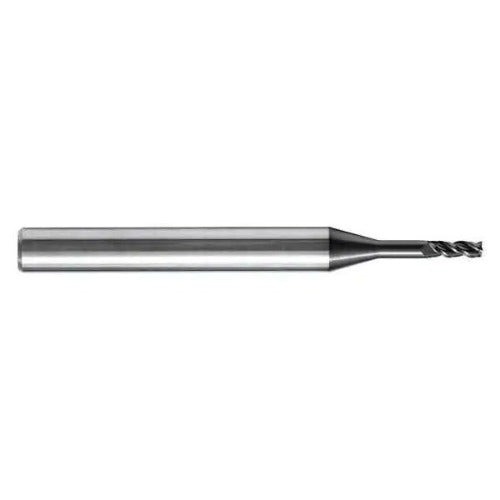

1.50mm Diameter Corner Radius End Mill,TITAN-AXM,High Perf.,T0591O177ECR1 K195
1.50mm Diameter Corner Radius End Mill,TITAN-AXM,High Perf.,T0591O177ECR1 K195
Regular price
$22.95 USD
Regular price
Sale price
$22.95 USD
Unit price
per
5 left in stock
SKU: K195
Couldn't load pickup availability
Kyocera has developed the TITAN-AX™ line of end mills for machining materials used in Medical, Microwave, Aerospace and other miniature component industries.
BENEFITS
- Smoother Cutting with Better Chip Evacuation
- Corner Radii Programmable for 3D Surfacing
- Better Life and Finishes
- Consistent Part Size and Surface Finish
- Better Clamping Rigidity and T.I.R
- Clearance for Deeper Pocketing Applications
- Ideal for Trochoidal Milling Parts
| End Mill Material: Carbide | Cast Iron (K) Compatibility: Yes |
| Helix Angle: 32 Degrees /48 Degrees | Number of Flutes: 3 |
| List Number: TITAN | Milling Diameter: 1.50mm |
| Stainless (M) Compatibility: Yes | Neck Length: 15.00mm |
| Overall Length: 75.00mm | Corner Radius: 0.10mm |
| Length of Cut: 4.50mm | Hardened (H) Compatibility: Yes |
| End Mill Cutting Type: Center Cutting | Neck Dia.: 1.38mm |
| Shank Dia.: 6.00mm | Finish: AX |
| Milling Dia.: 1.50mm | End Mill Style: Corner Radius |
| Item: Corner Radius End Mill | Non Ferrous (N) Compatibility: No |
| Shank Type: Straight | Cutting Direction: Right Hand |
| Super Alloy (S) Compatibility: Yes | Grade: Micro Grain |
| Steel (P) Compatibility: Yes | Single End/Double End: Single End |
| Dimension Type: Metric | End Mill Application: Roughing/Finishing |
| Material Grade - Machining: Micro Grain | Material - Machining: Carbide |
| Measurement System: Metric | Shank Type - Machining: Straight |
| Country of Origin (subject to change): United States |
