Drill Bits Unlimted

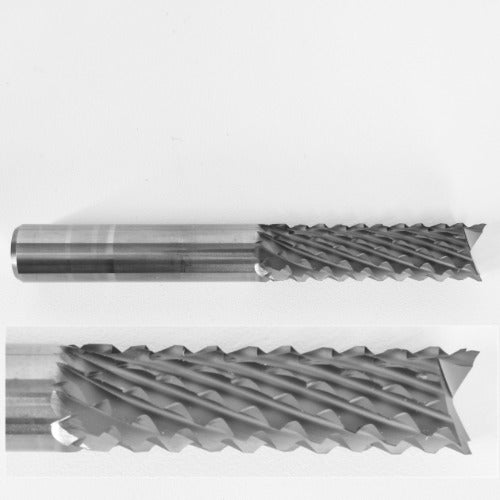

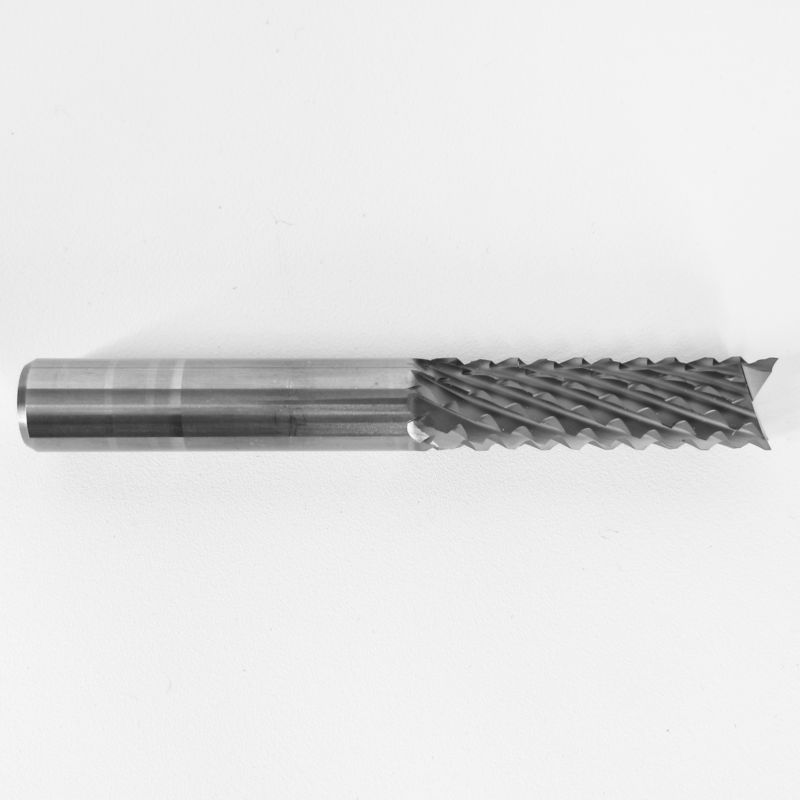

8.00mm CVD Diamond Coated, Diamond Pattern Router Bit, Fish Tail, Up Cut, for Carbon Fiber etc. K150

8.00mm CVD Diamond Coated, Diamond Pattern Router Bit, Fish Tail, Up Cut, for Carbon Fiber etc. K150

$27.95 USD
$27.95 USD
Sale Sold out

2 left in stock

SKU: K150

  • Cutting Diameter (Size): 8.00mm
  • Cutting Diameter (Decimal Inch): 0.3150
  • Cutting Diameter (mm): 8.00
  • Shank Diameter (Decimal Inch): 0.3150
  • Shank Diameter (mm): 8.00
  • Overall Length (Decimal Inch)2.4803
  • Overall Length (mm)63.00
  • Length of Cut (Decimal Inch): 0.9843
  • Length of Cut (mm): 25.00
  • Flute Style: Up Cut / Diamond Pattern
  • End Style: Fish Tail
  • Shank Type: Straight / Cylindrical
  • Material: Sub Micron Grain Carbide
  • Finish / Coating: CVD Diamond
  • Series: 2120
  • BWGraphite, CFRP
  • Applicable Workpiece Material: Aluminum
  • Application: Routing CFRP, Fiberglass, and Composite Materials
  • Unit (inch/mm): mm
