8.00mm Diamond Pattern Router, DLC(Diamond Like Carbon) Coated Fish Tail Tip 2120-3150D984F K021

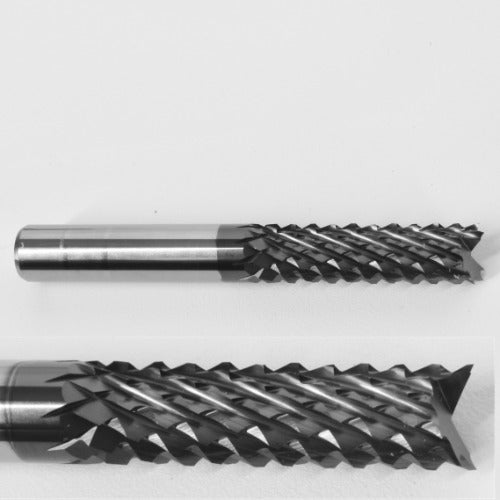

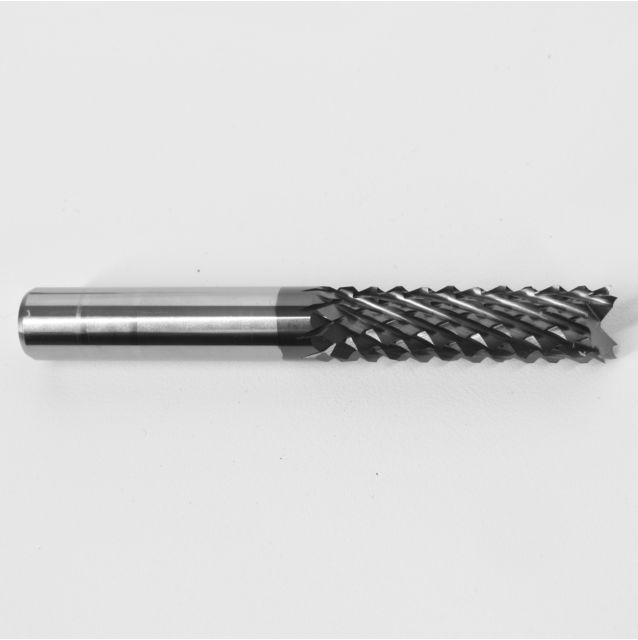

Kyocera 2120-3150D984F Diamond Pattern

Solid Round Carbide Router Bit

• Cutting Diameter (Size): 8.00mm
• Cutting Diameter (Decimal Inch): 0.3150
• Cutting Diameter (mm): 8.00
• Shank Diameter (Decimal Inch): 0.3150
• Shank Diameter (mm): 8.00
• Overall Length (Decimal Inch)2.4803
• Overall Length (mm)63.00
• Length of Cut (Decimal Inch): 0.9843
• Length of Cut (mm): 25.00
• Flute Style: Up Cut / Diamond Pattern
• End Style: Fish Tail
• Shank Type: Straight / Cylindrical
• Material: Sub Micron Grain Carbide
• Finish / Coating: DLC Diamond Like Carbon
• Series: 2120
• BWn/a
• Applicable Workpiece Material: Aluminum, Graphite, CFRP
• Application: Routing CFRP, Fiberglass, and Composite Materials
• Unit (inch/mm): mm
