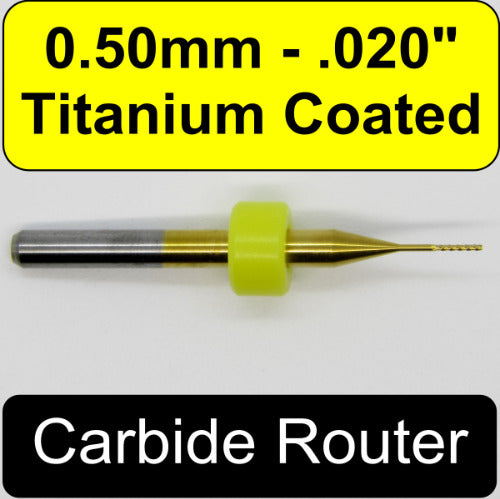

.020" 0.50mm x 4.0mm LOC - Carbide Diamond Pattern Router Titanium Coated M144

.020" 0.50mm x 4.0mm LOC - Carbide Diamond Pattern Router Titanium Coated M144

Regular price $4.95 USD
Regular price Sale price $4.95 USD
Sale Sold out

74 left in stock

SKU: M144

Click HERE for Feed and Speed Recommendations

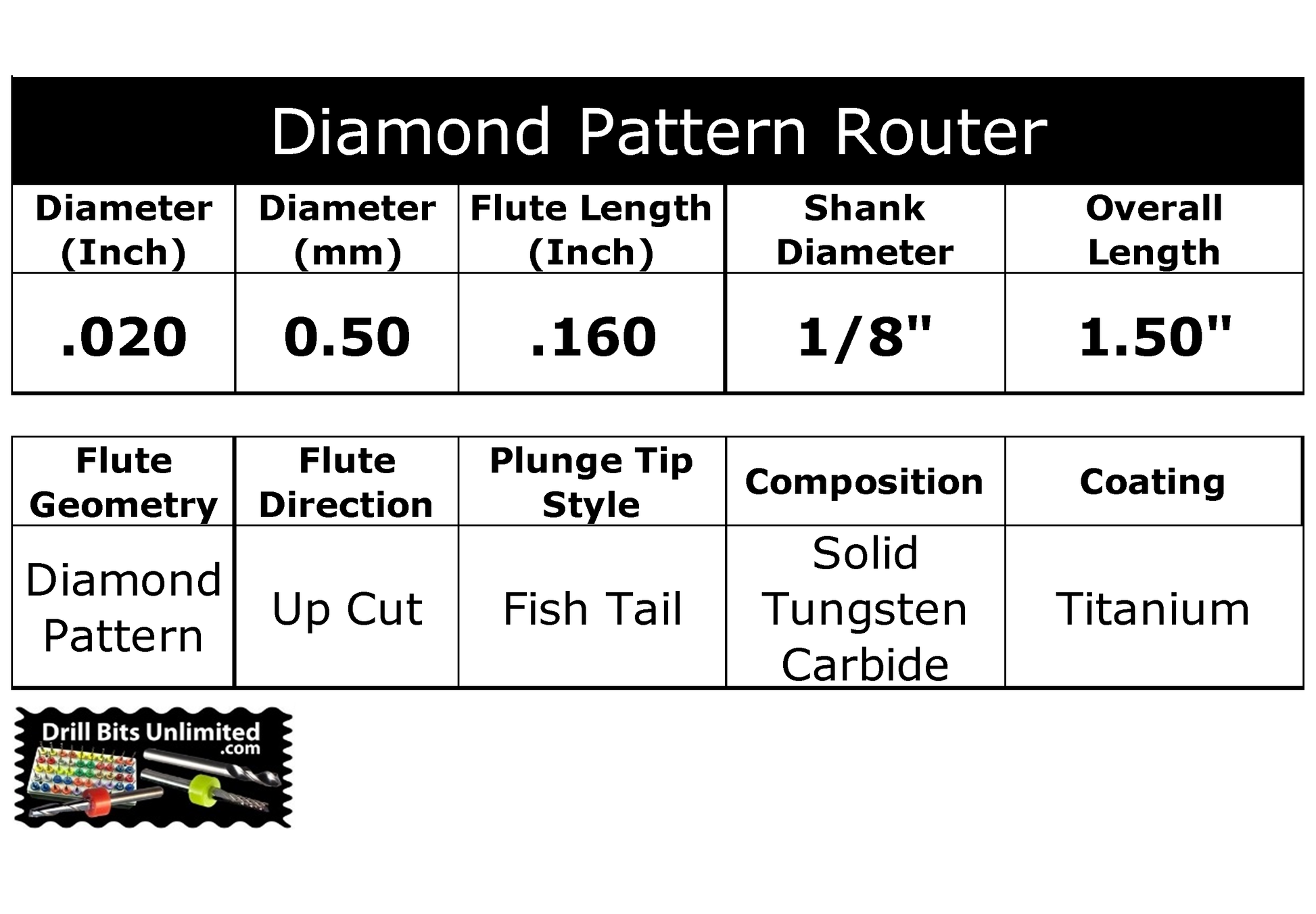

Specs:
Tool Type

Carbide Router

Diamond Cut - TiN Coated

Fishtail Plunge Tip

Cutting Diameter (inch)

.020

Cutting Diameter (mm) 0.50
Number of Flutes n/a
Depth of Cut (inch) .160
Shank Diameter (inch) 1/8
Overall Length (inch) 1.50
Plunge Tip Fishtail
Center Cutting Yes
Cutting Direction Right Hand
Flute Direction Right Hand
Flute Type Diamond Cut
Composition Solid Tungsten Carbide
Coating Titanium Nitride



Numerous diamond-shaped cutting surfaces is gentle on material, leaving a clean and smooth edge without delamination, cracking or fraying.



The titanium coating ensures optimal performance by reducing friction and maintaining cooler tool and material temperatures.

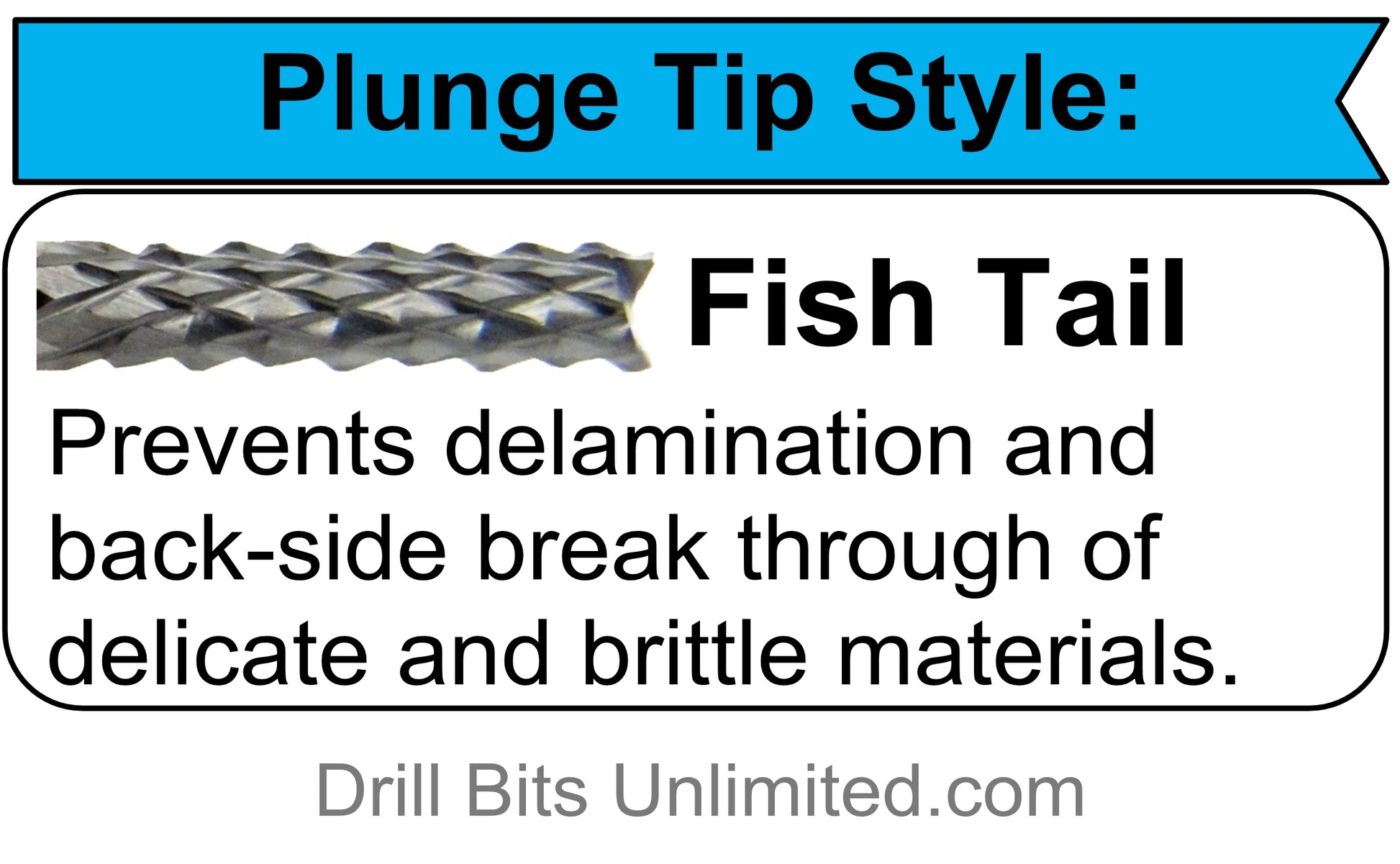

Fishtail plunge tip prevents back side break through and splintering.

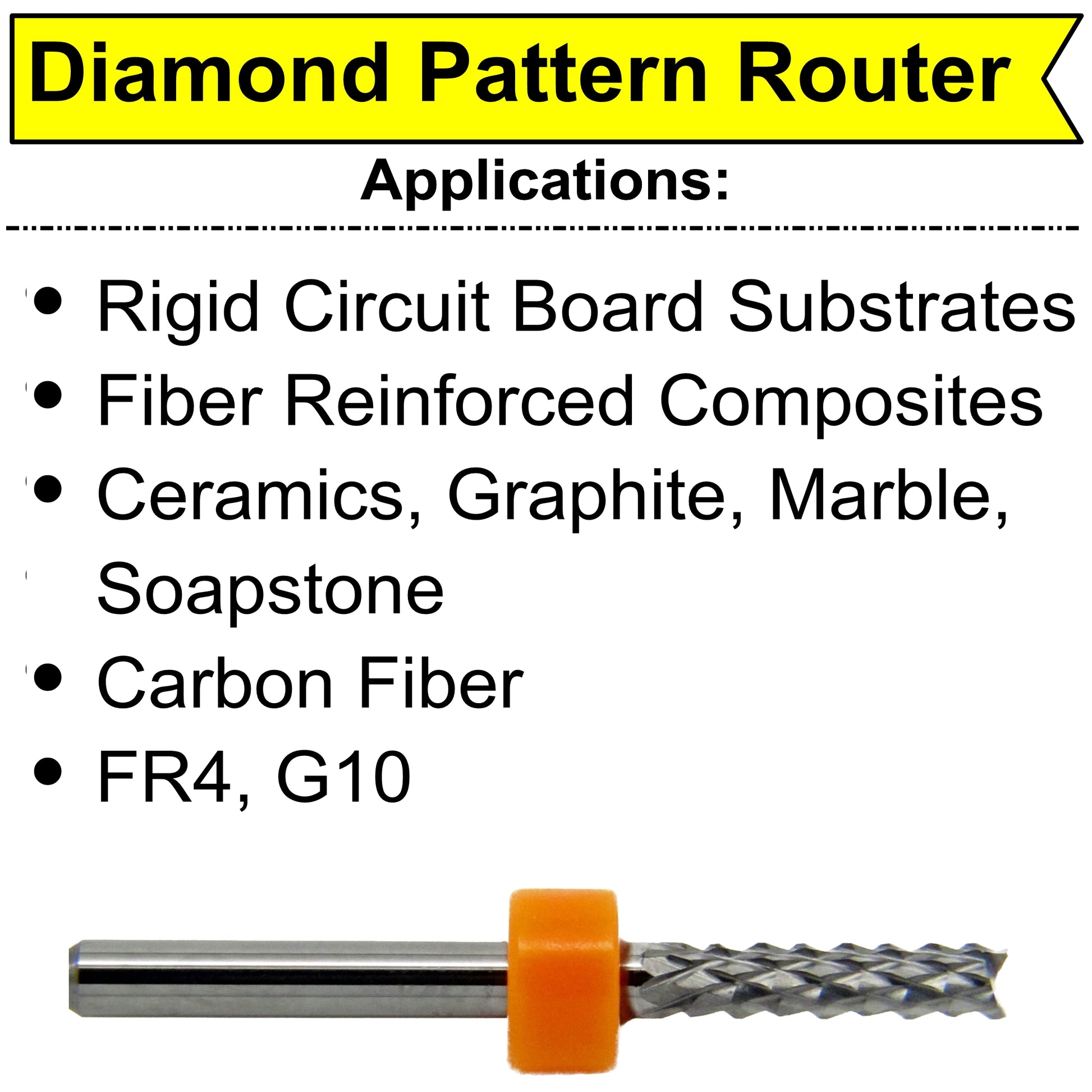

Perfect for milling hard and abrasive materials   including carbon fiber, G10, FR4, fiberglass substrates, ceramics, etc.



Diamond flute routers are typically used for machining and cutting hard and abrasive materials.  Some of the materials for which diamond flute routers are commonly employed include:

  1. Carbon fiber: Diamond flute routers are used in the aerospace and automotive industries for cutting carbon fiber composites, which are lightweight and strong materials.

  2. Fiberglass: Diamond flute routers are effective in cutting and shaping fiberglass materials, commonly used in construction, marine applications, and automotive parts.

  3. Graphite: Diamond flute routers are utilized in machining graphite electrodes used in electrical discharge machining (EDM) and in the production of various graphite-based components.

  4. Ceramic: Diamond flute routers are used for cutting and milling ceramic materials, such as advanced ceramics used in the manufacturing of electronic components, cutting tools, and industrial machinery.

  5. Reinforced plastics: Diamond flute routers can handle reinforced plastics, including materials like fiberglass-reinforced plastics (FRP) and carbon fiber-reinforced plastics (CFRP).

  6. Composite materials: Diamond flute routers are suitable for cutting and shaping composite materials, which are a combination of two or more materials, such as carbon fiber composites, fiberglass composites, and aramid fiber composites.

  7. Hardwoods: Diamond flute routers can be employed for precision cutting of dense and abrasive hardwoods, such as exotic hardwoods or hardwood laminates.

It's important to note that diamond flute routers are not limited to these materials alone but are primarily chosen for their ability to withstand the challenges presented by hard and abrasive materials.
