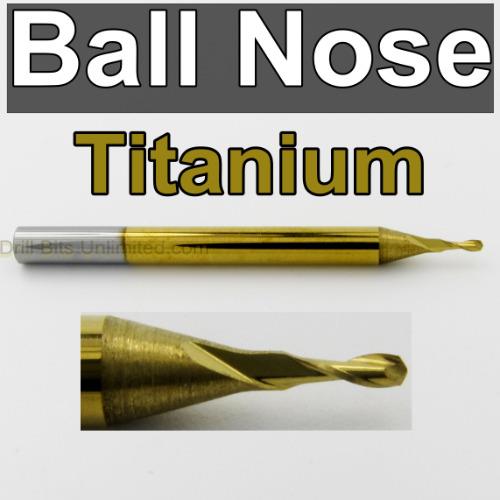

0.0394" (1.00mm) Ball Nose Carbide End Mill – Titanium Coated M140

Mill Diameter (Inch) : .0394
Mill Diameter (mm) : 1.00
# of Flutes: 2
Length of Cut (inch): .158
Shank Diameter (Inch) : 1/8
Overall Length (inch): 1.50
Material: Solid Tungsten Carbide
Finish/Coating: Titanium Nitride
Cutting Direction: Right Hand
Flute Direction: Right Hand (Up Cut)
Flute Type: Spiral
Helix Angle: 30
Center Cutting?: Yes
Plunge Tip: Ball Nose
Applications: Wood,Plastics,Soft Metals

Ball nose end mills are designed for contouring and 3D machining applications. It features a rounded cutting end, resembling a ball shape, which allows for smooth and precise machining in curved surfaces, intricate geometries, and sculpted parts. A versatile tool for creating concave features, fillets, and rounded profiles with high accuracy. It is commonly used in industries such as aerospace, automotive, mold-making, and general machining, where intricate and organic shapes are required. The ball nose end mill is an essential tool for achieving complex and visually appealing designs with excellent surface finish.
