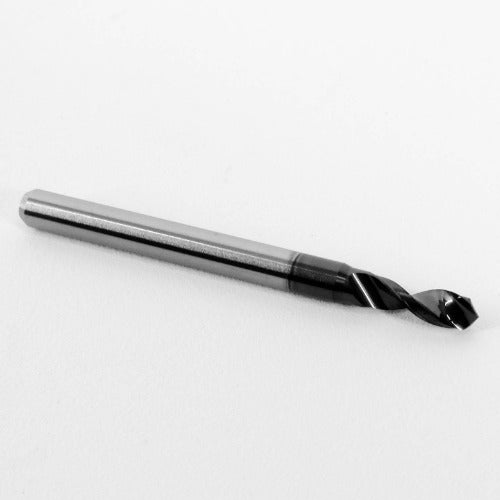

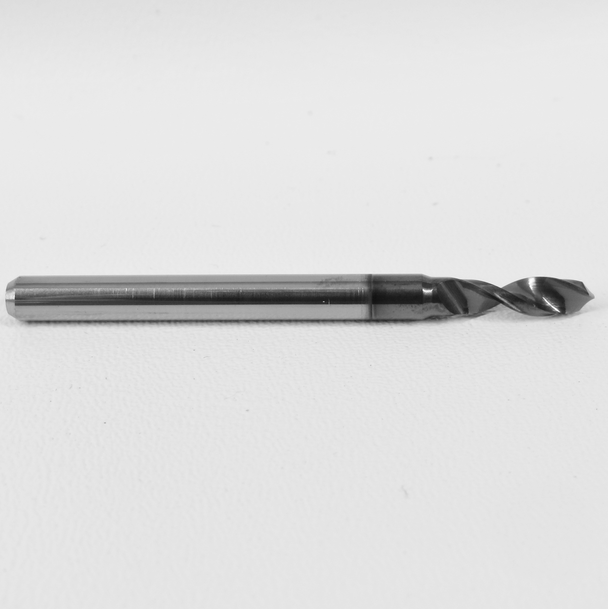

2.60mm Diameter Micro Drill Bit, Carbide, AlTiN Coated 226-1024L400 K005
2.60mm Diameter Micro Drill Bit, Carbide, AlTiN Coated 226-1024L400 K005
Regular price
$5.95 USD
Regular price
Sale price
$5.95 USD
Unit price
per
13 left in stock
SKU: K005
Couldn't load pickup availability
Number of Pieces: 1 | Item: Micro Drill Bit |
Drill Bit Finish: AlTiN | Flute Length: 0.4000" |
Drill Bit Size: 2.60mm | Shank Type: Straight |
Decimal Equivalent: 0.1024 | Drill Bit Dimension Type: Metric |
Drill Bit Point Angle: 130 Degrees | List Number: 226 |
Coolant Through: No | Number of Flutes: 2 |
Cutting Direction: Right Hand | Drill Bit Material: Solid Carbide |
Overall Length: 38.00mm | Point Type: 4 Facet |
Shank Dia.: 0.1181" | Application: Metalworking |
Grade: Micrograin Carbide | Coolant Fed: Non-Coolant Through |
Primary Material Application ISO Code: H, M, P | Measurement System: Metric |
Drill Length Class: Micro Length | Web Thinning: X-Thinned |
Primary Material Application: Brass, Cast Iron, CFRP, Cobalt, Composite, Copper Alloy, Graphite, Nickel, Titanium | Maximum Drilling Depth: 0.4000" |
Web Construction: Split | Shank Type - Machining: Straight |
Spiral Direction: Right Hand | Series: 226 |
Aircraft Drill: No | Circuit Board Drill: No |
Material - Machining: Carbide | Flute Type: Spiral |
Finish - Machining: AlTiN | Material Grade - Machining: Sub Micron |
Drill Bit Point Type: 4 Facet Point | Drill Diameter Tolerance: +0.000mm/-0.008mm |
Standards: Not Rated | Country of Origin (subject to change): United States |
