Drill Bits Unlimted

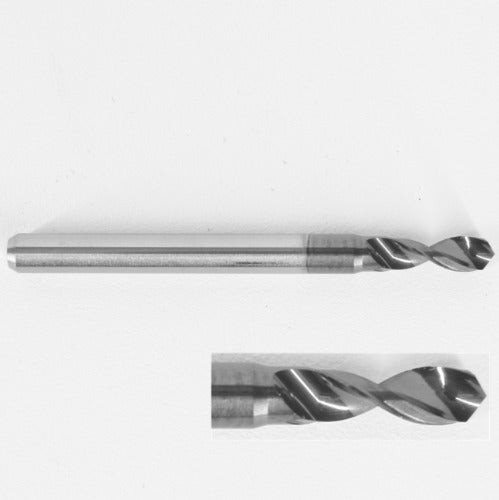

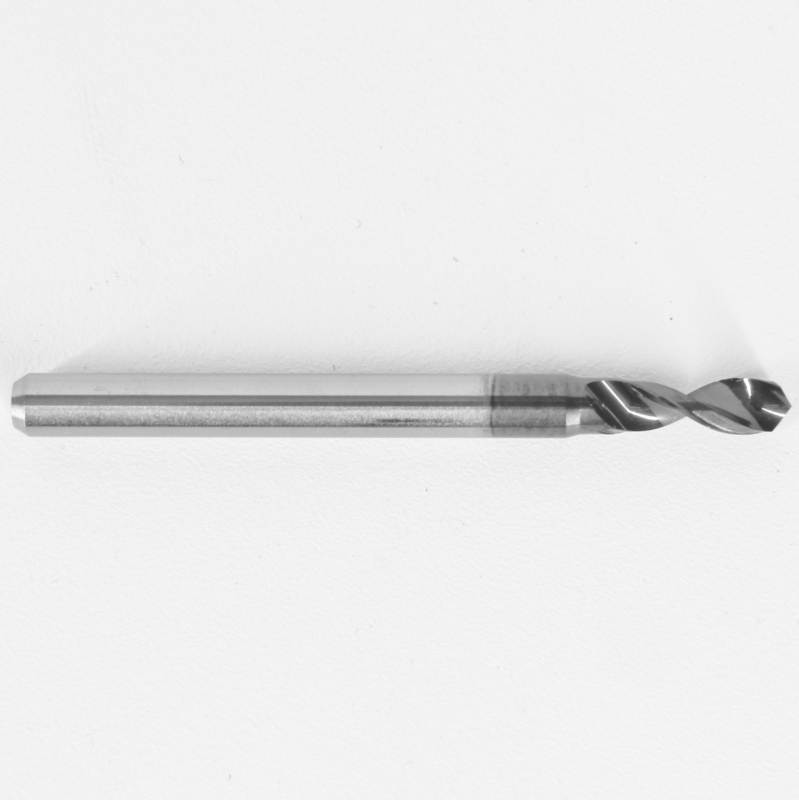

2.80mm .1105" #35 Diameter 0.400" DOC Drill Bit, Carbide, AlTiN Coated 105-1102L400 K133

2.80mm .1105" #35 Diameter 0.400" DOC Drill Bit, Carbide, AlTiN Coated 105-1102L400 K133

Regular price $5.49 USD
Regular price Sale price $5.49 USD
Sale Sold out

10 left in stock

  • Cutting Diameter (Size): 2.80mm
  • Cutting Diameter (Decimal Inch): 0.1102
  • Cutting Diameter (mm): 2.80
  • Shank Diameter (Decimal Inch): 0.1248
  • Shank Diameter (mm): 3.18
  • Overall Length (Decimal Inch): 1.500
  • Overall Length (mm): 38.1
  • Flute Length (Decimal Inch): 0.400
  • Flute Length (mm): 10.16
  • Number of Flutes: 2
  • Flute Style: Spiral / Helical
  • Length Type: Standard
  • Hand of Cut: Right-Hand
  • Point Geometry: 4 Facet
  • Hand of Cut: Right-Hand
  • Point Angle (Degree): 130
  • Shank Type: Straight / Cylindrical
  • Material: Sub Micron Grain Carbide
  • Finish / Coating: AlTiN
  • Series: 105
  • Primary Workpiece Material: Steel ~30HRC, Steel 30~40HRC, Hardened Steel ~55HRC, Hardened Steel ~68HRC, Stainless Steel
  • Secondary Workpiece Material: Cast Iron, Graphite, Copper Alloy, CFRP, Plastic, Thermoset Plastic, High Density Plastic, Nickel / Cobalt, Titanium Alloy
