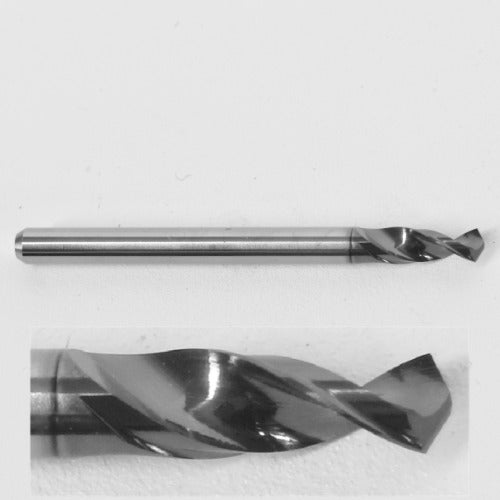

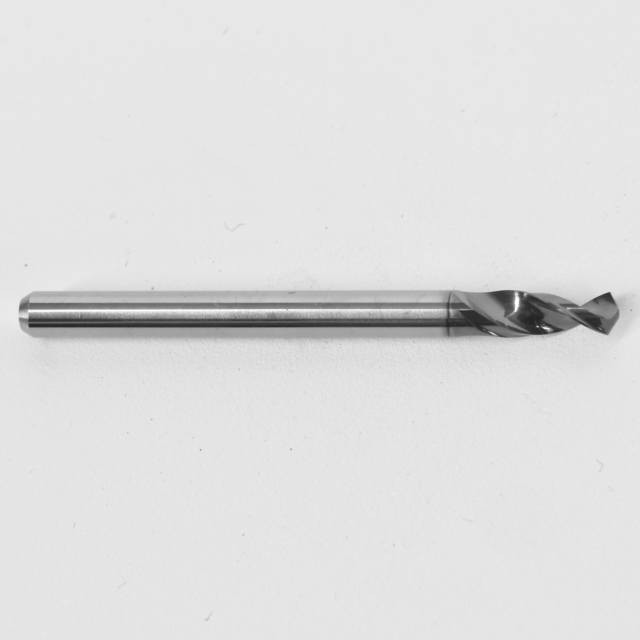

2.98mm Diameter Micro Drill Bit, Carbide, AlTiN Coated 226-1173L400 K037
2.98mm Diameter Micro Drill Bit, Carbide, AlTiN Coated 226-1173L400 K037
Regular price
$5.95 USD
Regular price
Sale price
$5.95 USD
Unit price
per
1 left in stock
SKU: K037
Couldn't load pickup availability
| Number of Pieces: 1 | Shank Type: Straight |
| Grade: Micrograin Carbide | Drill Bit Material: Solid Carbide |
| Number of Flutes: 2 | Application: Metalworking |
| Overall Length: 38.00mm | Cutting Direction: Right Hand |
| Drill Bit Dimension Type: Metric | Flute Length: 0.4000" |
| Drill Bit Size: 2.98mm | Coolant Through: No |
| Decimal Equivalent: 0.1173 | Point Type: 4 Facet |
| Drill Bit Point Angle: 130 Degrees | Shank Dia.: 0.1181" |
| Drill Bit Finish: AlTiN | List Number: 226 |
| Item: Micro Drill Bit | Coolant Fed: Non-Coolant Through |
| Flute Type: Spiral | Primary Material Application: Brass, Cast Iron, CFRP, Cobalt, Composite, Copper Alloy, Graphite, Nickel, Titanium |
| Drill Bit Point Type: 4 Facet Point | Aircraft Drill: No |
| Material - Machining: Carbide | Series: 226 |
| Web Construction: Split | Circuit Board Drill: No |
| Material Grade - Machining: Sub Micron | Finish - Machining: AlTiN |
| Primary Material Application ISO Code: H, M, P | Drill Length Class: Micro Length |
| Web Thinning: X-Thinned | Shank Type - Machining: Straight |
| Measurement System: Metric | Maximum Drilling Depth: 0.4000" |
| Drill Diameter Tolerance: +0.000mm/-0.008mm | Spiral Direction: Right Hand |
| Standards: Not Rated | Country of Origin (subject to change): United States |
