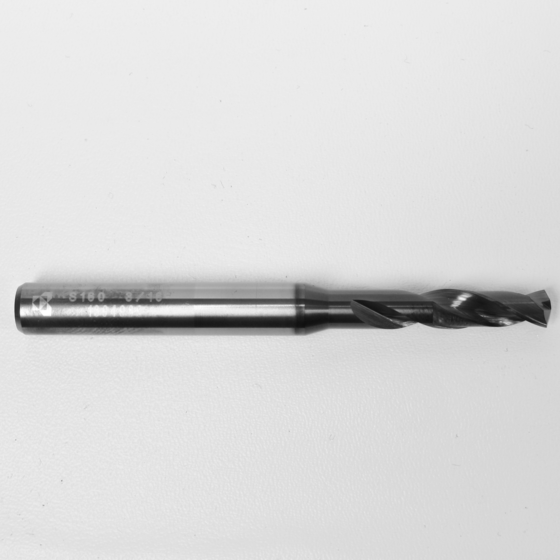

3/16" .1875" Diameter Kyocera ORION Carbide High Performance Micro Drill, TiAlN Coated 160-1875AG938 K010
3/16" .1875" Diameter Kyocera ORION Carbide High Performance Micro Drill, TiAlN Coated 160-1875AG938 K010
Regular price
$29.95 USD
Regular price
Sale price
$29.95 USD
Unit price
per
3 left in stock
SKU: K010
Couldn't load pickup availability
Grade: Micrograin | Item: Screw Machine Drill Bit |
Overall Length: 2-1/2" | Decimal Equivalent: 0.1875 |
Flute Length: 15/16" | Number of Flutes: 2 |
Drill Bit Size: 3/16" | Drill Bit Material: Solid Carbide |
Drill Bit Finish: TiAlN | Coolant Through: No |
Application: Metalworking | Drill Bit Point Angle: 142 Degrees |
Depth:Dia. Ratio: 3xD | Point Type: 6 Facet |
Drill Bit Dimension Type: Fractional Inch | Shank Dia.: 1/4" |
Cutting Direction: Right Hand | List Number: 160 |
Shank Type: Straight | Sizes Included: 3/16" |
Flute Type: Spiral | Depth x Dia. Ratio: 3xD |
Coolant Fed: Non-Coolant Through | Standards: Not Rated |
Shank Type - Machining: Straight | Material - Machining: Carbide |
Primary Material Application ISO Code: H, M, P, S | Measurement System: Fractional Inch |
Primary Material Application: Brass, Cast Iron, Composite, Copper Alloy, Graphite | Finish - Machining: AlTiN |
Series: 160 ORION | Material Grade - Machining: Sub Micron |
Web Thinning: X-Thinned | Spiral Direction: Right Hand |
Drill Bit Point Type: 6 Facet Point | Web Construction: Split |
Drill Length Class: Screw Machine Length | Drill Diameter Tolerance: +0.00016"/+0.00063" |
Maximum Drilling Depth: 0.5630" | Country of Origin (subject to change): United States |
