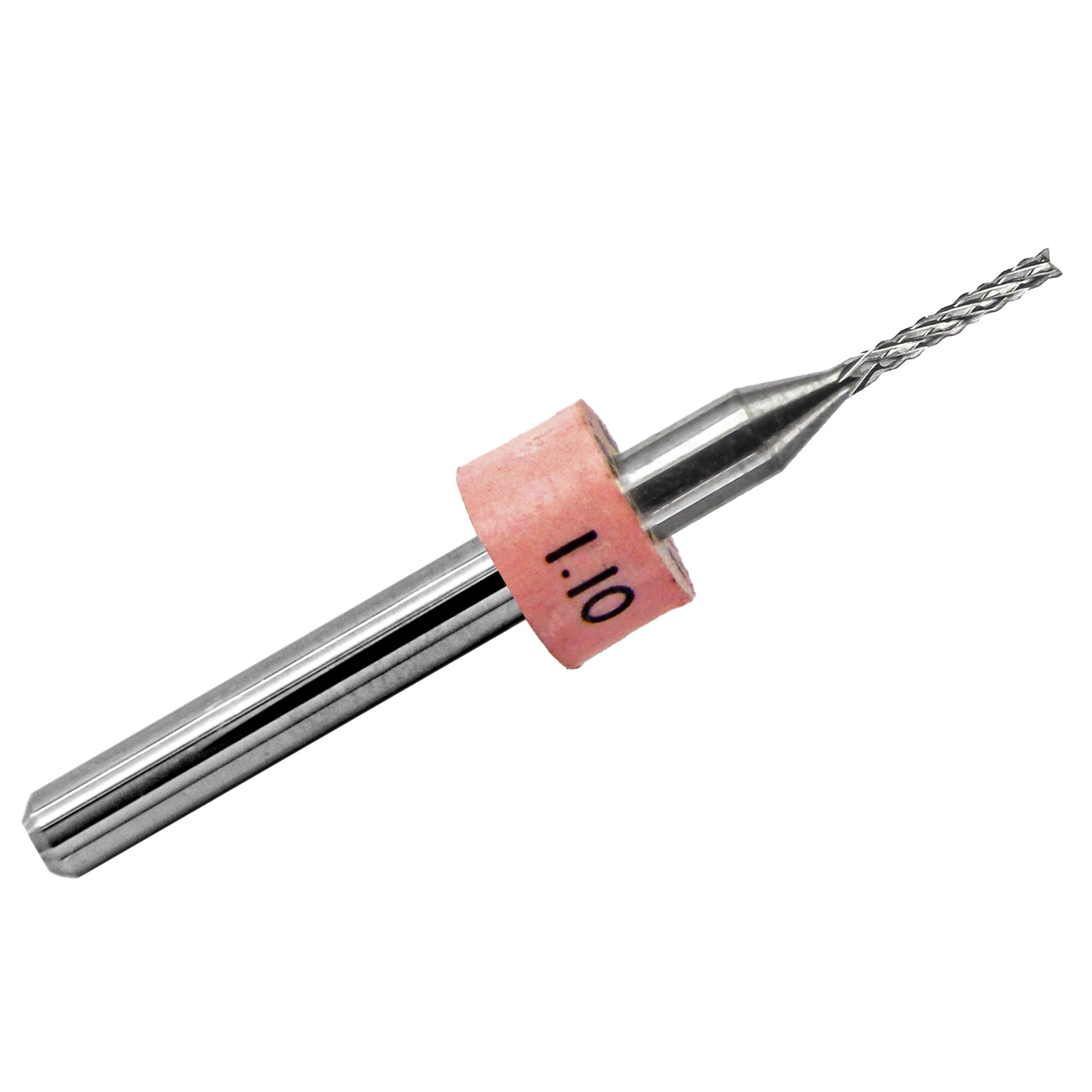

.043" 1.10mm X .300" LOC - Diamond Pattern Router Bit Carbide - Fishtail Tip R117A

Click HERE for Feed and Speed Recommendations

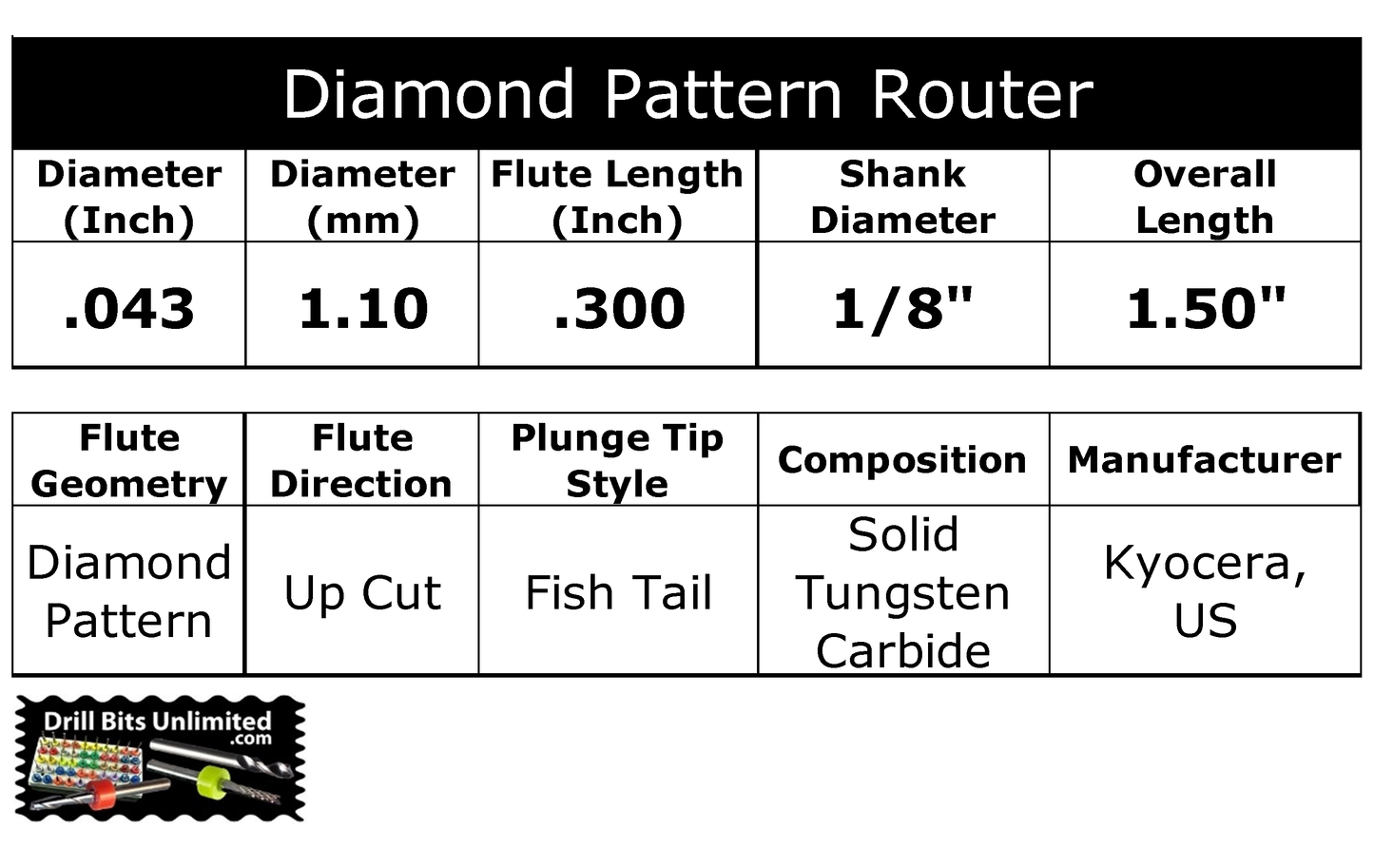

Router Style:	Diamond Cut

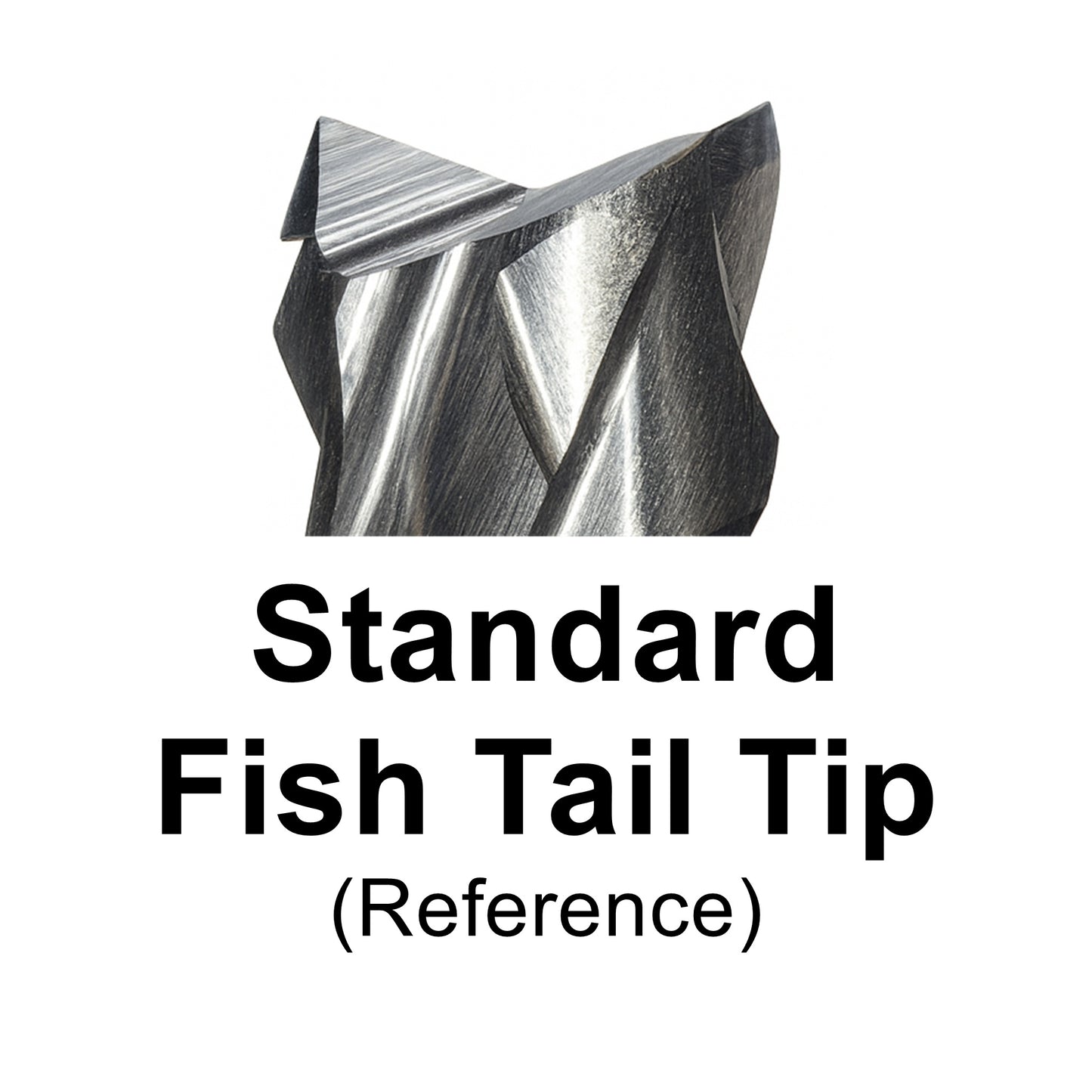

Plunge Tip:	Fish Tail
Mill Diameter (Inch) :	.043
Mill Diameter (mm) :	1.10
Depth of Cut (inch):	.300
Shank Diameter (Inch) :	1/8
Overall Length (inch):	1.50
Material:	Solid Tungsten Carbide
Coating/Finish:	Bright
Cutting Direction:	Right Hand
Flute Direction:	Right Hand (Up Cut)

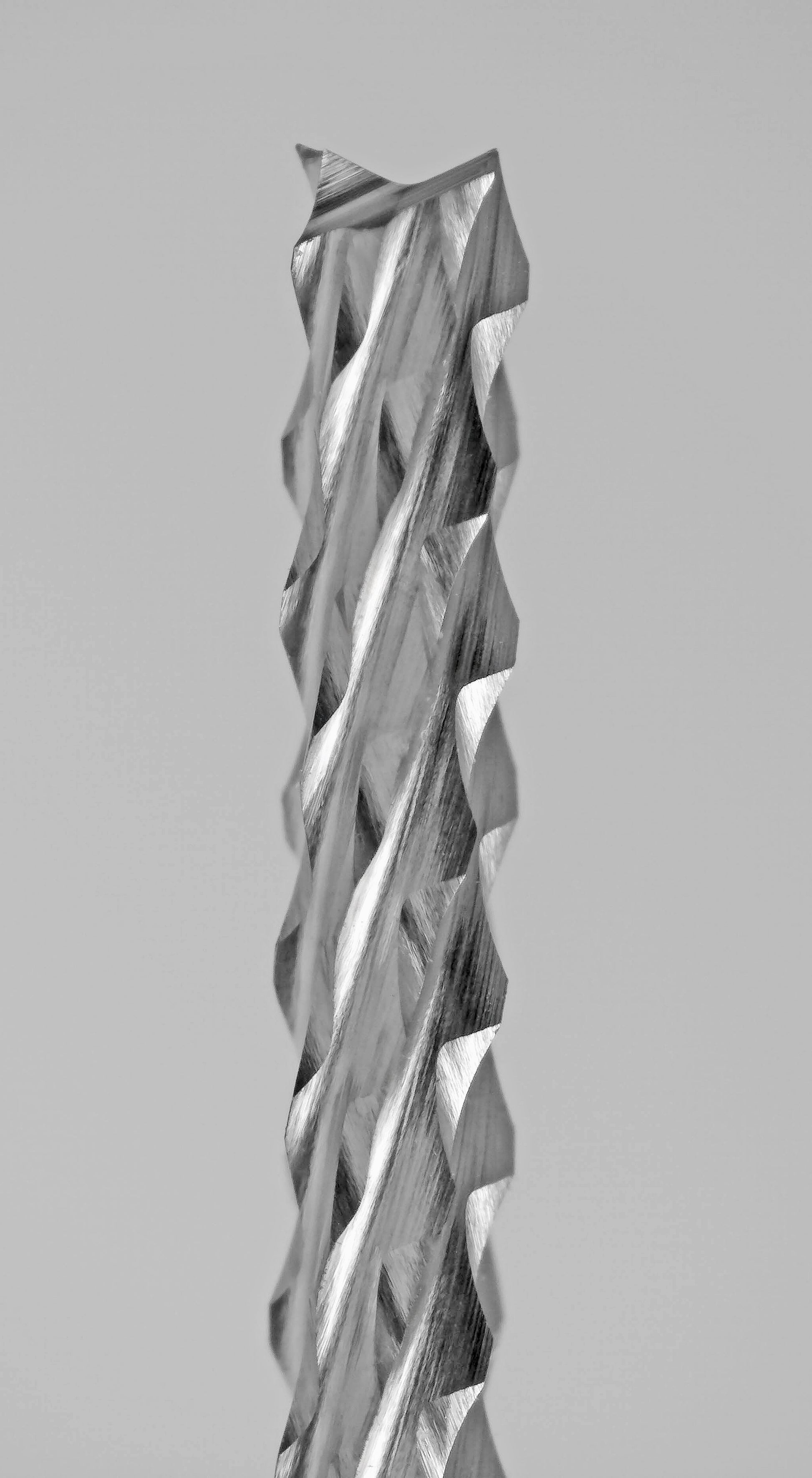

Flute Type:	Diamond Pattern
Center Cutting?:	Yes

Numerous diamond-shaped cutting surfaces is gentle on material, leaving a clean and smooth edge without delamination, cracking or fraying.

Perfect for milling hard and abrasive materials including carbon fiber, G10, FR4, fiberglass substrates, ceramics, etc.

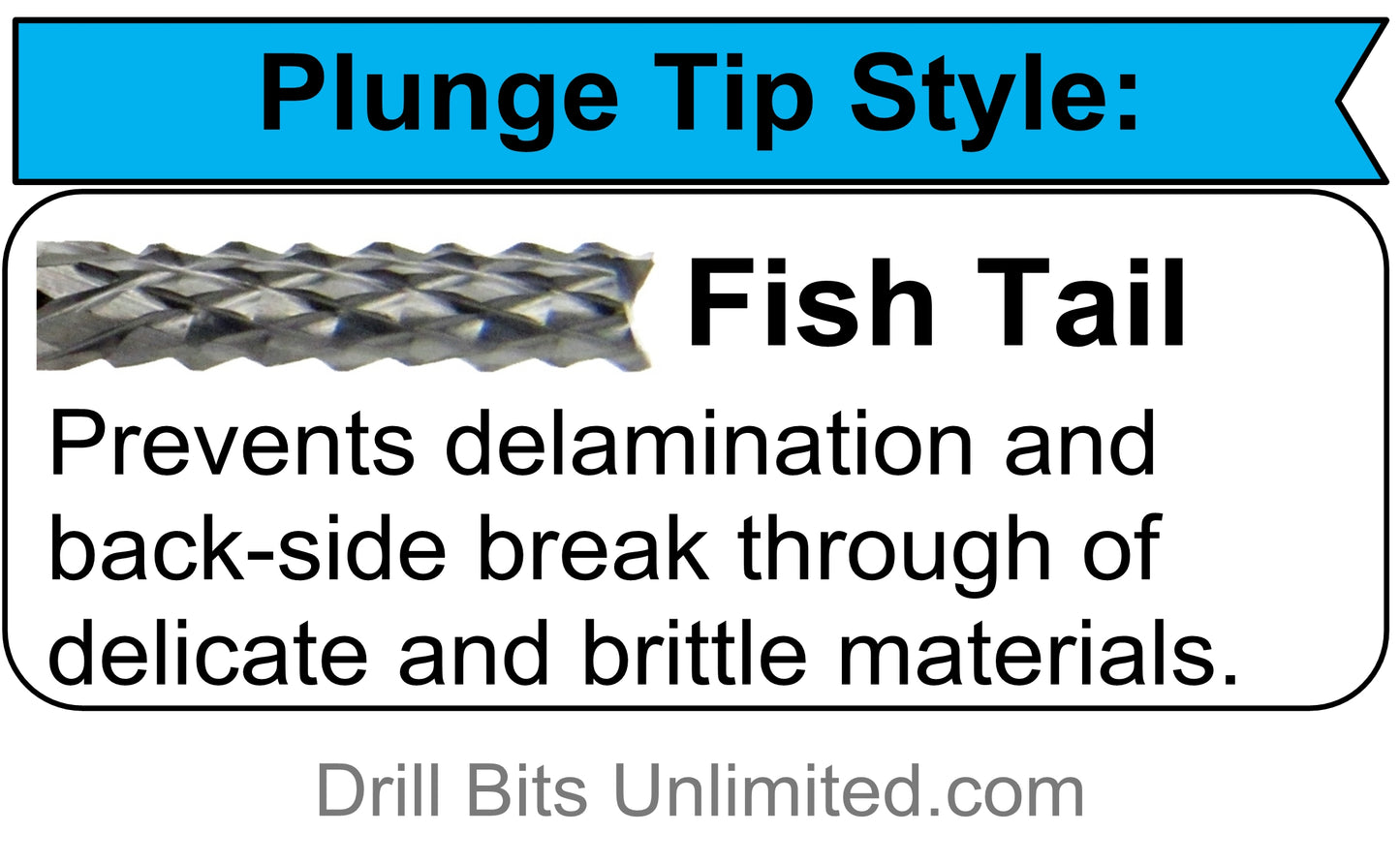

Fishtail plunge tip prevents back side break through and splintering.
