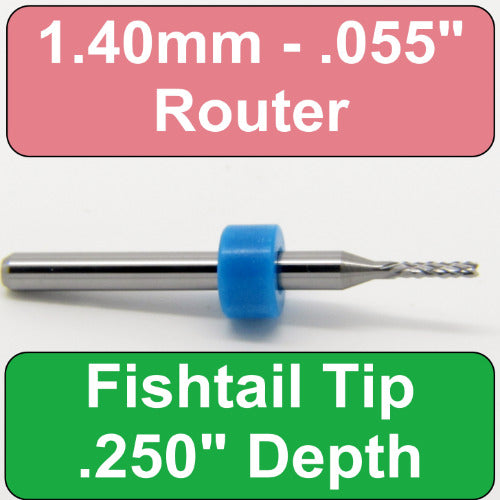

.055" 1.40mm x .250" LOC - Diamond Pattern Carbide Router Bit - Fish Tail R127

Click HERE for Feed and Speed Recommendations

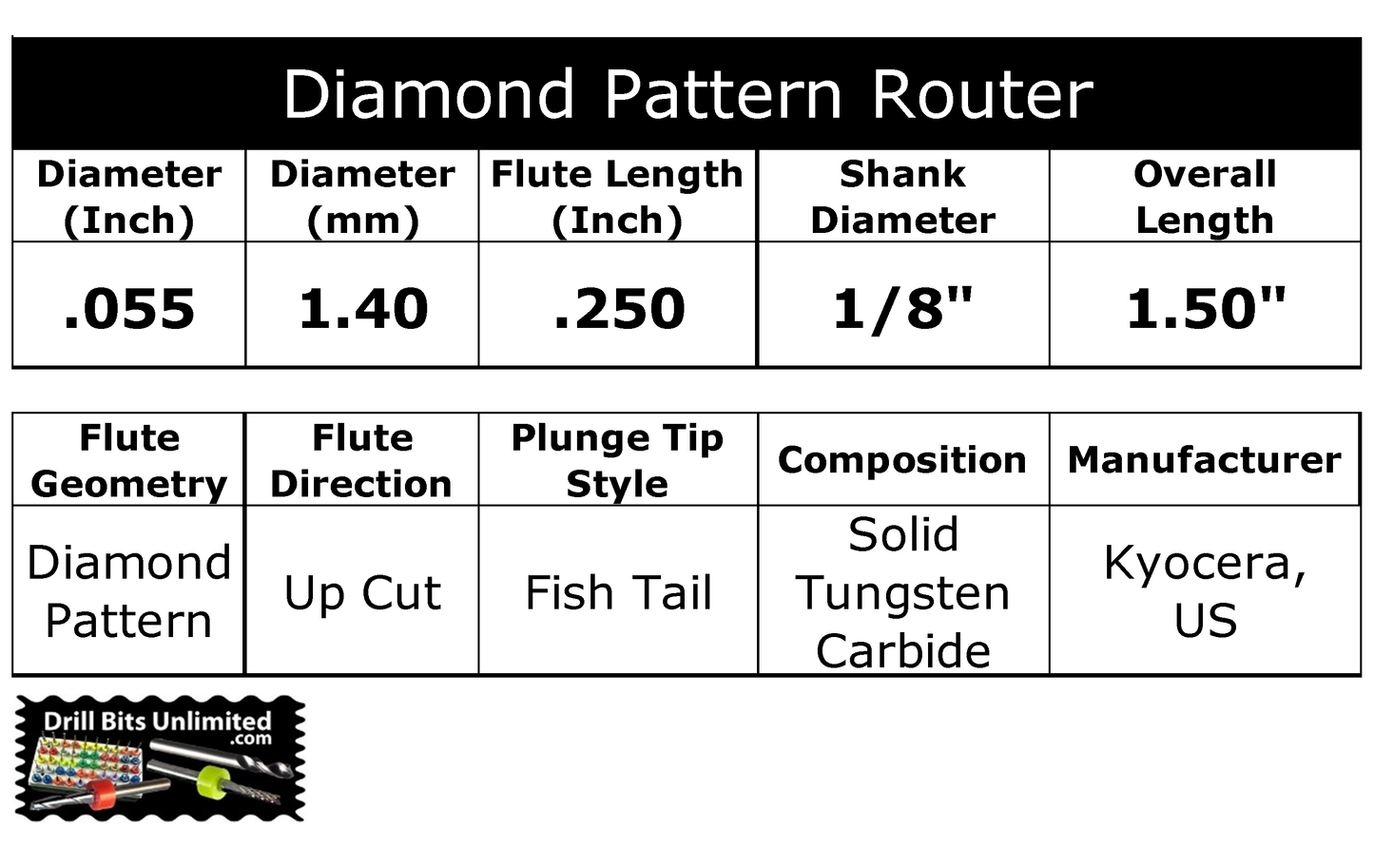

Type	Diamond Cut Flutes
Manufacturer	Kyocera

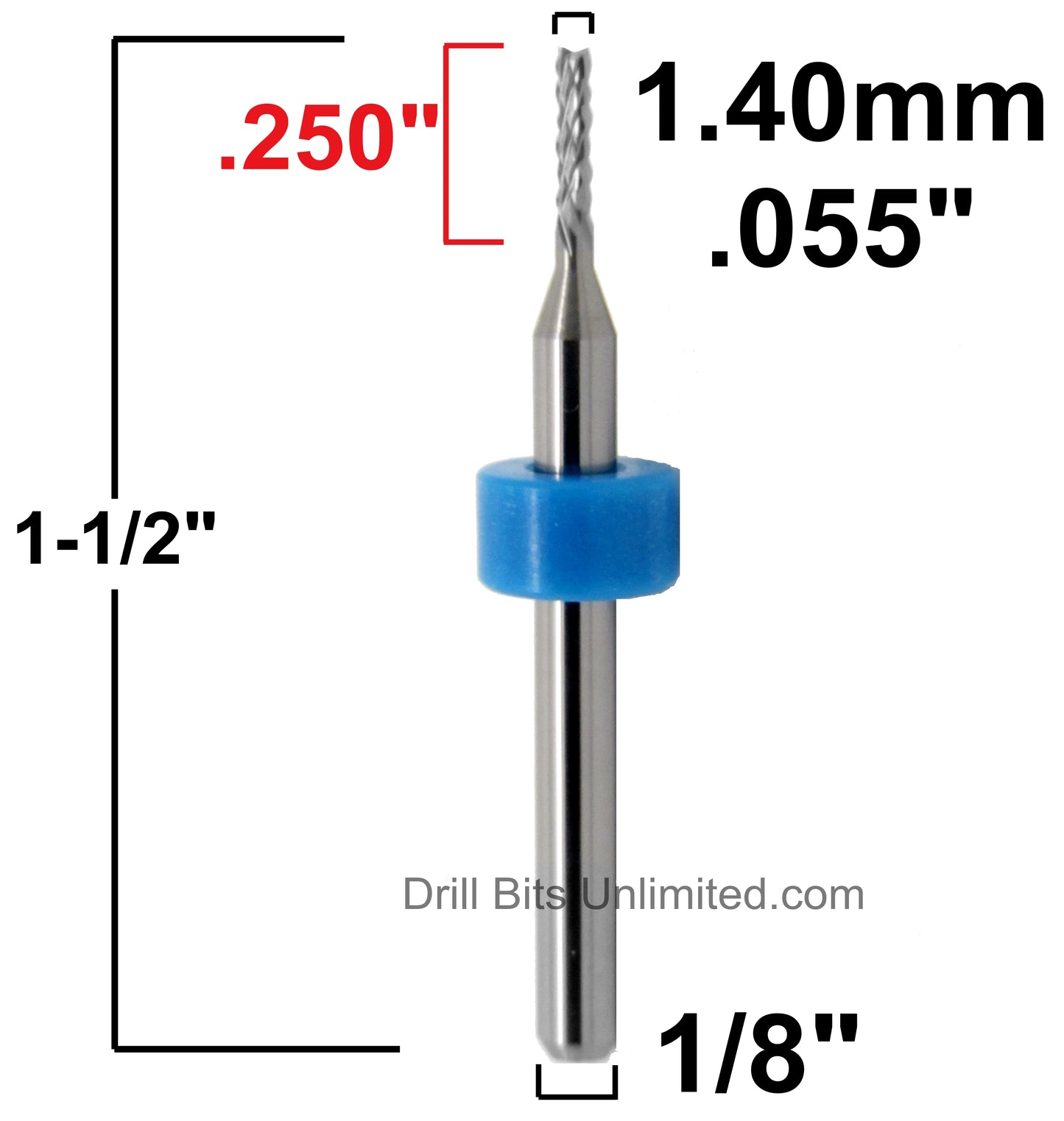

Cutting Diameter	1.40mm - .055"
Tip Style	Fishtail
Material	Solid Tungsten Carbide
Shaft Diameter	1/8"
Overall Length	1.50"
Flute Length (Depth of Cut)	.250"
Chip Flow Direction	Upcut - Towards Spindle

Numerous diamond-shaped cutting surfaces is gentle on material, leaving a clean and smooth edge without delamination, cracking or fraying.

Perfect for milling hard and abrasive materials including carbon fiber, G10, FR4, fiberglass substrates, ceramics, etc.

Fishtail plunge tip prevents back side break through and splintering.
