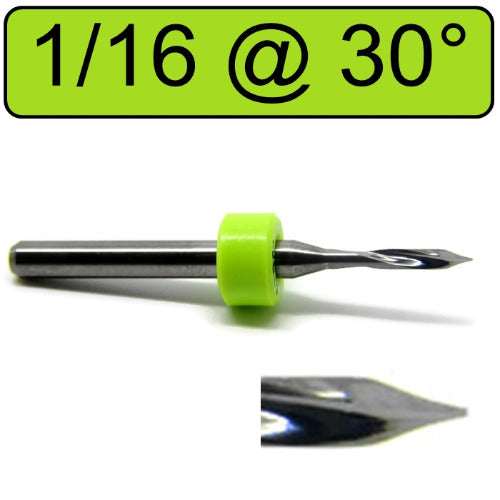

.0625" 1/16" 30 Degree, Scoring / Engraving, Trace Isolation V-Bit Engraver High Precision Made in U.S.A. E103

.0625" 1/16" 30 Degree, Scoring / Engraving, Trace Isolation V-Bit Engraver High Precision Made in U.S.A. E103

$14.99 USD
$14.99 USD
Sale Sold out

20 left in stock

SKU: E103

True Spiral 2-flute "V" point Bits.

  • These high precision carbide tools offer an optimum combination of high resolution cutting and tip strength while the cutting edge geometry virtually eliminates chatter at high feed rates.

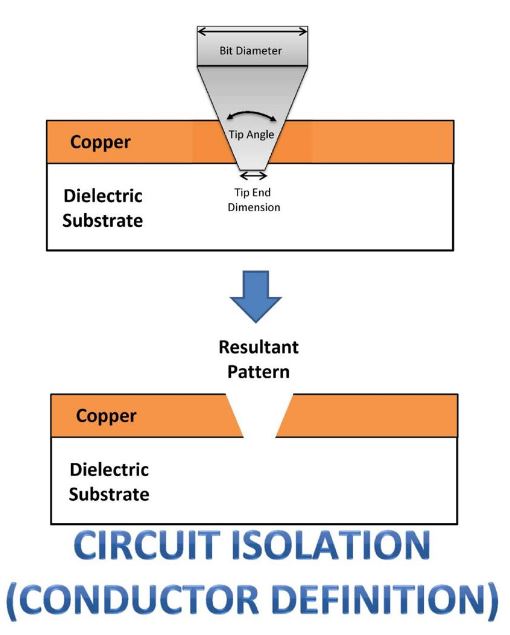

  • The plunge style tip geometry insures reliable copper or other substrate removal at all isolation widths.

  • 1/8" fits most CNC and other equipment.

  • Compatible with LPKF, T-Tech, MITS, AccurateCNC desktop PCB prototyping machines and most similar equipment.


Tool Type: V-Point Two Flute Scoring/Engraving Tool

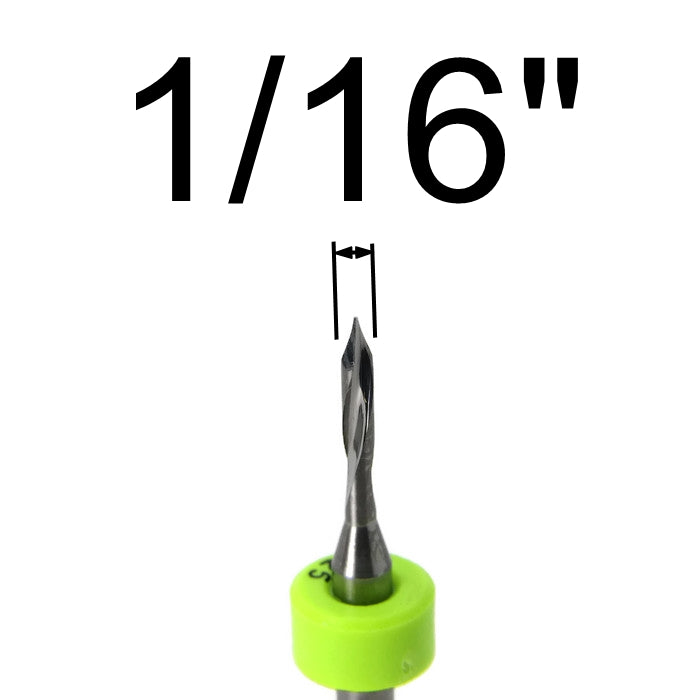

Cutting Diameter (Inch) : .0625 - 1/16
Cutting Diameter (mm) : 1.60

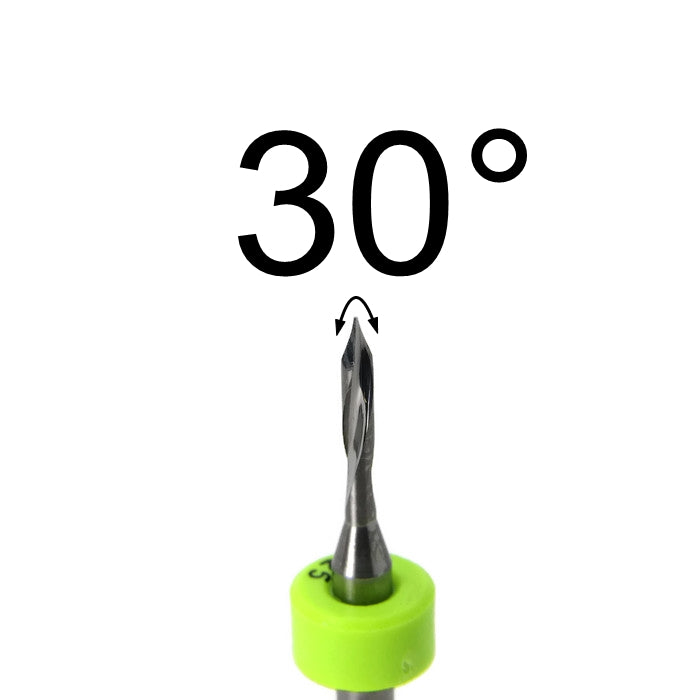

Tip Angle (Degrees): 30
# of Flutes: 2
Length of Cut ,LOC (inch): .117

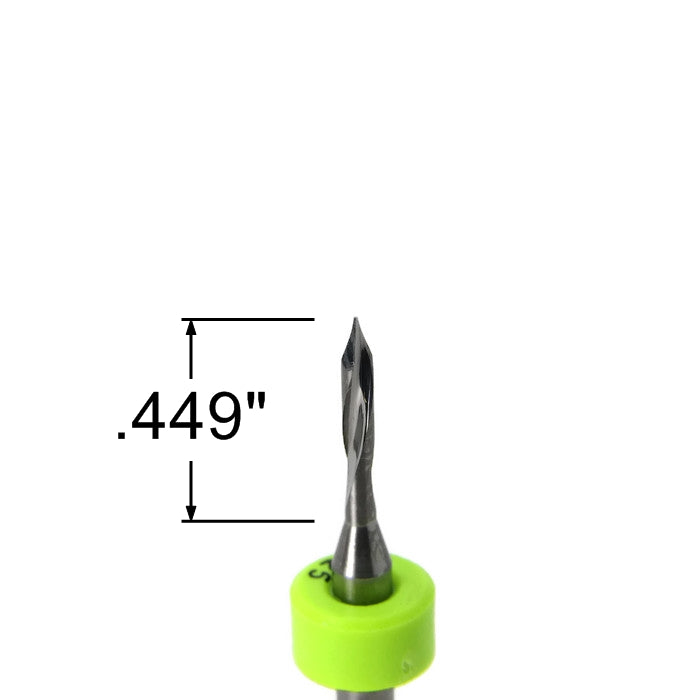

Reach: .449
Shank Diameter (Inch) : 1/8
Shank Diameter (mm) : 3.175

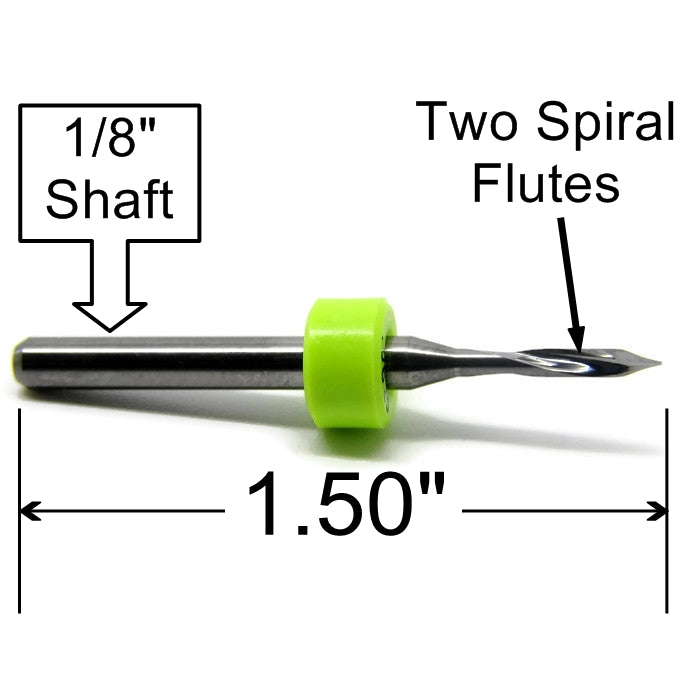

Overall Length (inch): 1.50
Material: Solid Tungsten Carbide
Finish: N/A
Cutting Direction: Right Hand
Flute Direction: Right Hand (Up Cut)
Flute Type: Spiral
