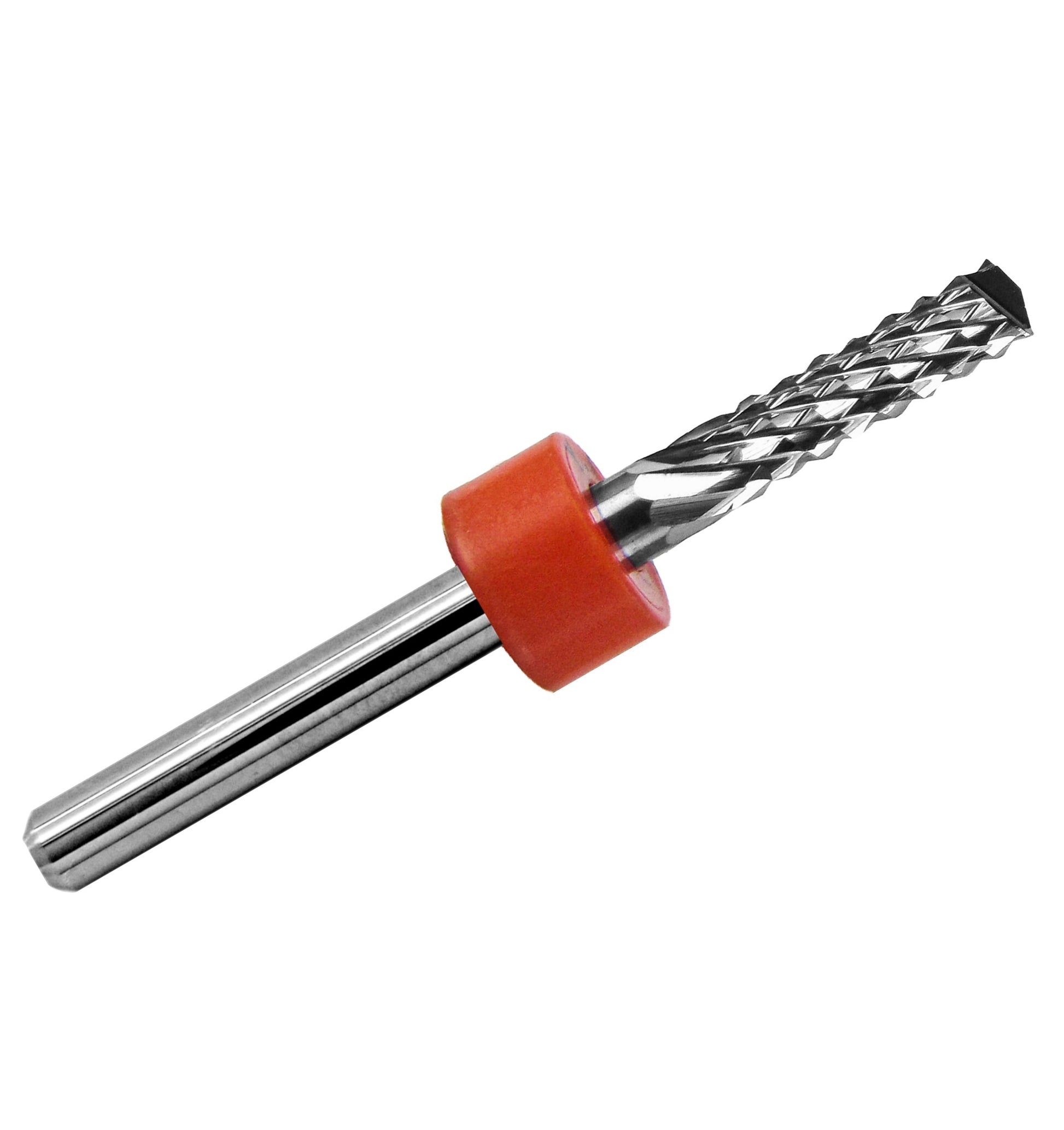

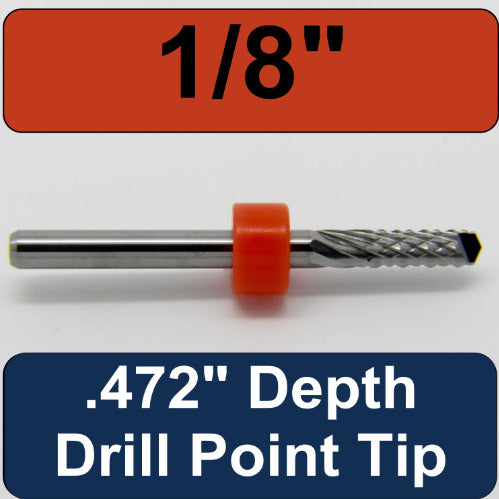

1/8" x .472" LOC Diamond Pattern Carbide Router Bit - Drill Point R146

1/8" x .472" LOC Diamond Pattern Carbide Router Bit - Drill Point R146

Regular price $3.49 USD
Regular price Sale price $3.49 USD
Sale Sold out

160 left in stock

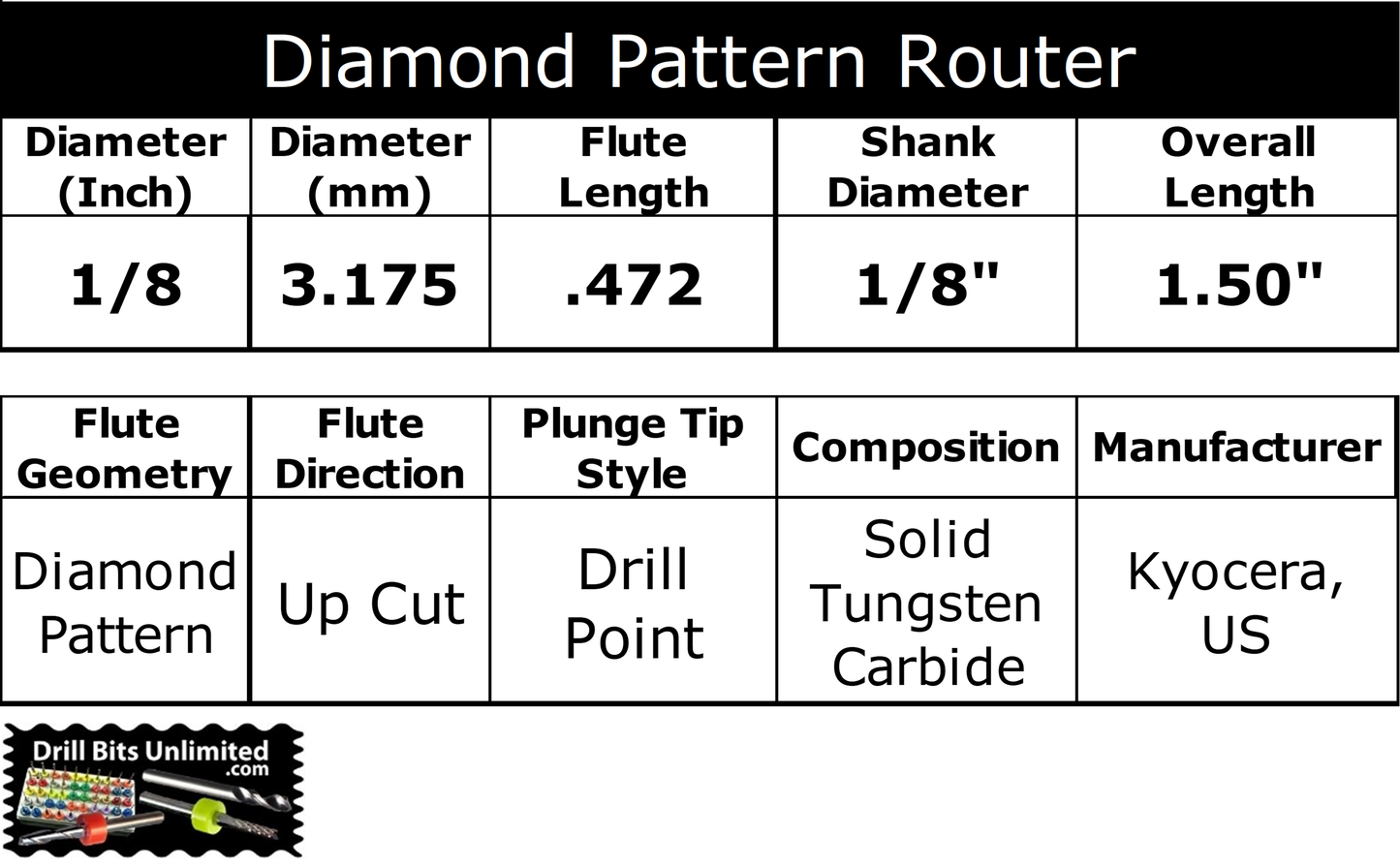

SKU: R146

Router Style: Diamond Cut
Plunge Tip: Drill Point

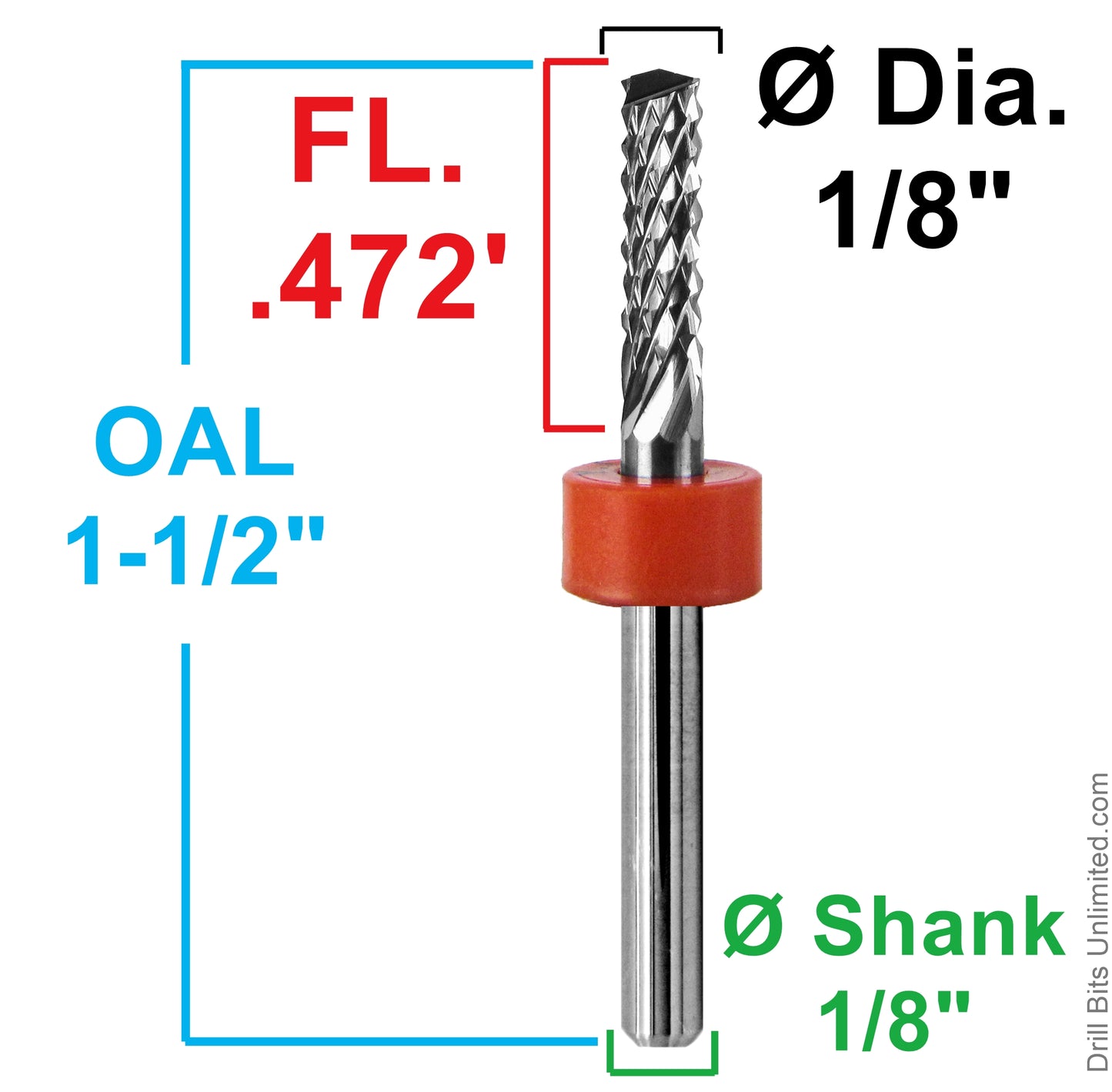

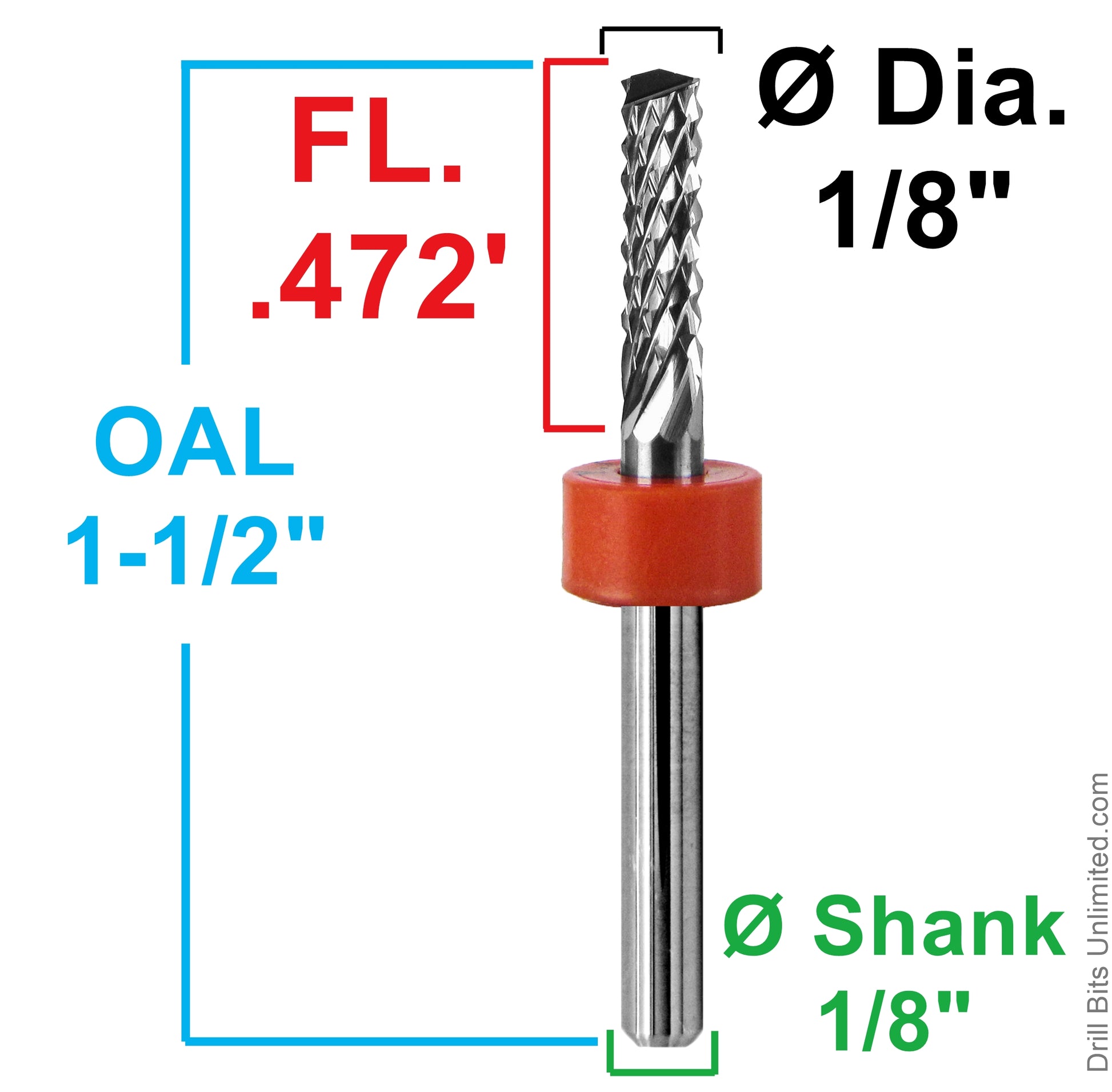

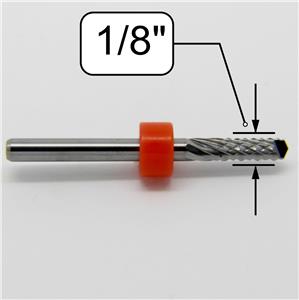

Mill Diameter (Inch) : 1/8
Mill Diameter (mm) : 3.175

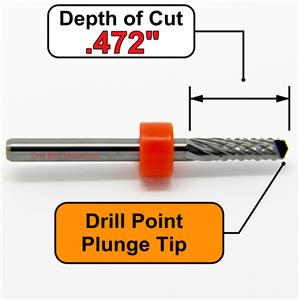

Depth of Cut (inch): .472
Shank Diameter (Inch) : 1/8
Overall Length (inch): 1.50
Material: Solid Tungsten Carbide
Coating/Finish: n/a
Cutting Direction: Right Hand
Flute Direction: Right Hand (Up Cut)
Flute Type: Diamond Pattern
Center Cutting?:

Yes

Numerous diamond-shaped cutting surfaces is gentle on material, leaving a clean and smooth edge without delamination, cracking or fraying.

Perfect for milling hard and abrasive materials including carbon fiber, G10, FR4, fiberglass substrates, ceramics, etc.

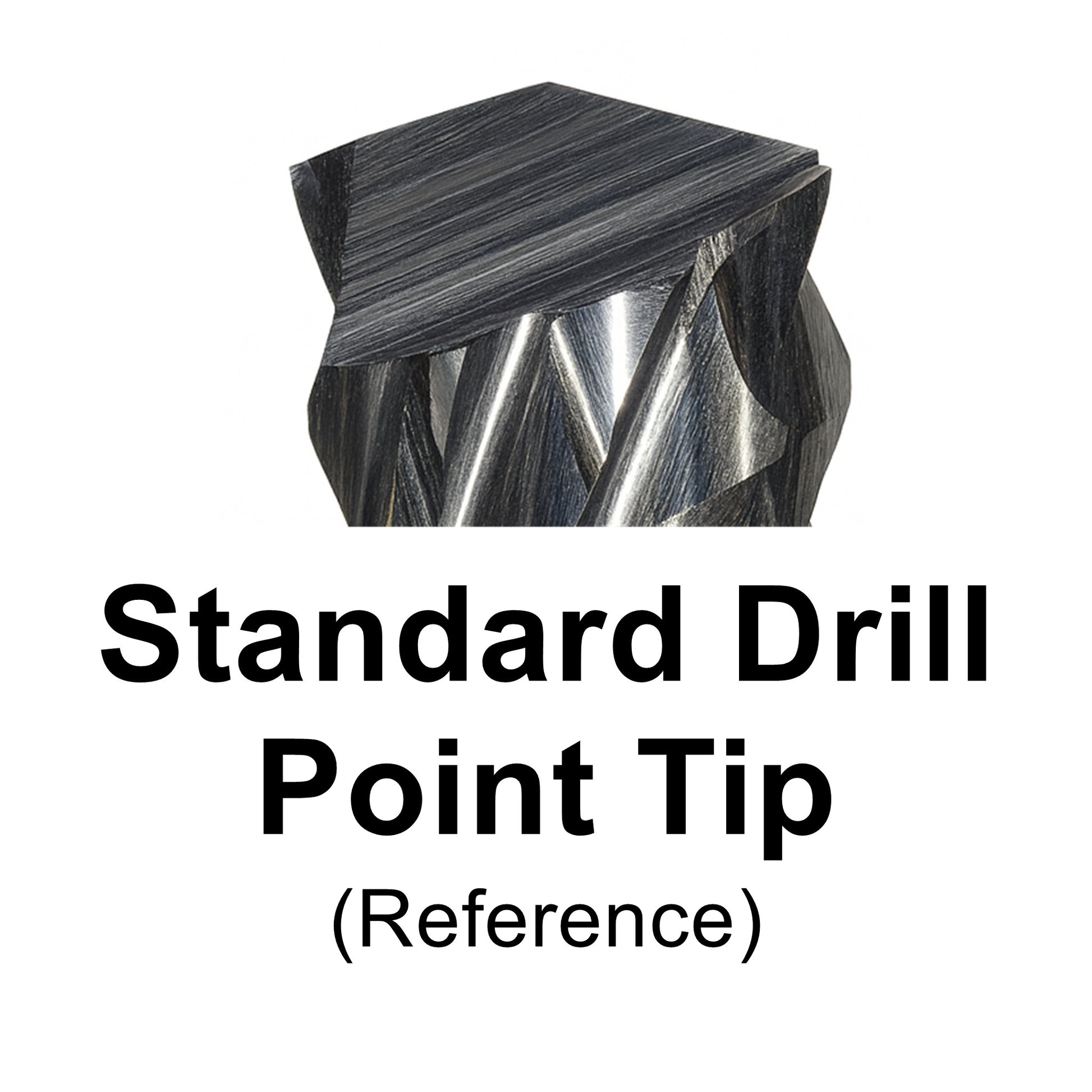

Drill point plunge tip holds up to high plunge rates and dense materials.
