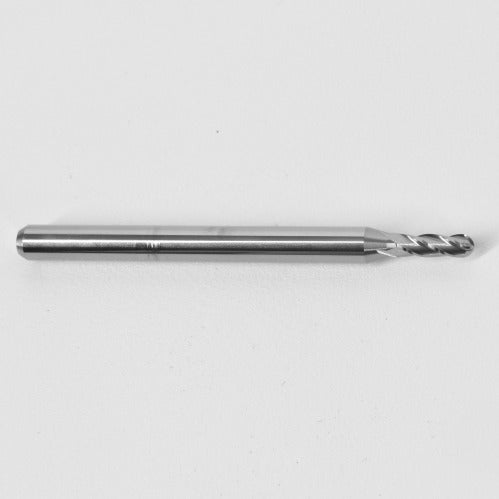

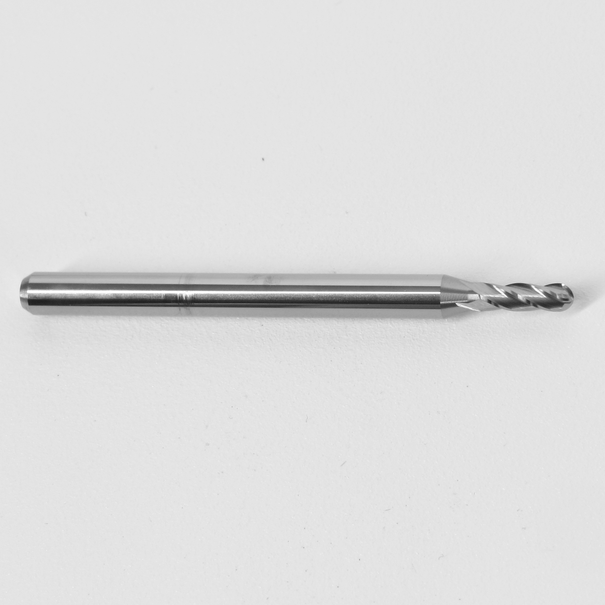

1.90mm .0748" Diameter Ball Nose End Mill, Carbide, 4-Flute, 1825-0748.224 K018

Kyocera 1825-0748.224, 1.90mm Cut Dia,

Solid Round Ball Nose End Mill

• Cutting Diameter (Size): 2.50mm
• Cutting Diameter (Decimal Inch): 0.0984
• Cutting Diameter (mm): 2.50
• Shank Diameter (Decimal Inch): 0.1181
• Shank Diameter (mm): 3.00
• Overall Length (Decimal Inch): 1.496
• Overall Length (mm): 38.00
• Length of Cut (Decimal Inch): 0.295
• Length of Cut (mm): 7.50
• Length Type: Standard
• Helix Angle (Degree): 30
• Number of Flutes: 4
• Flute Style: Right Hand Spiral / Medium Helix
• Type: Micro, Center Cutting
• Hand of Cut: Right-Hand
• Shank Type: Straight / Cylindrical
• Material: Sub Micron Grain Carbide
• Finish / Coating: AlTiN
• Series: 1825
• Primary Workpiece Material: Steel ~30HRC, Steel 30~40HRC,

Hardened Steel ~55HRC

• Secondary Workpiece Material: Hardened Steel ~68HRC, Stainless Steel,

Cast Iron, Nickel / Cobalt,Titanium Alloy

• Application: Roughing / Finishing
• Unit of Measure: mm
