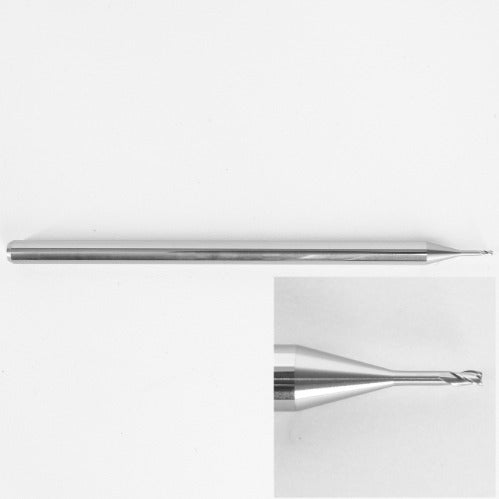

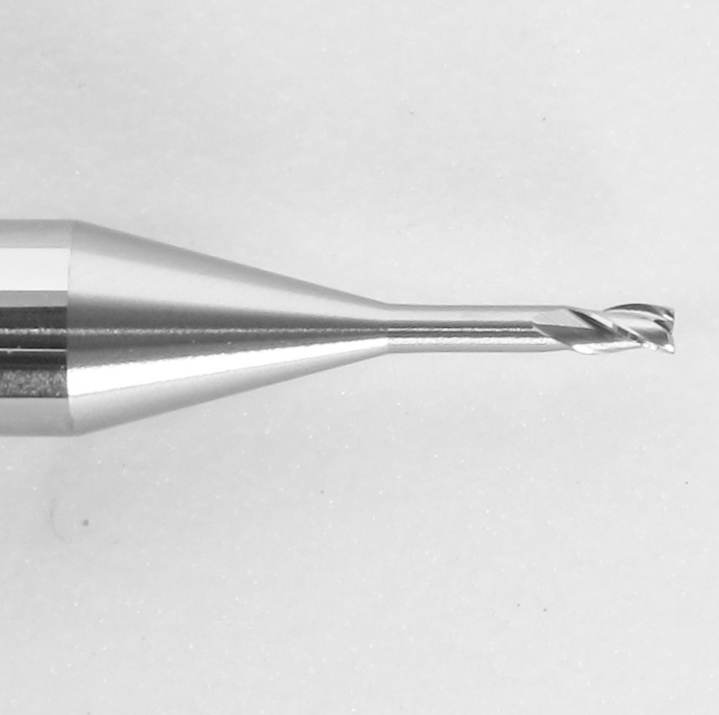

Kyocera 0.0300" 3-Flute Square End Carbide End Mill Extended Reach Stub Length 1/8" Shank 1742-0300.156 K136

This 0.0300" 3-flute square end carbide end mill is manufactured by Kyocera and made in the USA. It features an extended reach stub length design for improved access in tight areas while maintaining better rigidity than a long, full-neck tool.

Square end mills are designed for slotting, profiling, side milling, and precision finishing. The flat cutting end produces sharp corners and flat-bottom features, making this tool well suited for detailed CNC machining work.

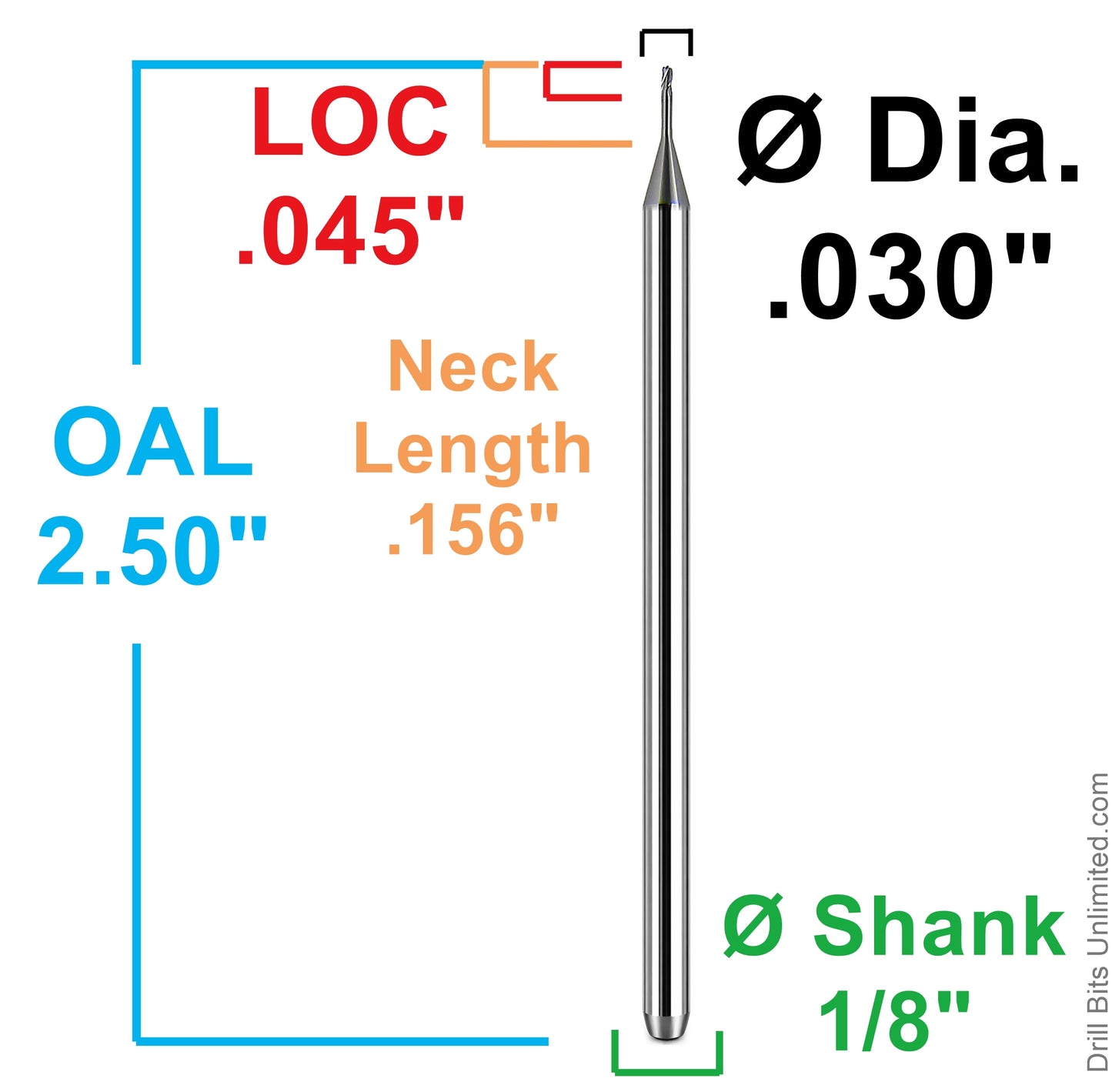

This tool has a 0.156" neck length and a reduced 0.0280" neck diameter, helping provide extra reach and clearance near shoulders, walls, and adjacent features. The stub length cutting geometry helps preserve rigidity at the cutting end.

As an uncoated micro-grain carbide tool, it is especially well suited for non-ferrous materials and super alloys per the manufacturer’s compatibility data.

This tool is manufactured by Kyocera and made in the USA.

Manufacturer: Kyocera

Series: 1742

Manufacturer Part Number: 1742-0300.156

Country of Origin: United States

Typical Applications

• Machining near walls and shoulders
• Extended-reach slotting and profiling
• Precision side milling
• Detailed CNC machining in confined areas
• Non-ferrous and specialty alloy work

Benefits

• Extended reach stub length design improves access while maintaining rigidity
• Reduced neck diameter helps with clearance in tight features
• Square end geometry produces sharp corners and flat-bottom cuts
• 3 flutes provide a good balance of rigidity and chip control
• Center-cutting design allows plunge entry where appropriate
• Made in the USA by Kyocera

Specifications
