Printed Circuit Board (PCB) Tools

Tools commonly used for PCB drilling and routing operations. Select the tool type below, then use filters to narrow by diameter, flute geometry, and tip style.





CNC Tools for PCB Manufacturing and Prototyping

Printed circuit boards (PCBs) are commonly machined using CNC equipment for drilling, routing, and isolation milling operations. These processes require extremely small and rigid carbide tools capable of machining fiberglass-reinforced laminates such as FR-4 and G-10.

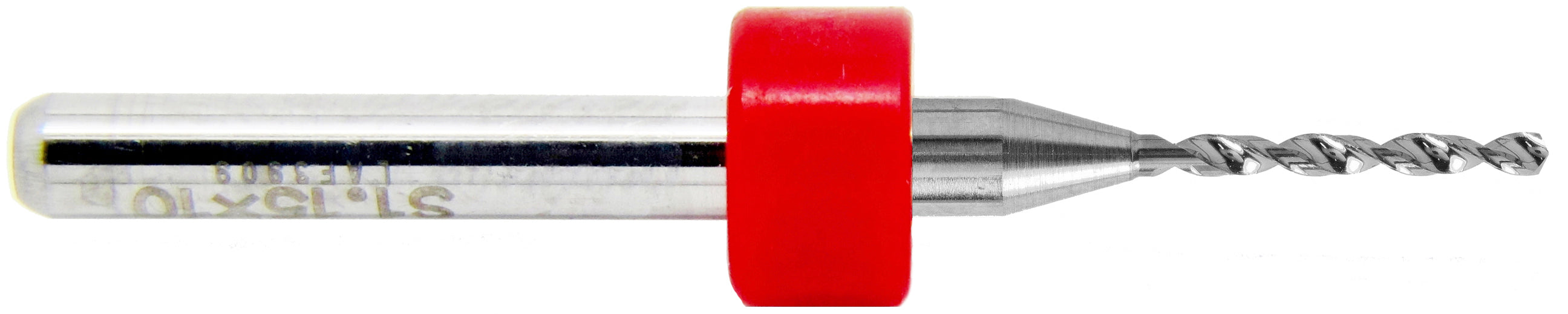

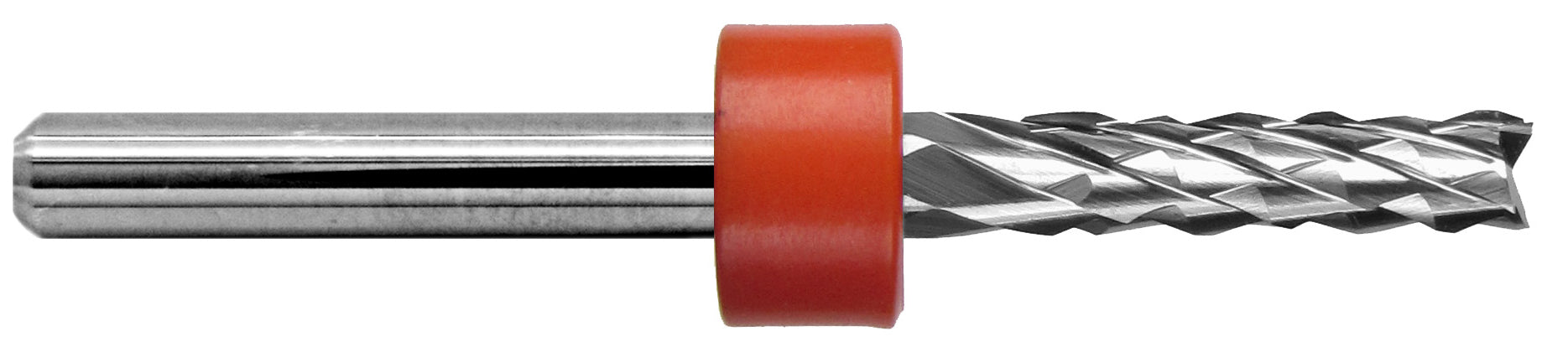

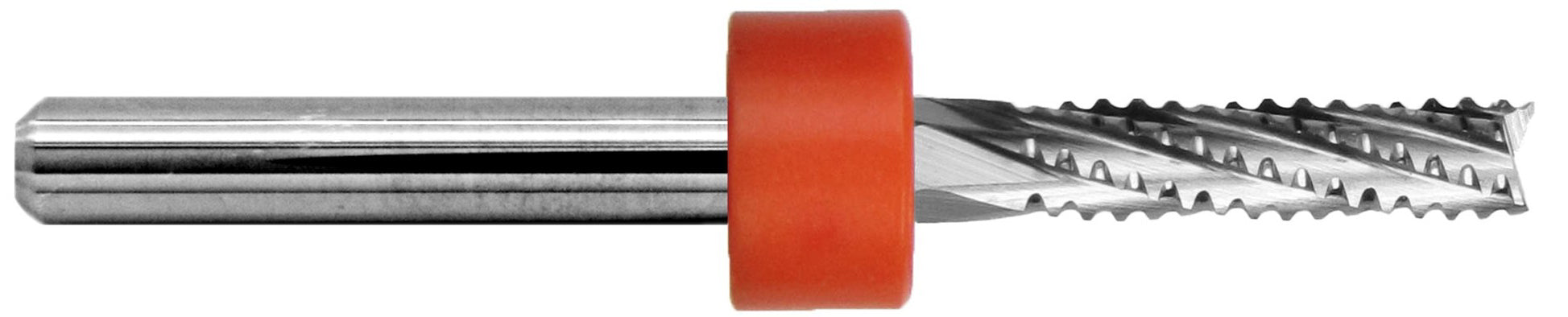

The tools below are commonly used in PCB fabrication and electronics prototyping, including carbide PCB drills, diamond-flute routers, and chip-breaker routers designed for routing composite laminates.

Common CNC PCB operations include drilling component holes, routing board outlines, and isolation milling of copper traces.

Chip Breaker vs Diamond Flute Routers — when to use each →
