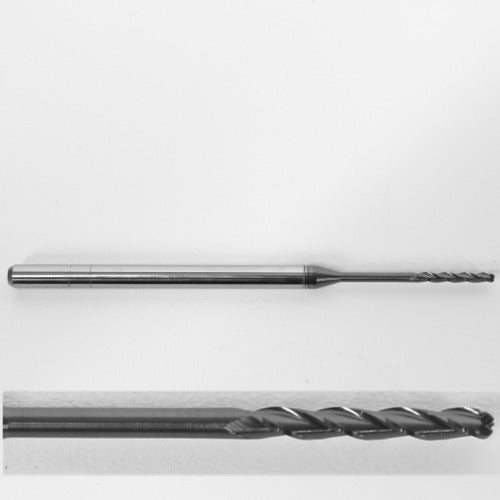

Kyocera 0.055" (1.40mm) 3-Flute Ball Nose Carbide End Mill Extended Reach AlTiN 1/8" Shank 1745-0550L770 K106

This 0.055" 3-flute ball nose carbide end mill is manufactured by Kyocera from micro-grain solid carbide and features a high-performance AlTiN coating for demanding CNC machining applications.

Ball nose end mills are designed for 3D contouring, profiling, and precision finishing. The rounded cutting tip allows smooth machining of curved surfaces and fine detail features while producing excellent surface finish.

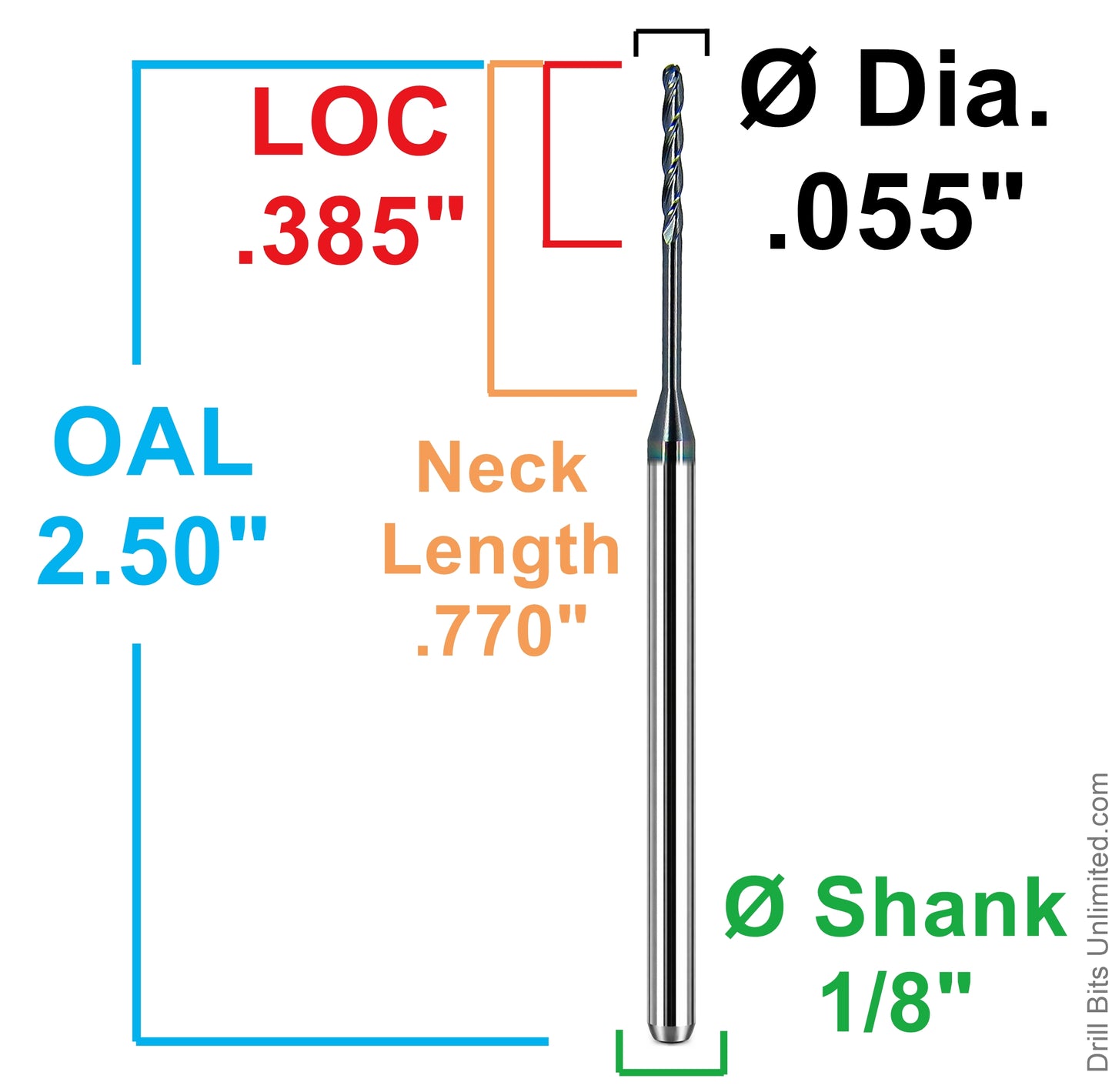

This tool features an extended reach neck design, allowing access to deeper features and hard-to-reach areas while maintaining rigidity and cutting stability.

The AlTiN coating improves wear resistance and heat resistance, making this tool ideal for steel, stainless steel, cast iron, hardened materials, and super alloys.

This tool is manufactured by Kyocera and made in the USA.

Manufacturer: Kyocera

Manufacturer Part Number: 1745-0550L770

Country of Origin: United States

Typical Applications

• 3D contour milling
• Mold and die finishing
• Deep cavity machining
• Precision CNC machining
• Hard material machining

Benefits

• Extended reach neck design allows access to deep features
• Ball nose geometry enables smooth contouring and finishing
• AlTiN coating increases tool life and heat resistance
• 3 flutes provide a balance of strength and chip evacuation
• Micro-grain carbide improves durability and edge retention
• Center-cutting design allows plunge milling

Specifications
