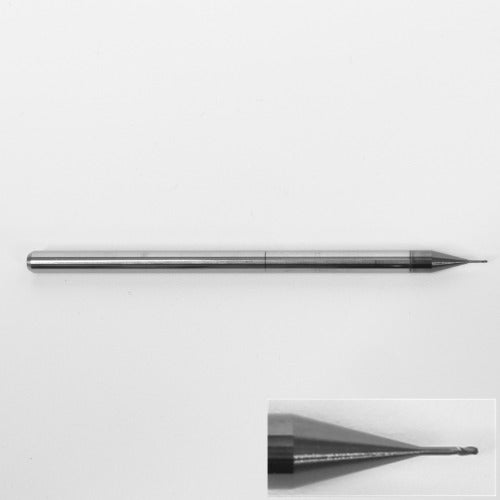

0.40mm (.0156") Kyocera 3-Flute Ball Nose Carbide End Mill AlTiN 1755-0156L078 K095

This 0.40mm (.0156") 3-flute ball nose carbide end mill is manufactured by Kyocera from micro-grain solid carbide and features a durable AlTiN coating for improved heat resistance and extended tool life during demanding CNC machining operations.

Ball nose end mills are designed for 3D contour machining, precision profiling, and micro-machining. The rounded cutting tip allows smooth machining of curved surfaces and fine details while producing excellent surface finishes.

The AlTiN coating provides excellent oxidation resistance and thermal stability, making this tool ideal for machining steels, stainless steels, cast iron, hardened materials, and super alloys. The extended neck design provides improved reach and clearance when machining deep features or complex cavities.

These precision tools are manufactured in the United States and engineered for consistent performance and long tool life in high-precision CNC machining applications.

Manufacturer: Kyocera

Manufacturer Part Number: 1755-0156L078

Country of Origin: United States

Typical Applications

• Micro CNC machining
• 3D contour milling
• Machining steels and stainless steels
• Precision cavity work
• Fine finishing operations

Benefits

• Ball nose geometry for smooth contour machining
• AlTiN coating improves heat resistance and tool life
• 3 flutes provide improved chip evacuation in small diameters
• Extended neck design allows deeper reach and clearance
• Micro-grain carbide ensures durability and edge retention

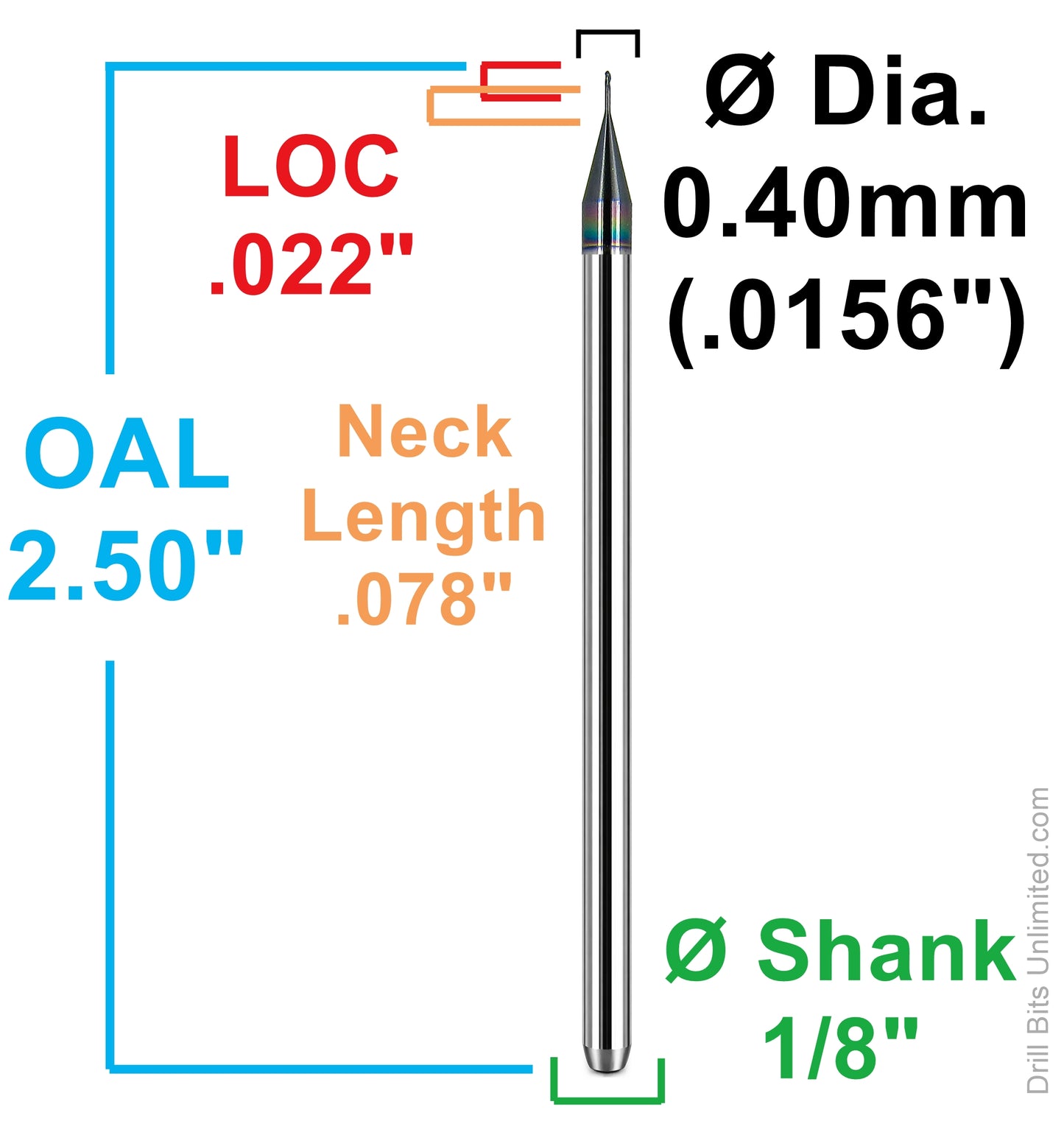

Specifications
