0.1969" Kyocera TITAN-AXM 5.00mm 3-Flute Square End Carbide End Mill AX Coated 6mm Shank T1969O591 K139

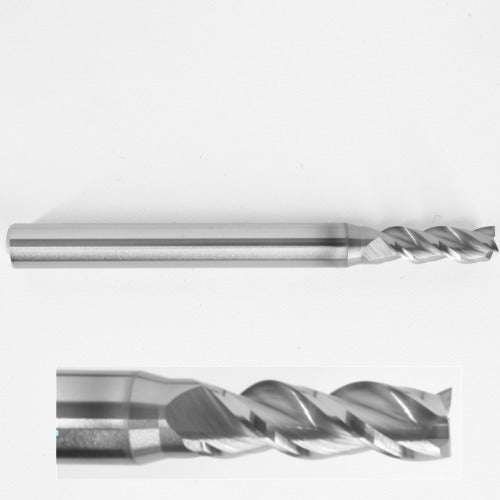

This 5.00mm 3-flute square end carbide end mill is manufactured by Kyocera and made in the USA. It features Kyocera’s AX high-performance coating and a variable helix design for demanding CNC machining applications.

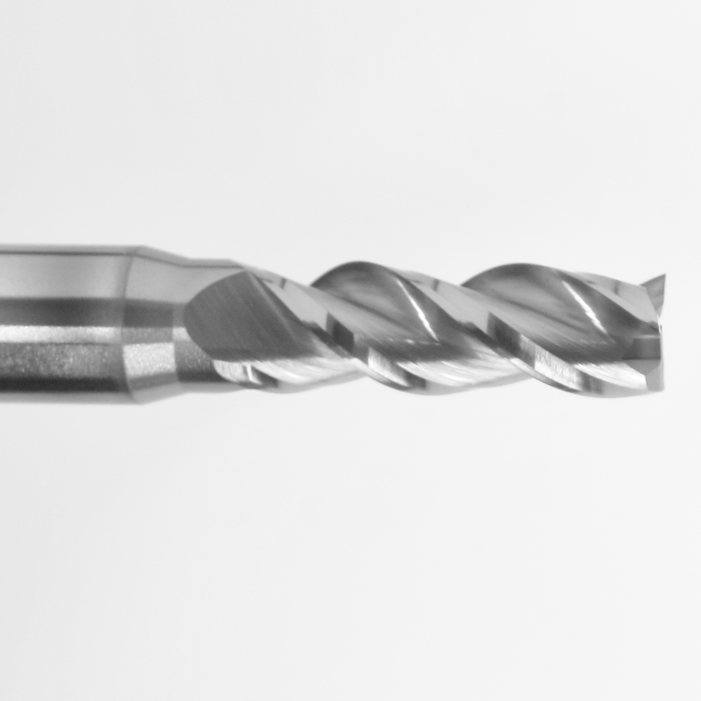

Part of the TITAN-AXM series, this tool is designed for tough machining applications where rigidity, chip control, and process stability are important. The 32° / 48° variable helix geometry helps reduce vibration and improve surface finish during high-speed and high-performance milling.

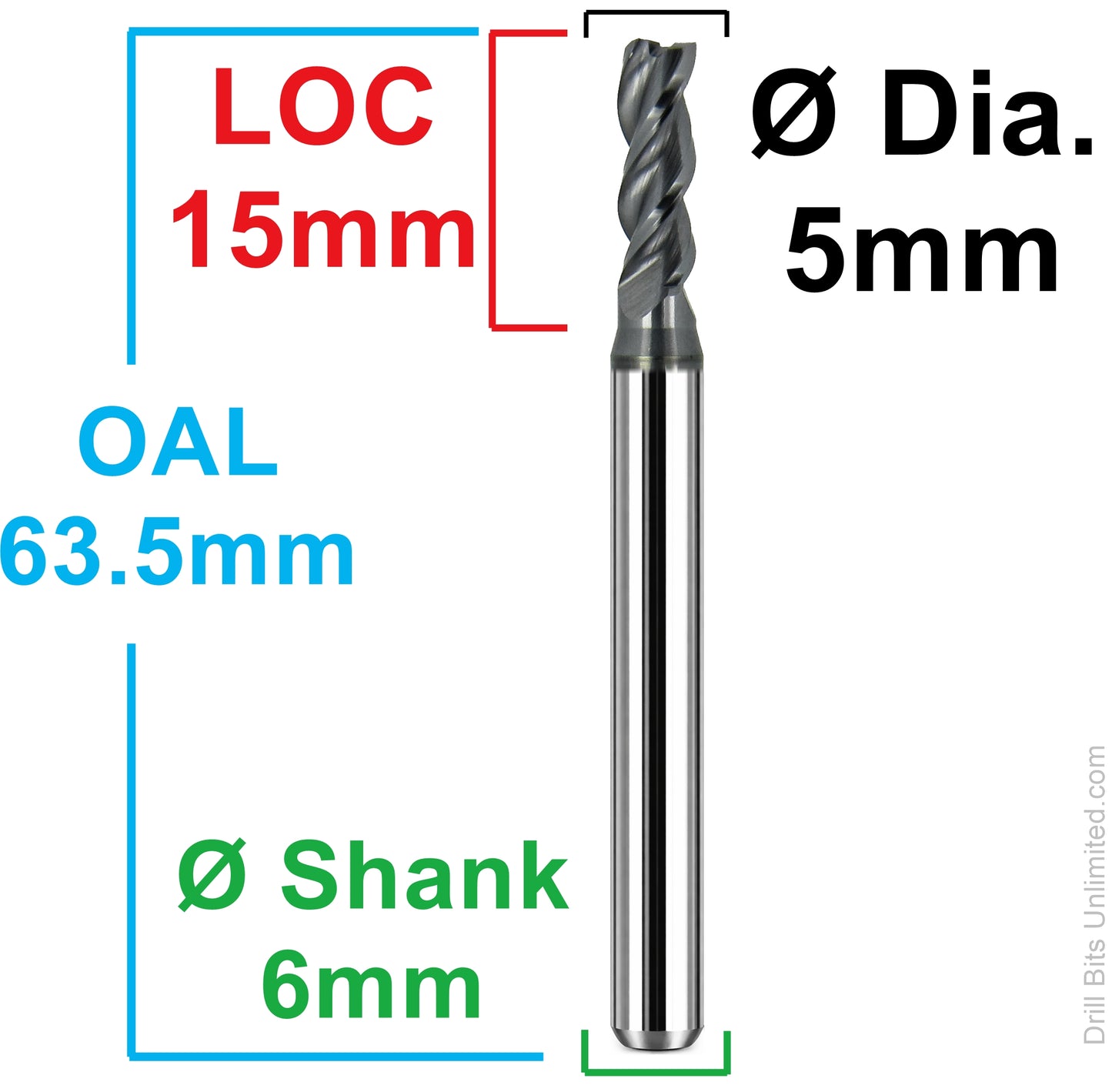

With a 5.00mm cutting diameter, 15.00mm length of cut, 6.00mm shank diameter, and 63.50mm overall length, this end mill offers a strong balance of reach, rigidity, and cutting performance.

This center-cutting square end mill is suitable for slotting, profiling, side milling, and general CNC roughing/finishing in steel, stainless steel, cast iron, hardened materials, and super alloys per the manufacturer compatibility data.

This tool is manufactured by Kyocera and made in the USA.

Manufacturer: Kyocera

Series: TITAN-AXM

Manufacturer Part Number: T1969O591

Country of Origin: United States

Typical Applications

• Slotting and profiling
• High-performance CNC milling
• Steel and stainless steel machining
• Cast iron machining
• Hardened material and super alloy machining

Benefits

• AX coating improves wear resistance and tool life
• Variable 32° / 48° helix helps reduce vibration
• 3 flutes provide a strong balance of rigidity and chip evacuation
• Center-cutting design allows plunge entry where appropriate
• Reinforced shank design supports stable machining
• Made in the USA by Kyocera

Specifications
