Carbide Engraving Bits (V-Bits) for CNC, PCB Isolation & Fine Detail

Carbide Engraving Bits — CNC V-Bits for Precision Detail & PCB Isolation

Carbide engraving bits (commonly called V-bits or V-groove bits) are precision cutting tools designed for fine detail engraving, lettering, chamfering, and PCB trace isolation routing. Unlike standard end mills, the cutting width is controlled by depth, allowing extremely fine lines and controlled material removal.

These tools are widely used on CNC routers and milling machines for materials such as FR-4 and G-10 laminates, fiberglass, carbon fiber composites, plastics, acrylics, aluminum, brass, hardwoods, and other non-ferrous materials.

Choosing the Right Engraving Bit

Different engraver geometries are designed for different performance levels and applications:

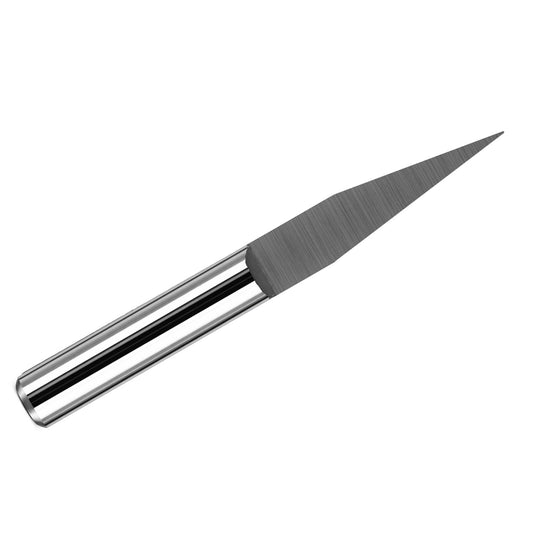

  • Standard V-Bit Engravers: The most common style, offering predictable cut width based on depth. Ideal for PCB isolation routing, lettering, and general engraving.

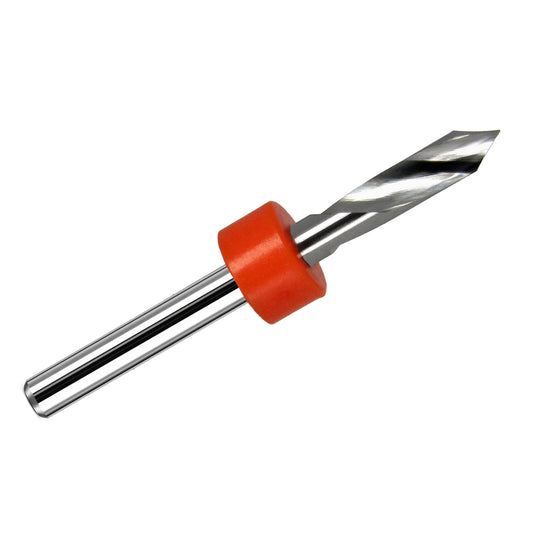

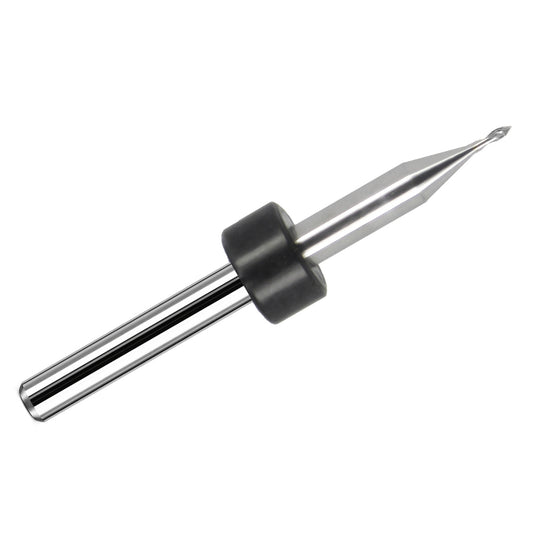

  • Spiral V-Engravers (Premium): Feature true 2-flute spiral cutting edges for smoother cutting, improved chip evacuation, and reduced chatter. These produce cleaner edges, longer tool life, and better performance at higher feed rates.
  • Pyramid (3-Edge) Engravers: Use a multi-faceted triangular tip for a stronger cutting point and increased durability. Well suited for intricate detail work or applications where standard V-bits may be more fragile.

How Tip Angle Affects Engraving & PCB Isolation

  • Small angles (10°–30°): Produce extremely fine lines and narrow isolation paths. Best for high-density PCB work and micro-detail engraving.
  • 60°: A versatile general-purpose angle for engraving, scoring, and reliable PCB isolation.
  • 90°–100°: Stronger cutting edges that produce wider grooves, ideal for chamfering, edge breaking, and bold engraving.

PCB note: Because cut width depends on depth, consistent Z-height control, flat spoilboards, and secure workholding are critical for accurate isolation routing.

Which Engraving Bit Type Should I Choose?

Bit Type Best For Key Advantage Typical Angles

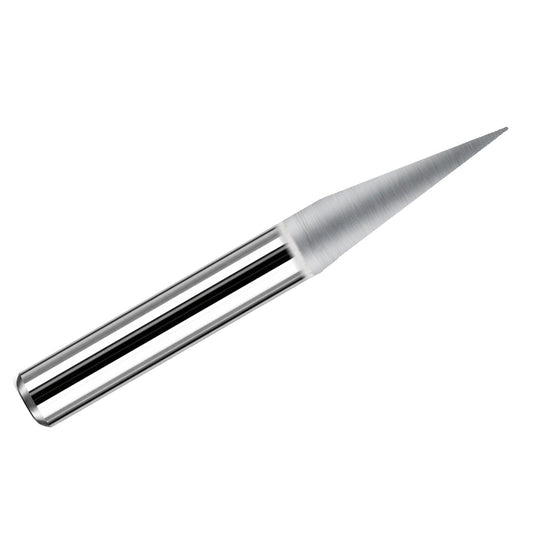

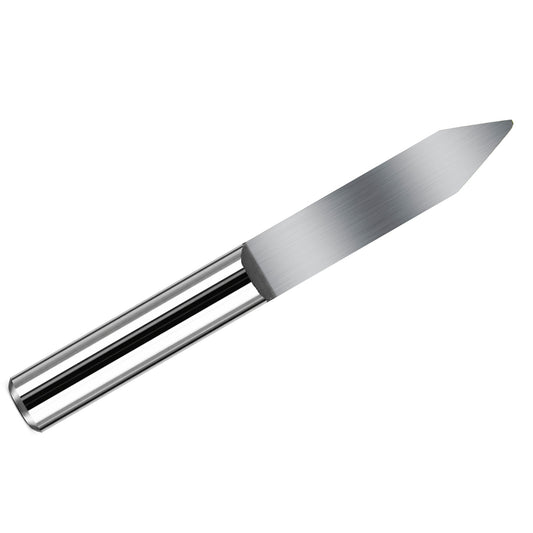

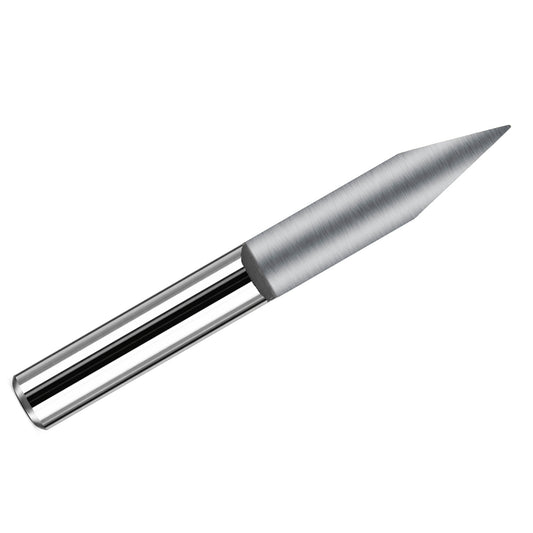

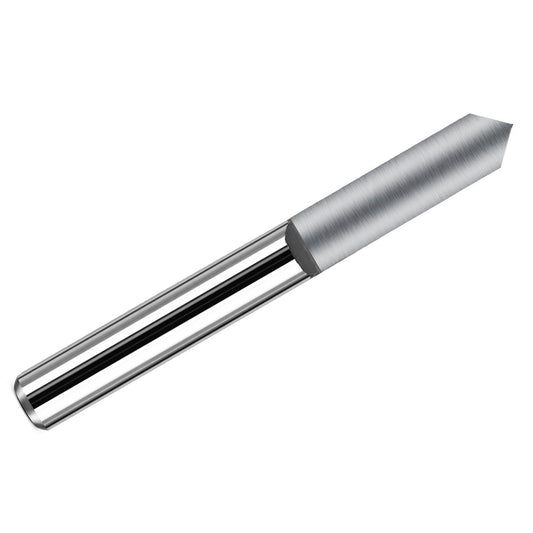

Standard V-Bit Engravers PCB isolation, lettering, fine engraving, general-purpose detail work Predictable cut width based on depth, broad angle selection, economical choice 15°, 20°, 30°, 40°, 60°, 90°

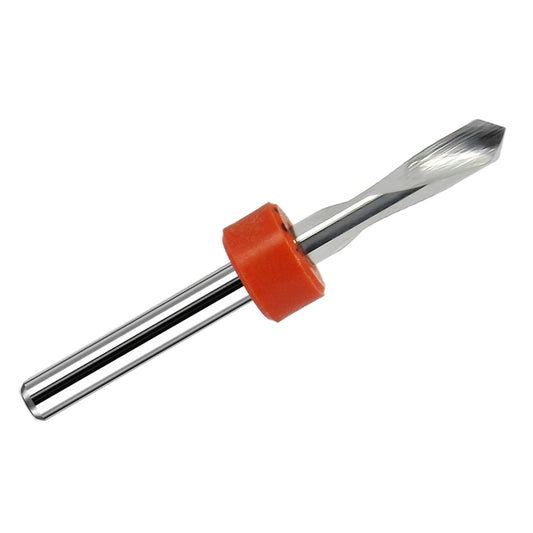

Spiral V-Engravers Cleaner engraving in plastics, wood, PCB materials, and non-ferrous metals True spiral flutes improve chip evacuation, reduce chatter, and support smoother cutting 30°,60°, 90°

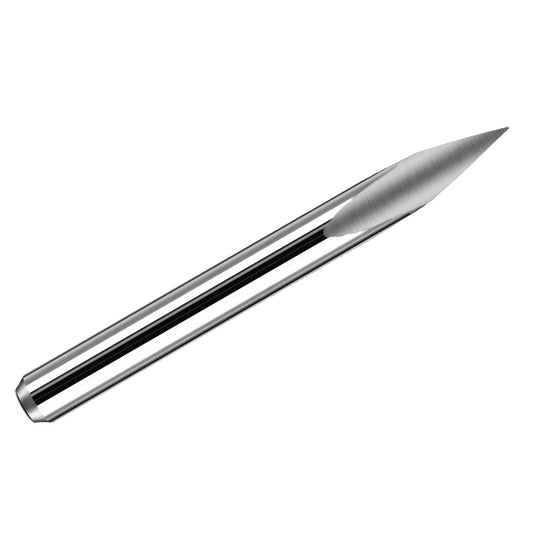

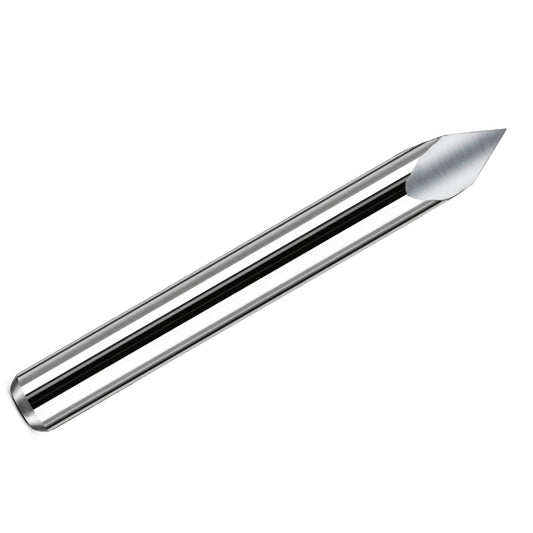

Pyramid (3-Edge) Engravers Precision engraving where added tip strength and durability are important 3-edge geometry creates a stronger cutting point for longer life and reduced chipping 30°, 60°

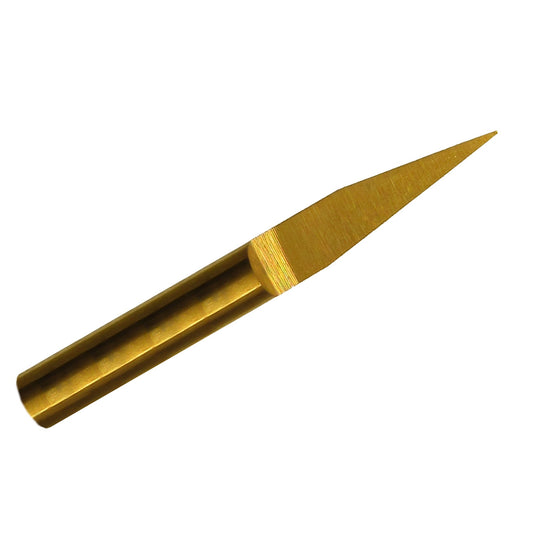

Titanium-Coated V-Engravers Fine engraving and PCB work where added wear resistance is desired Coated finish helps reduce wear and makes tools easy to identify in your setup 15° and similar fine-angle tools

Quick tip: Smaller angles produce finer lines, while wider angles create stronger cutting edges and wider grooves.

Applications

  • PCB circuit isolation (trace definition)
  • Fine engraving and micro lettering
  • Plastic and acrylic engraving
  • Wood engraving and sign making
  • Chamfering and edge finishing
  • Light-duty engraving in aluminum and brass

All engraving tools in this collection are manufactured from solid carbide for sharp cutting edges, long tool life, and consistent performance. Select from a range of angles and geometries to match your application, from ultra-fine detail work to durable, high-performance engraving.
