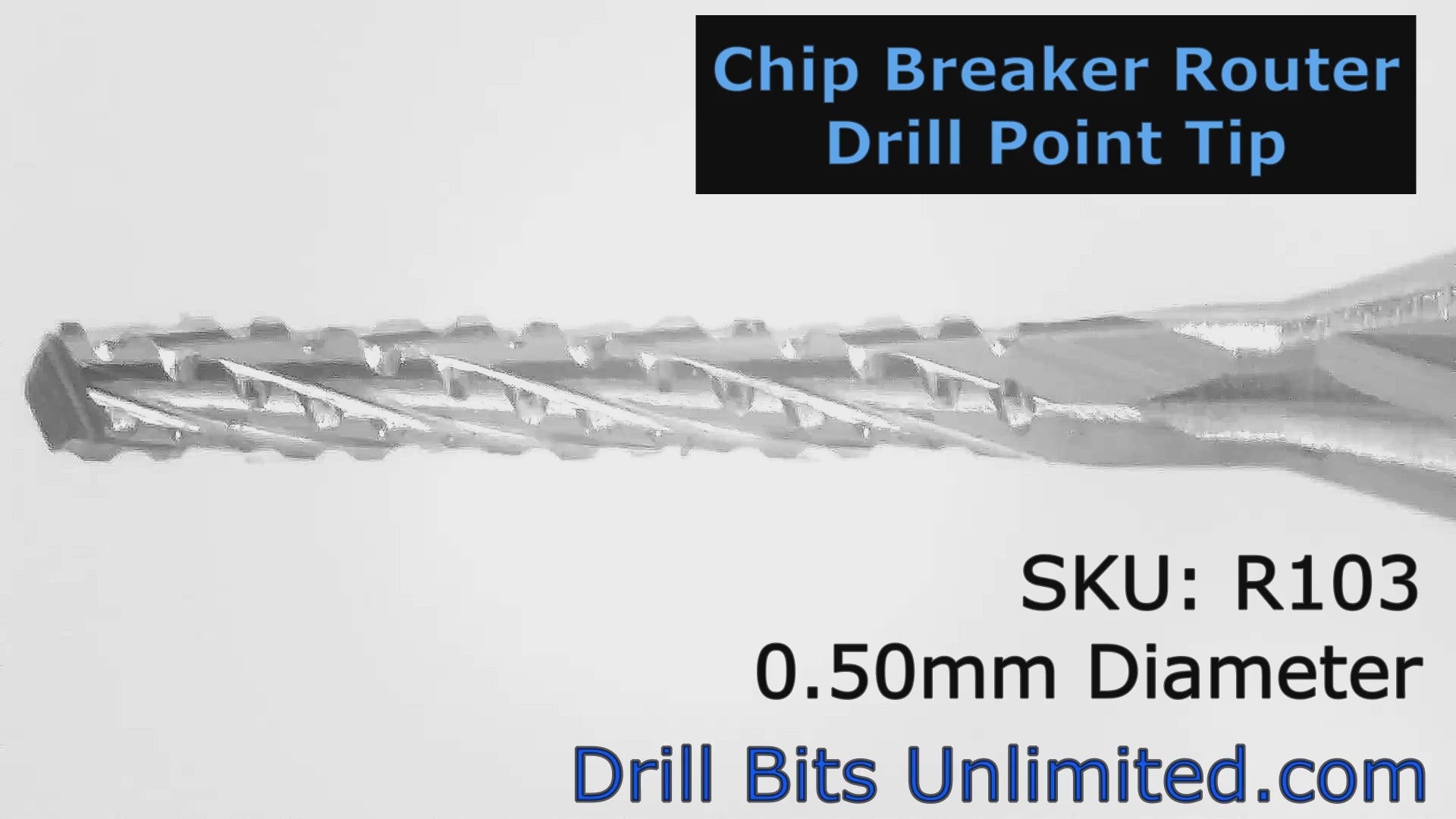

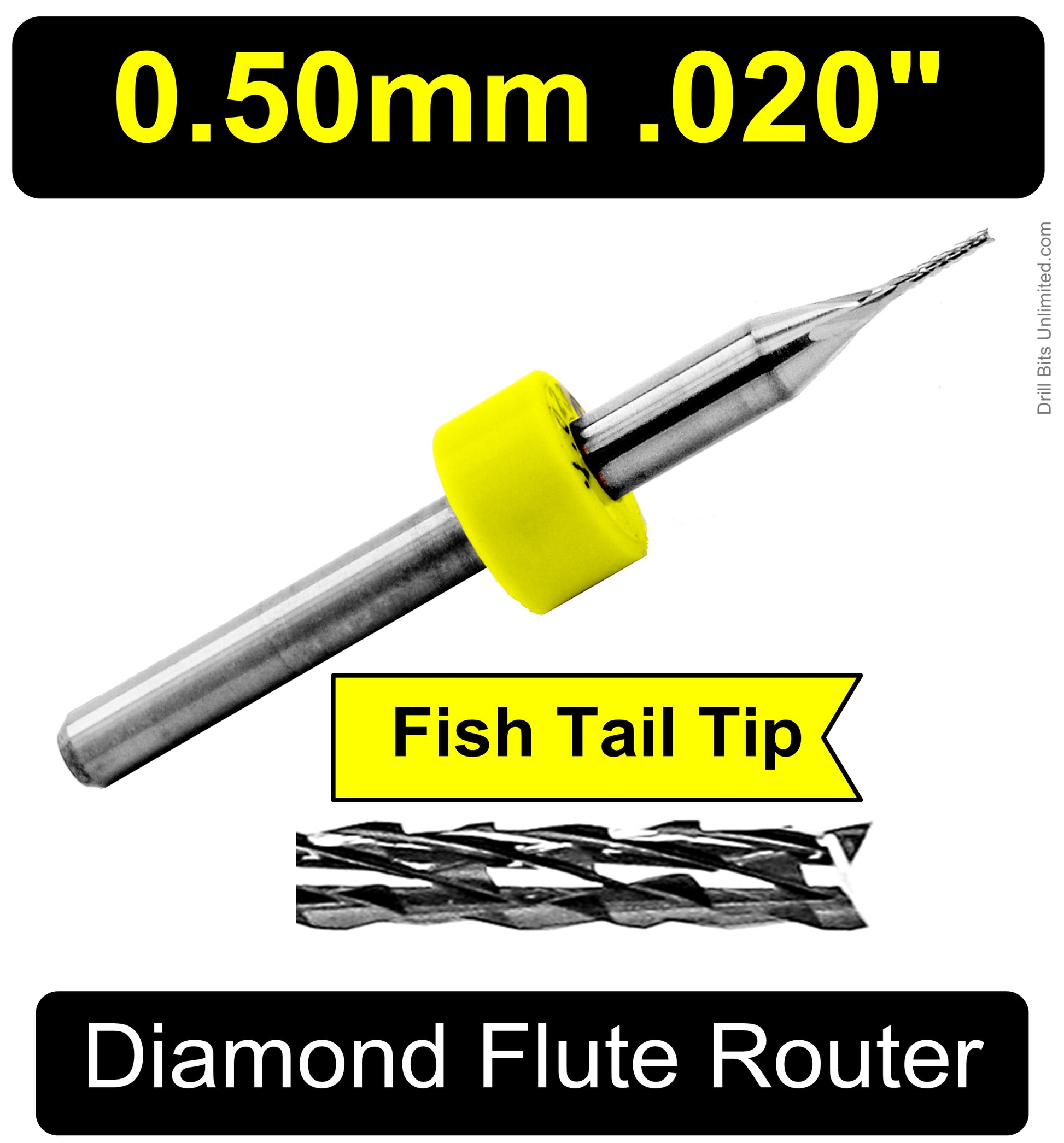

0.50mm .0197" x .079" LOC Diamond Pattern Carbide Router Bits - Fishtail Tip R103

Click HERE for Feed and Speed Recommendations

Router Style:	Diamond Cut
Plunge Tip:	Fish Tail

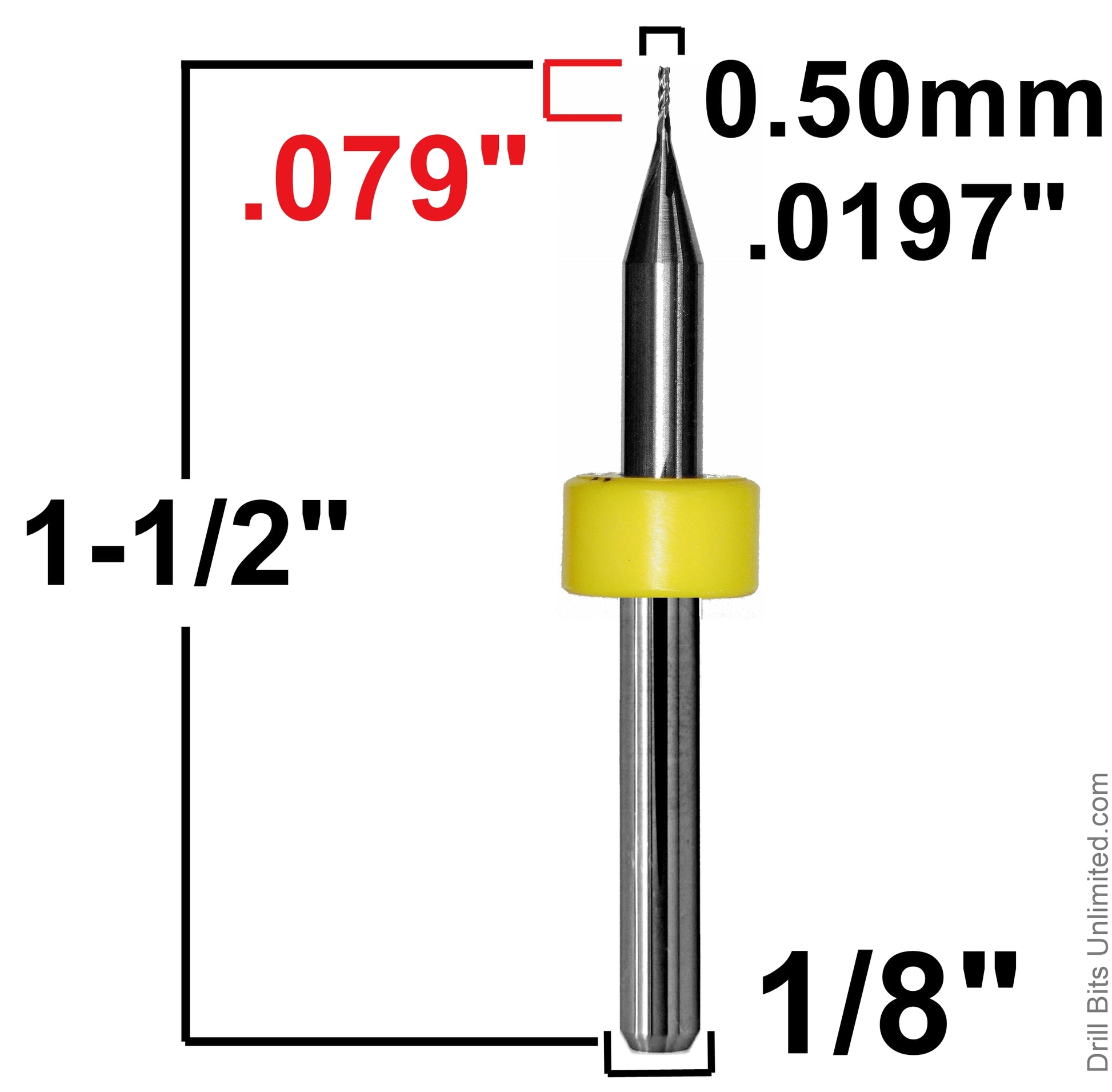

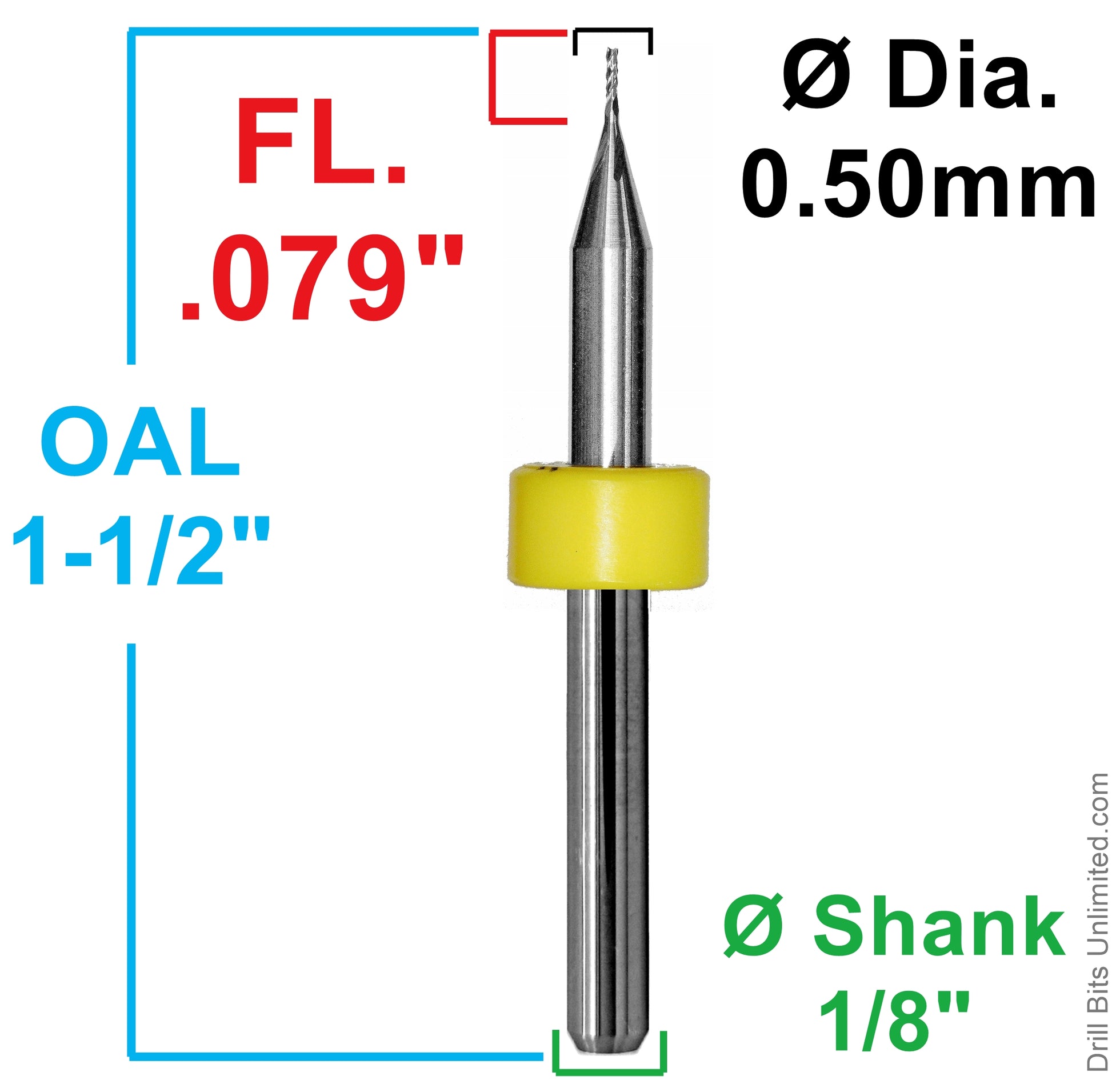

Mill Diameter (Inch) :	.0197
Mill Diameter (mm) :	0.50
Depth of Cut (inch):	.079
Shank Diameter (Inch) :	1/8
Overall Length (inch):	1.50
Material:	Solid Tungsten Carbide
Coating/Finish:	n/a
Cutting Direction:	Right Hand
Flute Direction:	Right Hand (Up Cut)
Flute Type:	Diamond Pattern
Center Cutting?:	Yes

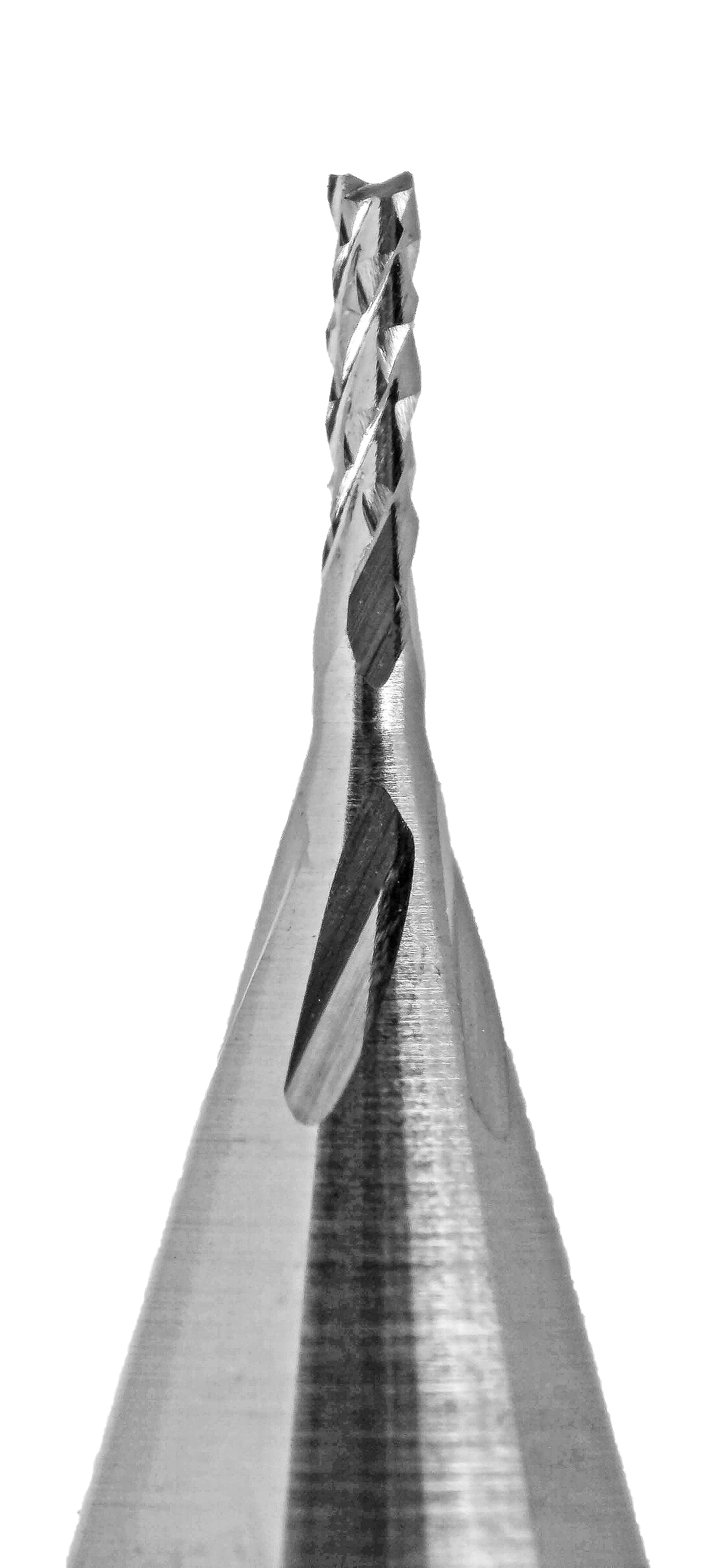

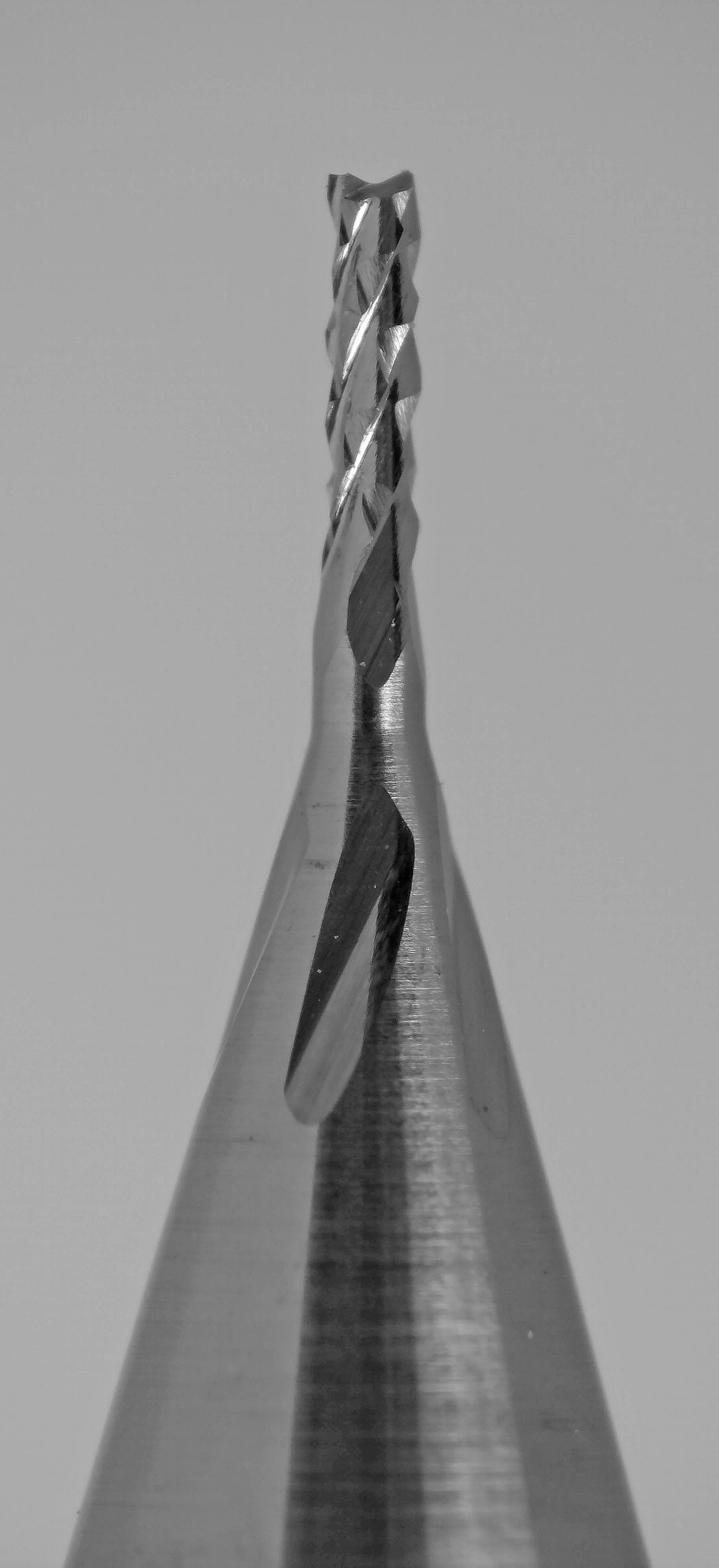

Numerous diamond-shaped cutting surfaces is gentle on material, leaving a clean and smooth edge without delamination, cracking or fraying.

Perfect for milling hard and abrasive materials including carbon fiber, G10, FR4, fiberglass substrates, ceramics, etc.

Fishtail plunge tip prevents back side break through and splintering.
