0.0190" x .029" LOC 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K031
0.0190" x .029" LOC 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K031
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

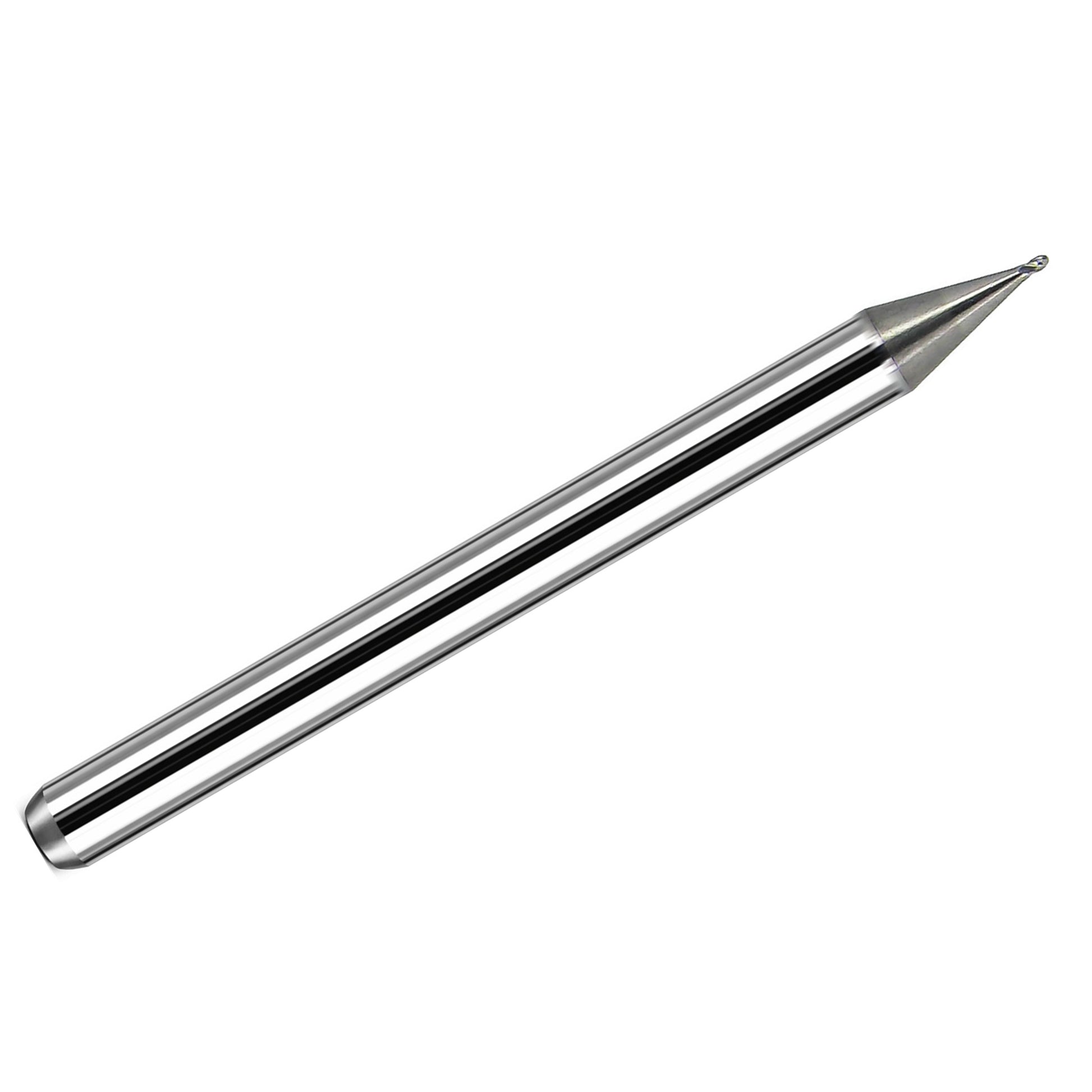

This .0190" 4-flute ball nose carbide end mill is manufactured by Kyocera from sub-micron grain solid carbide and features a bright uncoated finish for precision CNC milling applications where a sharp cutting edge and fine surface finish are important.
This tool is part of the Kyocera Series 1835 stub-length line and is designed for 3D contouring, profiling, detail work, and finish milling where a shorter, more rigid cutting length is beneficial. The ball nose tip helps produce smooth blends on curved surfaces and fine machined features.
Because this tool has a bright (uncoated) finish, it is best suited where coating is not required and where a sharp, precise cutting edge is preferred. This tool is especially well suited for non-ferrous materials and other precision finishing applications.
This tool is manufactured by Kyocera and made in the USA.
Manufacturer: Kyocera
Manufacturer Part Number: 1835-0190.029
Country of Origin: United States
Typical Applications
- 3D contour milling
- Profiling and finishing
- Fine-detail CNC machining
- Precision micro-machining
- Ball nose milling in non-ferrous materials
Benefits
- Ball nose geometry for smooth contouring and profiling
- Stub-length design improves rigidity
- 4 flutes provide improved finish quality
- Bright uncoated finish for sharp cutting performance
- Sub-micron carbide supports edge retention and precision

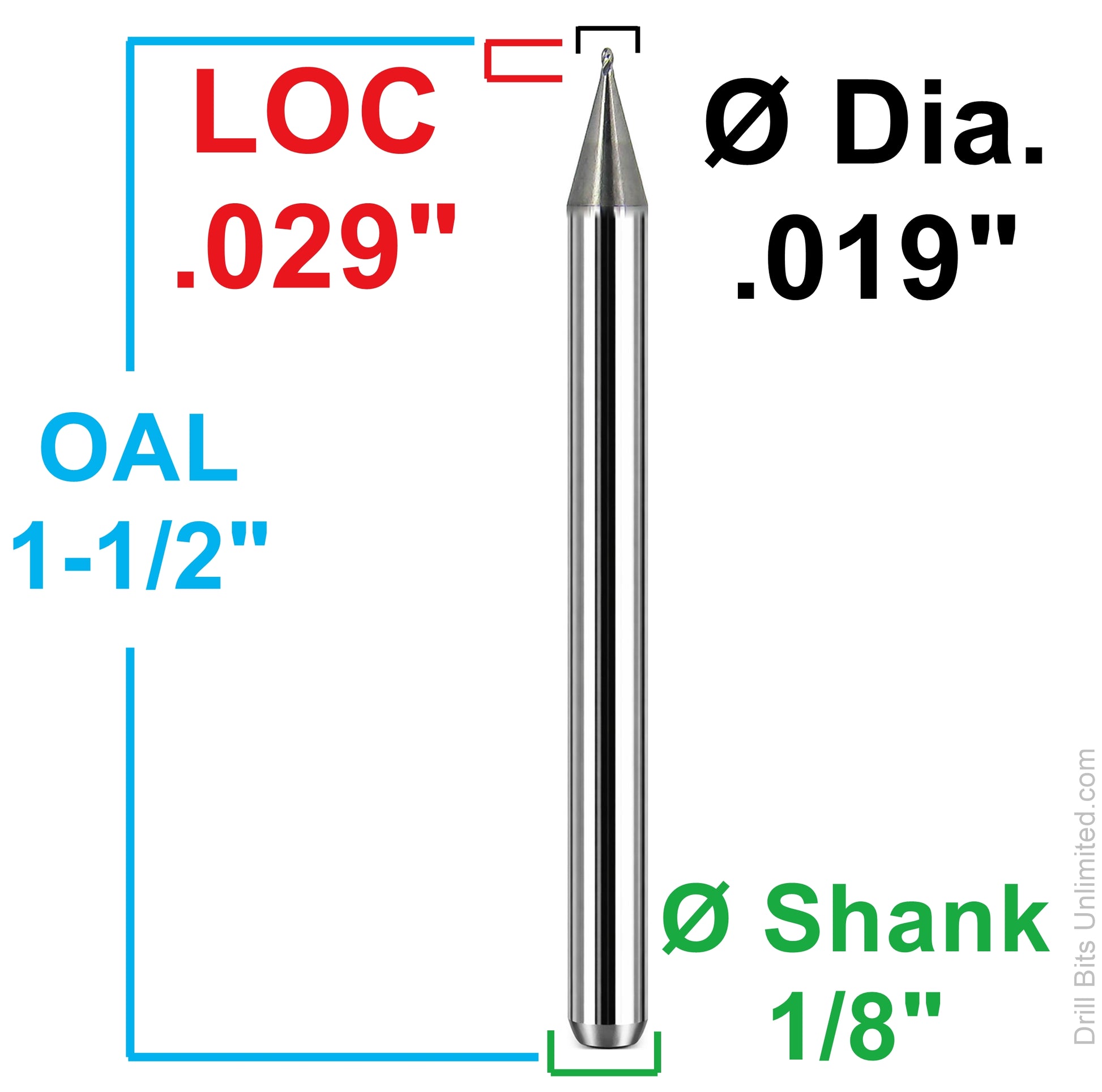

Specifications
| Manufacturer | Kyocera |
| Tool Type | Ball Nose End Mill |
| Series | 1835 |
| Milling Diameter | 0.0190" |
| Length of Cut (LOC) | 0.0290" |
| Overall Length | 1.5000" |
| Shank Diameter | 0.1250" (1/8") |
| Number of Flutes | 4 |
| Helix Angle | 30° |
| Material | Sub-Micron Grain Solid Carbide |
| Finish | Bright (Uncoated) |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Application | Stub Length / Profiling / Contouring / Finishing |
| Steel (P) Compatibility | No |
| Stainless (M) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Hardened Material (H) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Non-Ferrous (N) Compatibility | Yes |
| Country of Origin | United States |
