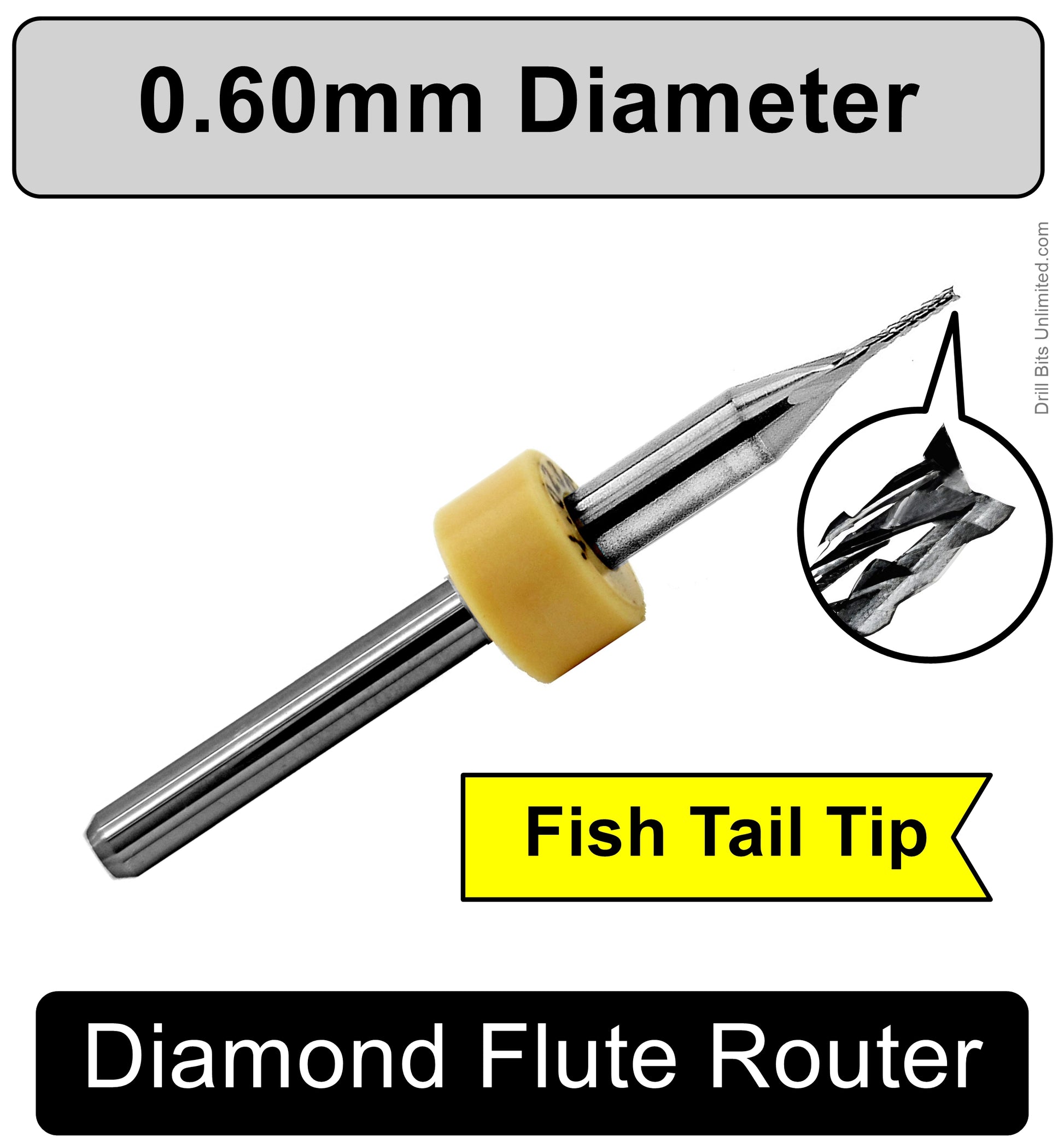

.024" 0.60mm x .118" LOC Diamond Flutes Carbide Router - Fish Tail Tip R104

.024" 0.60mm x .118" LOC Diamond Flutes Carbide Router - Fish Tail Tip R104

$3.99 USD
$3.99 USD
Sale Sold out

153 left in stock

SKU: R104

Click HERE for Feed and Speed Recommendations

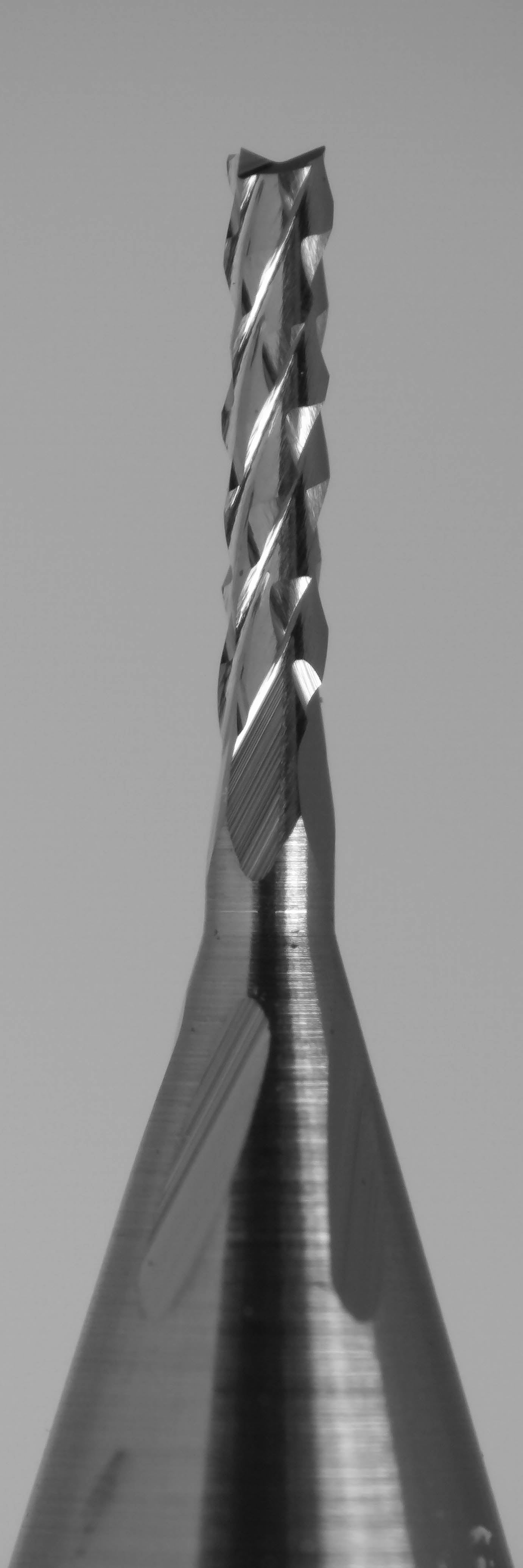

Numerous diamond-shaped cutting surfaces is gentle on material, leaving a clean and smooth edge without delamination, cracking or fraying.

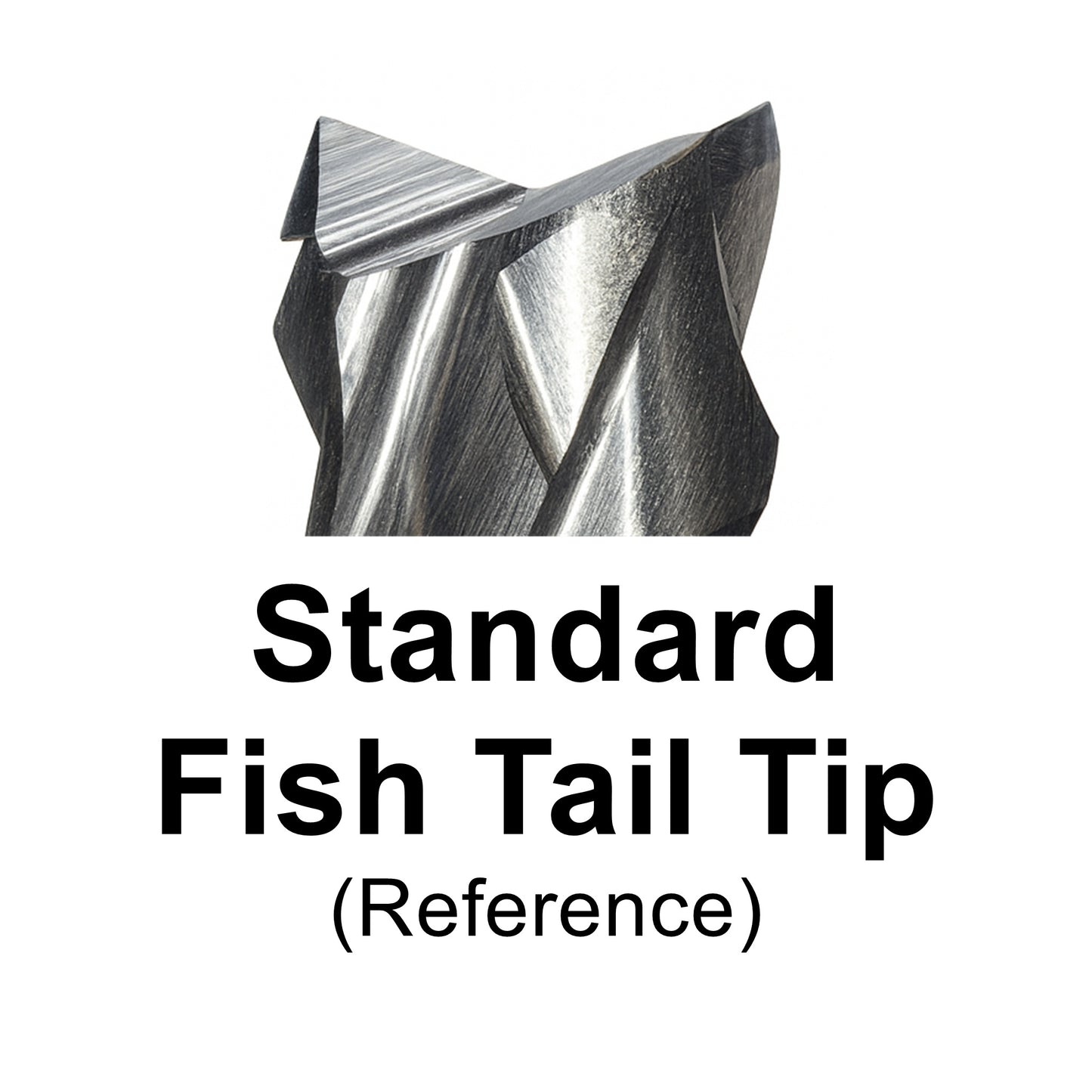

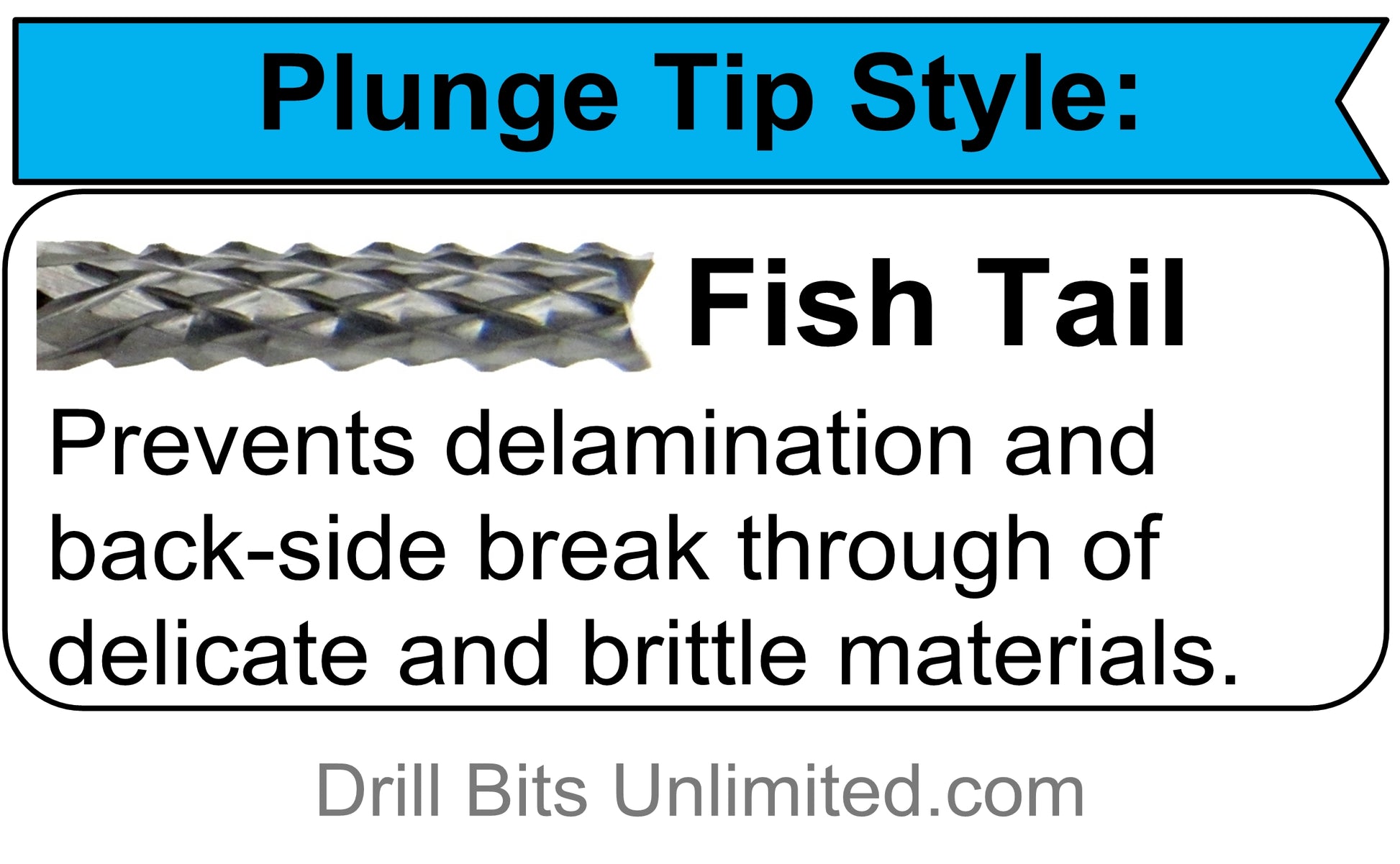

Fishtail plunge tip prevents back side break through and splintering.

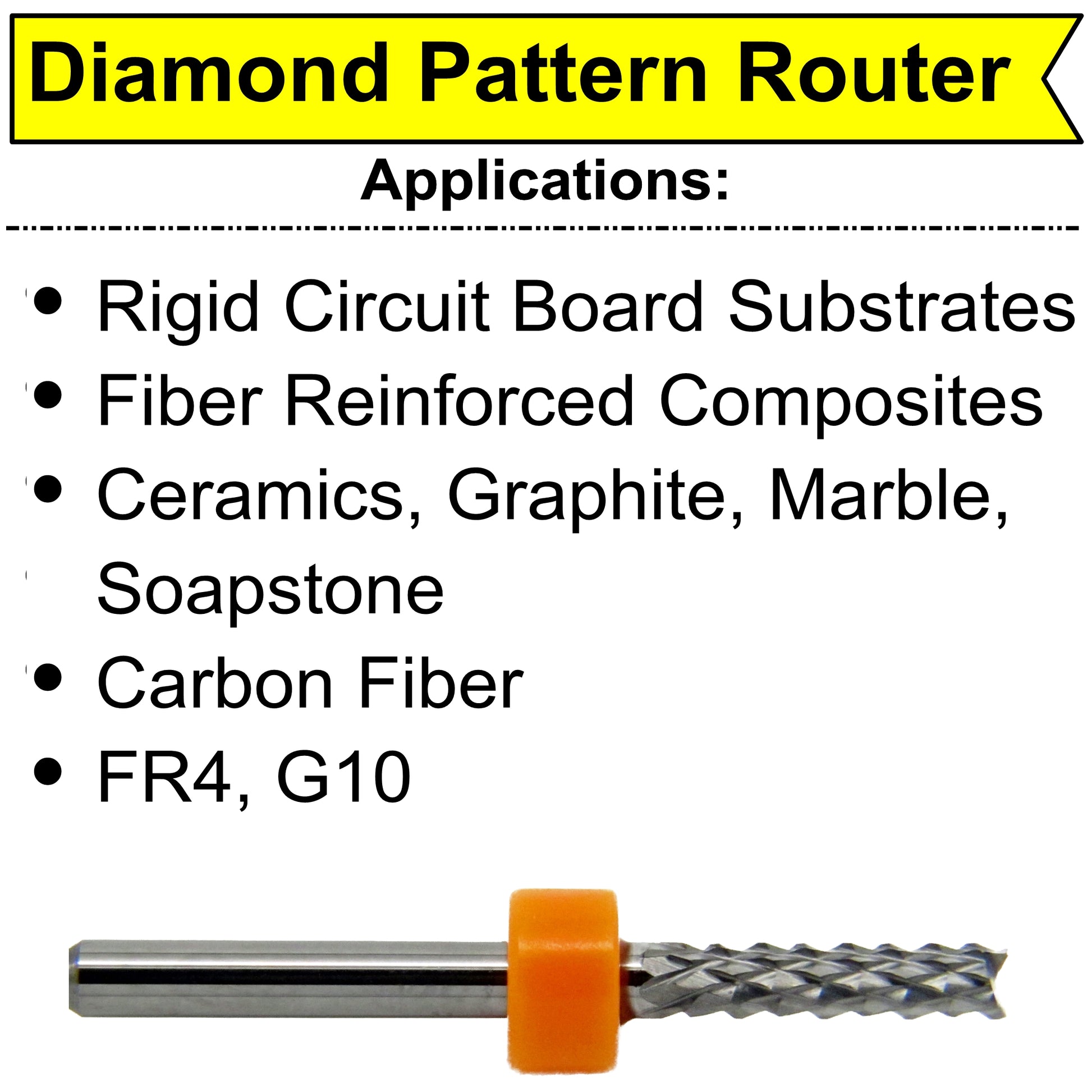

Perfect for milling hard and abrasive materials   including carbon fiber, G10, FR4, fiberglass substrates, ceramics, etc.

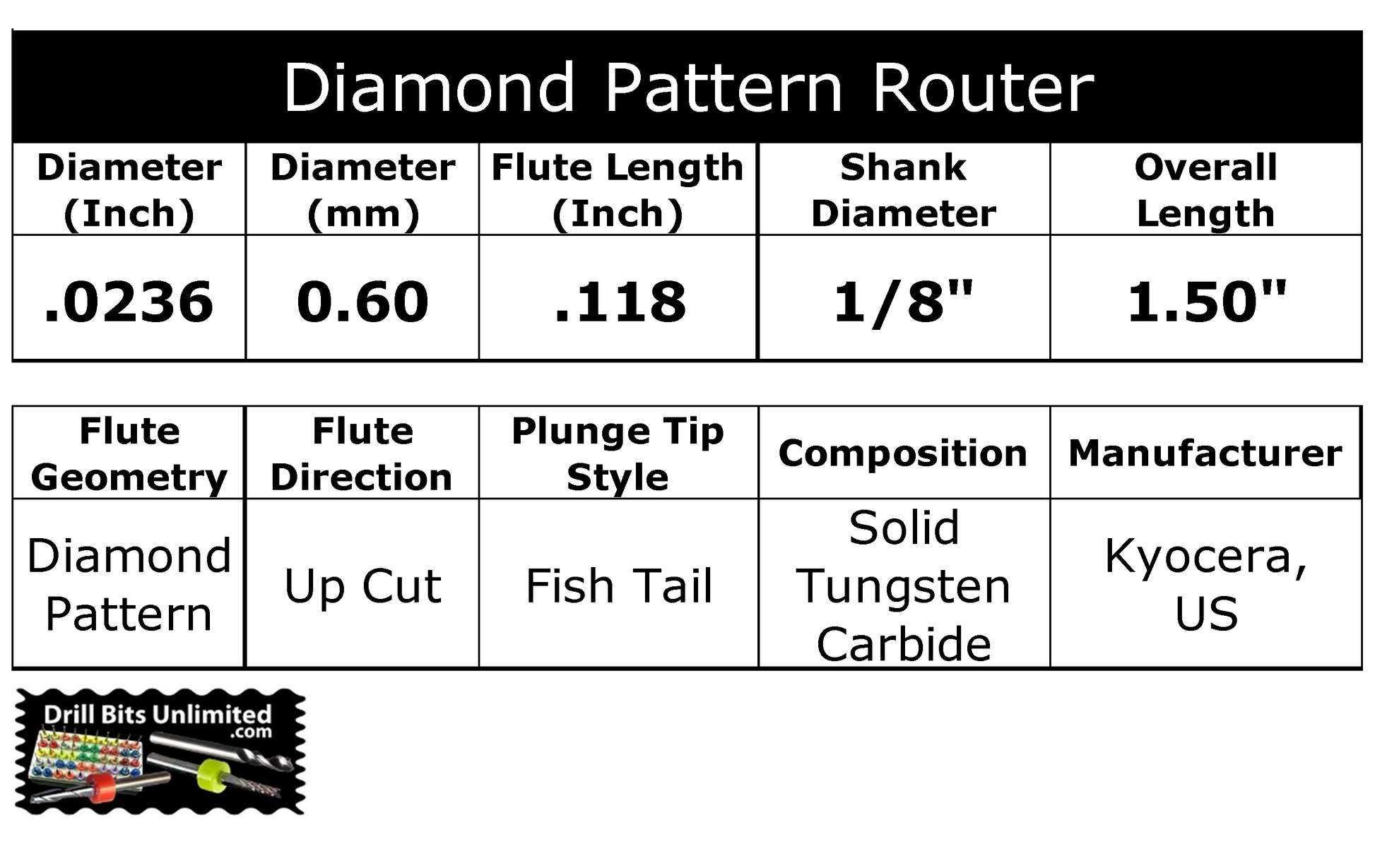

Router Style: Diamond Cut
Plunge Tip: Fish Tail

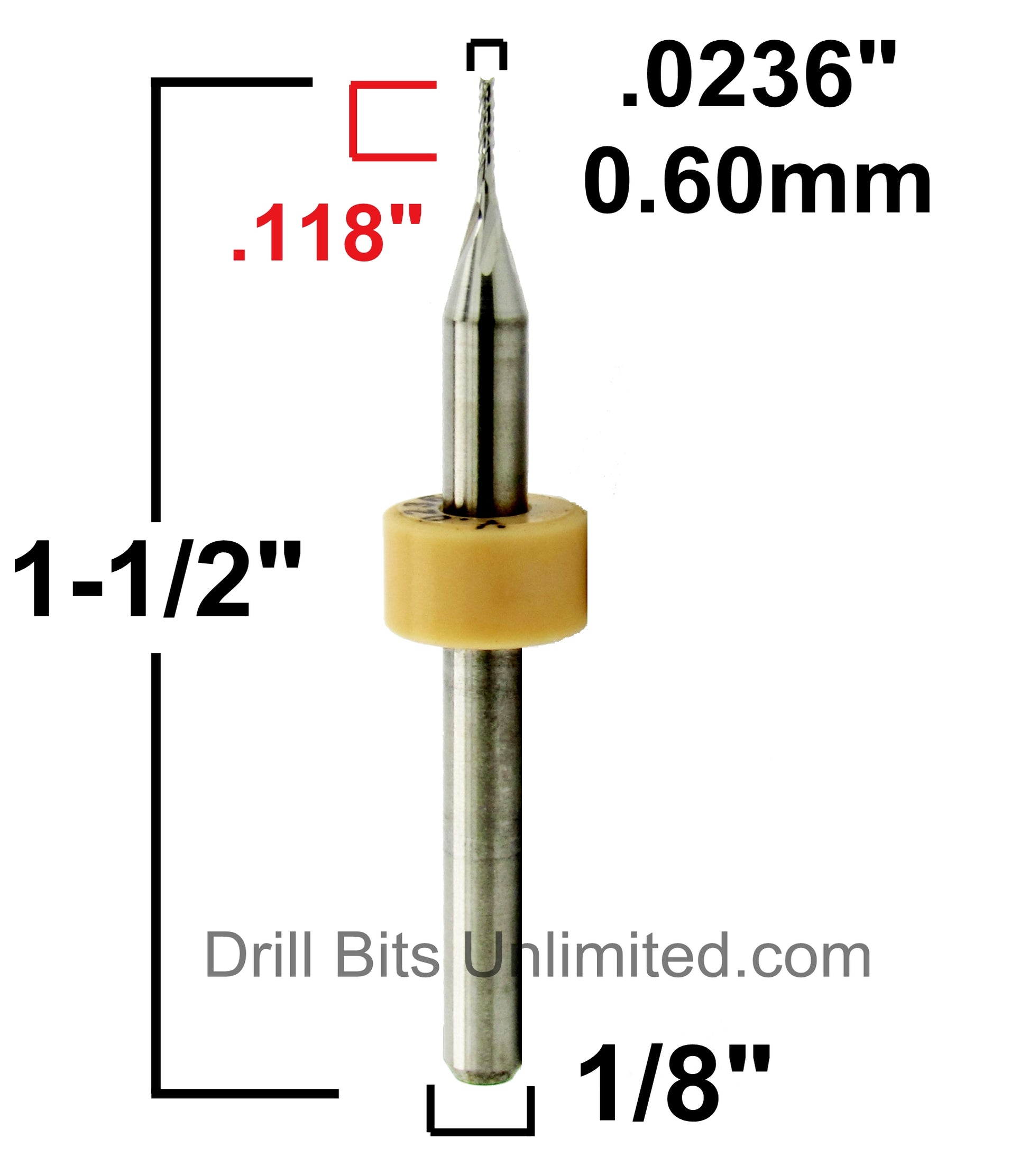

Mill Diameter (Inch) : .0236
Mill Diameter (mm) : 0.60
Depth of Cut (inch): .118
Shank Diameter (Inch) : 1/8
Overall Length (inch): 1.50
Material: Solid Tungsten Carbide
Coating/Finish: n/a
Cutting Direction: Right Hand
Flute Direction: Right Hand (Up Cut)
Flute Type: Diamond Pattern
Center Cutting?: Yes
