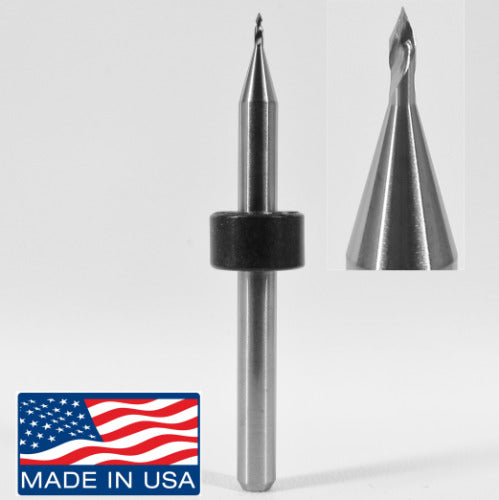

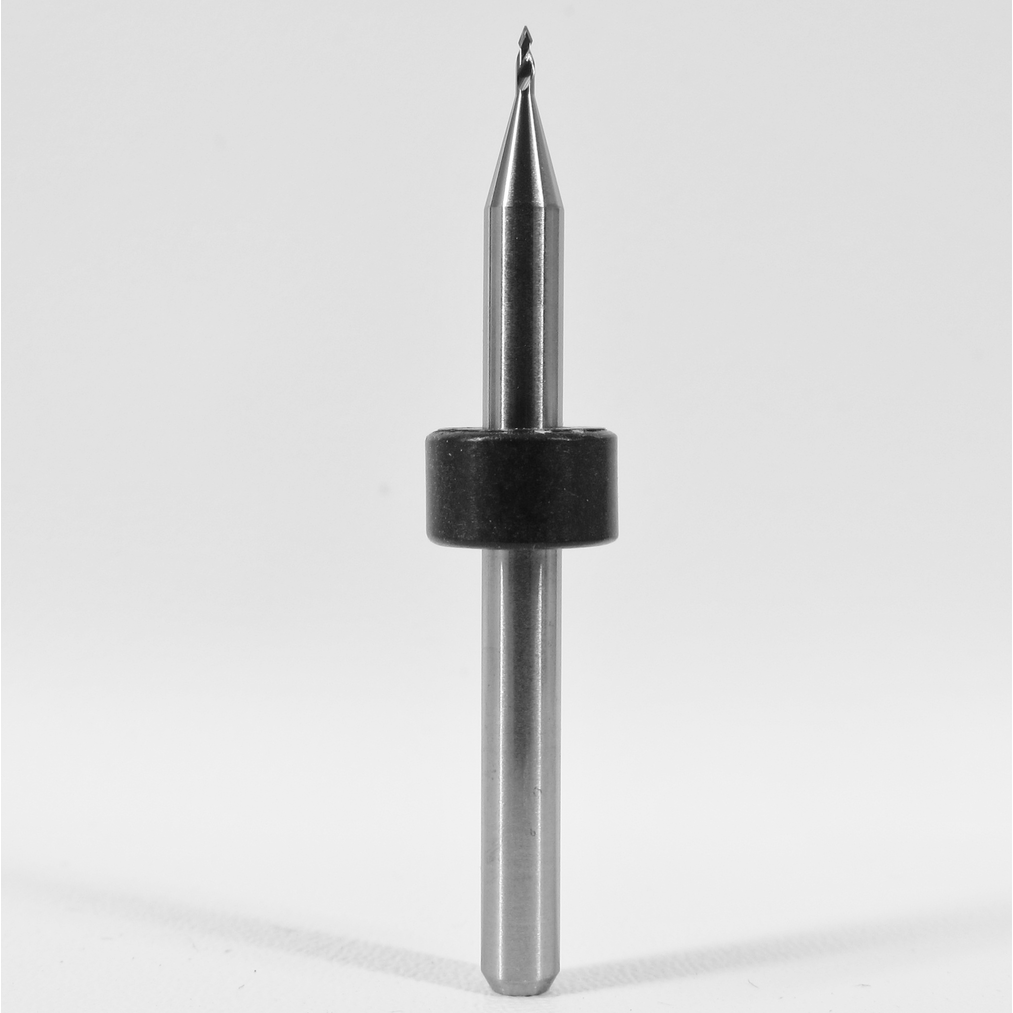

.030" 60 Degree, Scoring / Engraving, Trace Isolation V-Bit Engraver High Precision - Made in U.S.A. E102

.030" 60 Degree, Scoring / Engraving, Trace Isolation V-Bit Engraver High Precision - Made in U.S.A. E102

Regular price $14.99 USD
Regular price Sale price $14.99 USD
Sale Sold out

219 left in stock

SKU: E102

Specifications

  • Geometry - 2-flute, "V" point
  • Tip diameter - 0.0050 in. ±0.0002 in.
  • Length - indicated 1.50" ±0.010 in.
  • Tip angle - nominal  ± 0.5°
  • Max. depth of cut - DOC (penetration) 0.30mm - .012"
  • Max runout (TIR) - < 0.0005 in.
  • Shank dia. - 0.1250 in. (3.18 mm) +0.00, -0.0002 in.
  • Max. depth of cut - EFL varies by tip angle
  • Material - solid submicrograin carbide

Benefits

  • Spiral flute geometry insures efficient debris removal
  • Cutting edge geometry virtually eliminates chatter at high feed rates

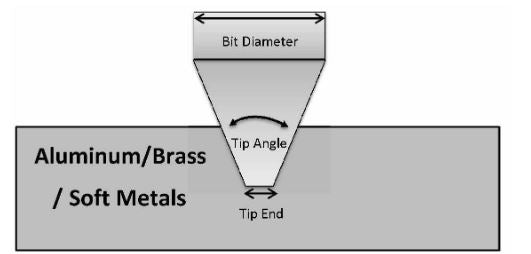

  • 60° tip optimized for engraving non-ferrous metals, hardwoods, phenolics, stabilized woods and composite minerals.

Applications

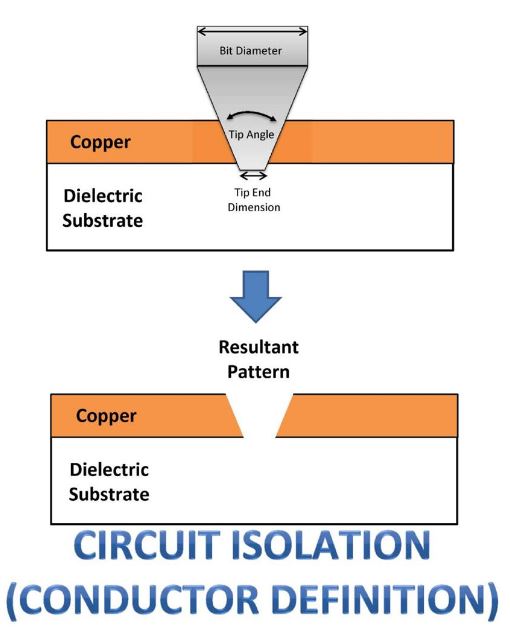

  • Print circuit trace isolation
  • Engraving plaques, awards, medallions, and labels
  • Custom jewelry fabrication and marking
