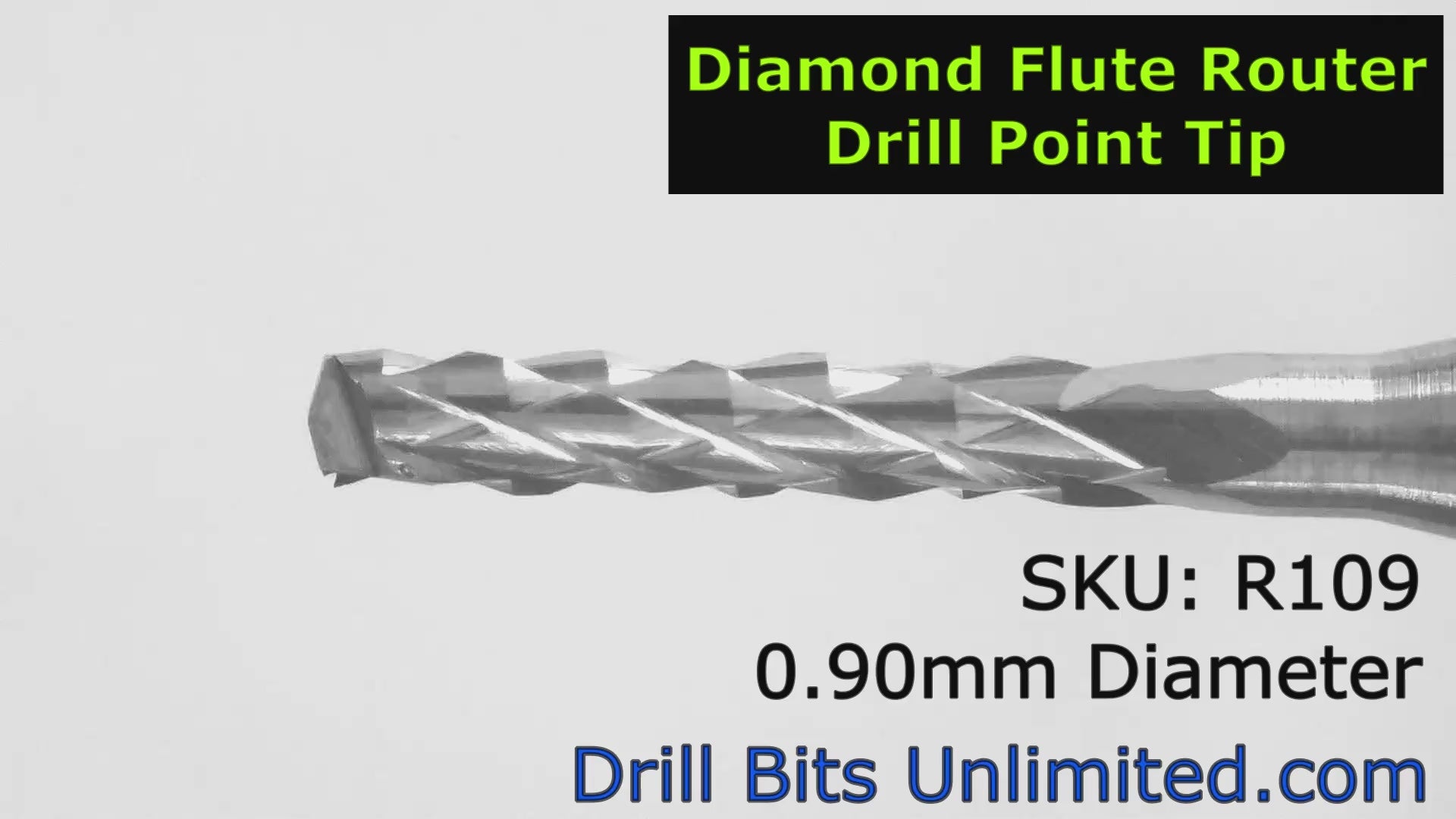

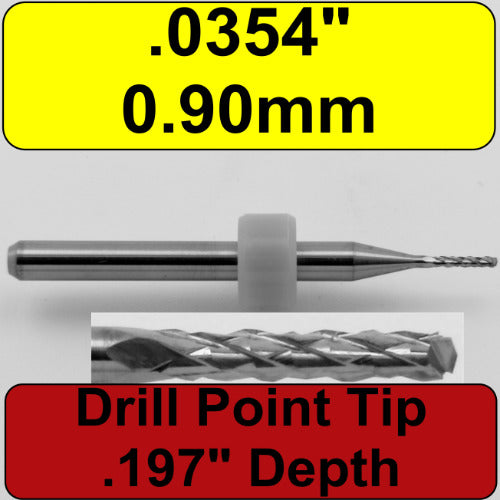

.0354" - 0.90mm x .197" LOC Diamond Pattern Carbide Router Bit - Drill Point Tip R109

Click HERE for Feed and Speed Recommendations

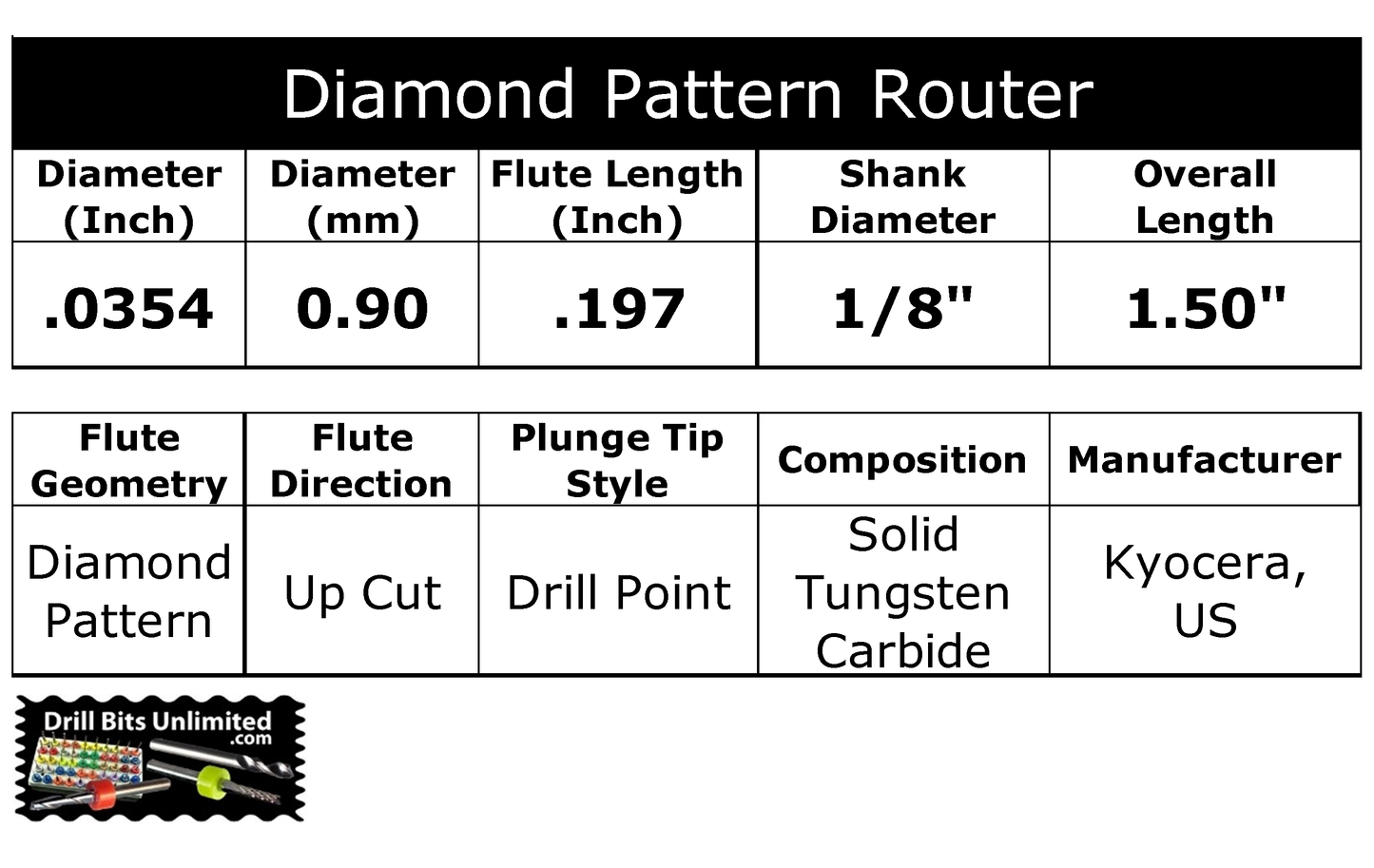

Router Style:	Diamond Cut

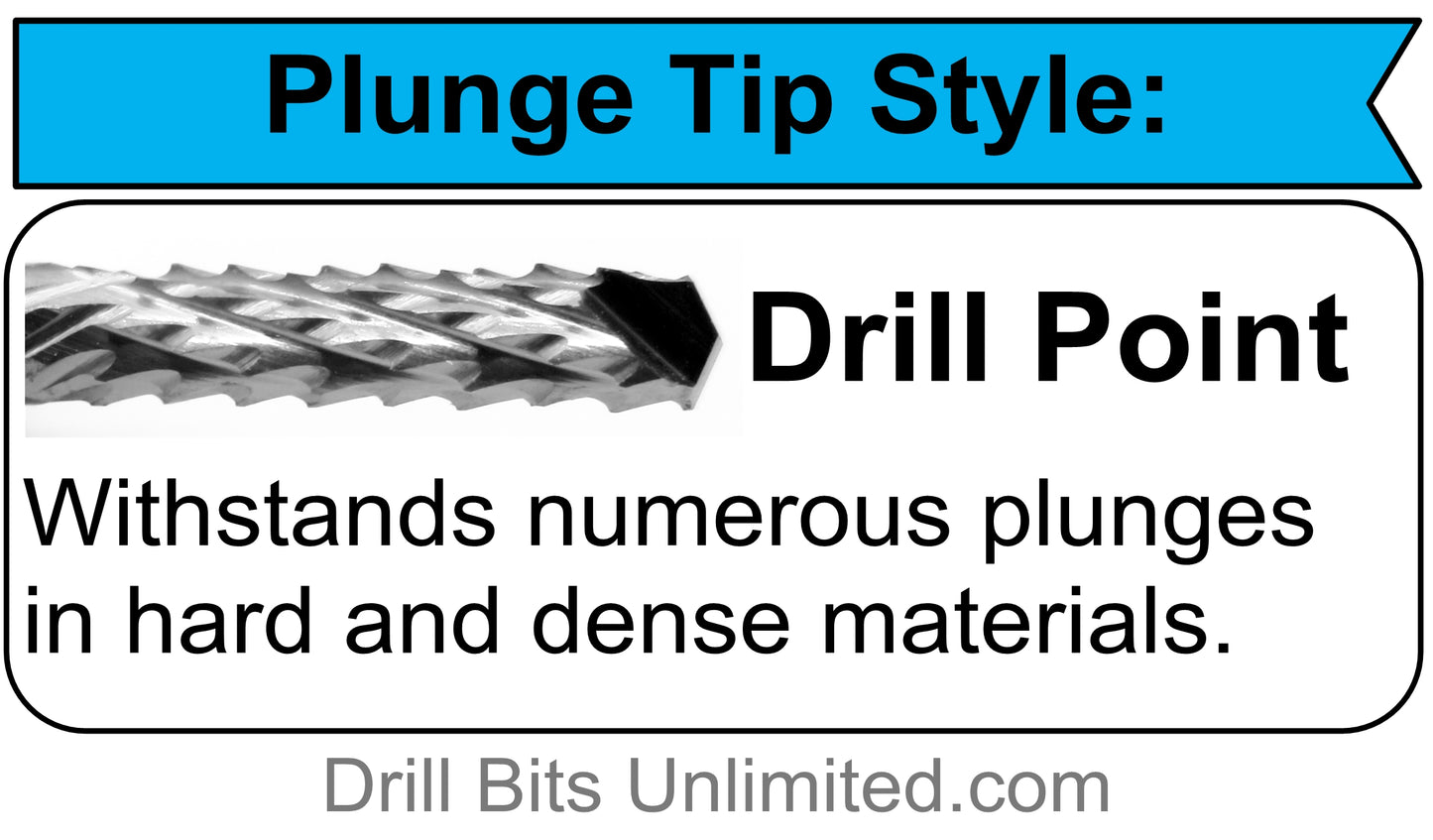

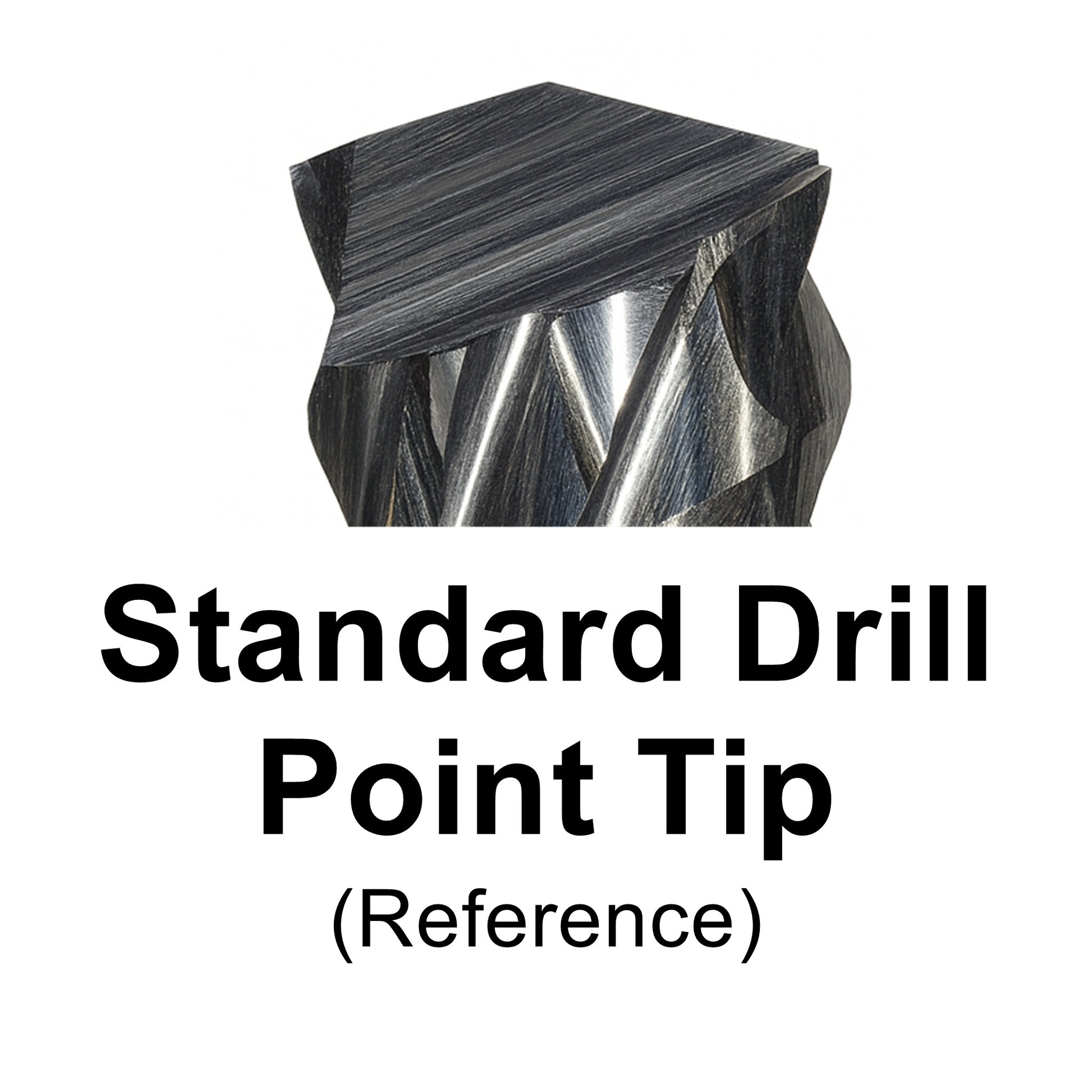

Plunge Tip:	Drill Point

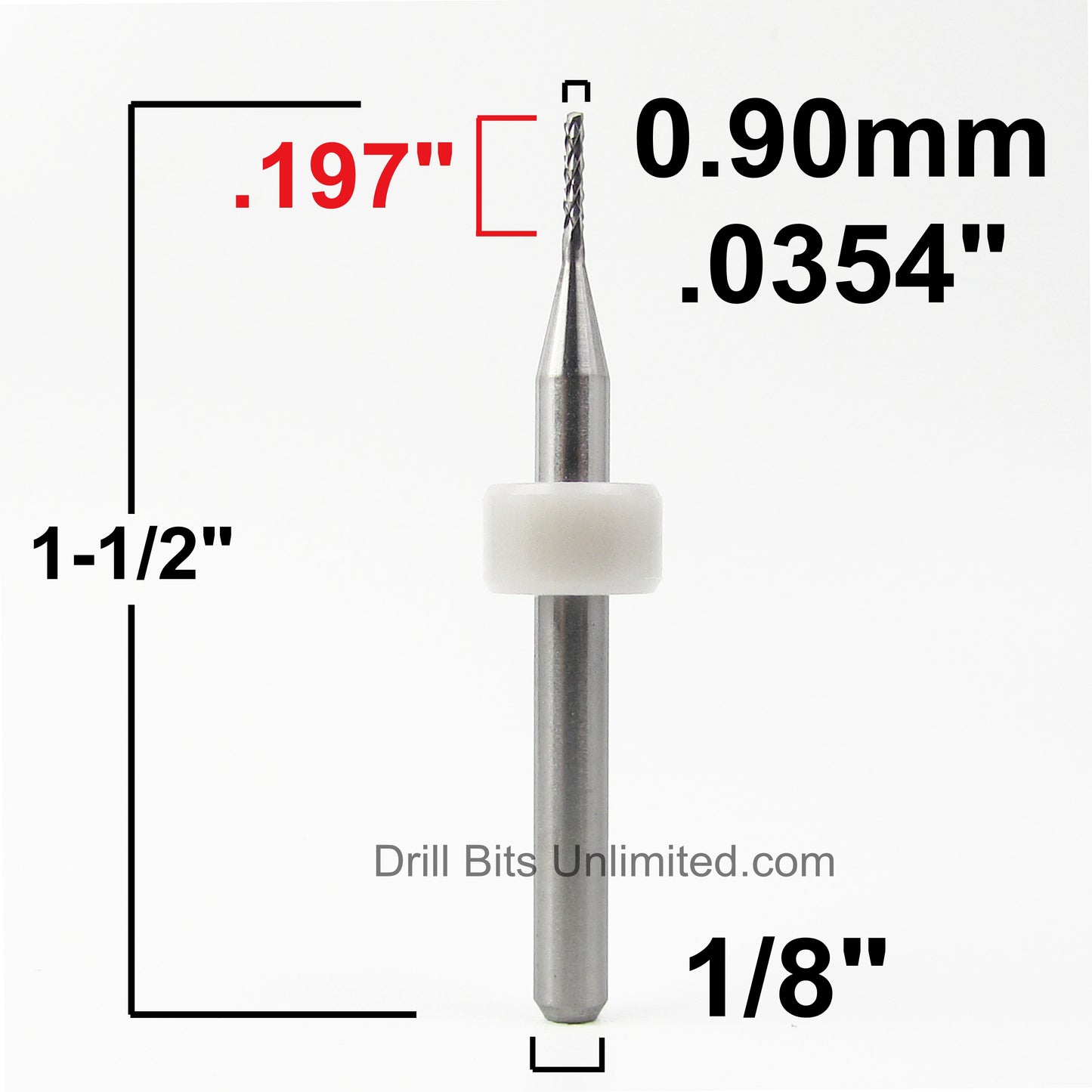

Mill Diameter (Inch) :	.0354"
Mill Diameter (mm) :	0.90
Depth of Cut (inch):	.197
Shank Diameter (Inch) :	1/8
Overall Length (inch):	1.50
Material:	Solid Tungsten Carbide
Coating/Finish:	n/a
Cutting Direction:	Right Hand
Flute Direction:	Right Hand (Up Cut)
Flute Type:	Diamond
Center Cutting?:	Yes

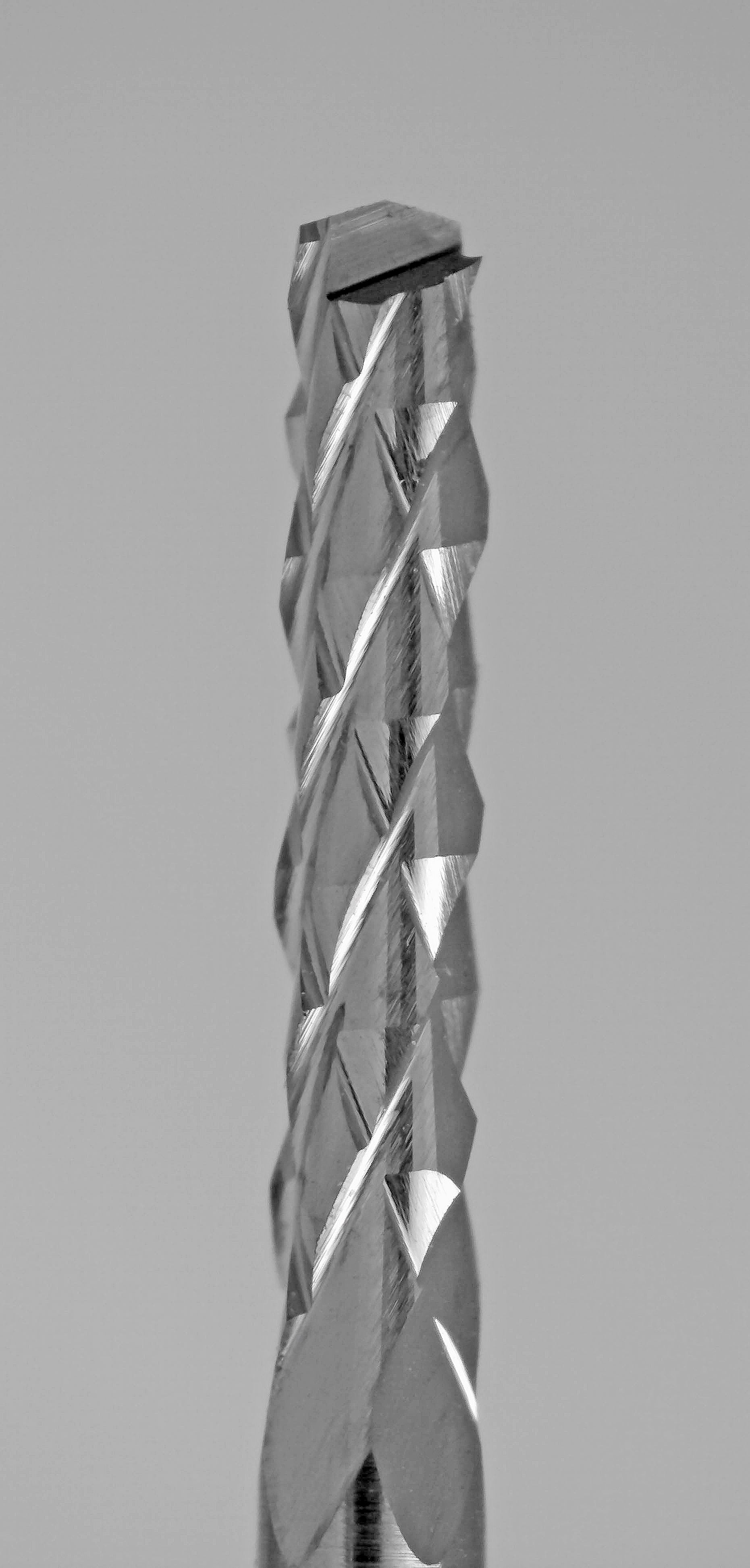

Numerous diamond-shaped cutting surfaces is gentle on material, leaving a clean and smooth edge without delamination, cracking or fraying.

Perfect for milling hard and abrasive materials including carbon fiber, G10, FR4, fiberglass substrates, ceramics, etc.

Fishtail plunge tip prevents back side break through and splintering.
