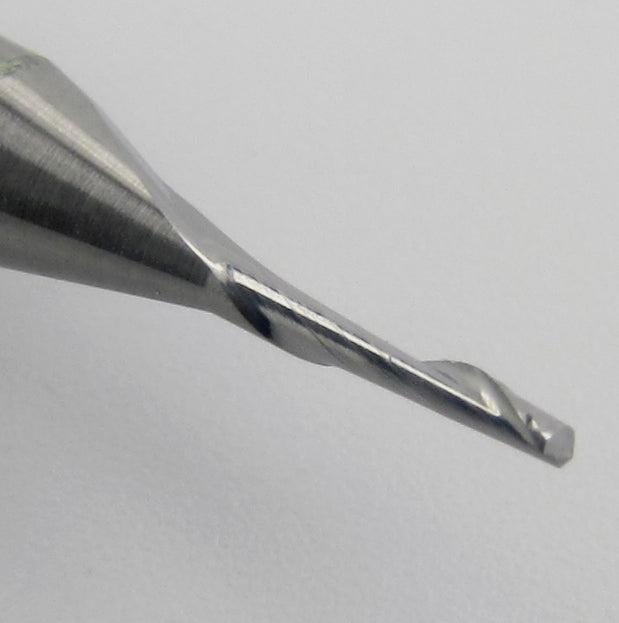

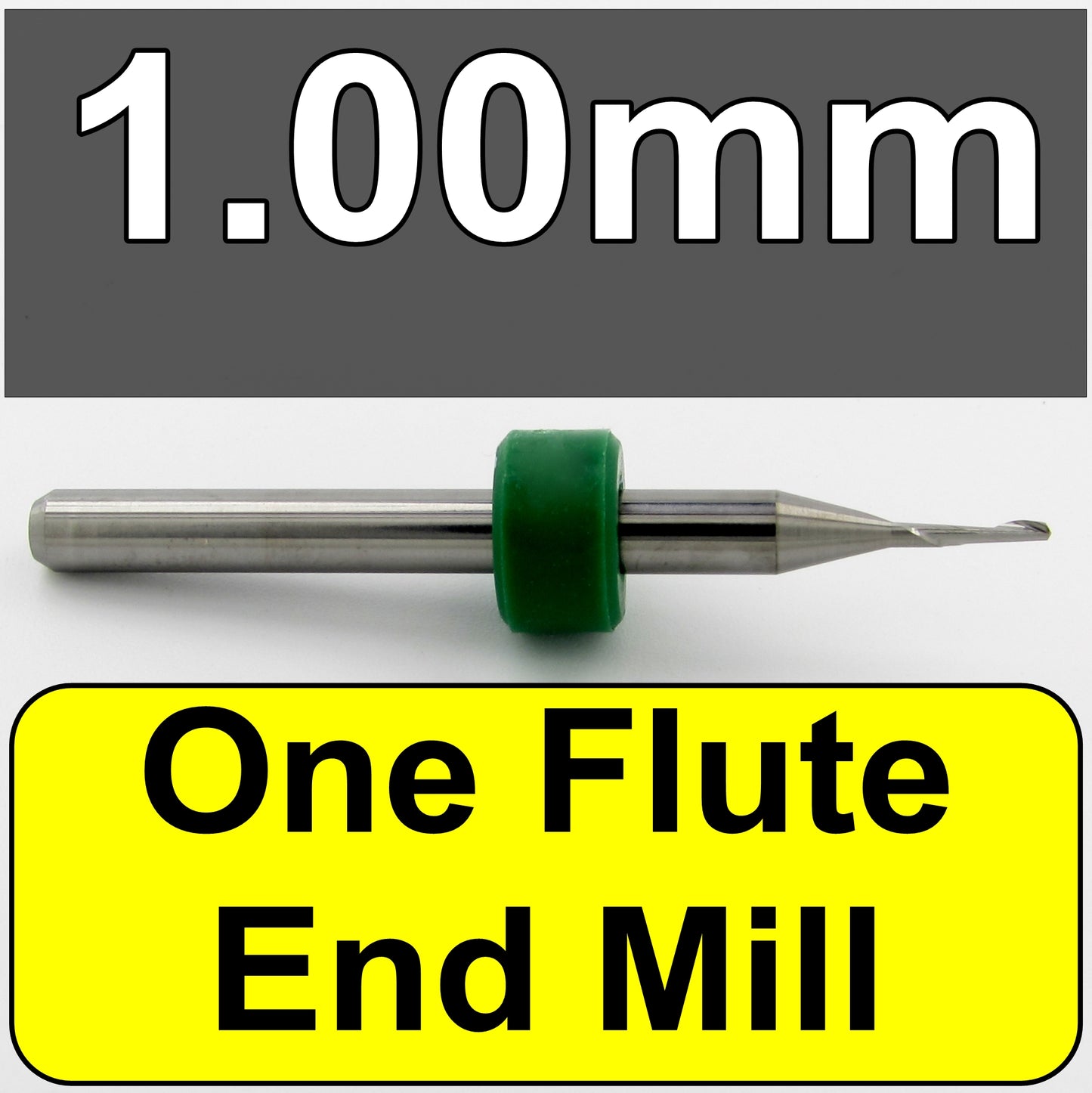

.0394" 1.00mm x .158" Depth Single Flute Drill Point End Mill - Plastic - Aluminum - Soft Materials m197
.0394" 1.00mm x .158" Depth Single Flute Drill Point End Mill - Plastic - Aluminum - Soft Materials m197
Regular price
$5.99 USD
Regular price
Sale price
$5.99 USD
Unit price
per
60 left in stock
Couldn't load pickup availability

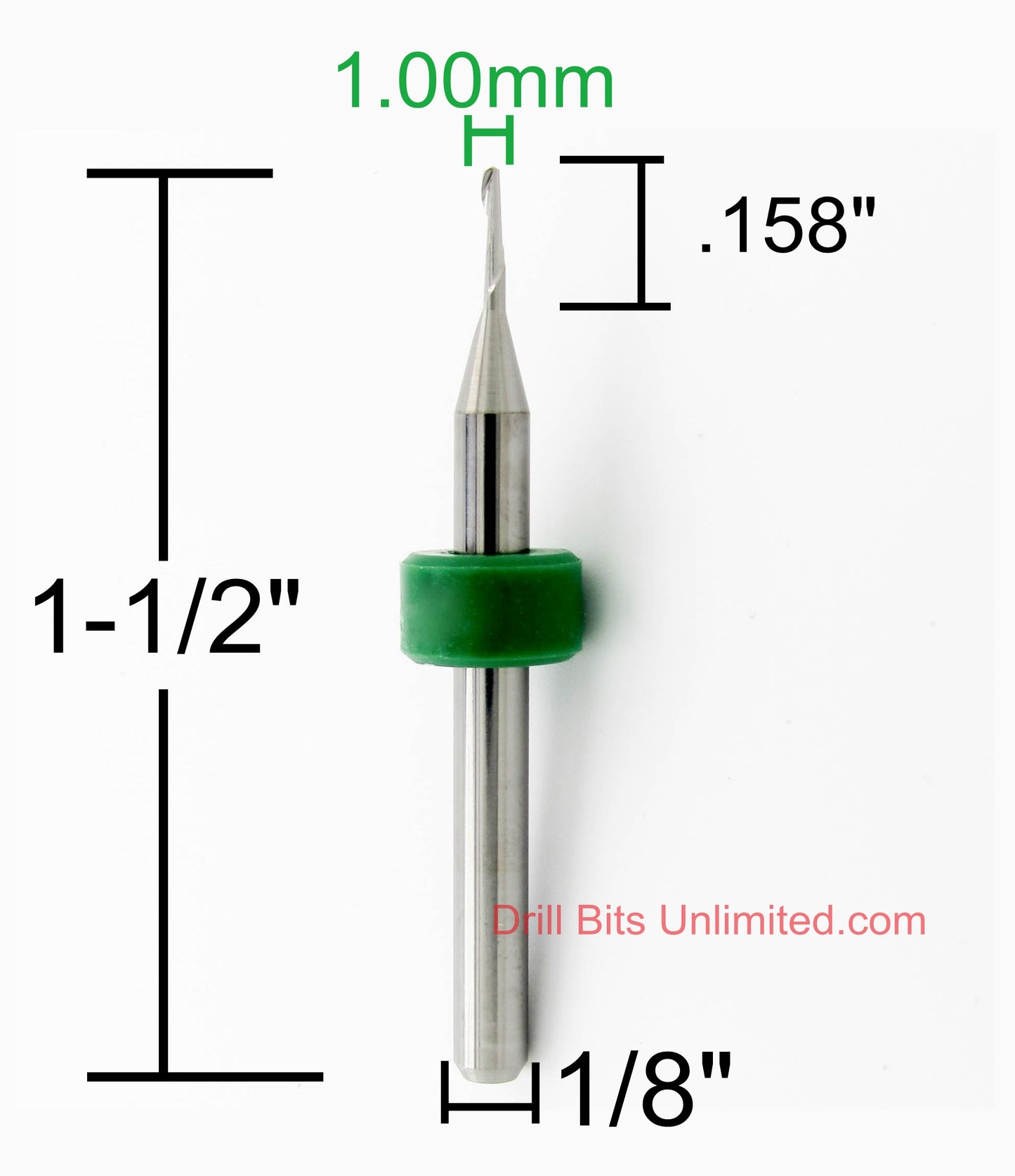

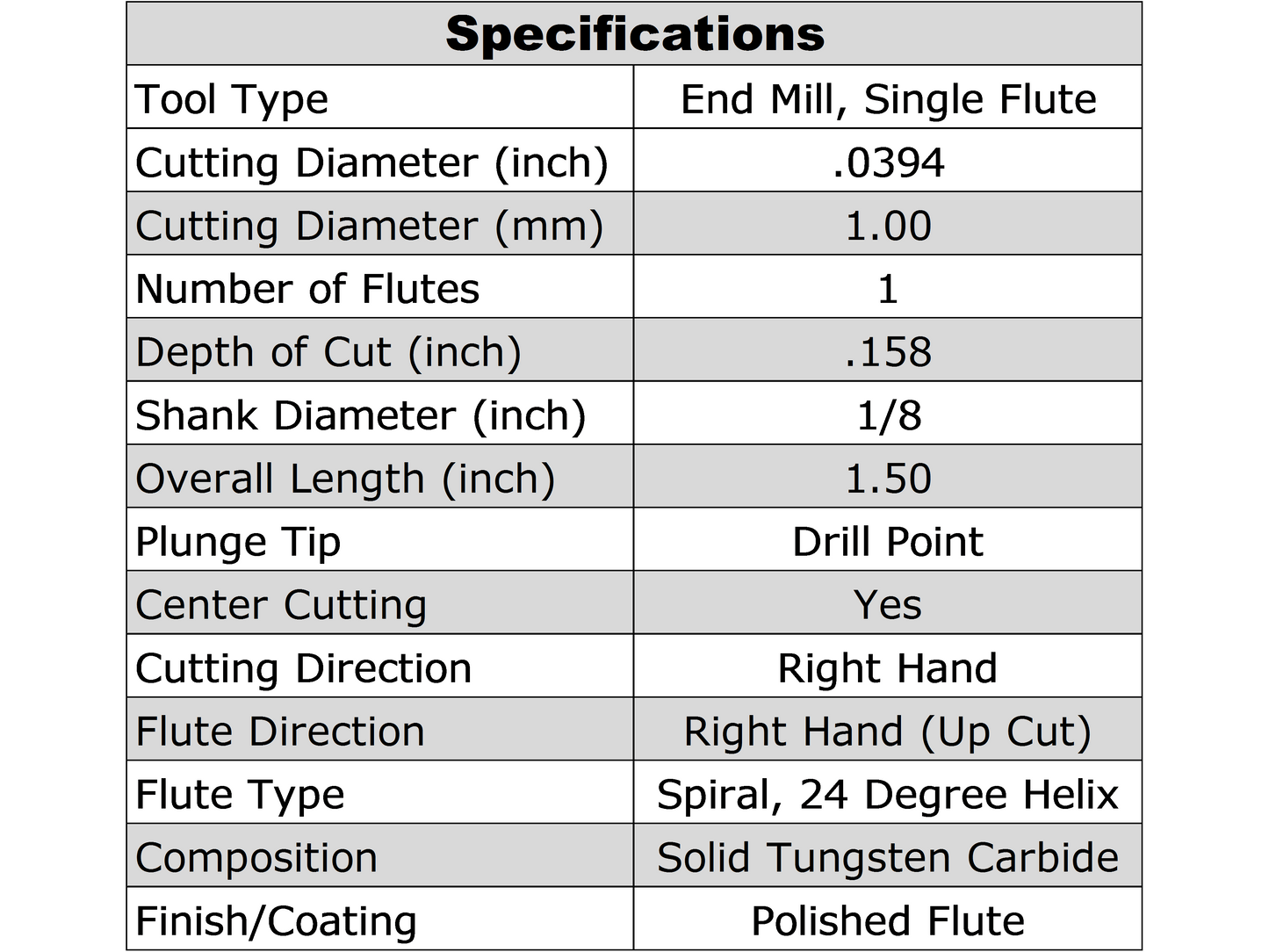

Mill Diameter (Inch) : .0394
Mill Diameter (mm) : 1.00
# of Flutes: 1
Length of Cut (inch): .158
Shank Diameter (Inch) : 1/8
Overall Length (inch): 1.50
Material: Solid Tungsten Carbide
Finish/Coating: Titanium Nitride
Cutting Direction: Right Hand
Flute Direction: Right Hand (Up Cut)
Flute Type: Spiral
Helix Angle: 15
Center Cutting?: Yes
Plunge Tip: Drill Point
Applications: Plastics,Aluminum,Soft Metals
Mill Diameter (mm) : 1.00
# of Flutes: 1
Length of Cut (inch): .158
Shank Diameter (Inch) : 1/8
Overall Length (inch): 1.50
Material: Solid Tungsten Carbide
Finish/Coating: Titanium Nitride
Cutting Direction: Right Hand
Flute Direction: Right Hand (Up Cut)
Flute Type: Spiral
Helix Angle: 15
Center Cutting?: Yes
Plunge Tip: Drill Point
Applications: Plastics,Aluminum,Soft Metals
