Drill Bits Unlimted

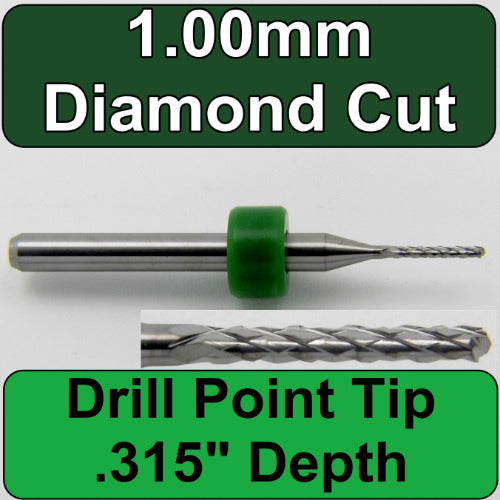

.0394" 1.00mm x .315" LOC Diamond Pattern Carbide Router Bit - Drill Point Tip R112

.0394" 1.00mm x .315" LOC Diamond Pattern Carbide Router Bit - Drill Point Tip R112

Regular price $3.49 USD
Regular price Sale price $3.49 USD
Sale Sold out

159 left in stock

SKU: R112

Click HERE for Feed and Speed Recommendations

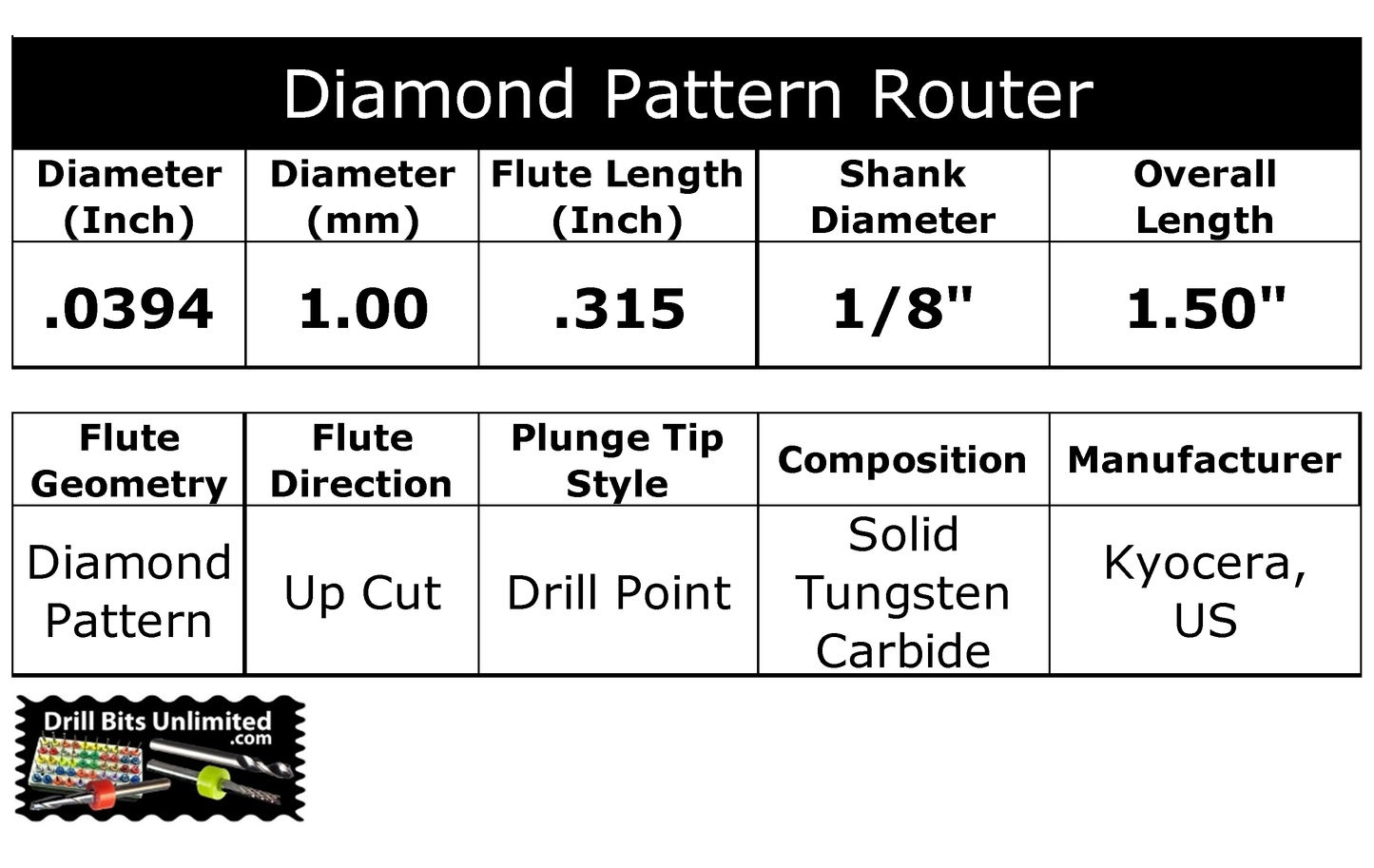

Router Style: Diamond Cut
Plunge Tip: Drill Point

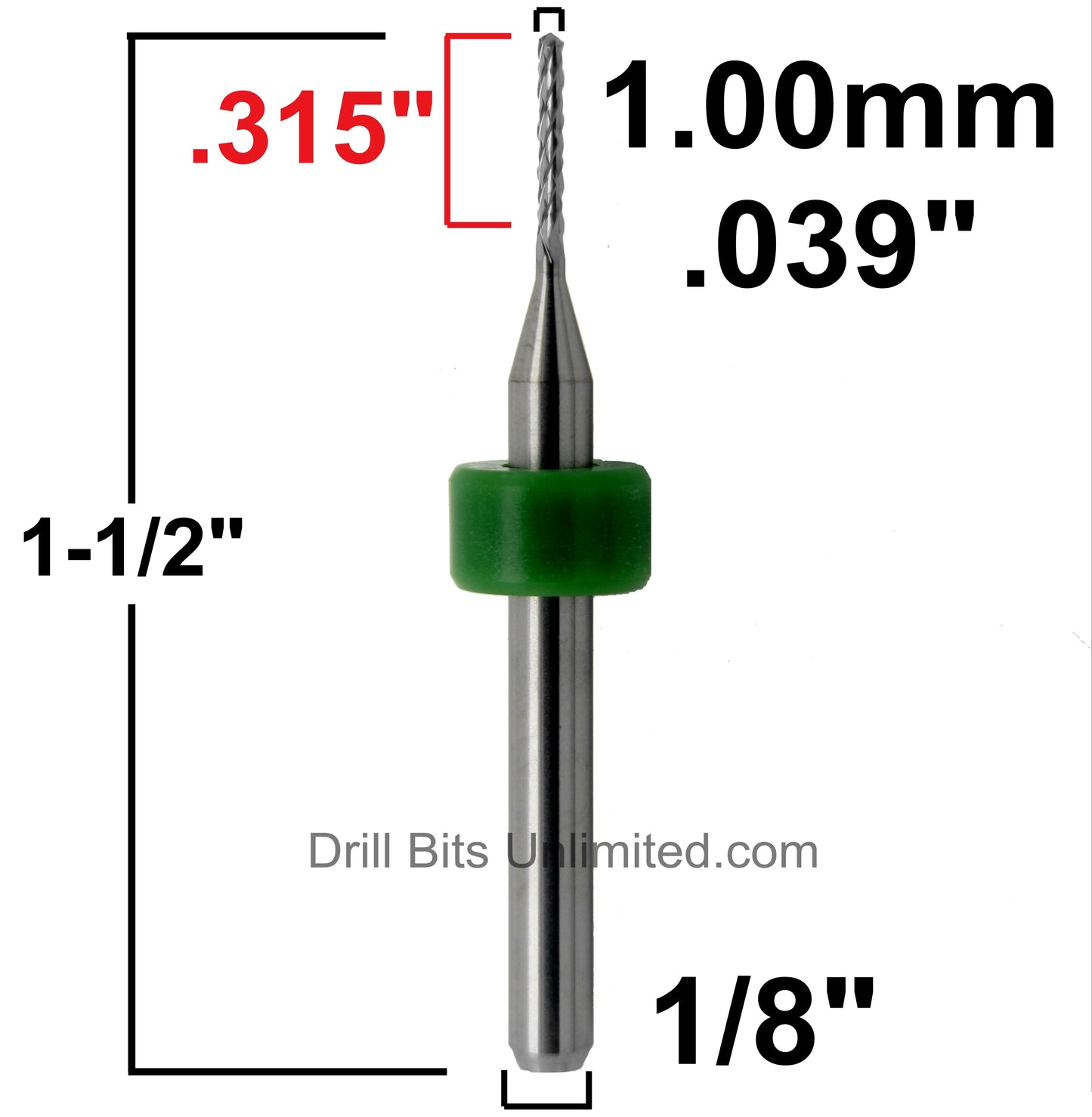

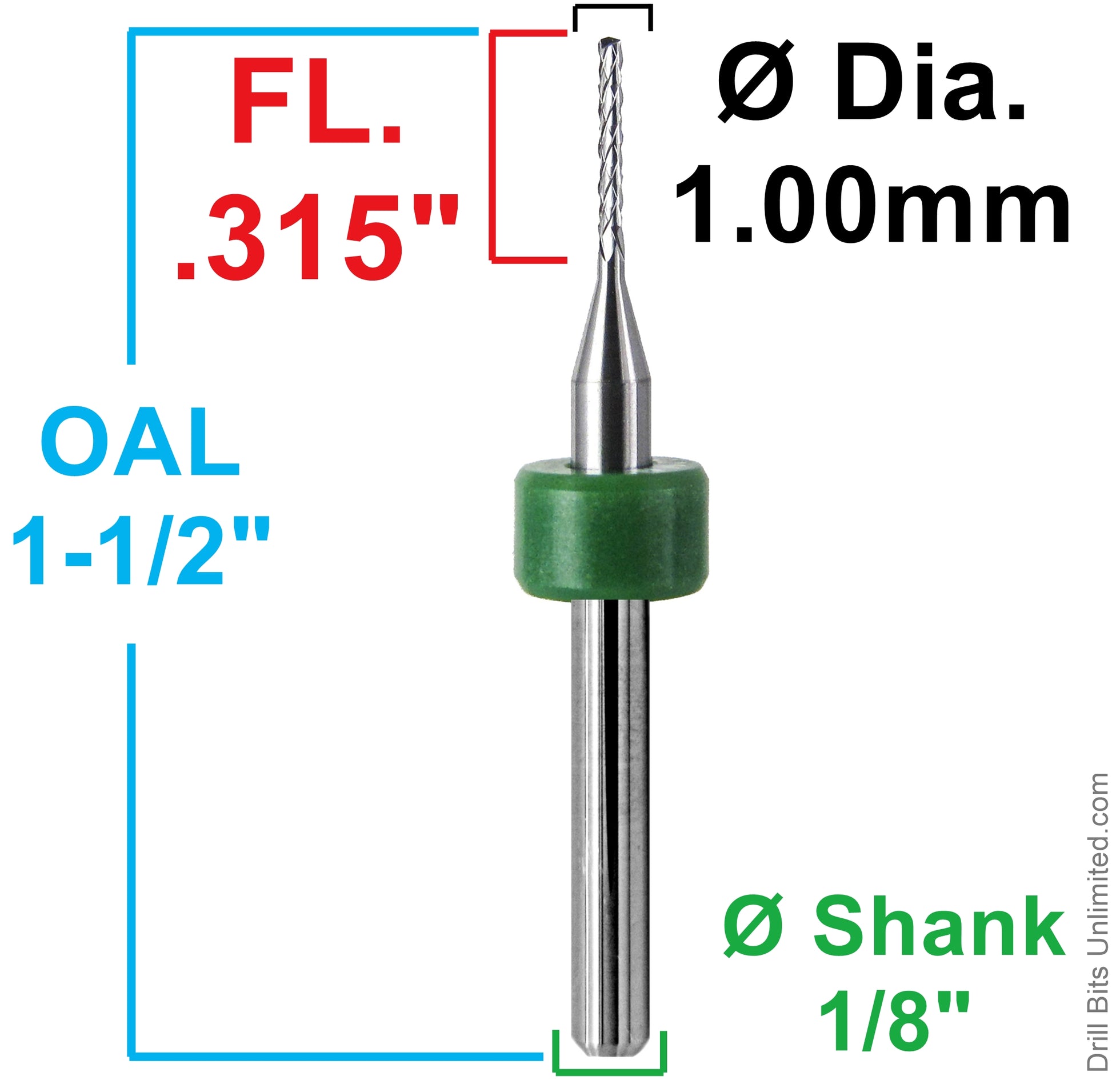

Mill Diameter (Inch) : .0394
Mill Diameter (mm) : 1.00
Depth of Cut (inch): .315
Shank Diameter (Inch) : 1/8
Overall Length (inch): 1.050
Material: Solid Tungsten Carbide
Coating/Finish: n/a
Cutting Direction: Right Hand
Flute Direction: Right Hand (Up Cut)

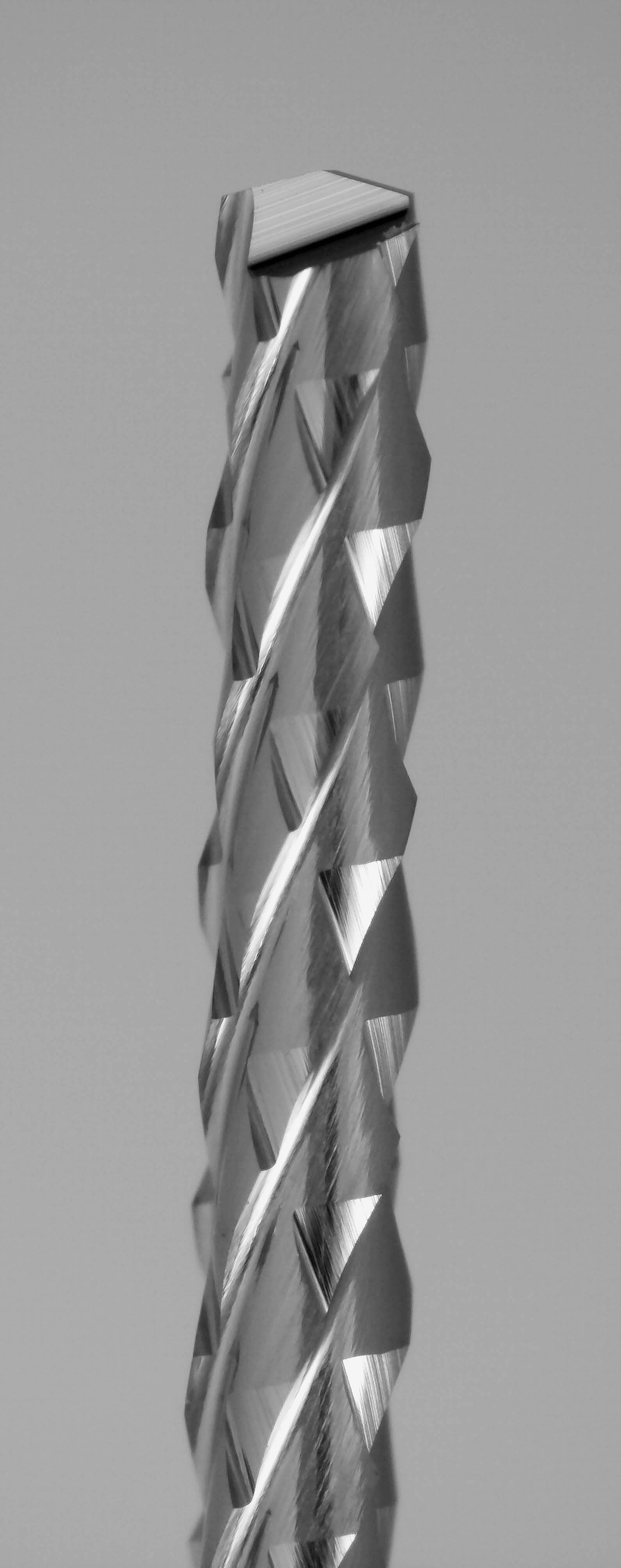

Flute Type: Diamond Pattern
Center Cutting?: Yes
Numerous diamond-shaped cutting surfaces is gentle on material, leaving a clean and smooth edge without delamination, cracking or fraying.

Perfect for milling hard and abrasive materials including carbon fiber, G10, FR4, fiberglass substrates, ceramics, etc.

Drill point plunge tip holds up to high plunge rates and dense materials.
