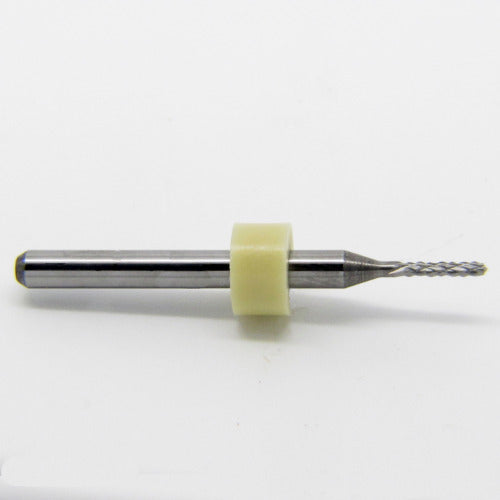

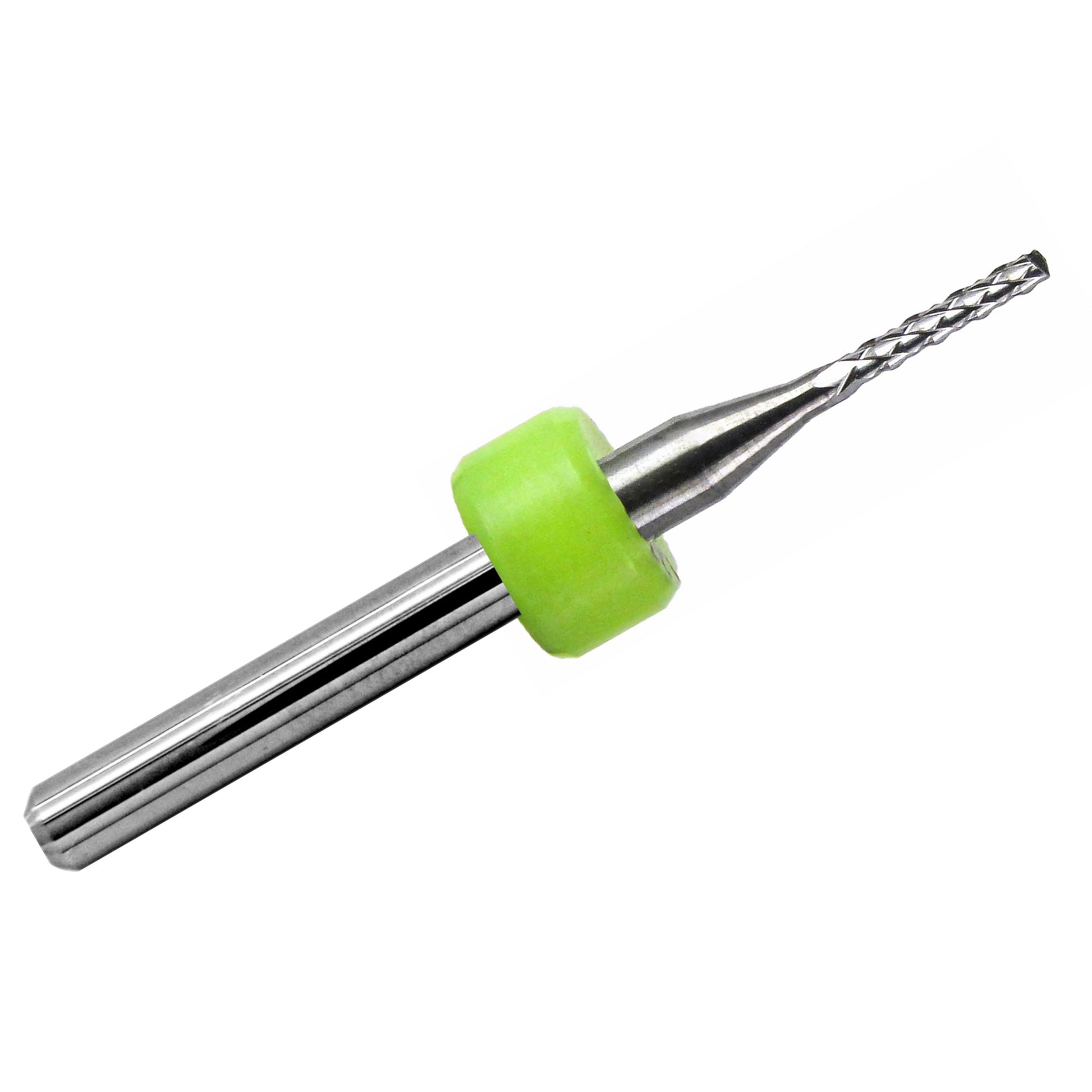

.050" x .315" LOC Diamond Pattern Carbide Router Bit - Drill Point Tip R125

Click HERE for Feed and Speed Recommendations

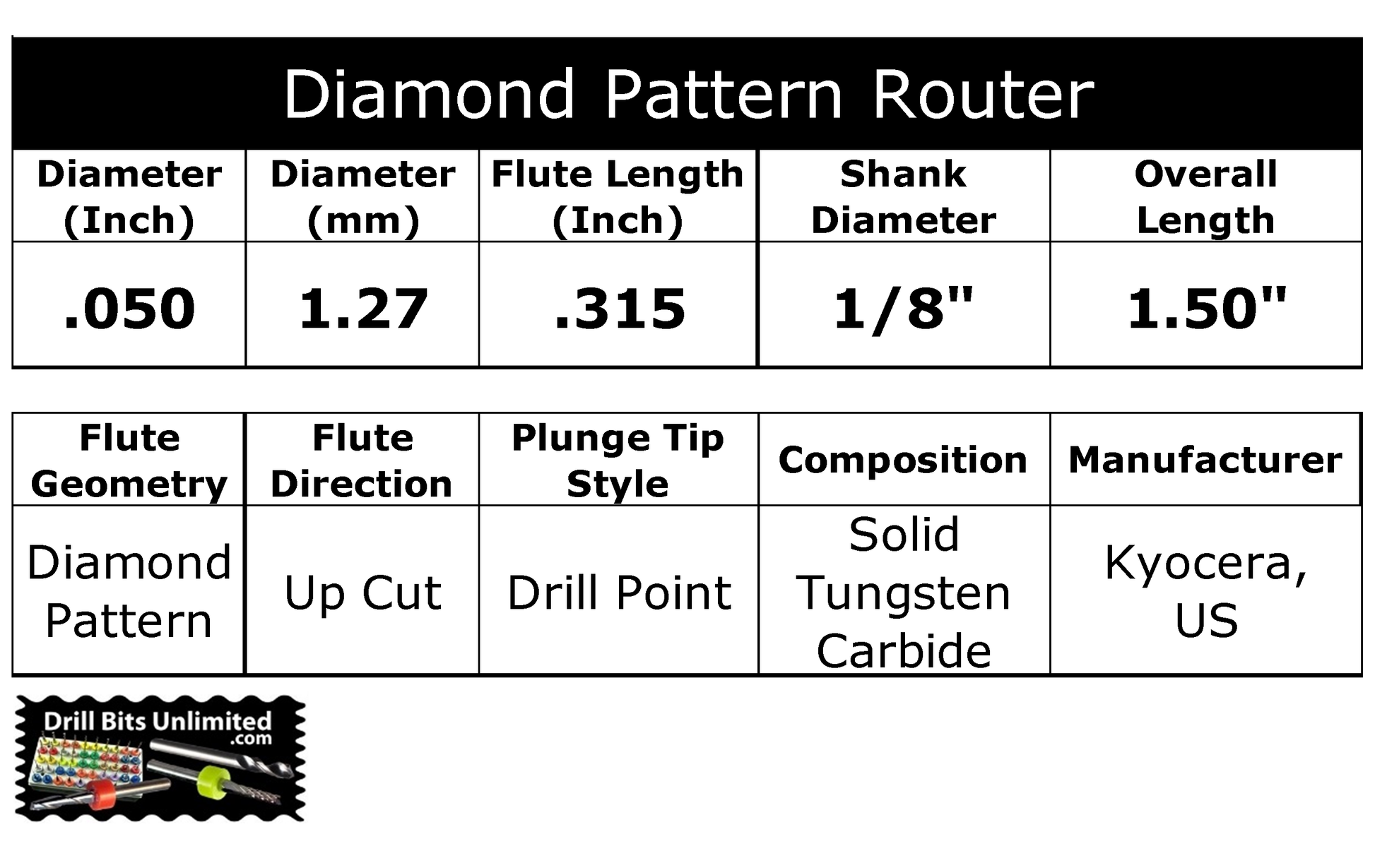

Router Style: Diamond Cut

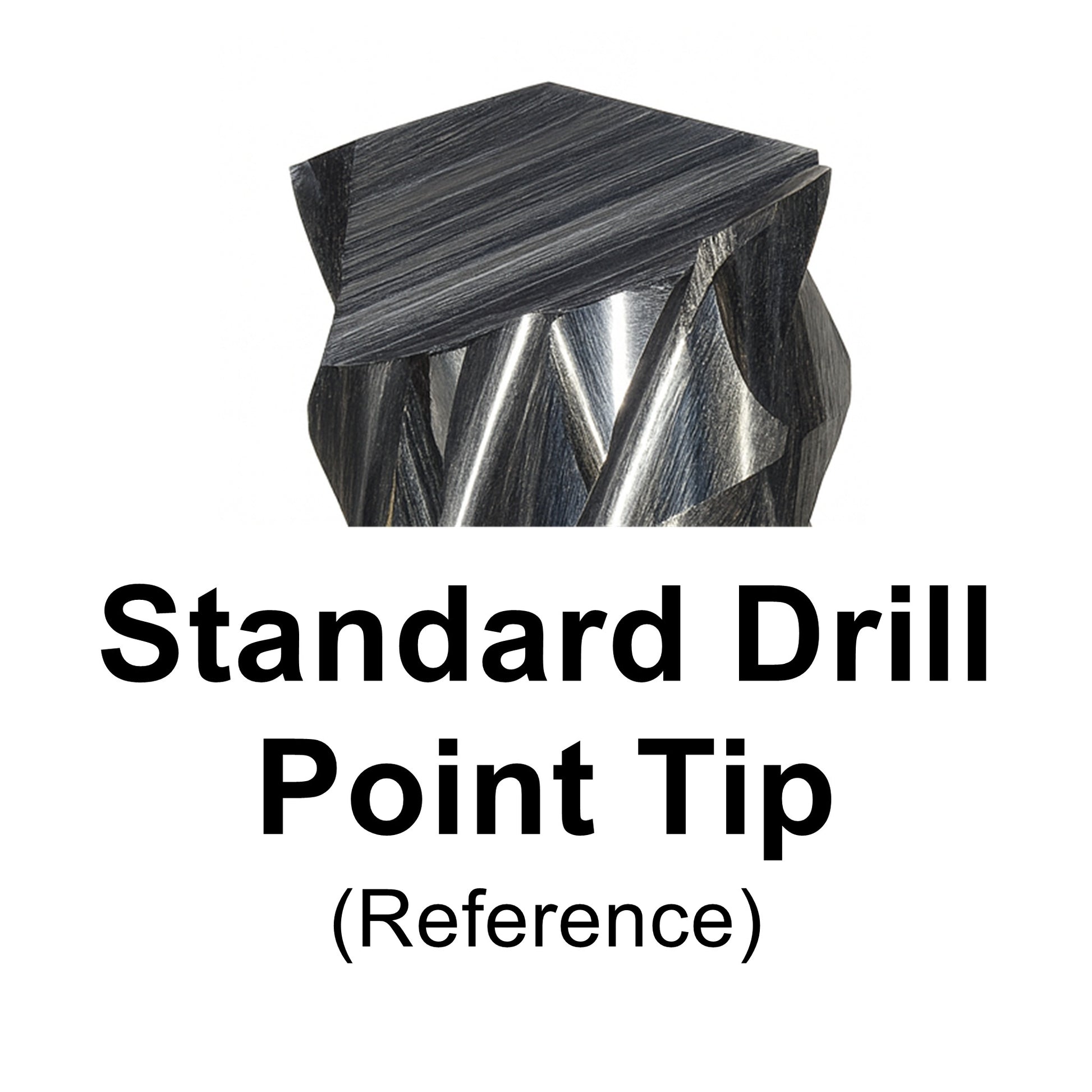

Plunge Tip: Drill Point

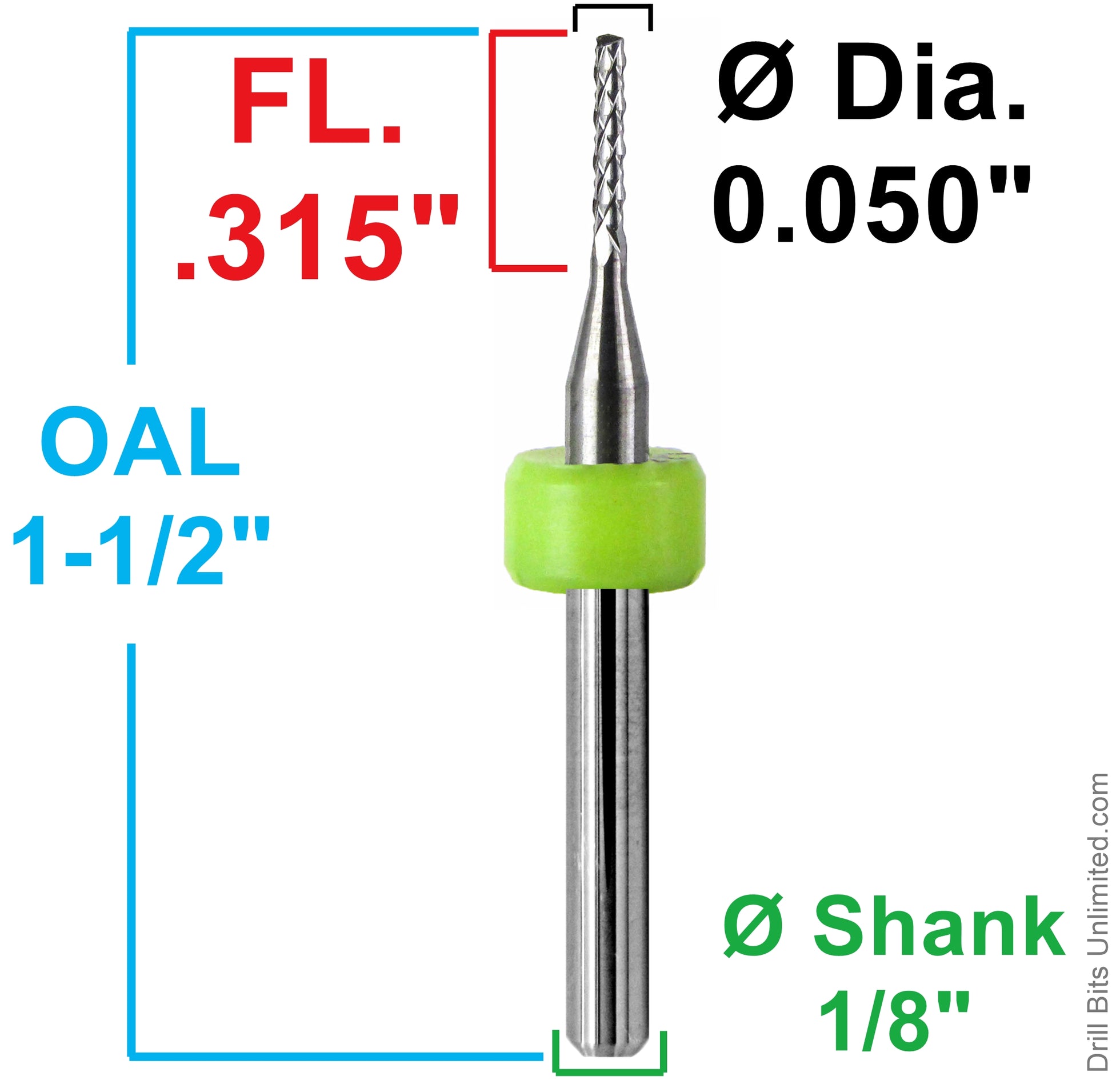

Mill Diameter (Inch) : .050
Mill Diameter (mm) : 1.27
Depth of Cut (inch): .315
Shank Diameter (Inch) : 1/8
Overall Length (inch): 1.50
Material: Solid Tungsten Carbide
Coating/Finish: n/a
Cutting Direction: Right Hand
Flute Direction: Right Hand (Up Cut)

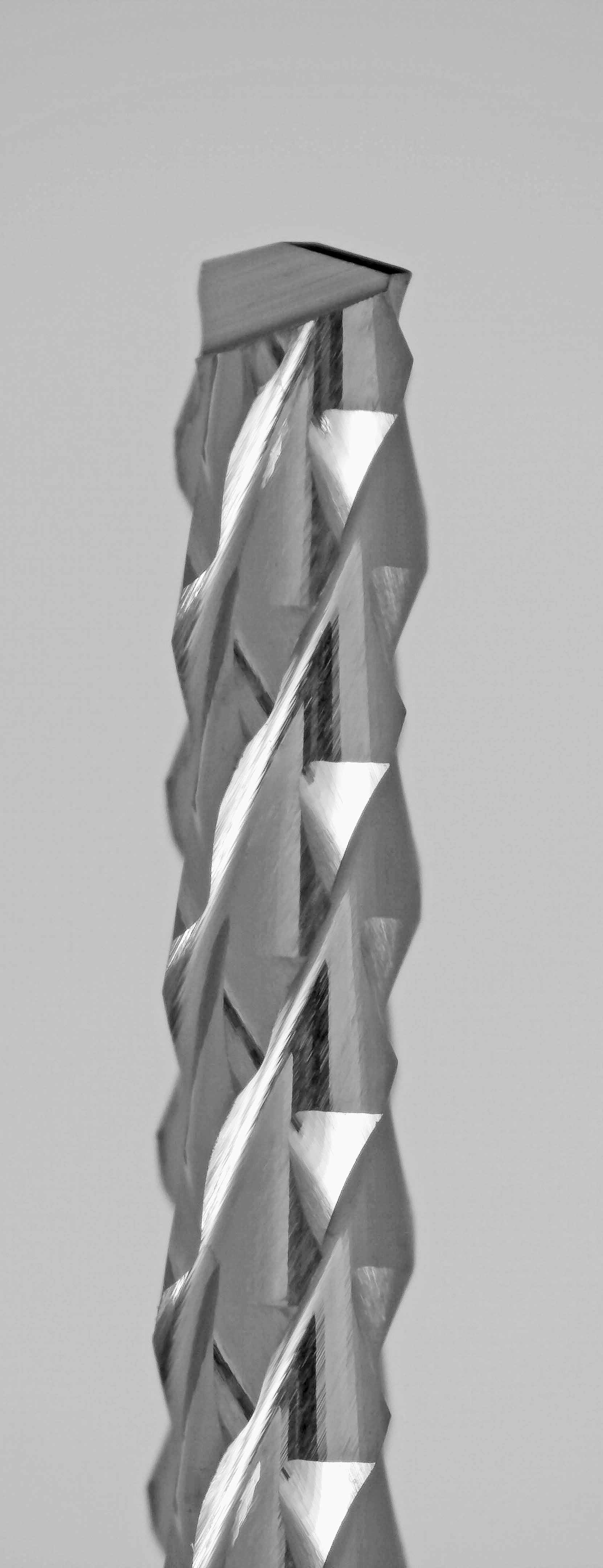

Flute Type: Diamond Pattern
Center Cutting?: Yes

Numerous diamond-shaped cutting surfaces is gentle on material, leaving a clean and smooth edge without delamination, cracking or fraying.

Perfect for milling hard and abrasive materials including carbon fiber, G10, FR4, fiberglass substrates, ceramics, etc.

Drill point plunge tip holds up to high plunge rates and dense materials.
