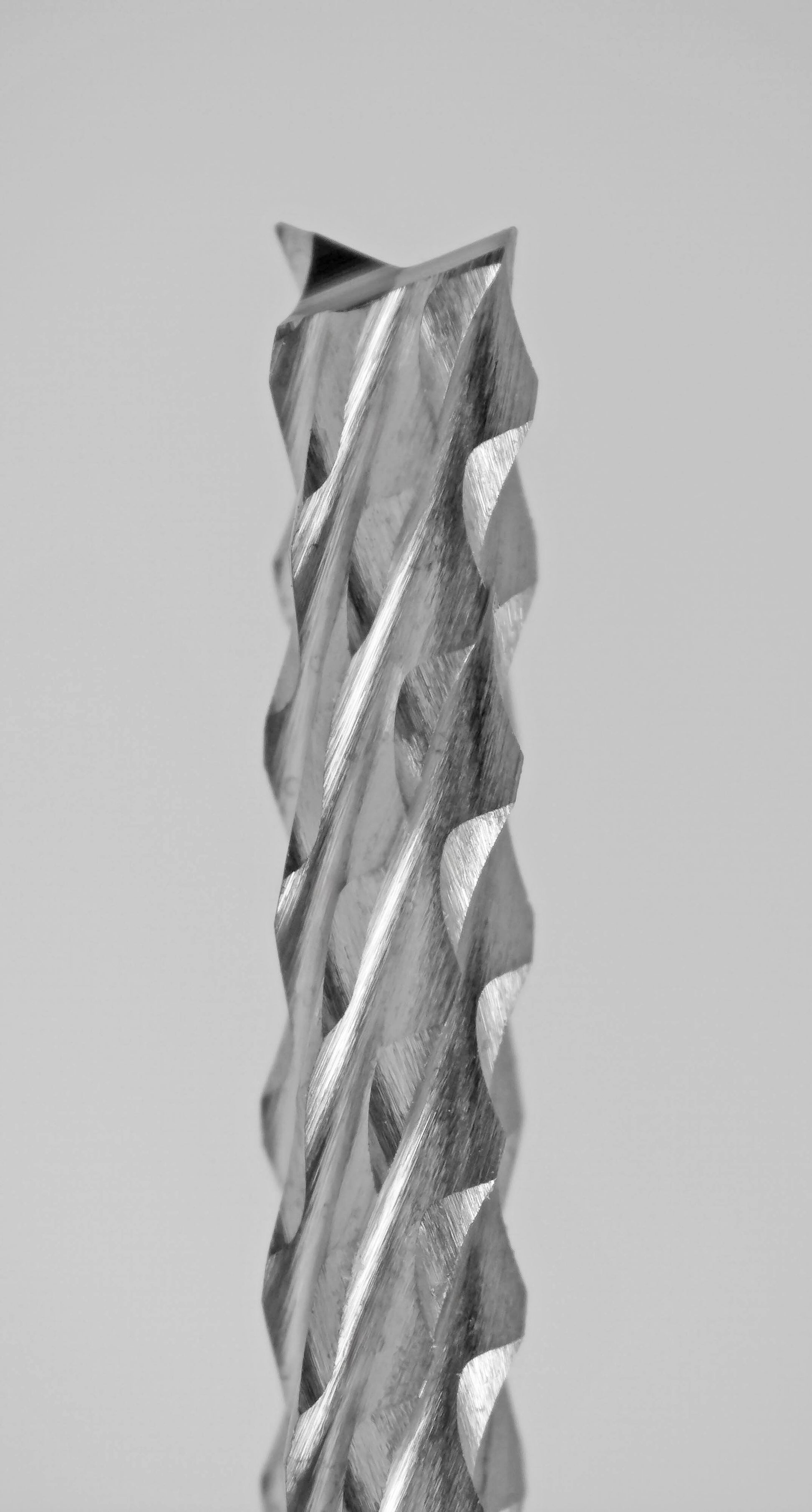

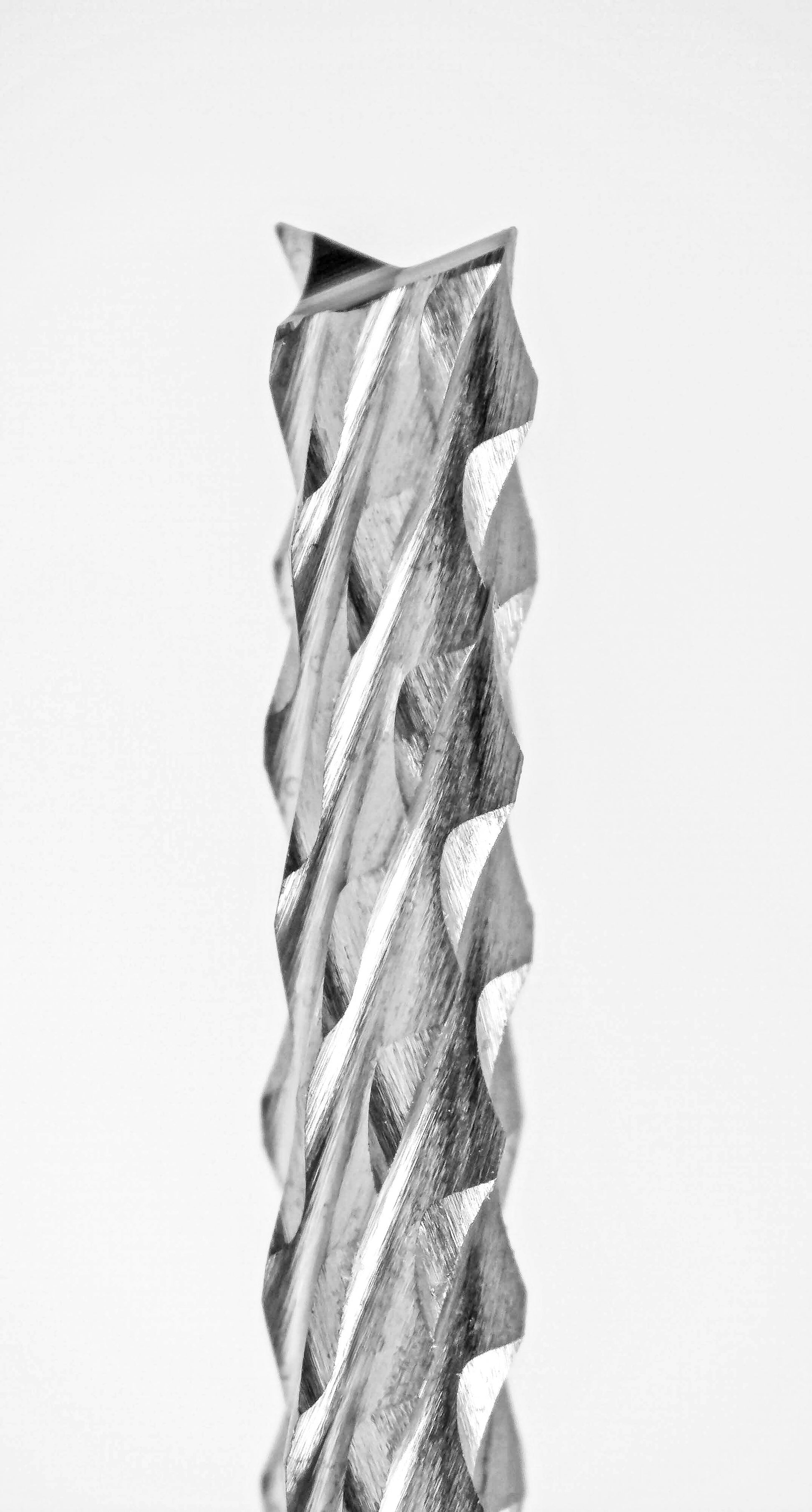

.050" x .315" LOC Diamond Pattern Router Bit Carbide - Fishtail Tip R122

Click HERE for Feed and Speed Recommendations

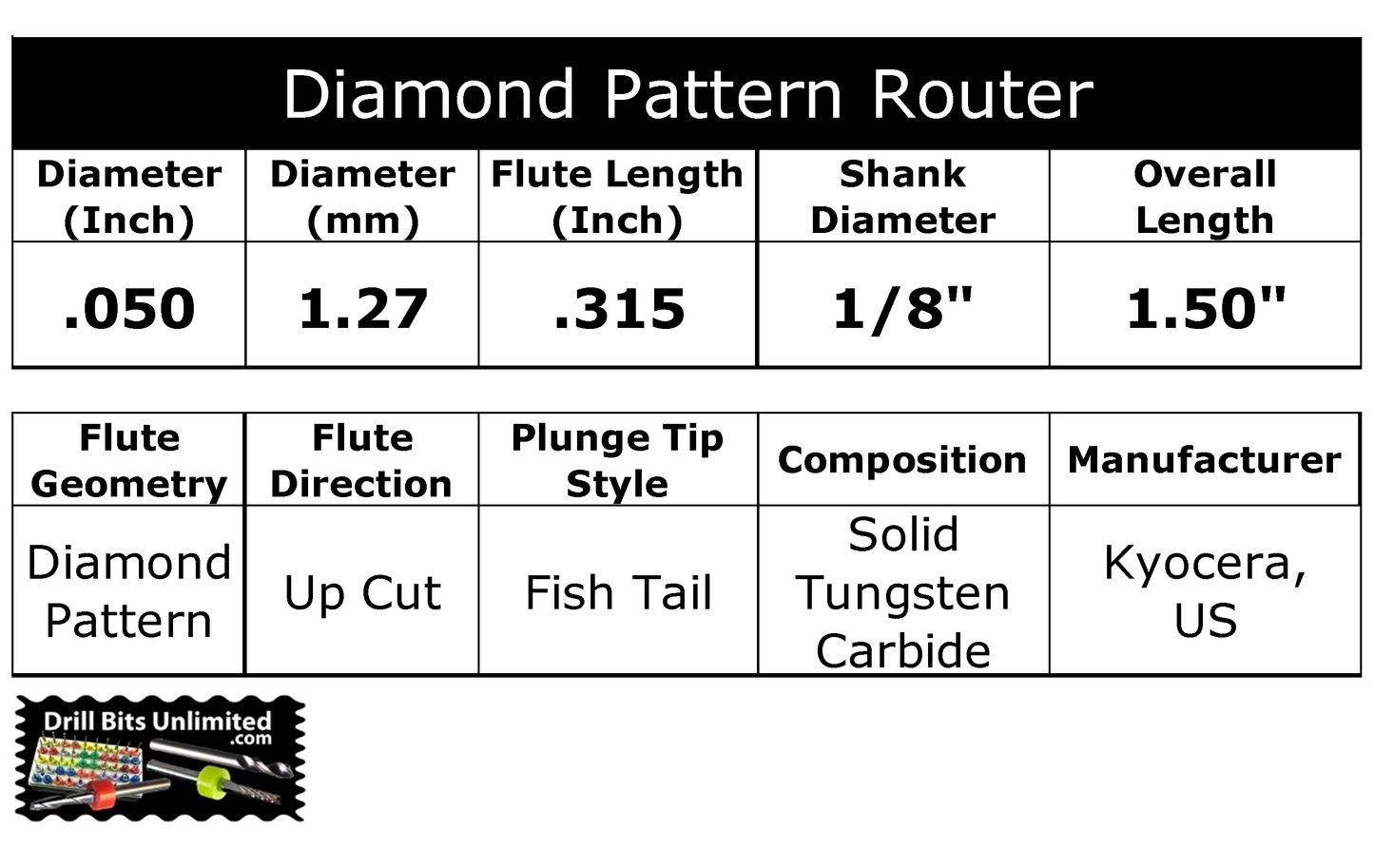

Type Diamond Cut Flutes
Manufacturer Kyocera
Cutting Diameter .050" - 1.27mm
Tip Style Fishtail
Material Solid Tungsten Carbide
Shaft Diameter 1/8"
Overall Length 1.50"
Flute Length (Depth of Cut) .315"
Chip Flow Direction Upcut - Towards Spindle

Numerous diamond-shaped cutting surfaces is gentle on material, leaving a clean and smooth edge without delamination, cracking or fraying.

Perfect for milling hard and abrasive materials including carbon fiber, G10, FR4, fiberglass substrates, ceramics, etc.

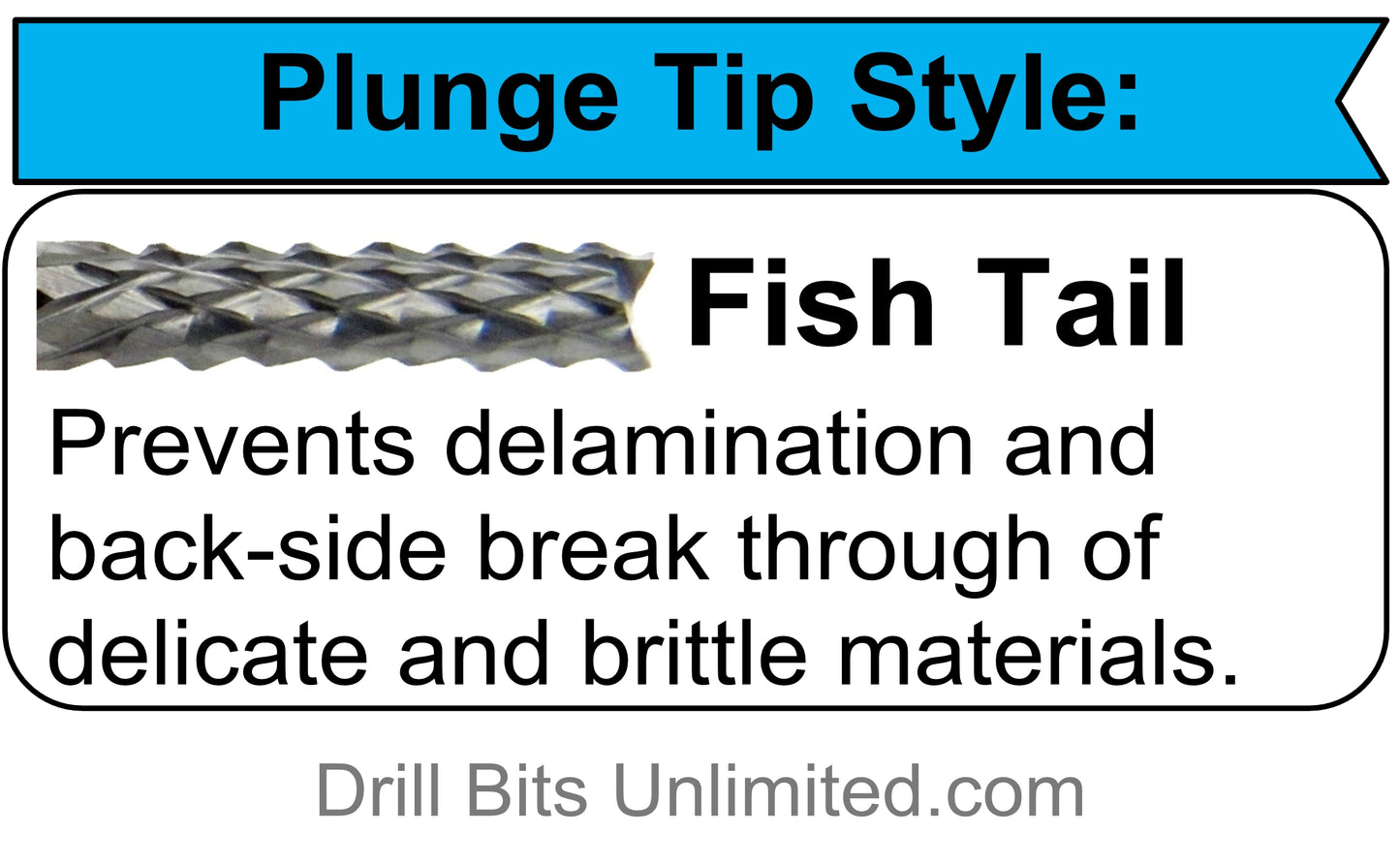

Fishtail plunge tip prevents back side break through and splintering.
