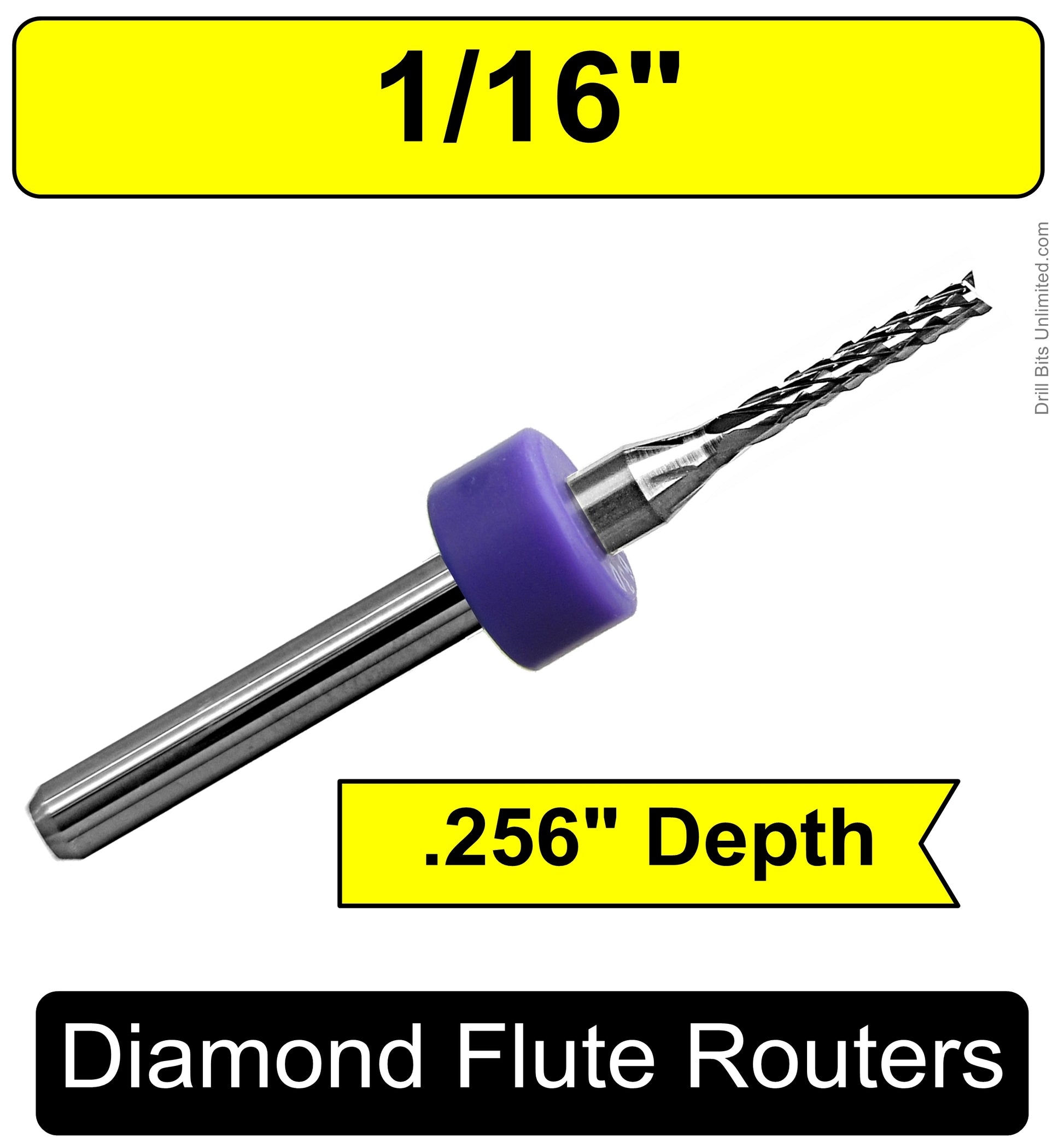

1/16" x .256" DOC Diamond Pattern Carbide Router Bit - Fishtail Tip R133
1/16" x .256" DOC Diamond Pattern Carbide Router Bit - Fishtail Tip R133
Regular price
$2.99 USD
Regular price
$3.99 USD
Sale price
$2.99 USD
Unit price
per
517 left in stock
SKU: R133
Couldn't load pickup availability
Click HERE for Feed and Speed Recommendations

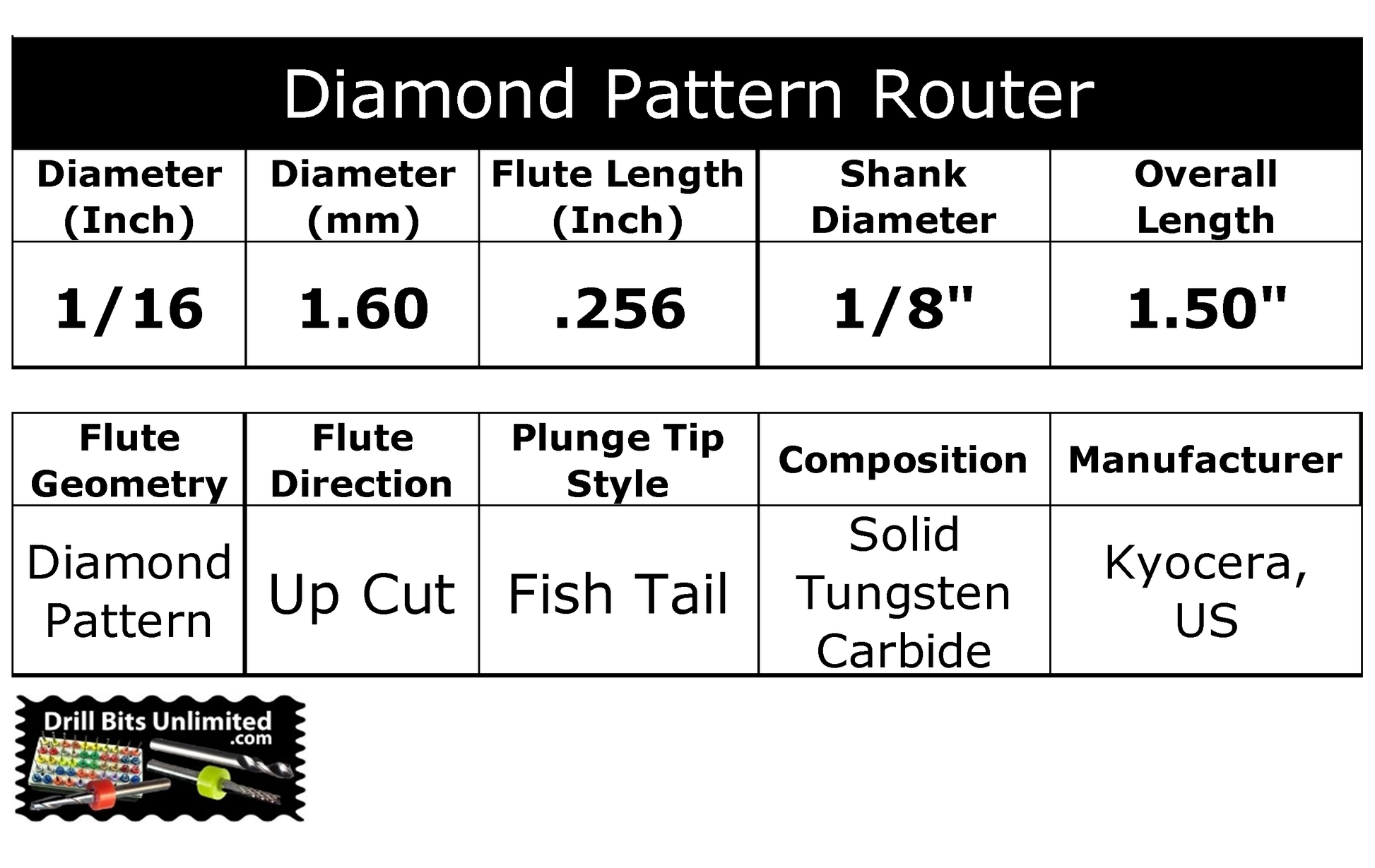

| Router Style: | Diamond Cut |
|---|---|
| Plunge Tip: | Fish Tail |

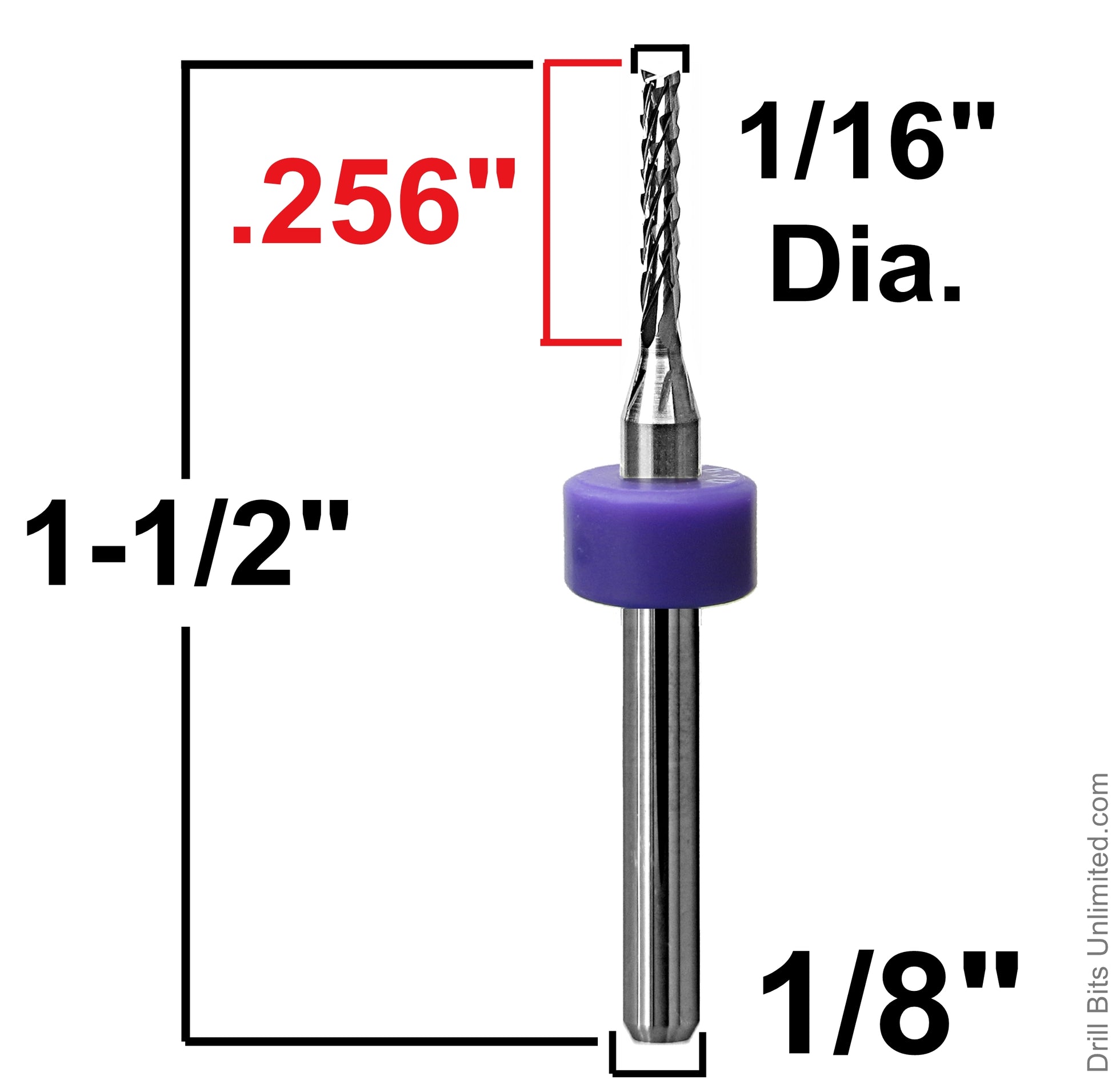

| Mill Diameter (Inch) : | .063 |
| Mill Diameter (mm) : | 1.60 |
| Depth of Cut (inch): | .256 |
| Shank Diameter (Inch) : | 1/8 |
| Overall Length (inch): | 1.50 |
| Material: | Solid Tungsten Carbide |
| Coating/Finish: | n/a |
| Cutting Direction: | Right Hand |
| Flute Direction: | Right Hand (Up Cut) |
| Flute Type: | Diamond Pattern |
| Center Cutting?: | Yes |

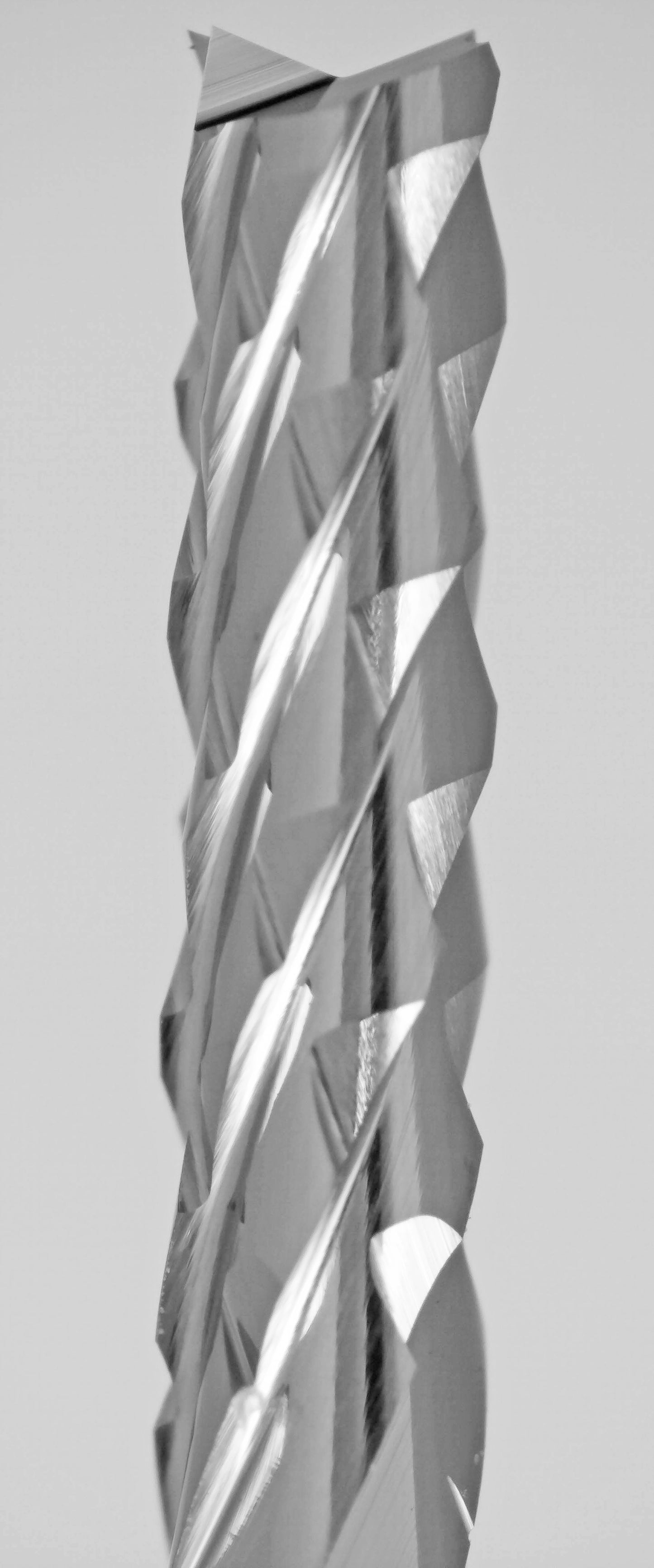

Numerous diamond-shaped cutting surfaces is gentle on material, leaving a clean and smooth edge without delamination, cracking or fraying.

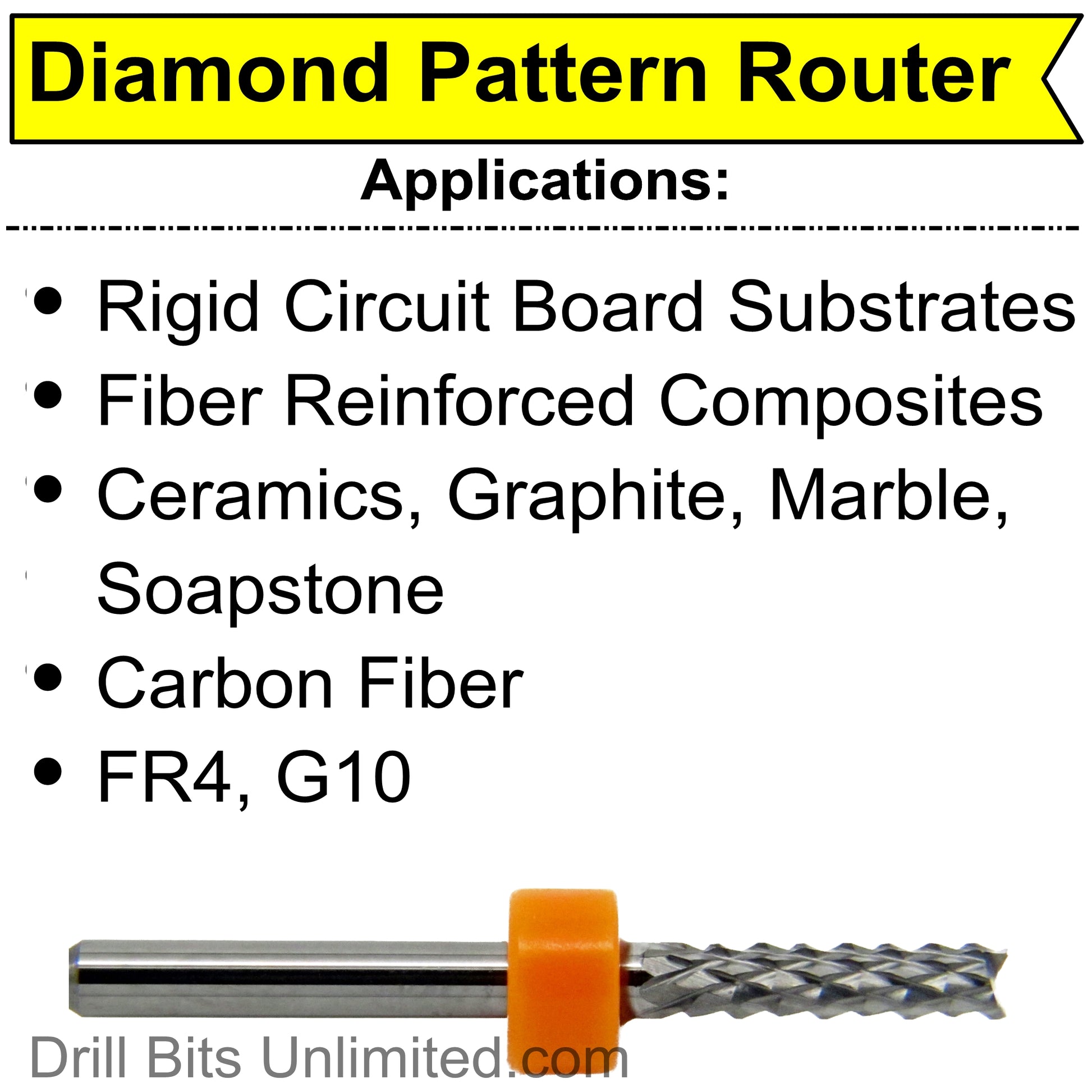

Perfect for milling hard and abrasive materials including carbon fiber, G10, FR4, fiberglass substrates, ceramics, etc.

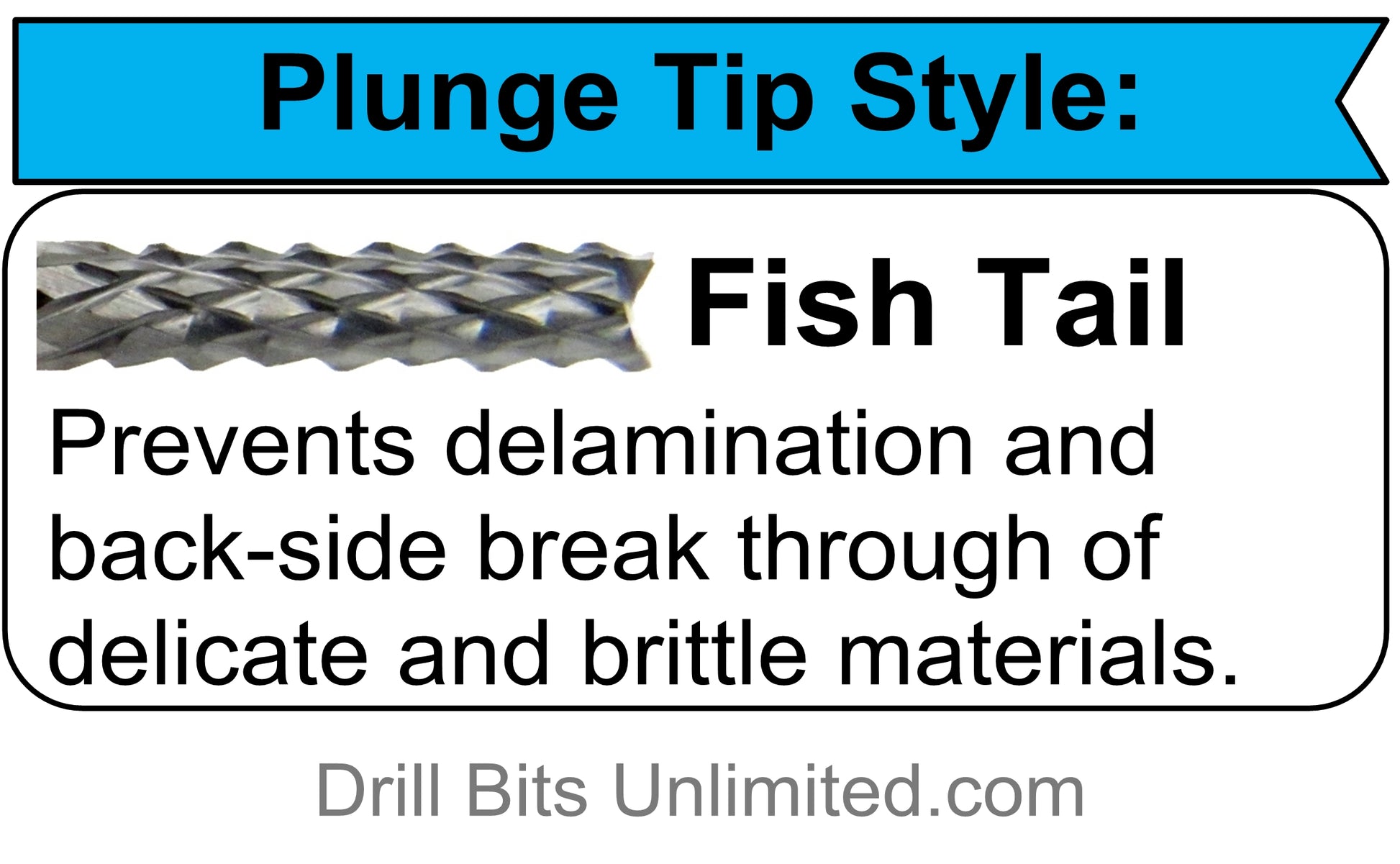

Fishtail plunge tip prevents back side break through and splintering.
