Drill Bits Unlimted

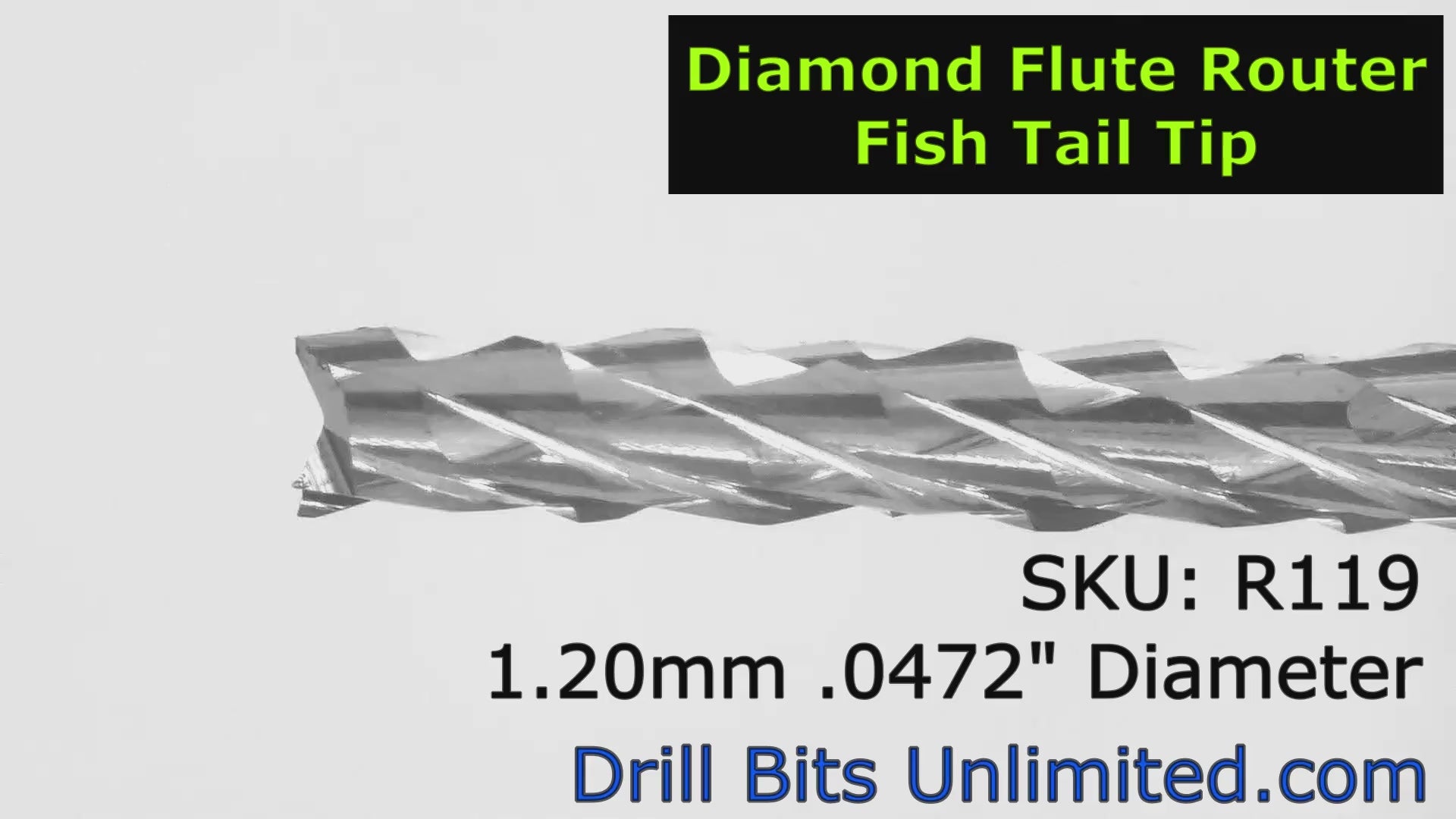

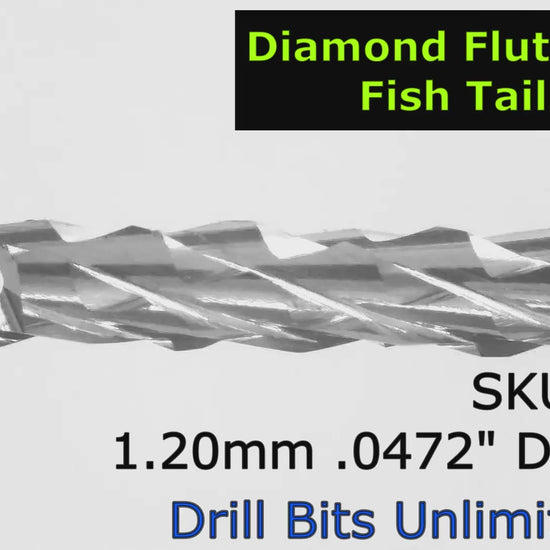

3/64" .0472" 1.20mm x .275" LOC Diamond Pattern Carbide Router Bit Fish Tail Tip 4100.0472.276 R119

3/64" .0472" 1.20mm x .275" LOC Diamond Pattern Carbide Router Bit Fish Tail Tip 4100.0472.276 R119

Regular price $3.49 USD
Regular price Sale price $3.49 USD
Sale Sold out

229 left in stock

SKU: R119

Click HERE for Feed and Speed Recommendations

Numerous diamond-shaped cutting surfaces is gentle on material, leaving a clean and smooth edge without delamination, cracking or fraying.

Perfect for milling hard and abrasive materials including carbon fiber, G10, FR4, fiberglass substrates, ceramics, etc.

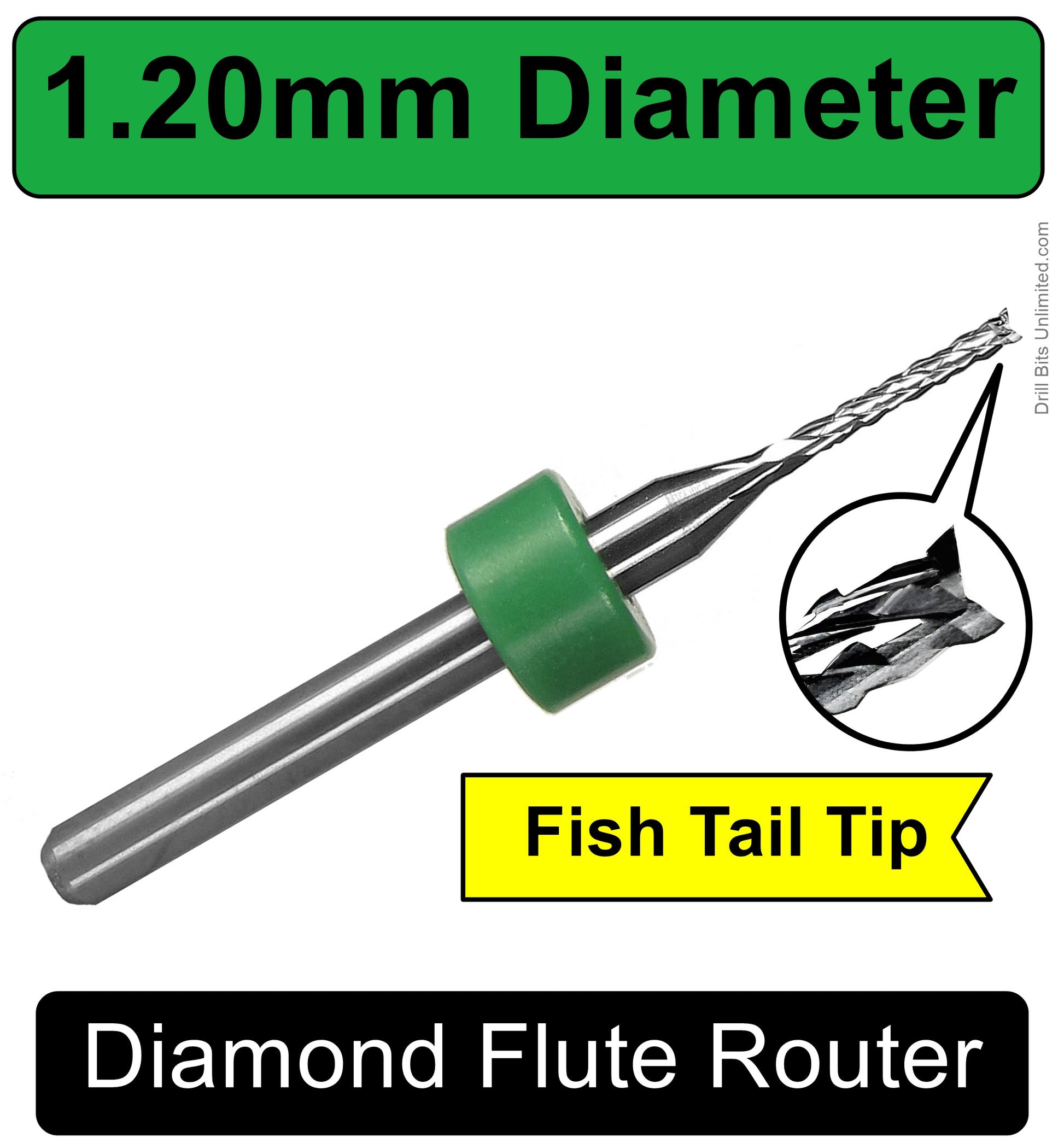

Fishtail plunge tip prevents back side break through and splintering.

ย

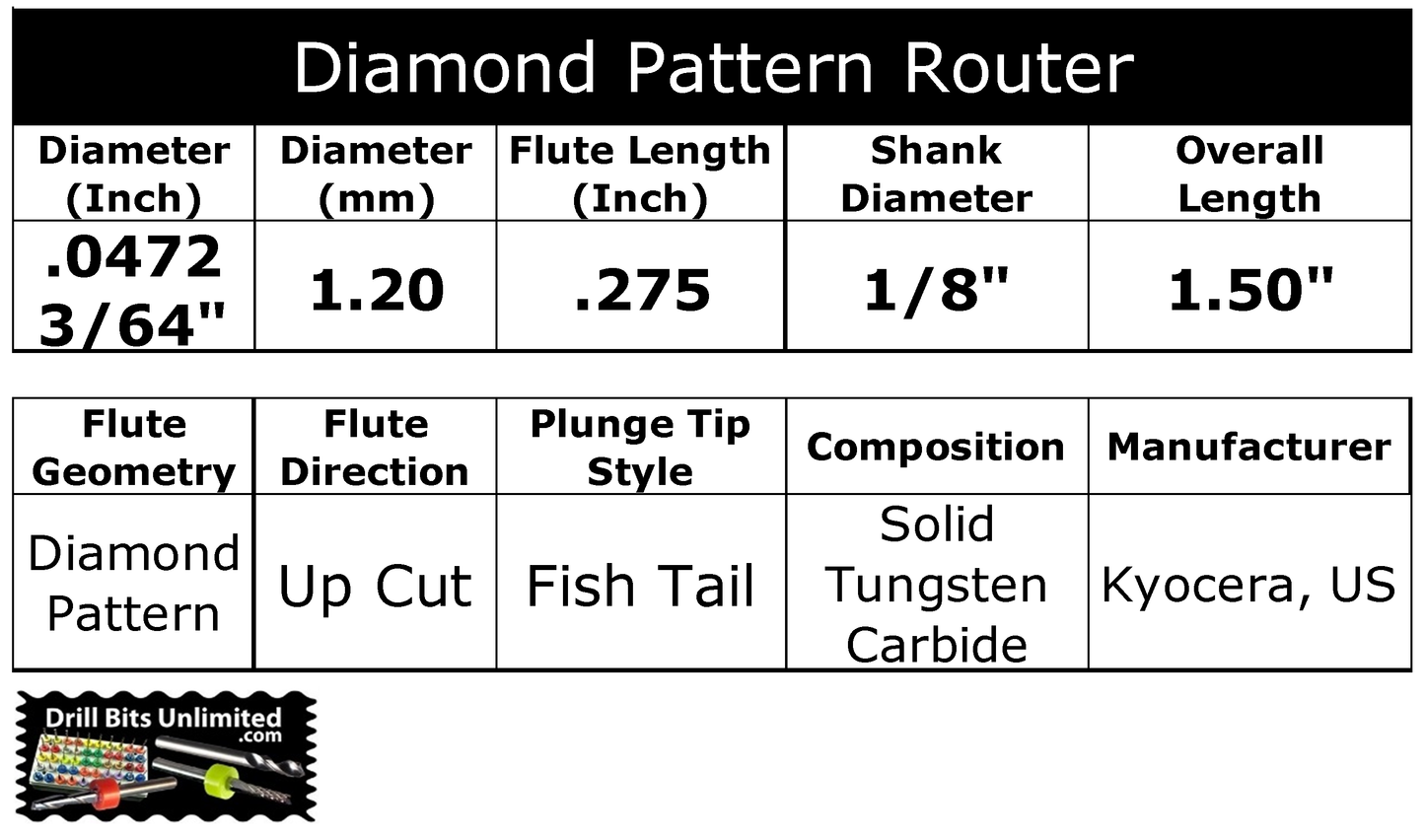

Router Style: Diamond Cut
Plunge Tip:ย Fish Tail

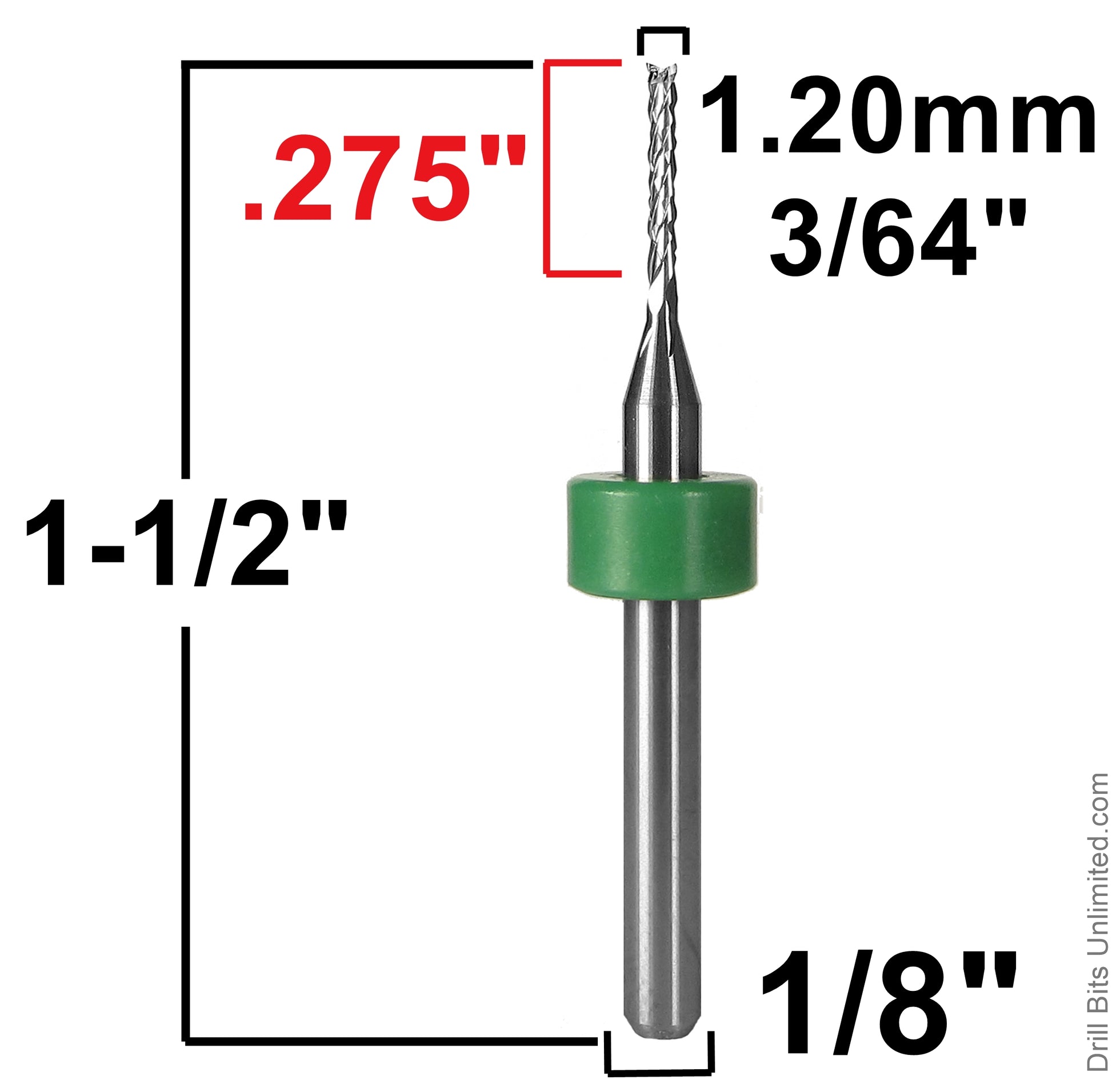

Mill Diameter (Inch) : .0472 3/64
Mill Diameter (mm) : 1.20
Depth of Cut (inch): .275
Shank Diameter (Inch) : 1/8
Overall Length (inch): 1.50
Material: Solid Tungsten Carbide
Coating/Finish: n/a
Cutting Direction: Right Hand
Flute Direction: Right Hand (Up Cut)
Flute Type: Spiral
Center Cutting?: Yes

List in this category: Business & Industrial > CNC, Metalworking & Manufacturing > Metalworking Supplies > End Mills > Roughing & Router End Mills

๐Ÿ› ๏ธ What Are Diamond-Cut Router Bits with Fishtail Tips?

These tools feature:

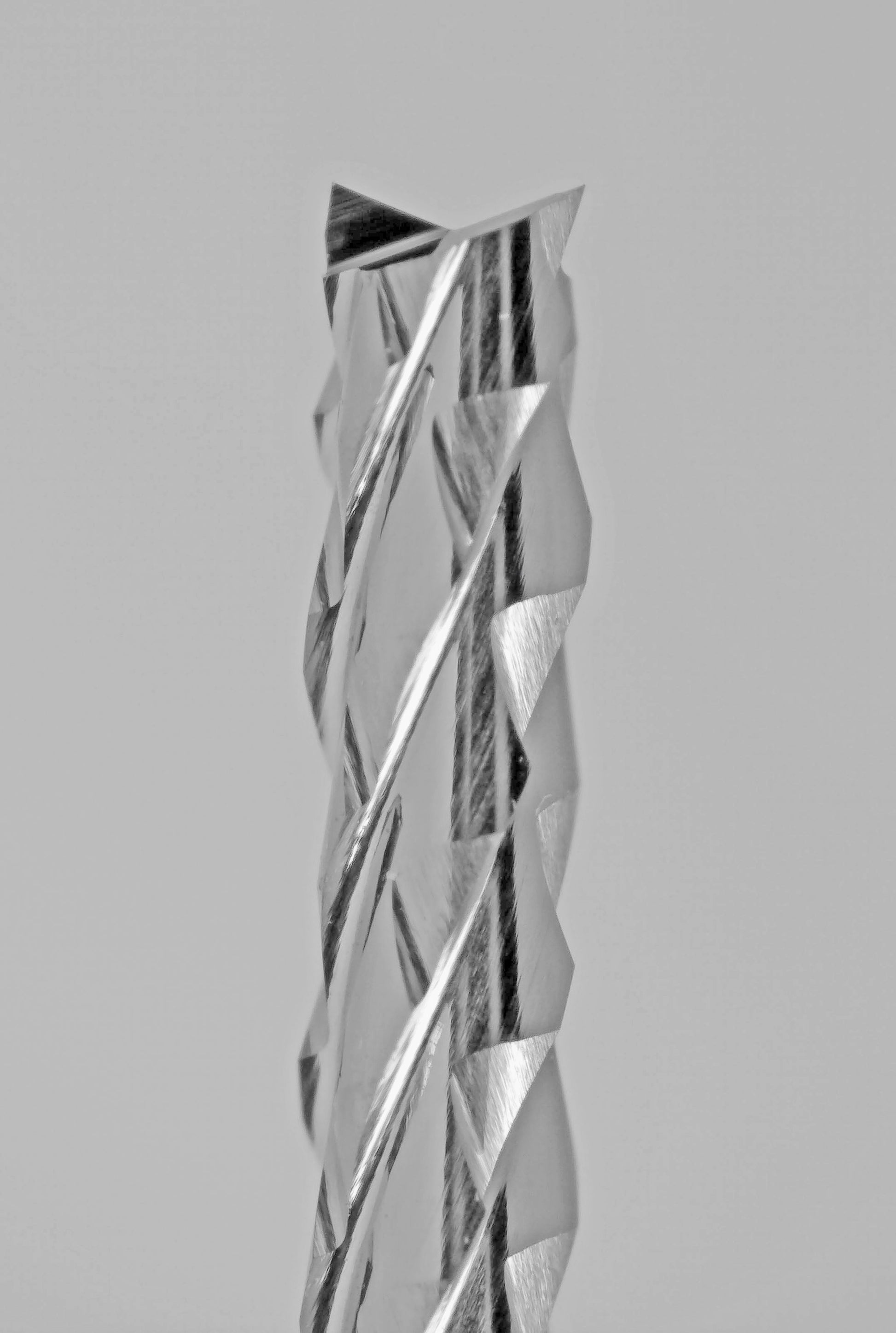

  • Diamond-patterned flutes: The flutes have a diamond-shaped geometry that allows for precision cutting with smooth sidewalls and minimal top-edge burr formation
  • Fishtail tips: The fishtail design helps eliminate fracturing and prevents back-side breakthrough, making them ideal for plunge cuts in delicate materials.

๐Ÿ“Œ Key Benefits

  • Minimizes Delamination and Fracturing: The unique flute design gently cuts materials without causing delamination, cracking, or fraying, which is crucial when working with composites and PCBs.
  • Clean Edge Finish: Provides smooth sidewalls and minimal top-edge burrs, reducing the need for post-processing.
  • Ideal for Abrasive Materials: Suitable for cutting hard and abrasive materials like carbon fiber, G10, FR4, fiberglass, ceramics, and more.

โœ… Best Suited For

  • Printed Circuit Boards (PCBs): Ensures precise cuts without damaging delicate components.
  • Carbon Fiber and Composites: Maintains structural integrity during cutting.
  • Fiberglass and G10/FR4: Prevents edge chipping and delamination.
  • Ceramics and Graphite: Handles brittle materials with care, minimizing fractures.

โš ๏ธ Not Ideal For

  • Soft Woods and Foams: The flute geometry may cause tearing or rough finishes in softer materials.
  • Metals: Not designed for cutting ductile metals like aluminum or steel.
  • High-Speed Cutting: Due to their design, they are better suited for controlled, precise cuts rather than rapid material removal.

๐Ÿ“Š Summary Table

Material Type

Suitability

Notes

PCBs (FR4, phenolic)

โœ… Excellent

Prevents fracturing and delamination

Carbon Fiber / G10

โœ… Excellent

Maintains clean edges without fraying

Fiberglass

โœ… Excellent

Minimizes edge chipping

Ceramics / Graphite

โœ… Excellent

Gentle cutting reduces risk of cracking

Soft Woods / Foams

โŒ Not recommended

May cause rough finishes or tearing

Metals (Aluminum/Steel)

โŒ Not suitable

Designed for non-metallic, brittle materials


In summary, diamond-cut spiral router bits with fishtail tips are specialized tools designed for precision and care when working with brittle, abrasive materials. Their unique design ensures clean cuts, minimizes damage, and extends tool life, making them invaluable in industries dealing with composites, PCBs, and similar materials.
