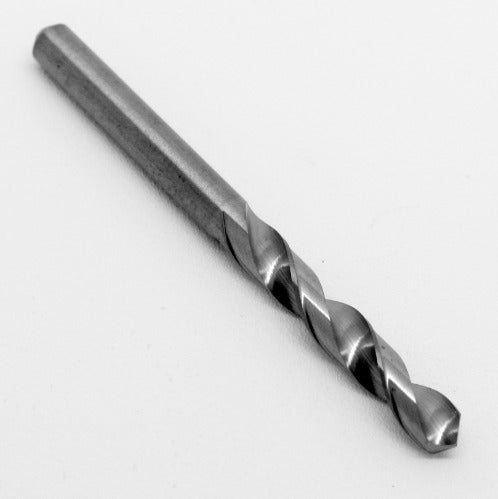

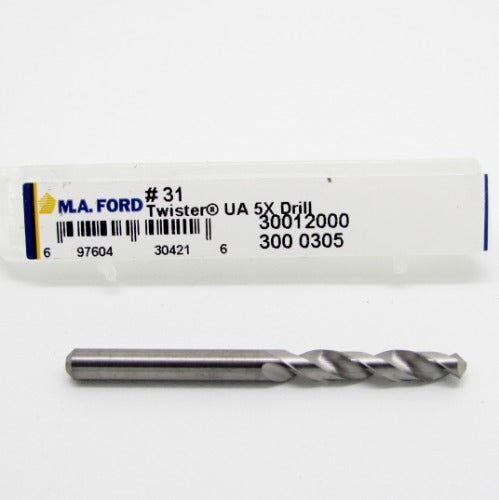

#31 .120" 3.05mm Shank Diam 118 Deg, Fast Spiral Drill Bit 5/8" Flute Length, 1-1/2 OAL - USA DA15-3-30012000
#31 .120" 3.05mm Shank Diam 118 Deg, Fast Spiral Drill Bit 5/8" Flute Length, 1-1/2 OAL - USA DA15-3-30012000
Regular price
$11.99 USD
Regular price
Sale price
$11.99 USD
Unit price
per
10 left in stock
SKU: DA15-3-30012000
Couldn't load pickup availability
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high-speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Specs
| Drill Bit Size (mm) | 3.05 |
| Drill Bit Size (Wire) | #31 |
| Drill Bit Size (Decimal Inch) | 0.1200 |
| Drill Point Angle | 118 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Bright |
| Shank Diameter (mm) | 3.05 |
| Flute Length (mm) | 15.88 |
| Flute Length (Decimal Inch) | 0.6250 |
| Flute Length (Inch) | 5/8 |
| Overall Length (mm) | 38.10 |
| Overall Length (Inch) | 1-1/2 |
| Spiral Type | Fast Spiral |
| Web Configuration | Tapered |
| Drill Bit Grade | Heavy Duty |
| Cutting Direction | Right Hand |
| Helix Angle | 35 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0005 |
| Series/List | 300 |
| Shank Diameter (Decimal Inch) | 0.1200 |
