PCB Drill Bits, Engraving Bits & Routers | Carbide PCB Tools

Shop PCB drill bits, PCB isolation engravers, and PCB routing tools for printed circuit board drilling, trace isolation, routing, prototyping, and small CNC work. Choose from the tool types below to view individual micro carbide PCB drill sizes, drill bit sets, 30° and 60° pyramid engravers, diamond-flute routers, and chip-breaker routers.

PCB Drilling, Trace Isolation, and Routing Tools

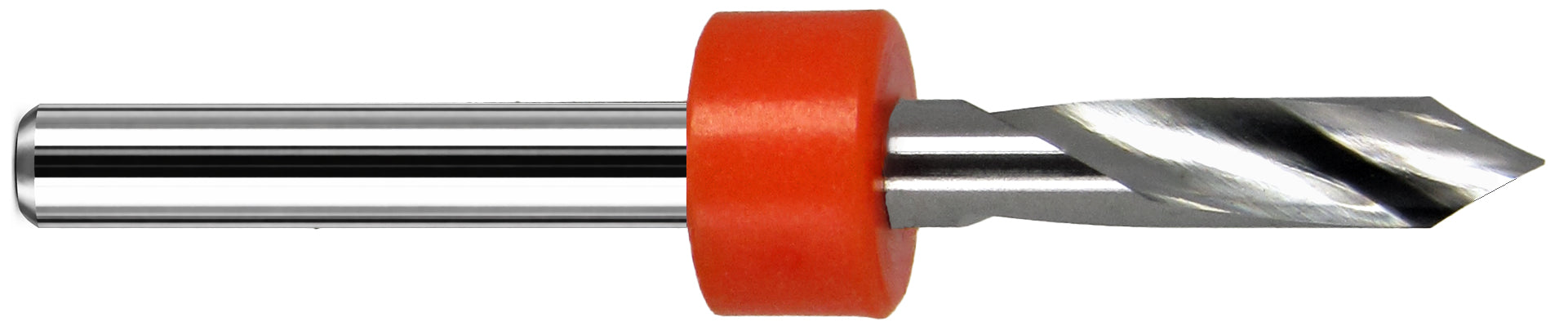

Use micro carbide drill bits for PCB component holes, vias, prototype boards, and precision small-hole drilling.

Use solid carbide pyramid engravers for PCB isolation milling—the shallow removal of copper around traces and pads to electrically separate circuit conductors. The 30° pyramid engraver is well suited for fine traces, closely spaced pads, and narrow isolation grooves, while the 60° pyramid engraver produces wider isolation channels and provides a more general-purpose engraving angle.

Use PCB routers for board outlines, slots, cutouts, and fiberglass laminate routing. Diamond-flute PCB router bits and chip-breaker routers are both common choices for PCB and composite laminates. The best choice depends on material thickness, edge-quality requirements, chip evacuation, and cutting conditions.
