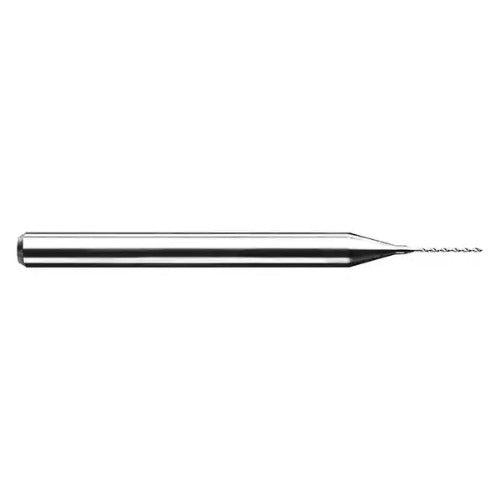

0.0122" 0.31mm Diameter Micro Drill Bit, Carbide, AlTiN Coated 226L-0122.225 K170
0.0122" 0.31mm Diameter Micro Drill Bit, Carbide, AlTiN Coated 226L-0122.225 K170
Regular price
$6.95 USD
Regular price
Sale price
$6.95 USD
Unit price
per
13 left in stock
SKU: K170
Couldn't load pickup availability
| Application: Metalworking | Coolant Through: No |
| Shank Type: Straight | Flute Length: 0.2250" |
| Grade: Micrograin Carbide | Drill Bit Material: Solid Carbide |
| Drill Bit Finish: Uncoated | Drill Bit Point Angle: 118 Degrees |
| Drill Bit Size: 0.31mm | Number of Flutes: 2 |
| Cutting Direction: Left Hand | Decimal Equivalent: 0.0122 |
| List Number: 226L | Overall Length: 38.00mm |
| Shank Dia.: 0.1181" | Item: Micro Drill Bit |
| Point Type: 4 Facet | Number of Pieces: 1 |
| Drill Bit Dimension Type: Metric | Coolant Fed: Non-Coolant Through |
| Flute Type: Spiral | Web Construction: Split |
| Drill Length Class: Micro Length | Aircraft Drill: No |
| Spiral Direction: Left Hand | Series: 226L |
| Drill Bit Point Type: 4 Facet Point | Material Grade - Machining: Sub Micron |
| Primary Material Application: Aluminum, CFRP, Graphite, Titanium | Drill Diameter Tolerance: +0.000mm/-0.008mm |
| Material - Machining: Carbide | Finish - Machining: Bright (Uncoated) |
| Circuit Board Drill: Yes | Primary Material Application ISO Code: N |
| Web Thinning: X-Thinned | Maximum Drilling Depth: 0.2250" |
| Measurement System: Metric | Shank Type - Machining: Straight |
| Standards: Not Rated | Country of Origin (subject to change): United States |
