Drill Bits Unlimted

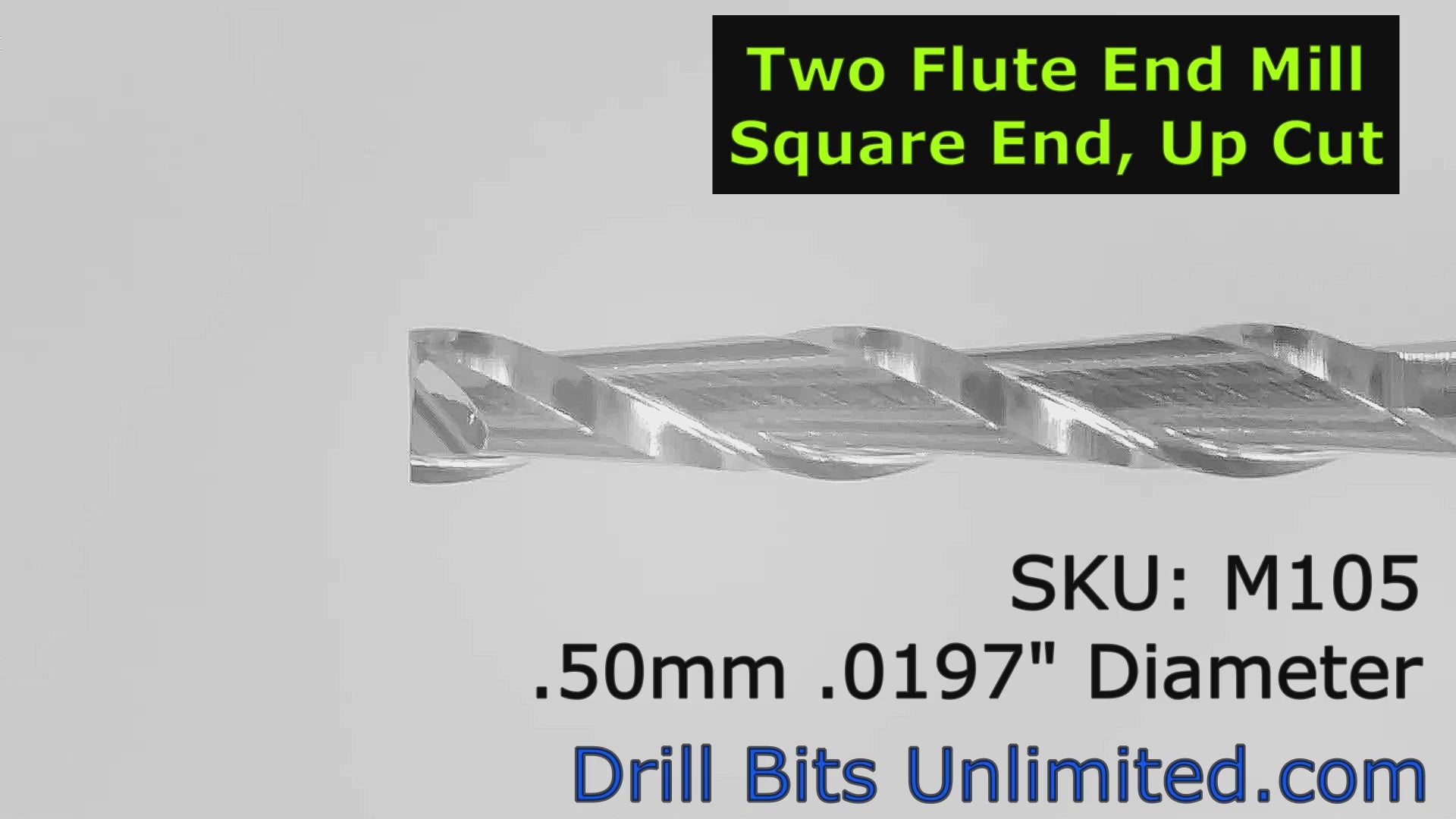

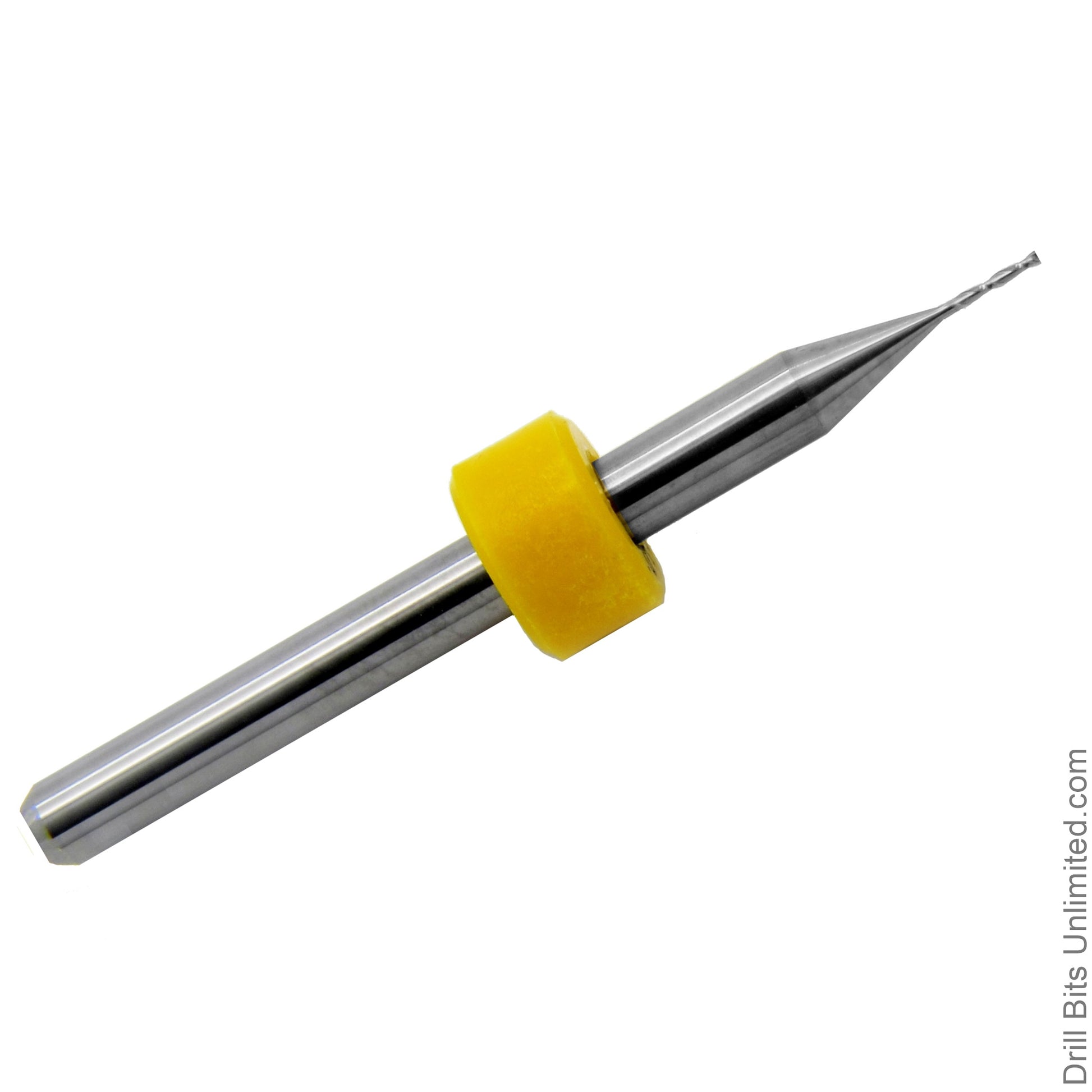

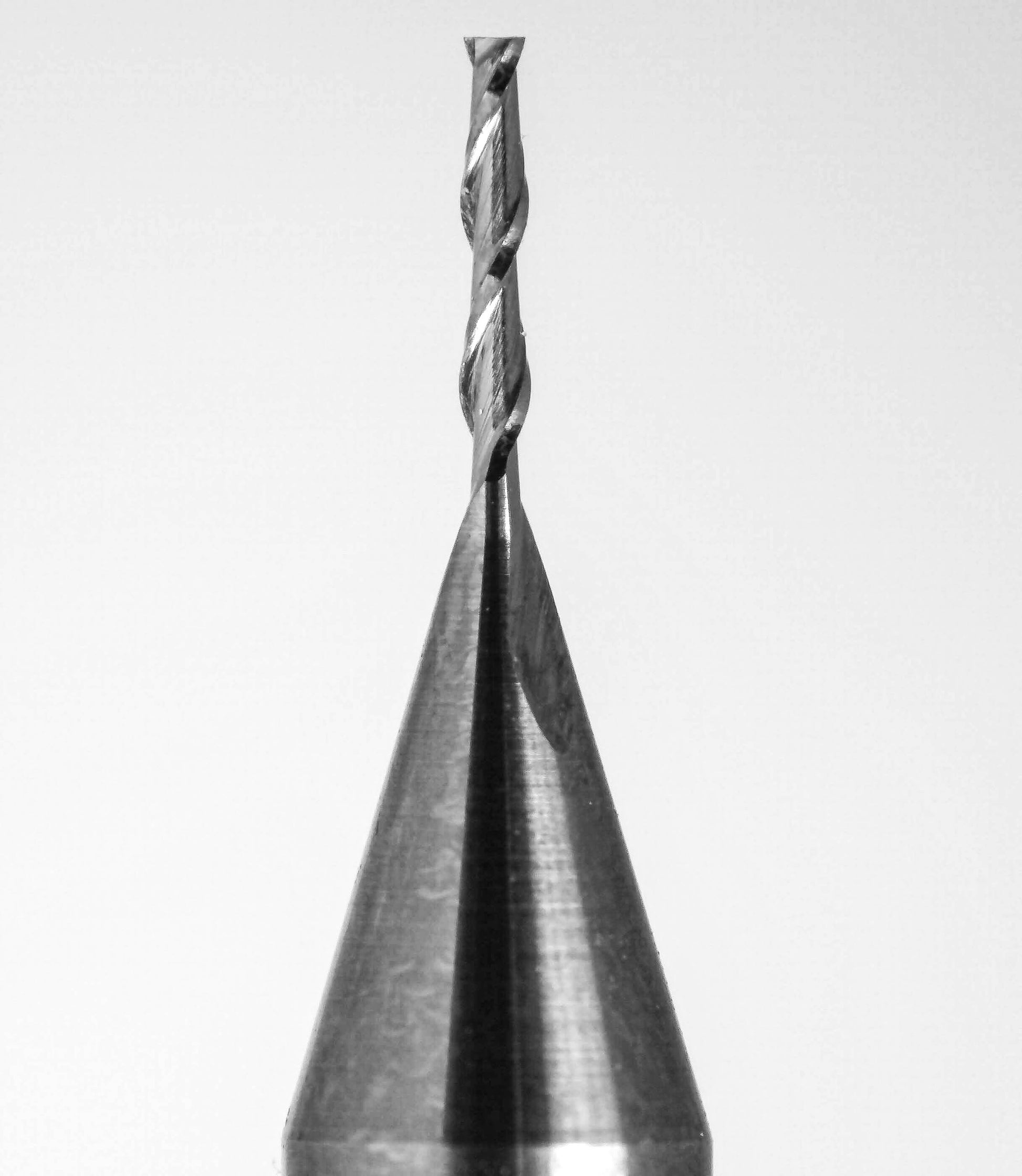

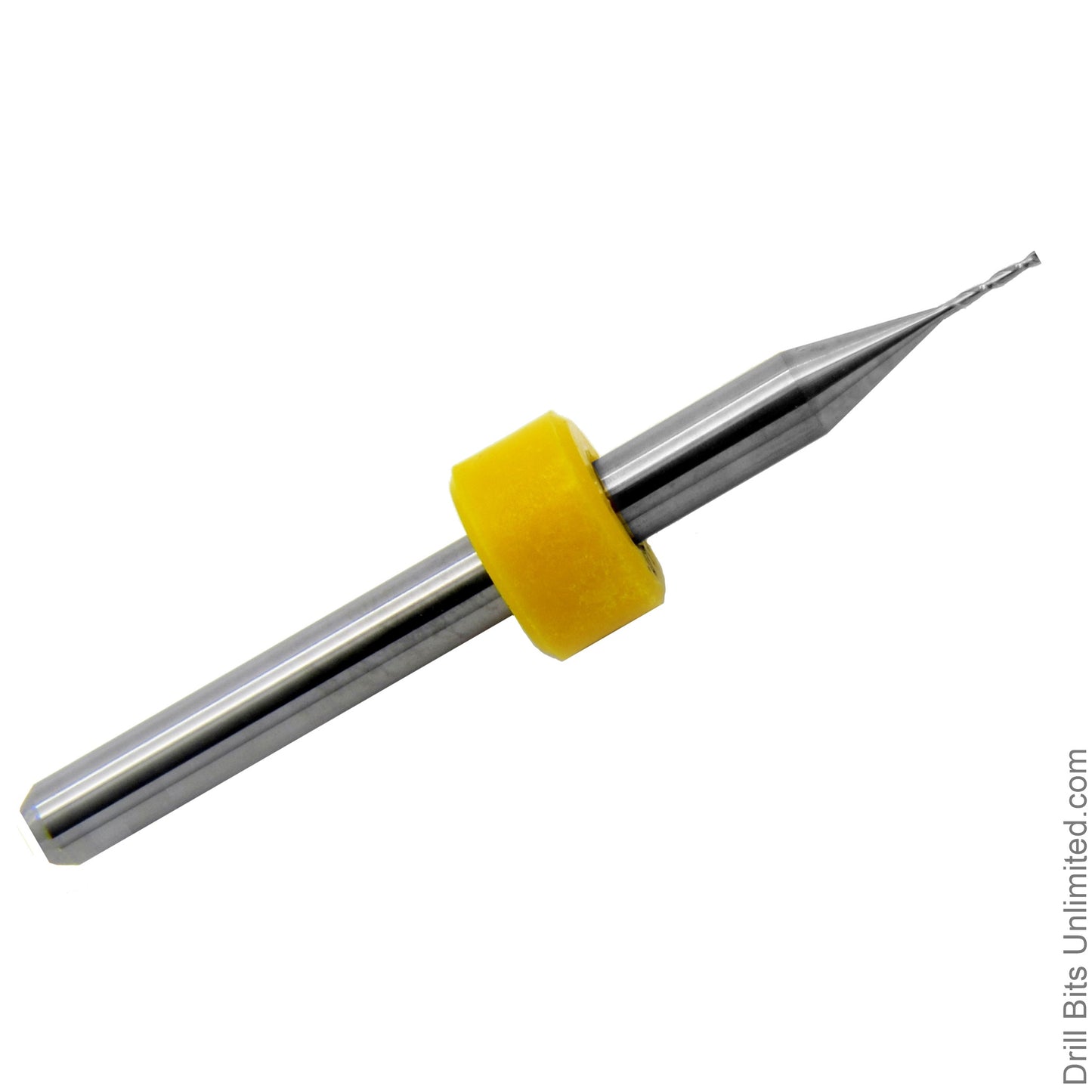

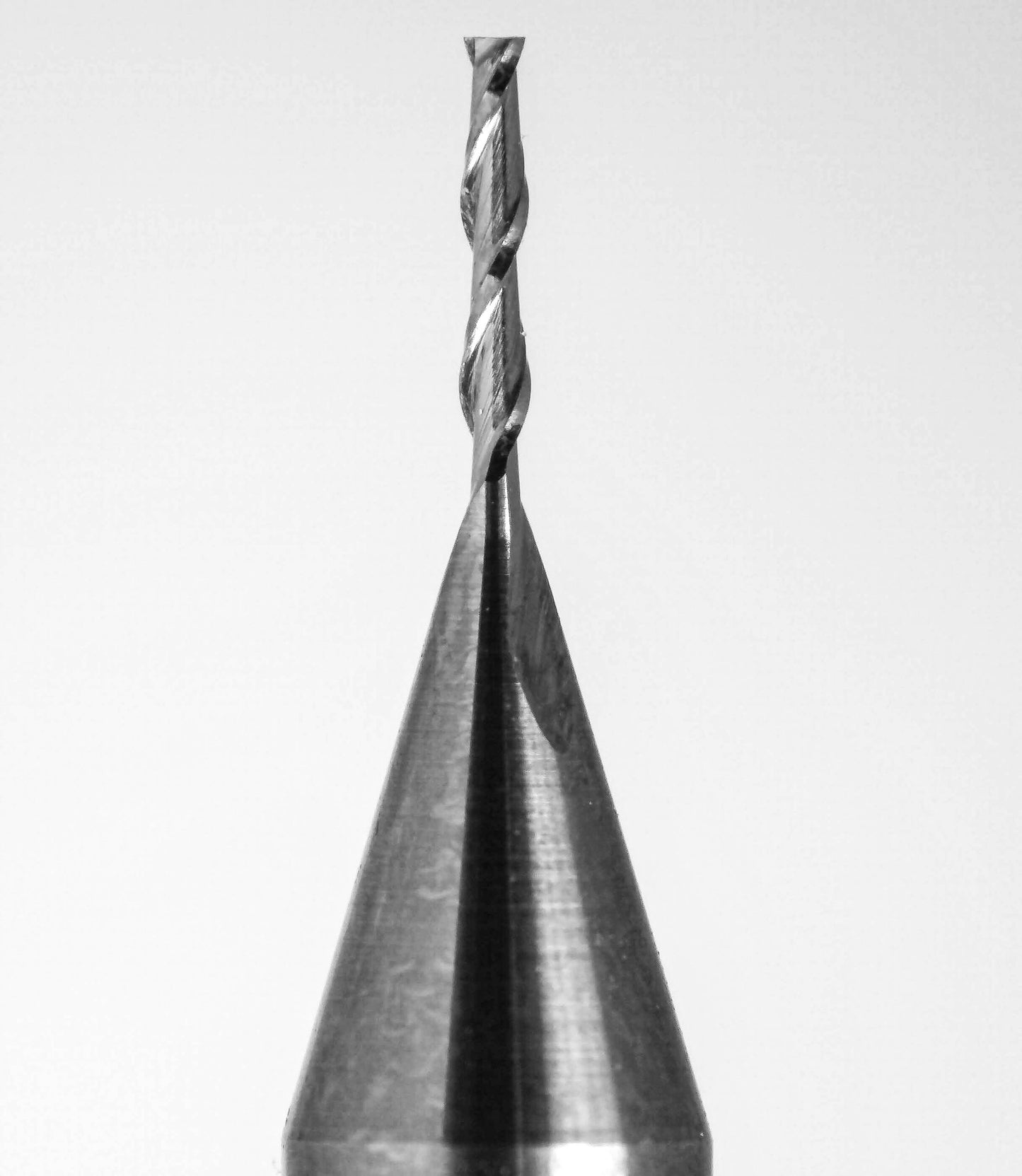

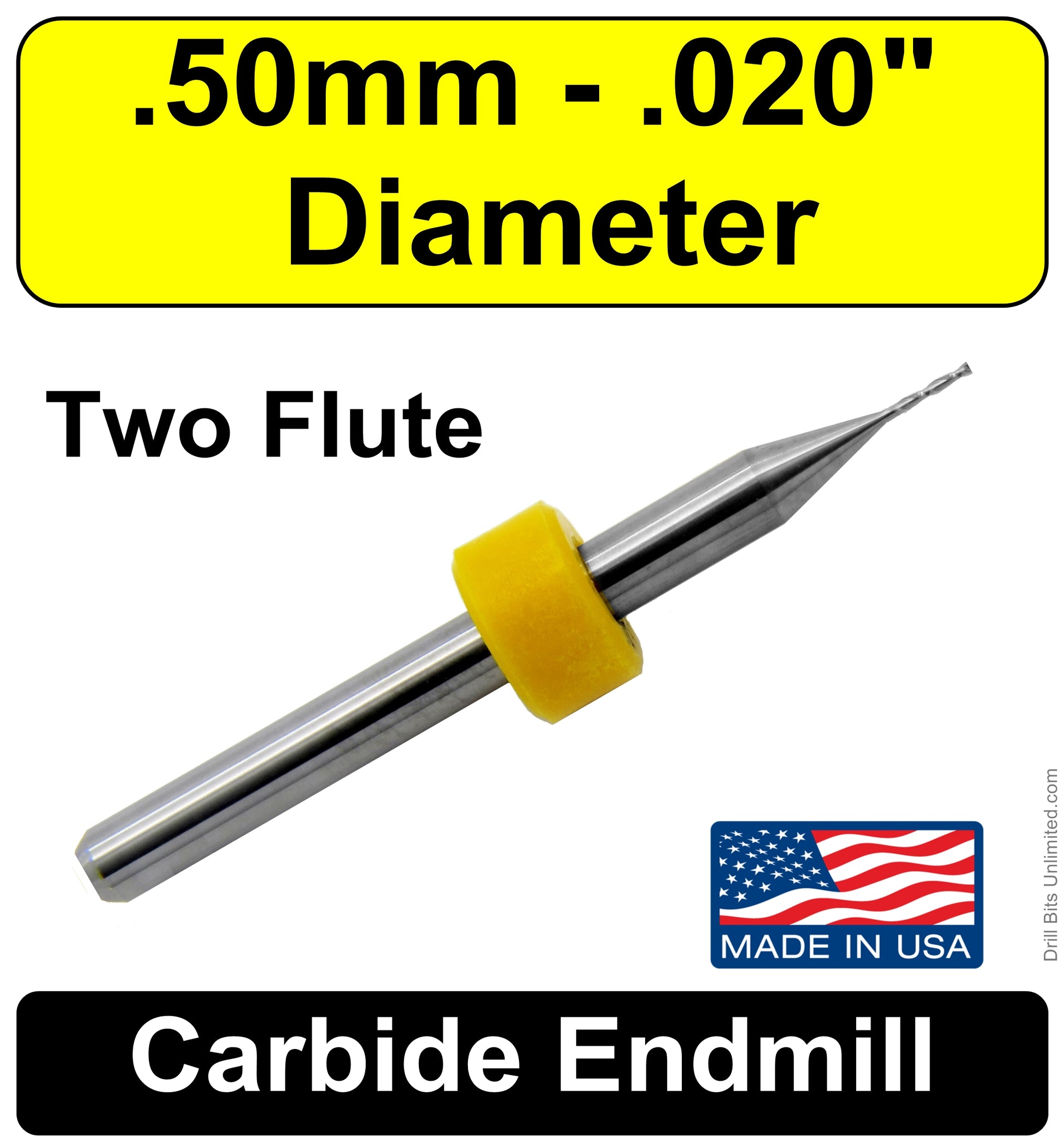

.020" (.0197) 0.50mm x .118" LOC Two Flute Carbide End Mill Up Cut Square End Made in U.S.A. M105

.020" (.0197) 0.50mm x .118" LOC Two Flute Carbide End Mill Up Cut Square End Made in U.S.A. M105

Regular price $5.99 USD
Regular price Sale price $5.99 USD
Sale Sold out

255 left in stock

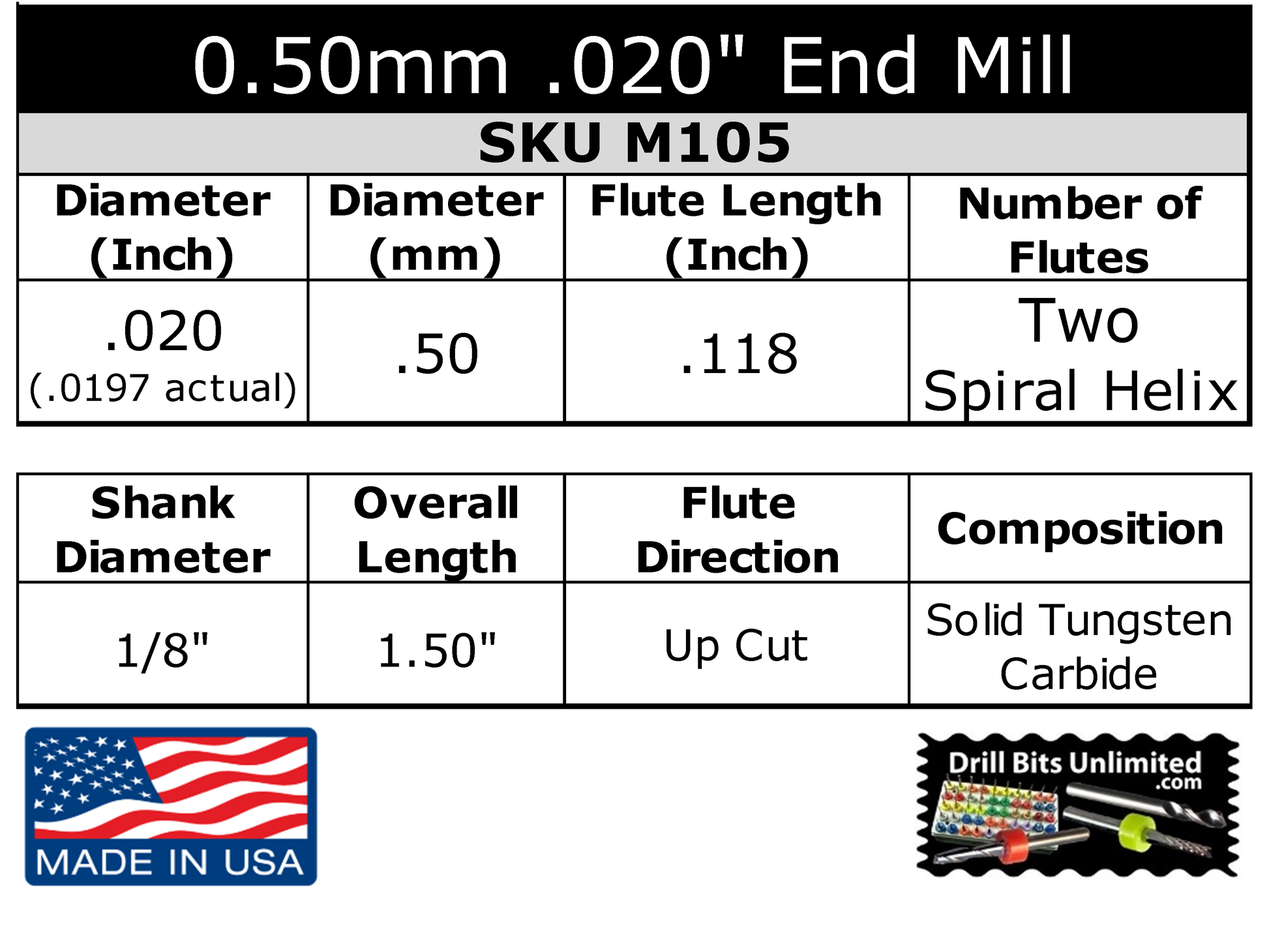

SKU: M105

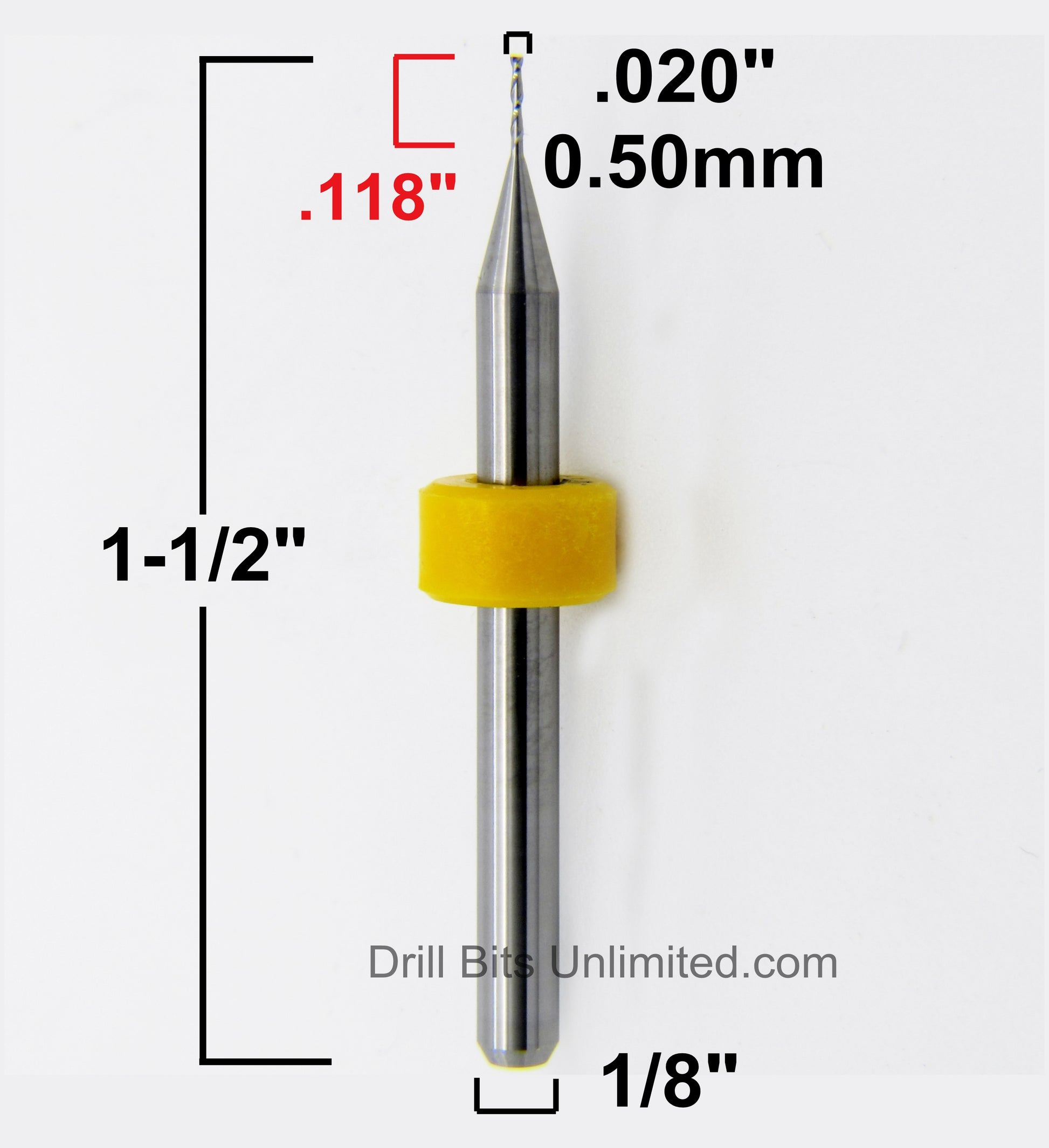

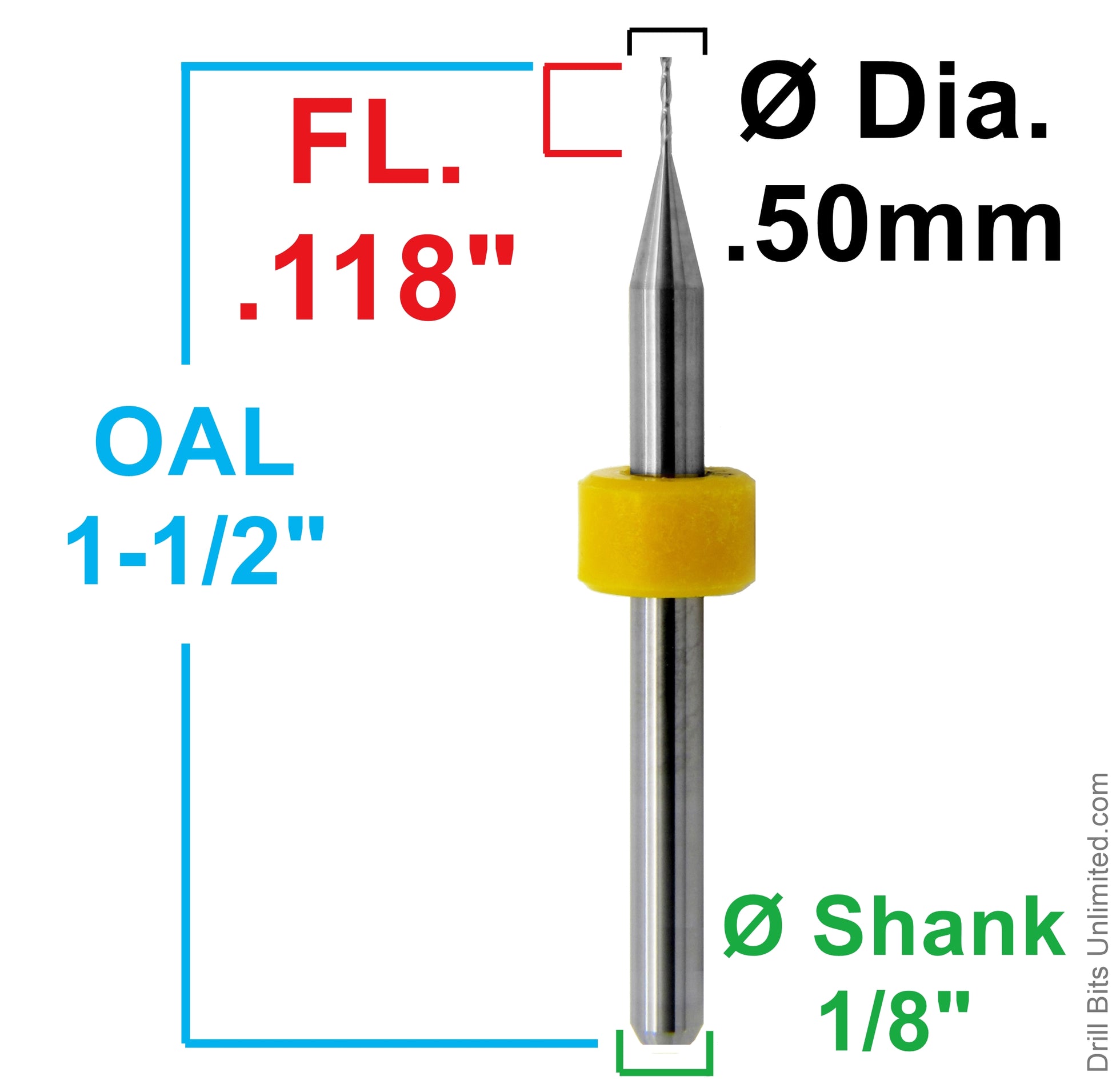

Mill Diameter (Inch) : .0197
Mill Diameter (mm) : 0.50
# of Flutes: 2
Length of Cut (inch): .118
Shank Diameter (Inch) : 1/8
Overall Length (inch): 1.50
Material: Solid Tungsten Carbide
Finish/Coating: N/A
Cutting Direction: Right Hand
Flute Direction: Right Hand (Up Cut)
Flute Type: Spiral
Helix Angle: 30
Center Cutting?: Yes
Plunge Tip: Square End
Applications: Wood,Soft Metals,Composites

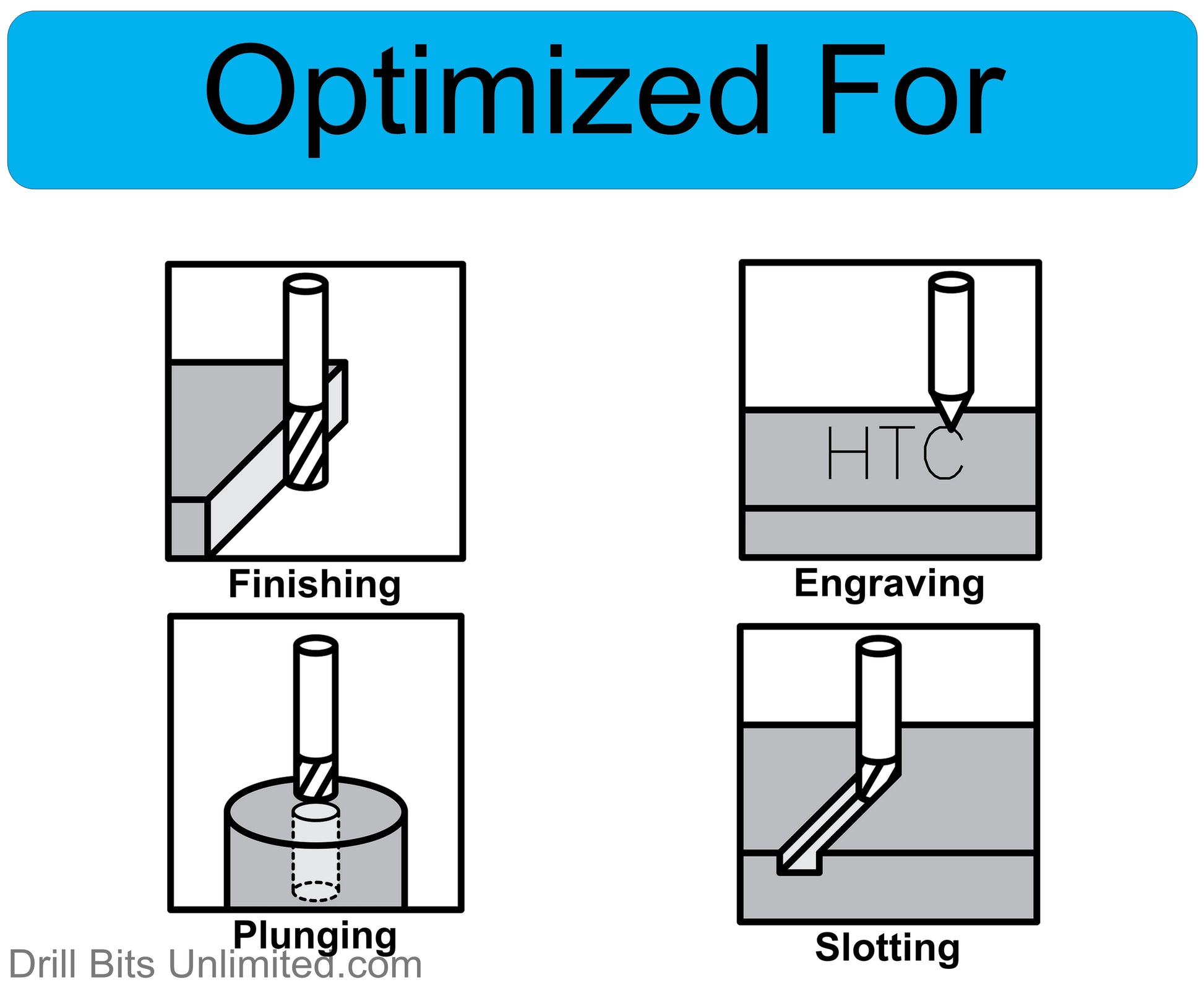

Our Two Flute Carbide End Mills are perfect for milling square slots, pockets, and final profiling in a variety of materials. Whether you're working with wood, non-ferrous metals such as aluminum, brass, and copper, PCB boards or even most composites, these end mills deliver exceptional results. With their large flute clearance, chip evacuation is increased, minimizing friction and heat buildup for a superior finish. Upgrade your milling game with our reliable and high-performing Two Flute Carbide End Mills.
