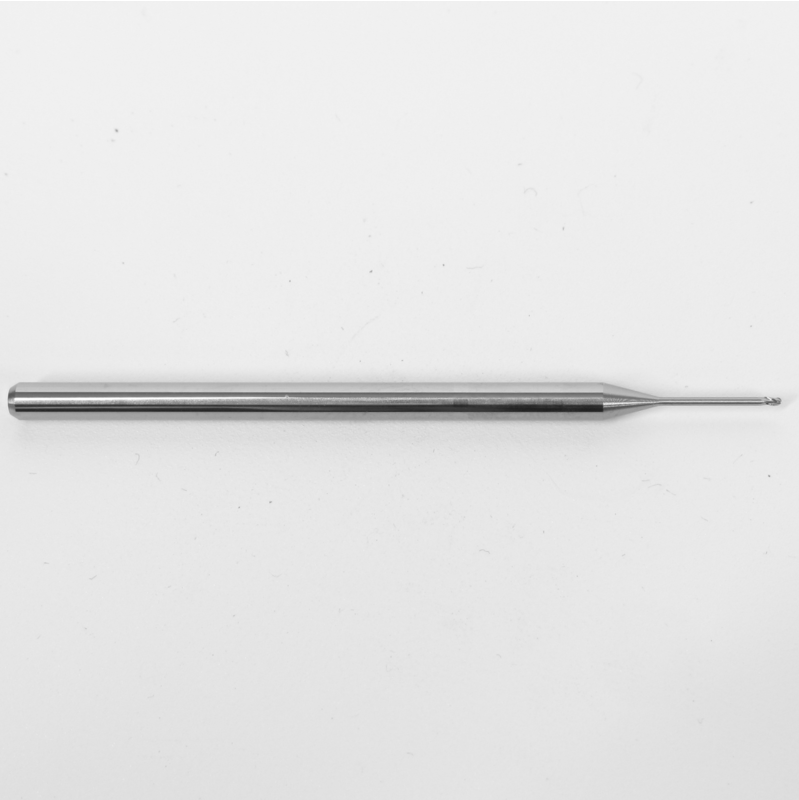

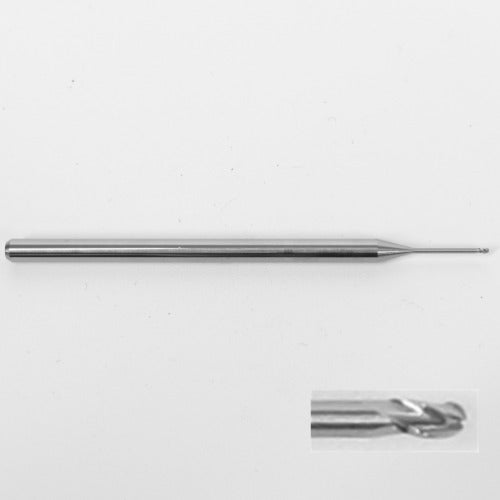

.0300" Diameter Ball Nose End Mill,Carbide, 3 Flute,Extended Reach,Stub Length 1755-0300.375 K063
.0300" Diameter Ball Nose End Mill,Carbide, 3 Flute,Extended Reach,Stub Length 1755-0300.375 K063
Regular price
$23.95 USD
Regular price
Sale price
$23.95 USD
Unit price
per
8 left in stock
SKU: K063
Couldn't load pickup availability
| Shank Dia.: 0.1250" | End Mill Material: Carbide |
| End Mill Style: Ball Nose | Finish: Bright (Uncoated) |
| Non Ferrous (N) Compatibility: Yes | Overall Length: 2.5000" |
| List Number: 1755 | Milling Diameter: 0.0300" |
| Cast Iron (K) Compatibility: No | Super Alloy (S) Compatibility: Yes |
| Shank Type: Straight | Steel (P) Compatibility: No |
| Neck Length: 0.3750" | Length of Cut: 0.0450" |
| Cutting Direction: Right Hand | End Mill Application: Roughing/Finishing |
| Milling Dia.: 0.0300" | Single End/Double End: Single End |
| Number of Flutes: 3 | Hardened (H) Compatibility: No |
| Stainless (M) Compatibility: No | End Mill Cutting Type: Center Cutting |
| Helix Angle: 30 Degrees | Neck Dia.: 0.0280" |
| Grade: Micro Grain | Dimension Type: Decimal inch |
| Item: Ball End Mill | Finish - Machining: Bright (Uncoated) |
| Material Grade - Machining: Micro Grain | Country of Origin (subject to change): United States |
