Drill Bits Unlimted

.0394" - 1.00mm x .197" LOC Diamond Pattern Carbide Router Bit - Drill Point Tip R110

.0394" - 1.00mm x .197" LOC Diamond Pattern Carbide Router Bit - Drill Point Tip R110

Regular price $3.49 USD
Regular price Sale price $3.49 USD
Sale Sold out

119 left in stock

SKU: R110

Click HERE for Feed and Speed Recommendations

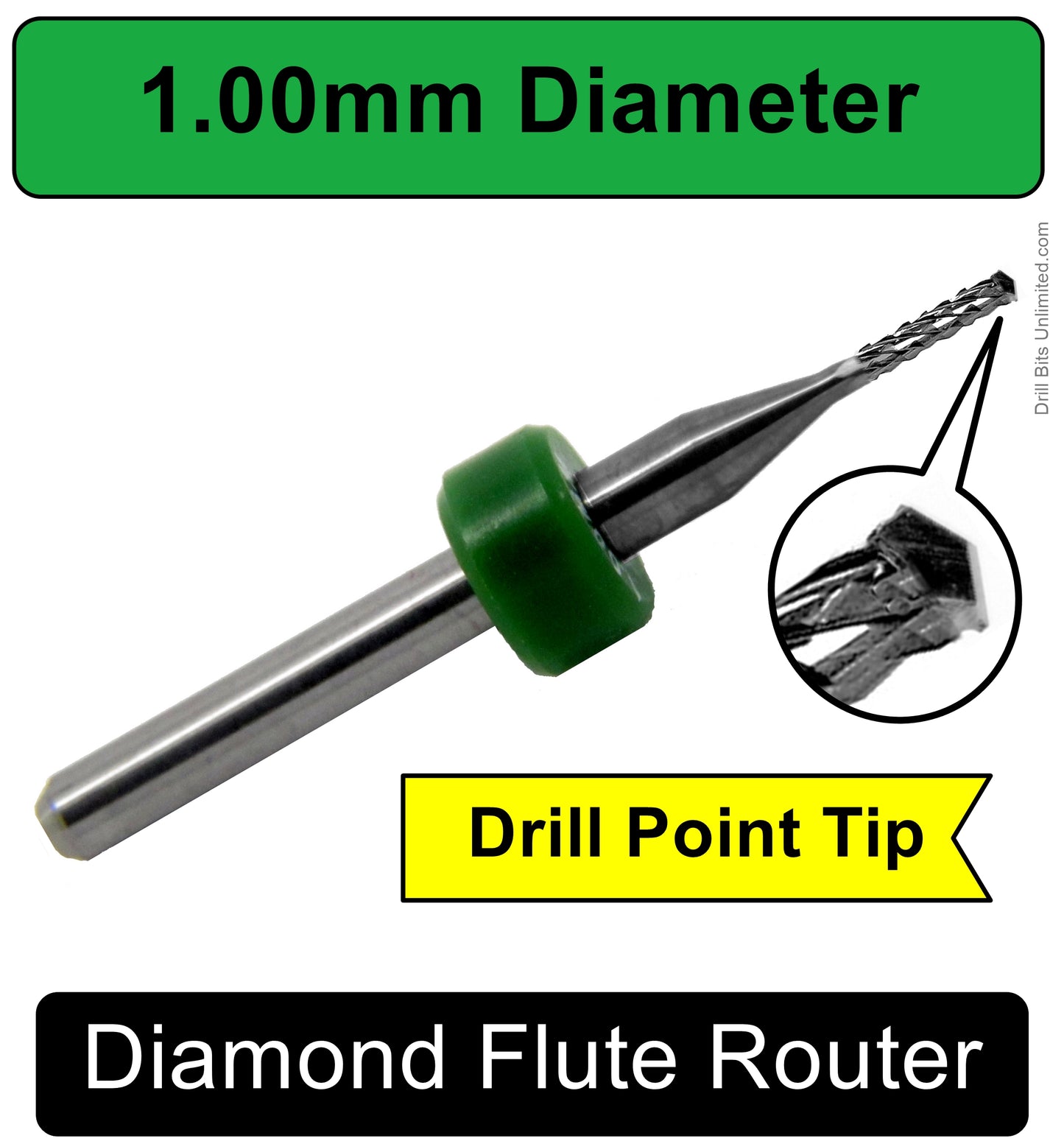

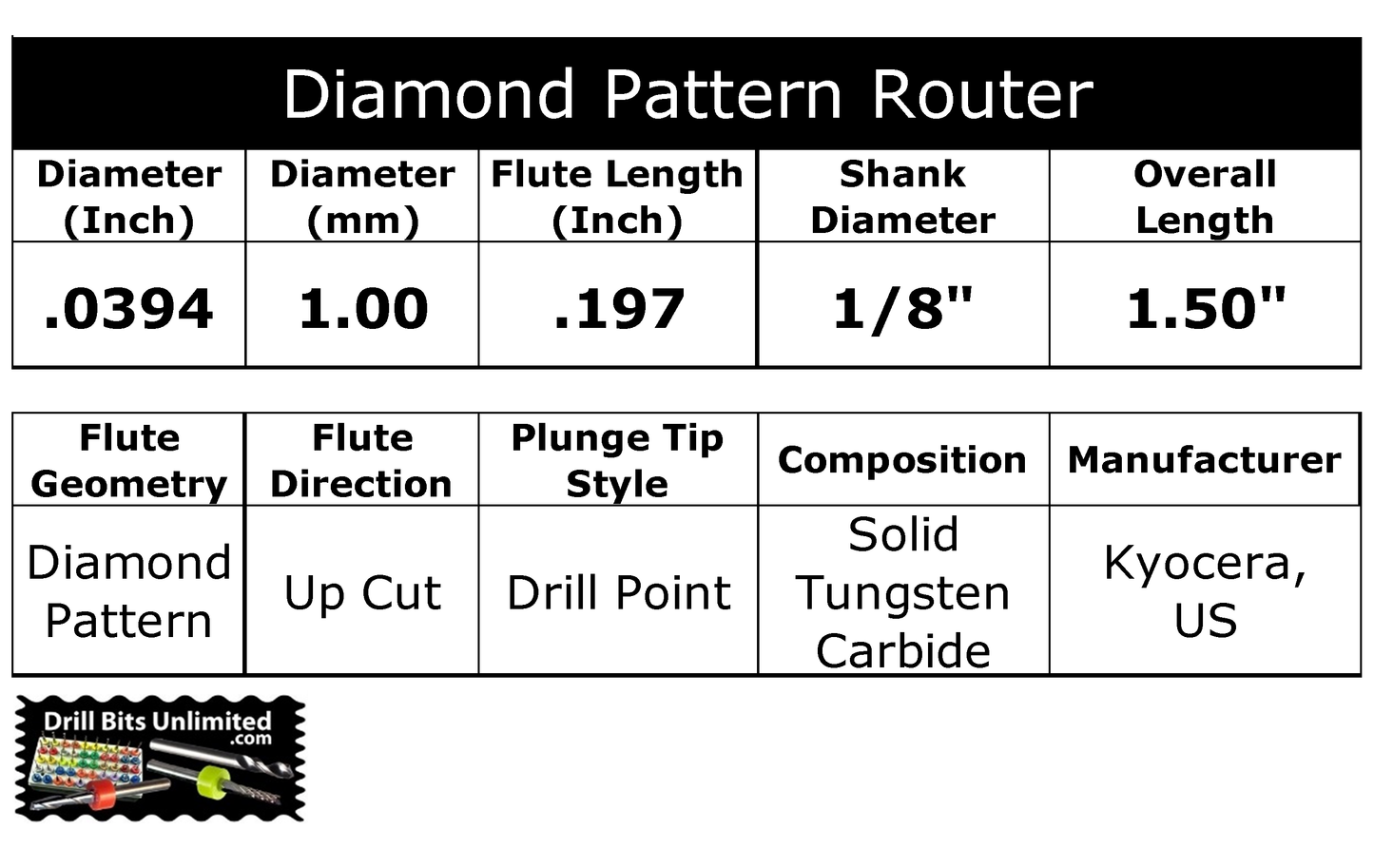

Router Style: Diamond Cut

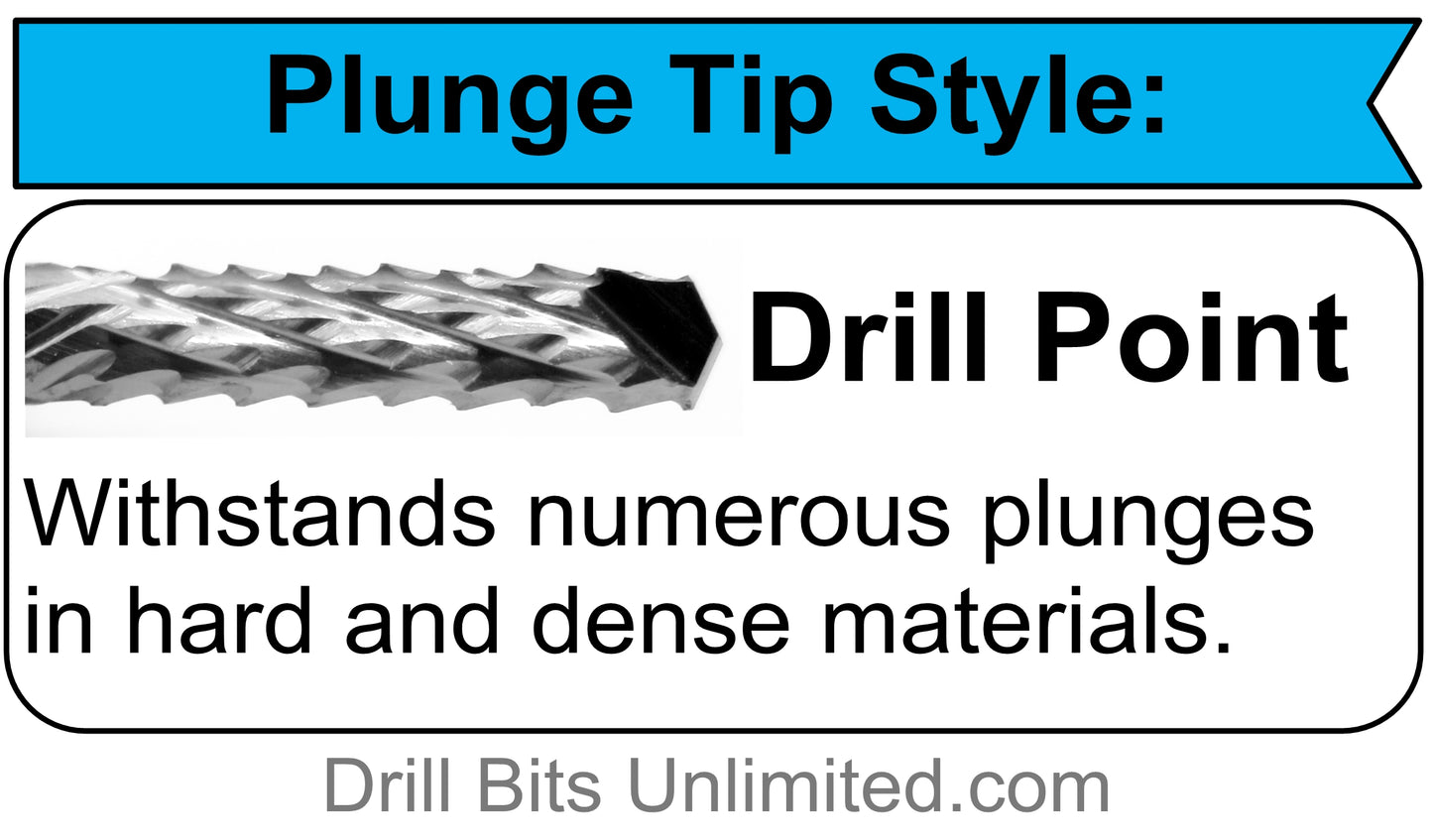

Plunge Tip: Drill Point

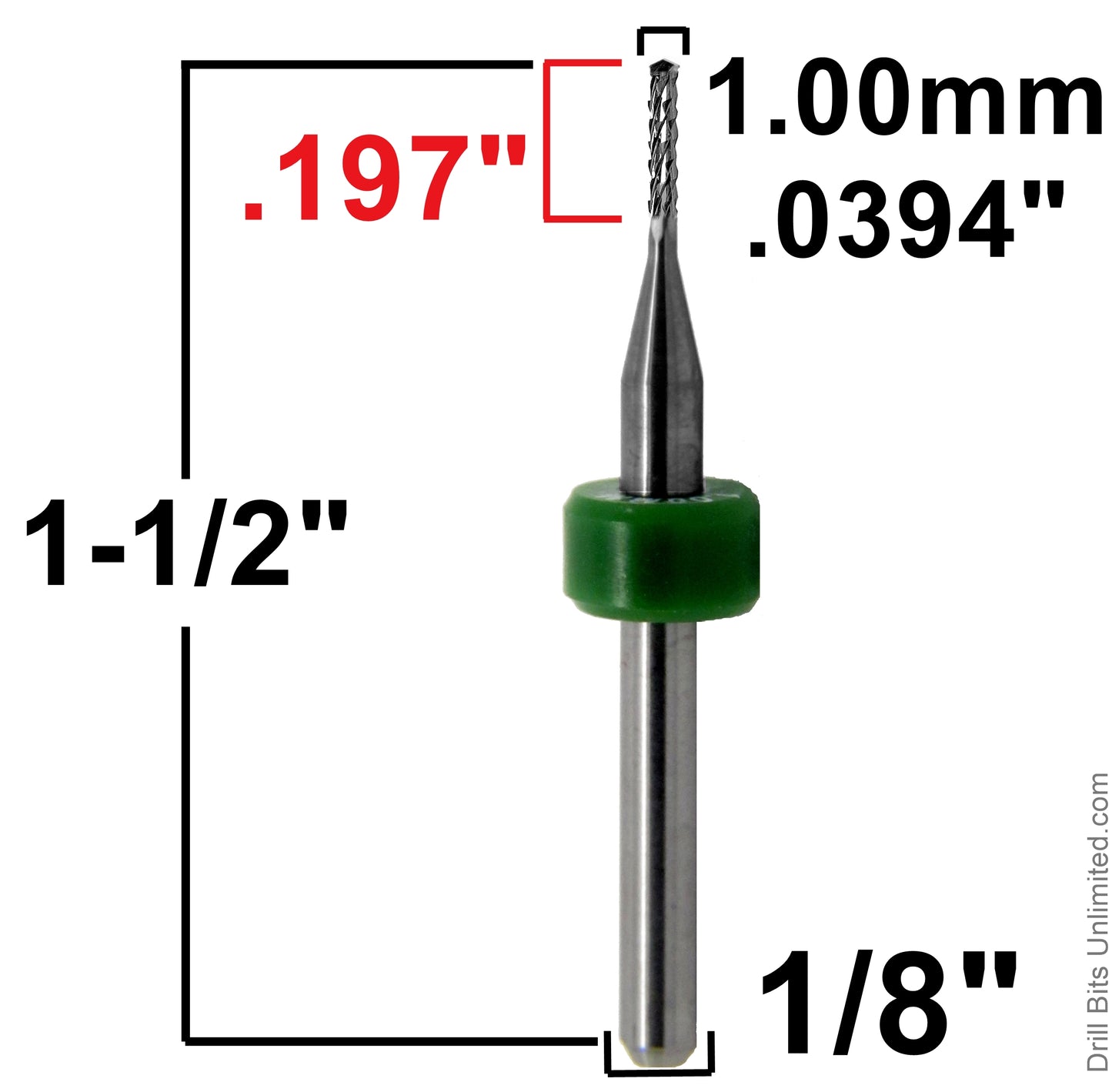

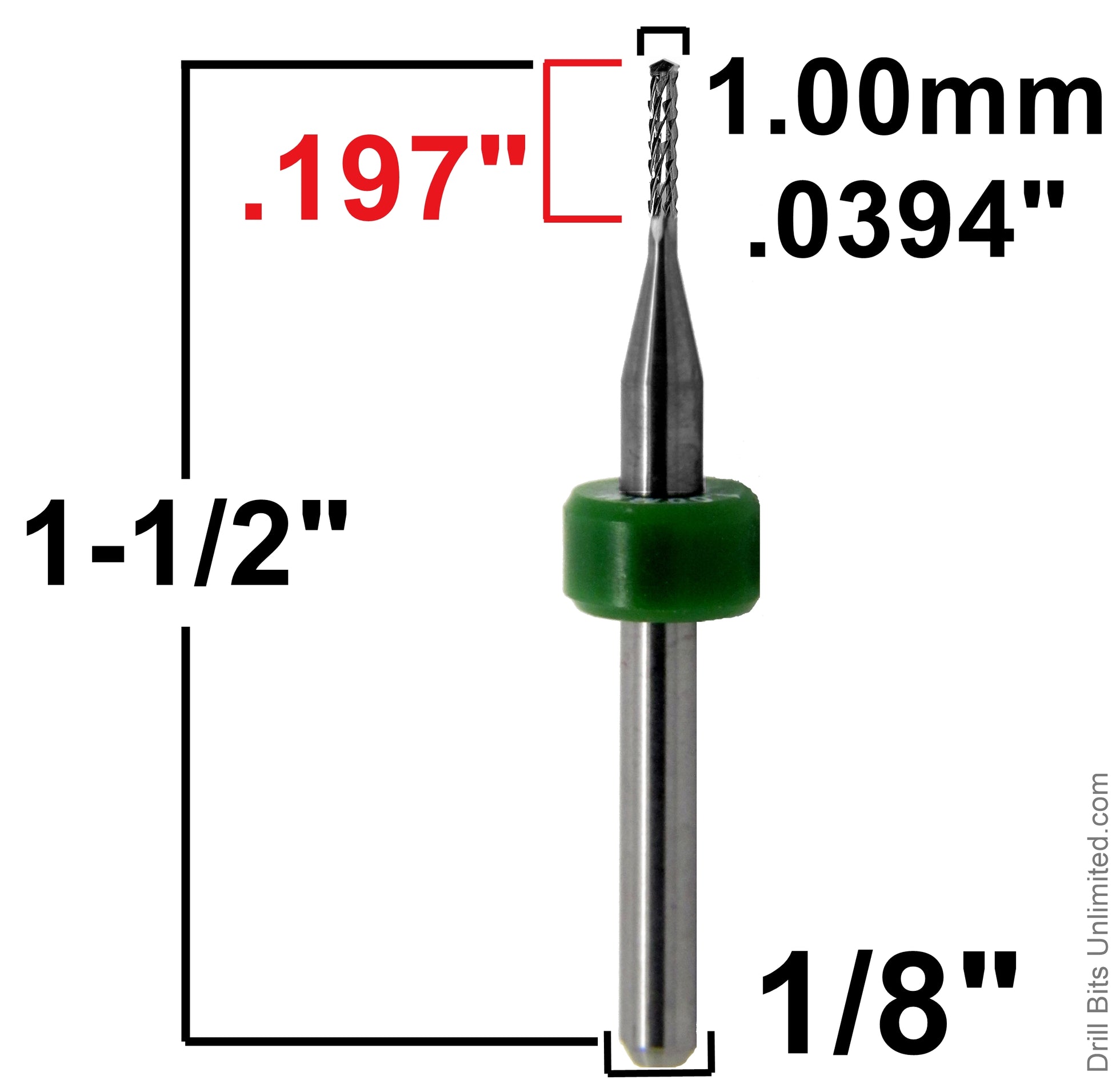

Mill Diameter (Inch) : .0394
Mill Diameter (mm) : 1.00
Depth of Cut (inch): .197
Shank Diameter (Inch) : 1/8
Overall Length (inch): 1.50
Material: Solid Tungsten Carbide
Coating/Finish: n/a
Cutting Direction: Right Hand
Flute Direction: Right Hand (Up Cut)
Flute Type: n/a
Center Cutting?: Yes
Numerous diamond-shaped cutting surfaces is gentle on material, leaving a clean and smooth edge without delamination, cracking or fraying.

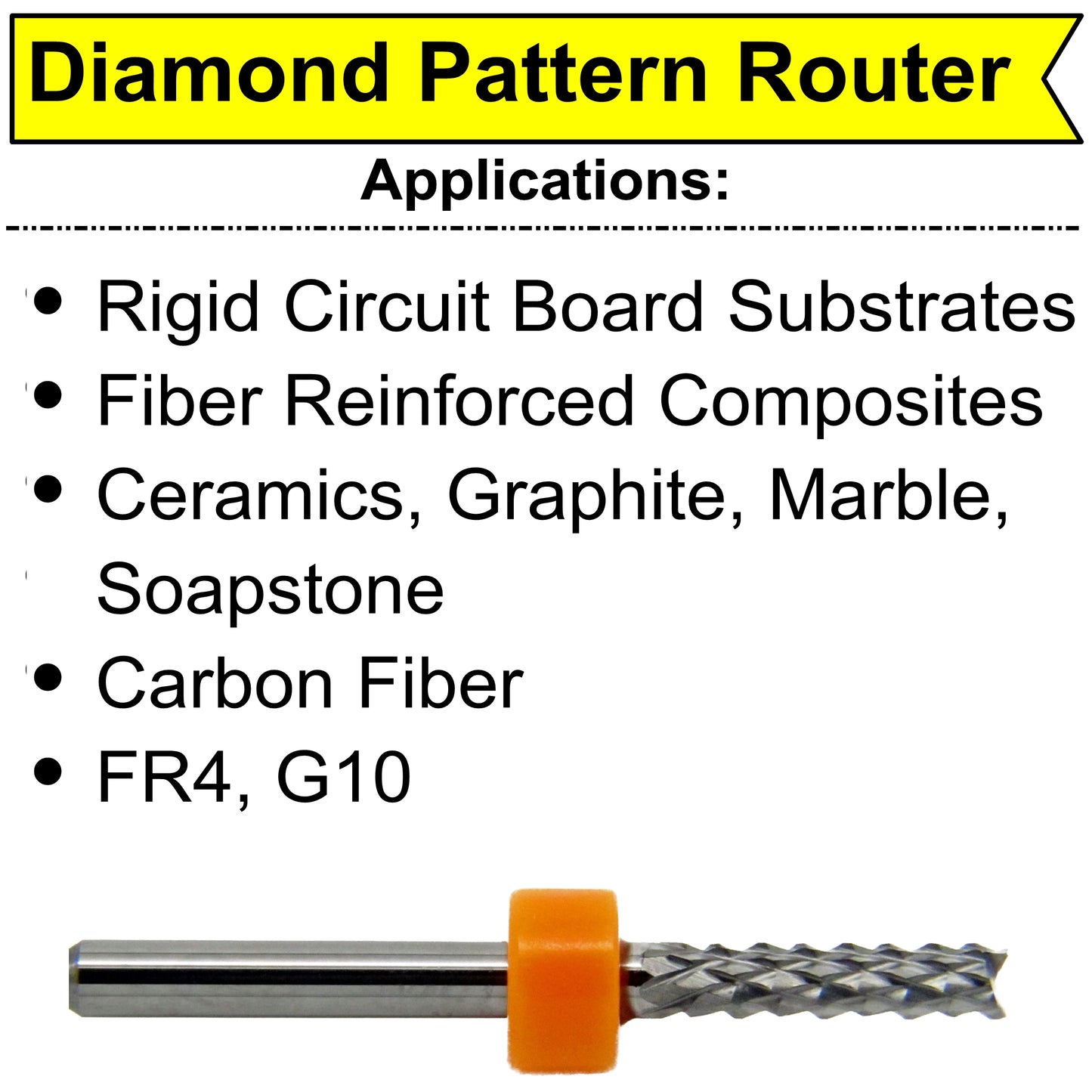

Perfect for milling hard and abrasive materials including carbon fiber, G10, FR4, fiberglass substrates, ceramics, etc.

Drill point plunge tip holds up to high plunge rates and dense materials.
