.0625" 1/16" 60 Degree, Scoring / Engraving, Trace Isolation V-Bit Engraver -High Precision Made in U.S.A. E104
.0625" 1/16" 60 Degree, Scoring / Engraving, Trace Isolation V-Bit Engraver -High Precision Made in U.S.A. E104
Regular price
$14.99 USD
Regular price
Sale price
$14.99 USD
Unit price
per
20 left in stock
SKU: E104
Couldn't load pickup availability

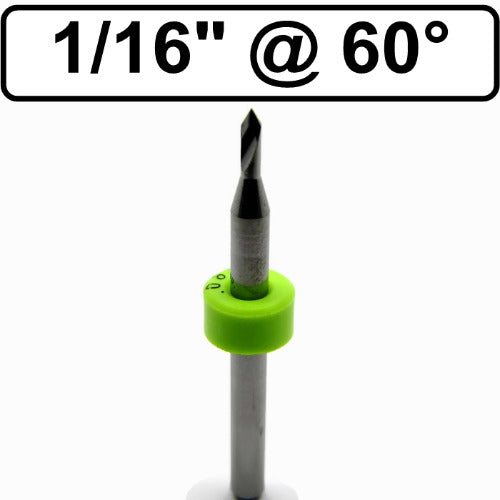

True Spiral 2-flute "V" point Bits.
-
These high precision carbide tools offer an optimum combination of high resolution cutting and tip strength while the cutting edge geometry virtually eliminates chatter at high feed rates.
-

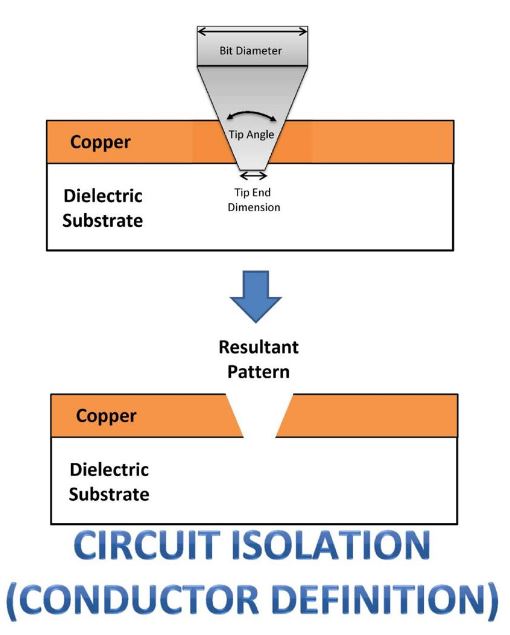

The plunge style tip geometry insures reliable copper or other substrate removal at all isolation widths.
-
1/8" fits most CNC and other equipment.
-
Compatible with LPKF, T-Tech, MITS, AccurateCNC desktop PCB prototyping machines and most similar equipment.
Tool Type: | V-Point Two Flute Scoring/Engraving Tool |
---|---|
Cutting Diameter (Inch) : | .0625 - 1/16 |
Cutting Diameter (mm) : | 1.60 |

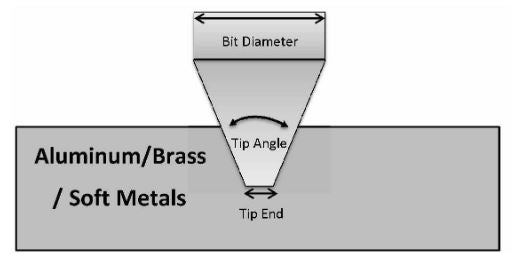

Tip Angle (Degrees): | 60 |
# of Flutes: | 2 |
Length of Cut ,LOC (inch): | .054 |
Reach: | .200 |
Shank Diameter (Inch) : | 1/8 |
Shank Diameter (mm) : | 3.175 |
Overall Length (inch): | 1.50 |
Material: | Solid Tungsten Carbide |
Finish: | N/A |
Cutting Direction: | Right Hand |
Flute Direction: | Right Hand (Up Cut) |
Flute Type: | Spiral |
