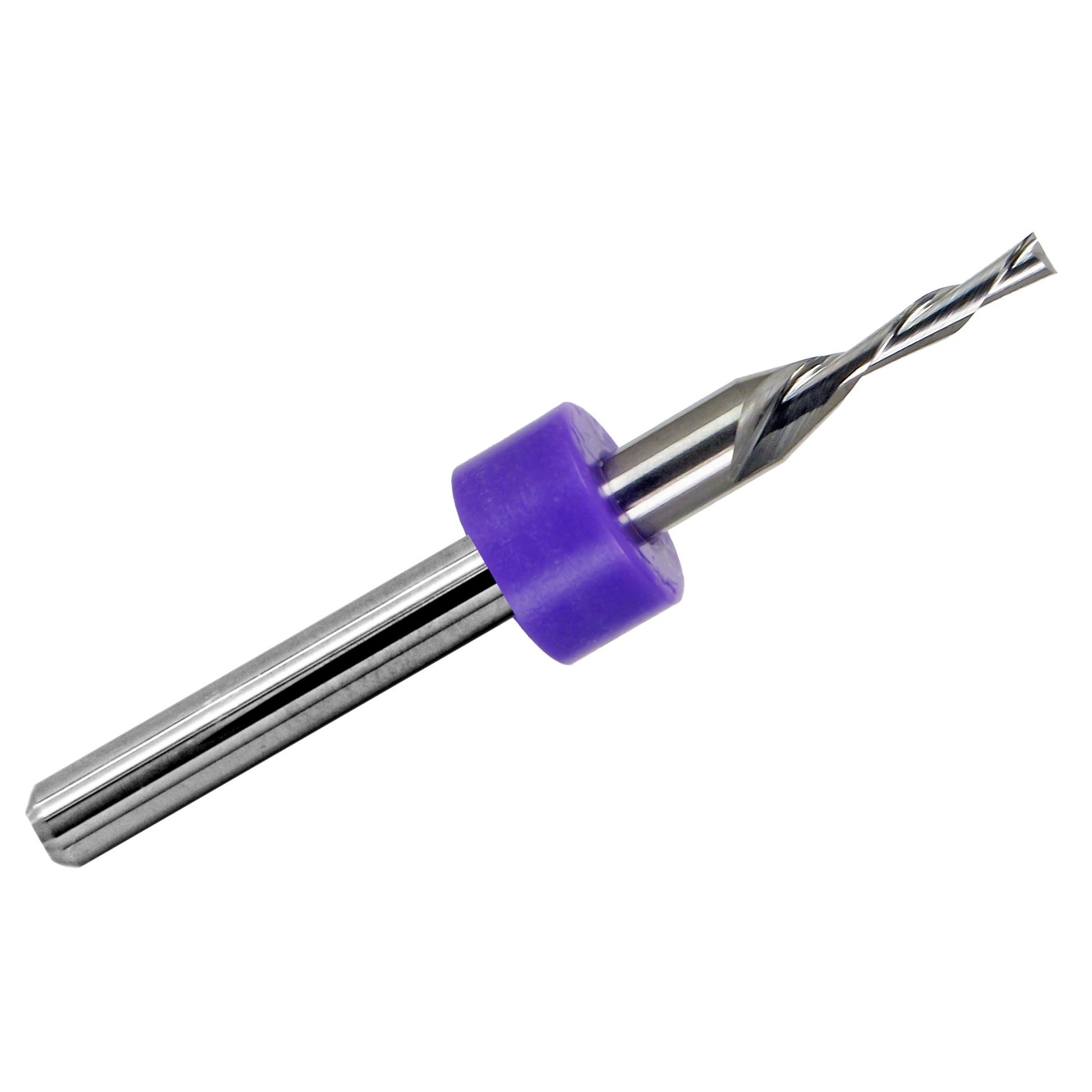

• 0.0625 inch 1/16 down-cut 2-flute square-end carbide end mill with 1/8 inch shank

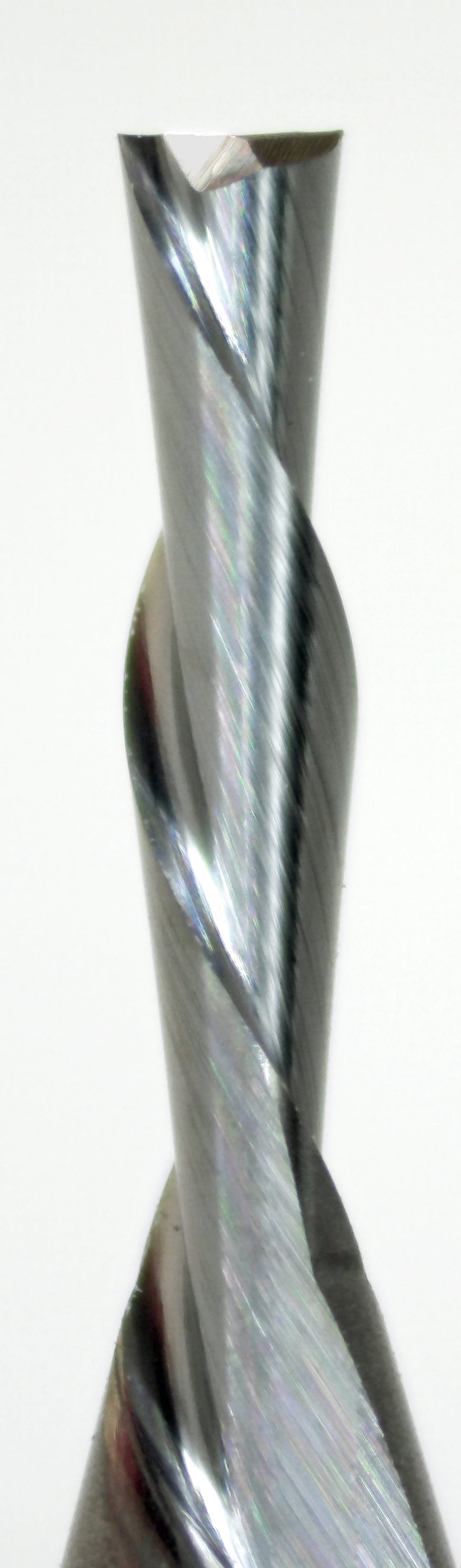

  • Close-up of 1/16 inch down-cut spiral end mill showing carbide flutes

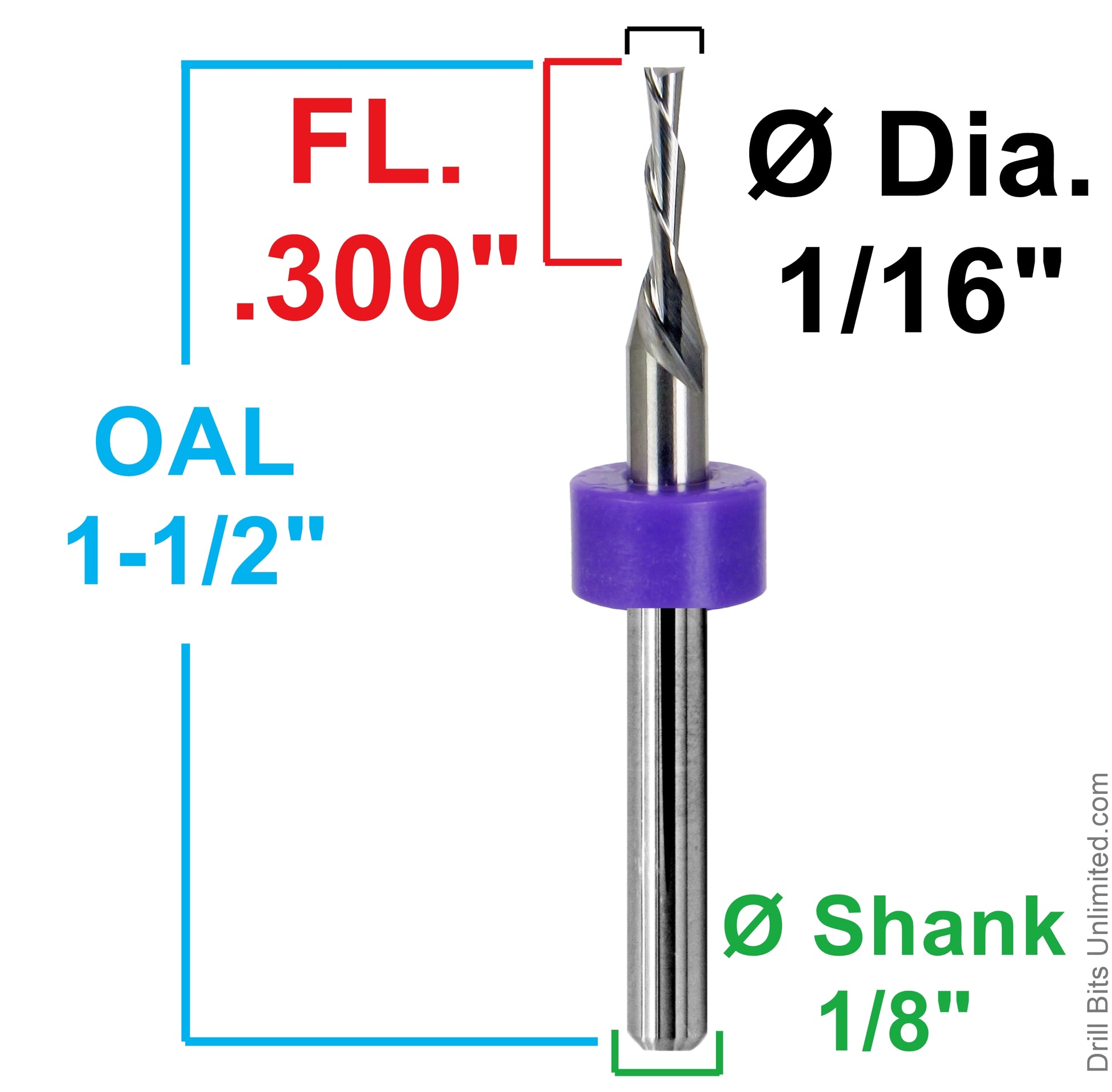

  • Dimension image for 1/16 inch down-cut carbide end mill showing .300 inch flute length, 1.50 inch OAL, and 1/8 inch shank

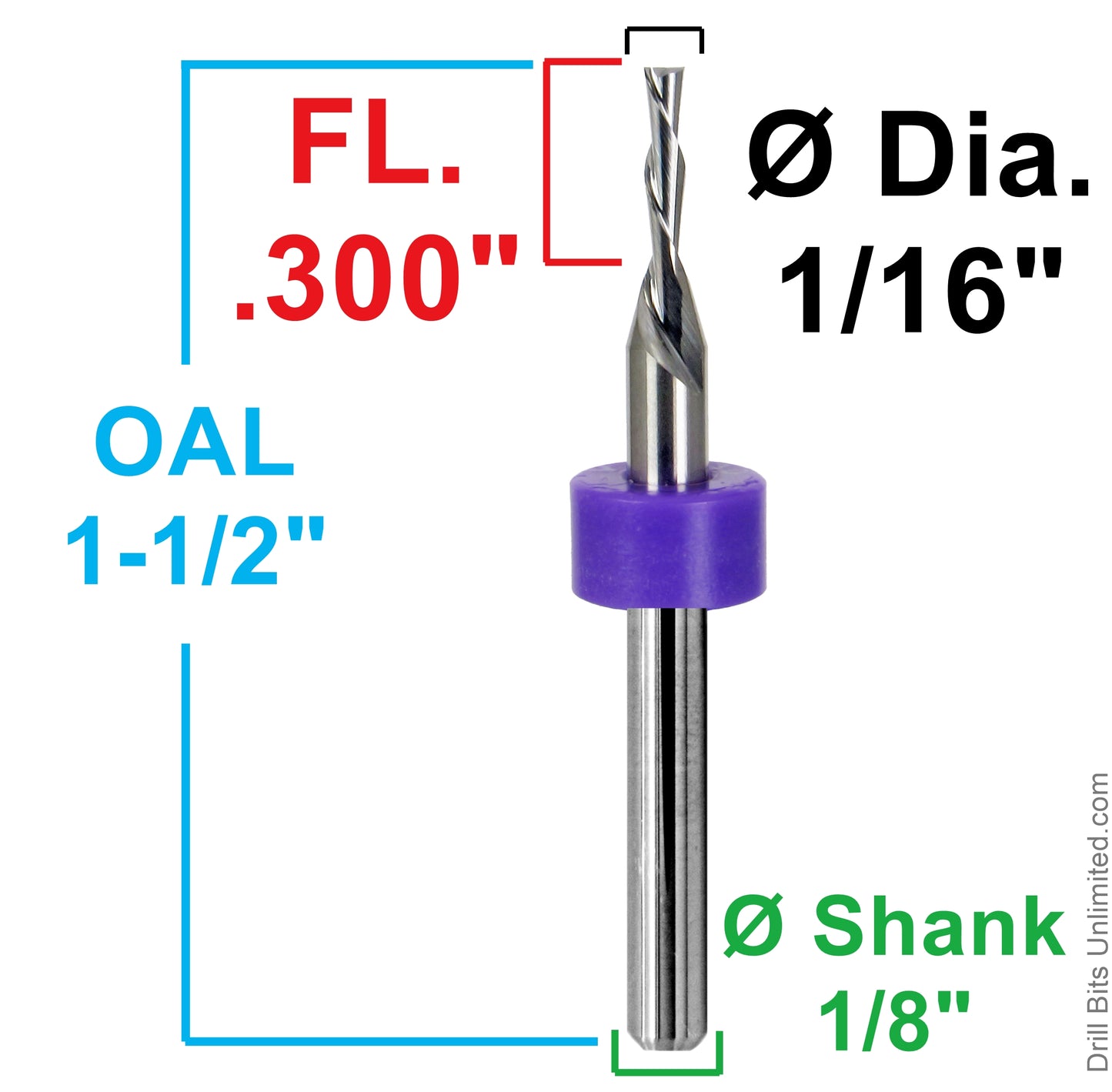

  • Dimension image for 1/16 inch down-cut carbide end mill showing .300 inch flute length, 1.50 inch OAL, and 1/8 inch shank
  • 1/16 carbide down cut end mill for CNC, woodworking, plastics, and ice carving.
1 5

Drill Bits Unlimted

0.0625" / 1/16" Down-Cut 2-Flute Square End Mill, .300" LOC M2-140

0.0625" / 1/16" Down-Cut 2-Flute Square End Mill, .300" LOC M2-140

$11.79 USD
$11.79 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.

0.0625" / 1/16" down-cut 2-flute square-end carbide end mill with .300" LOC and standard 1/8" shank.

This carbide end mill is designed for precision CNC milling, clean top-edge finish work, profiling, slotting, and detailed cutting. The down-cut flute direction helps push chips downward, which can improve top-surface edge quality in many sheet and panel materials.

The 2-flute square-end geometry is useful for slotting, profiling, engraving, and flat-bottom detail cuts in appropriate materials.

Common Applications

  • CNC milling and precision routing
  • Clean top-edge cuts in sheet and panel materials
  • Slotting, profiling, pockets, and contours
  • Plastic, acrylic, wood, MDF, composites, and suitable non-ferrous materials
  • Fine detail work, hobby CNC, and prototype machining

Benefits

  • Down-cut geometry can improve top-edge surface quality
  • 2-flute design balances chip clearance and cutting strength
  • Square-end geometry for slots, pockets, profiles, and flat-bottom cuts
  • 1/16" cutting diameter is useful for small slots and detailed CNC work
  • Polished flutes help reduce chip sticking in suitable materials
  • Standard 1/8" shank fits many compact CNC routers and precision collet setups

Specifications

Tool Type Solid Carbide End Mill
Condition New
Cutting Diameter 0.0625" / 1/16" / 1.60 mm
Flutes 2
LOC 0.300"
Shank Diameter 1/8"
Overall Length 1.50"
End Type Square End
Flute Direction Down Cut
Cut / Helix Right Cut / Left Helix
Material Solid Tungsten Carbide
Finish Polished Flutes

Down-cut note: Down-cut end mills are commonly used when top-edge finish is important. Because chips are pushed downward, use proper feeds, speeds, chip clearing, and shallow passes as needed for your material and machine.

Need help choosing starting settings?
See our carbide end mill feed and speed calculator →
Looking for more down-cut end mills?
Shop down-cut carbide end mills here: down-cut end mills →

Former SKU / item number: M192
