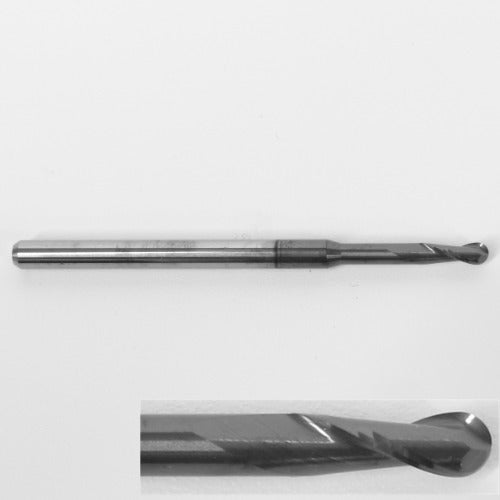

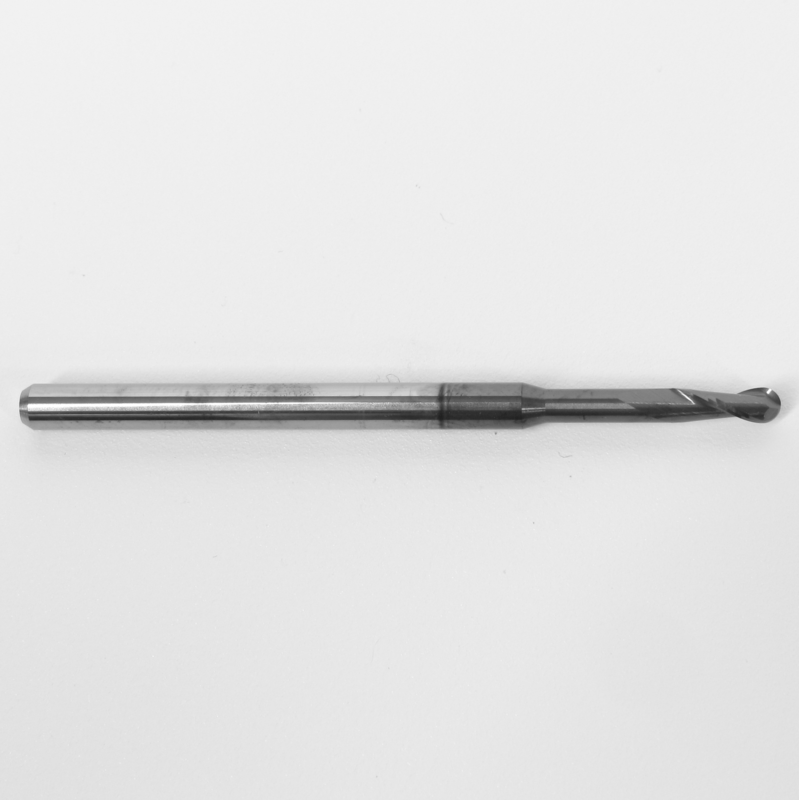

.0938" 3/32" Solid Carbide AlTiN Coated 2 Flute Extended Reach Ball Nose End Mill 1645-0938l590 K083

.0938" 3/32" Solid Carbide AlTiN Coated 2 Flute Extended Reach Ball Nose End Mill 1645-0938l590 K083

Regular price $25.95 USD
Regular price Sale price $25.95 USD
Sale Sold out

43 left in stock

Overall Length: 2" Finish: AlTiN
Neck Length: 0.5900" Milling Dia.: 0.0938" 3/32"
Stainless (M) Compatibility: Yes Cast Iron (K) Compatibility: Yes
Dimension Type: Decimal inch End Mill Material: Carbide
Neck Dia.: 0.0891" Helix Angle: 30 Degrees
Length of Cut: 0.2810" Hardened (H) Compatibility: Yes
List Number: 1645 End Mill Cutting Type: Center Cutting
Number of Flutes: 2 End Mill Application: Roughing/Finishing
Item: Ball End Mill End Mill Style: Ball Nose
Non Ferrous (N) Compatibility: No Single End/Double End: Single End
Cutting Direction: Right Hand Shank Dia.: 0.1250"
Shank Type: Straight Super Alloy (S) Compatibility: Yes
Steel (P) Compatibility: Yes Grade: Micro Grain
Milling Diameter: 0.0937" Material Grade - Machining: Micro Grain
Finish - Machining: AlTiN Country of Origin (subject to change): United States
