0.0630" (1/16") x .315" LOC 3-Flute Square End Carbide End Mill, 1/8" Shank | m3-100

0.0630" (1/16") x .315" LOC 3-Flute 0° Helix Square End Carbide End Mill, 1/8" Shank – M180

This Kyocera Series 1735 precision carbide end mill features a 0.0630" (1/16") cutting diameter, .315" length of cut, 3-flute 0° helix geometry, 1.50" overall length, and a standard 1/8" shank. It is designed for side routing or milling printed circuit boards, gold tab connectors, soft materials, and soft metals where clean edges are important.

The 3-flute zero-helix design is intended for clean-edge cutting rather than aggressive chip evacuation. This makes it useful for PCB materials, soft laminates, plastics, and soft non-ferrous materials where edge finish and control are important. Use appropriate feeds, speeds, workholding, and chip clearing for your material and machine.

Solid tungsten carbide construction provides rigidity and wear resistance for precision CNC machining. The square end geometry is suitable for side milling, slotting, profiling, and flat-bottom cuts in appropriate materials.

Common Applications

• PCB side routing and milling
• Gold tab connector edge work
• Soft PCB laminate materials
• Clean-edge milling in plastics and acrylic
• Soft non-ferrous metals such as aluminum, brass, and copper
• Small CNC slotting, profiling, and detail work
• Fine edge finishing where a zero-helix tool is preferred

Benefits

• Kyocera Series 1735 solid carbide construction
• 3-flute 0° helix geometry designed for clean-edge cutting
• Useful for PCB, gold tab, soft laminate, and soft-material applications
• Square end geometry is suitable for slotting, profiling, side milling, and flat-bottom cuts
• .315" LOC provides useful cutting reach for small CNC work
• Polished flutes help reduce friction and support clean cutting in suitable materials
• Standard 1/8" shank fits many CNC routers and small precision toolholders

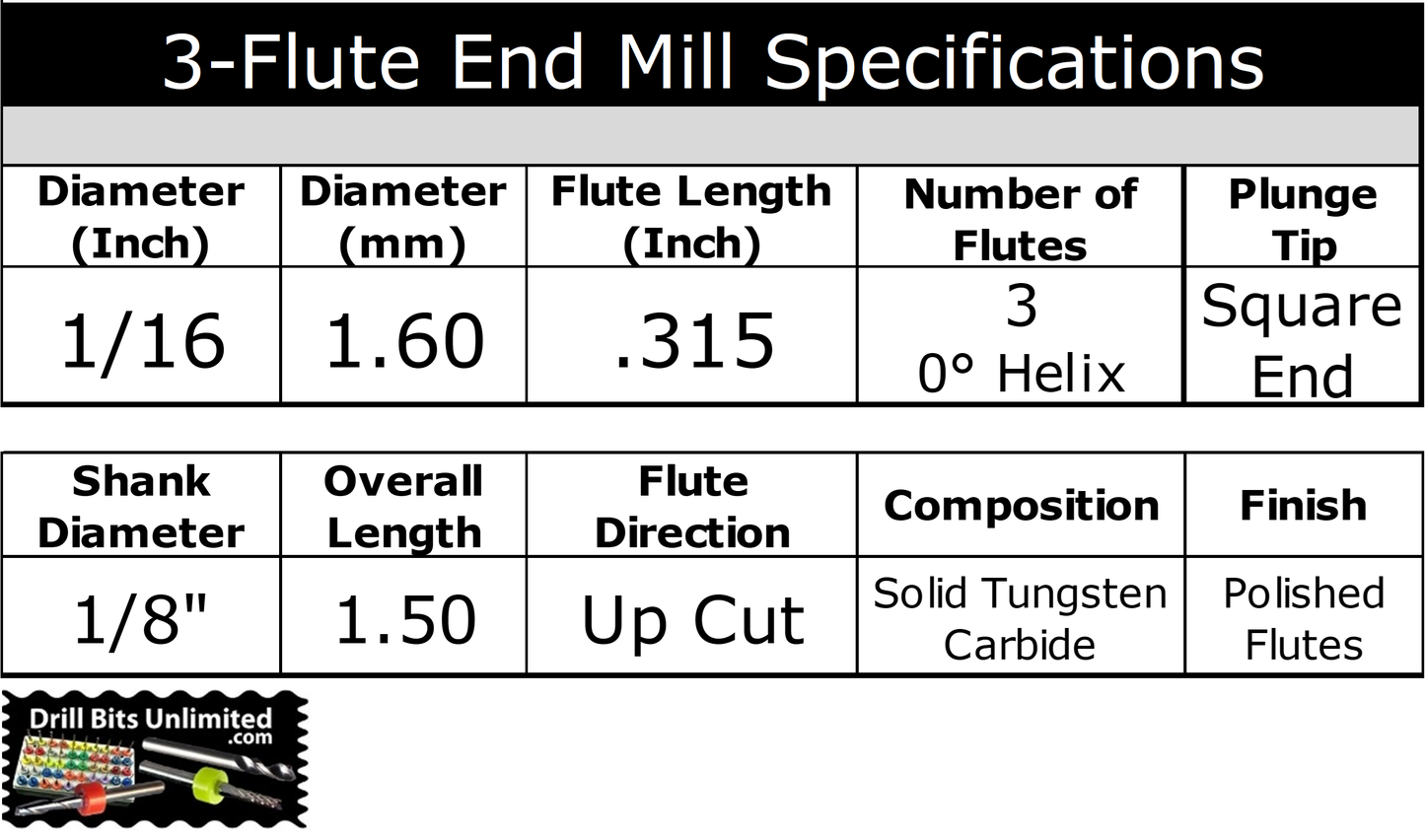

Specifications

Former SKU / item number: M180
