Drill Bits Unlimted
1/16" X .250" Single Flute Carbide End Mill for Aluminum, Plastics, Acrylic, Soft Metals LUM-A
1/16" X .250" Single Flute Carbide End Mill for Aluminum, Plastics, Acrylic, Soft Metals LUM-A
Regular price
$5.49 USD
Regular price
$7.49 USD
Sale price
$5.49 USD
Quantity
Couldn't load pickup availability
Premium Quality End Mills for your important projects, Made in USA
Scroll to Bottom For Specifications...
Excellent for Aluminum, Acrylic, Plastics, Soft Metals.
• Upcut/RightSpiral Flutes: Chips flow toward spindle for fast and efficient chip evacuation.
• Large Flute Volume: Forces chip out quickly, reducing rewelding of plastics, aluminum, etc. resulting in a clean cut
• Polished Flute: Chips curl/form better, reduces heat, and adds lubricity without the use of coatings
• Tapered end for easy insertion
Comes in a high-quality reusable case to keep your tool protected and organized.

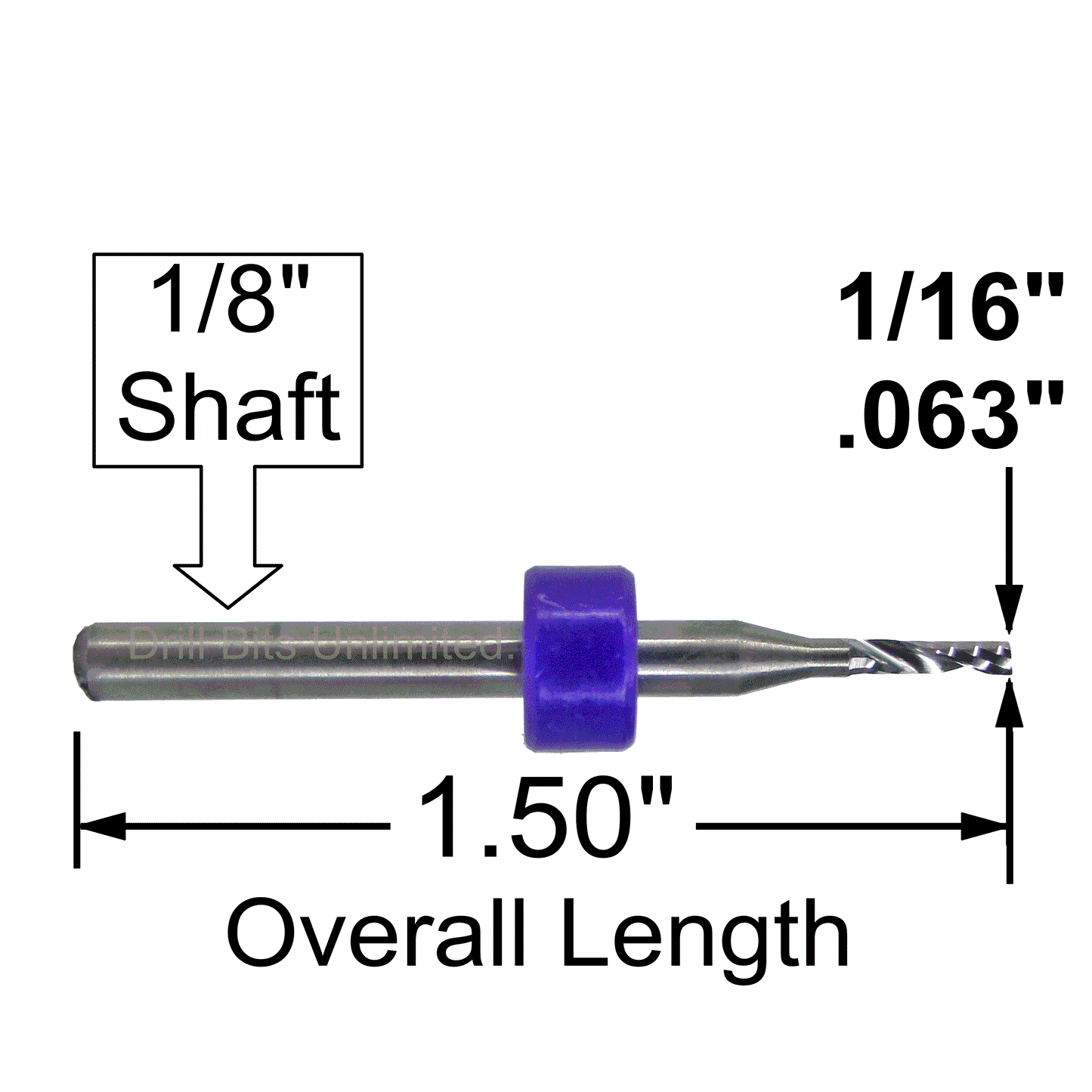

| Mill Diameter (Inch) : | 1/16 (.063) |
|---|---|
| Mill Diameter (mm) : | 1.60 |
| # of Flutes: | 1 |

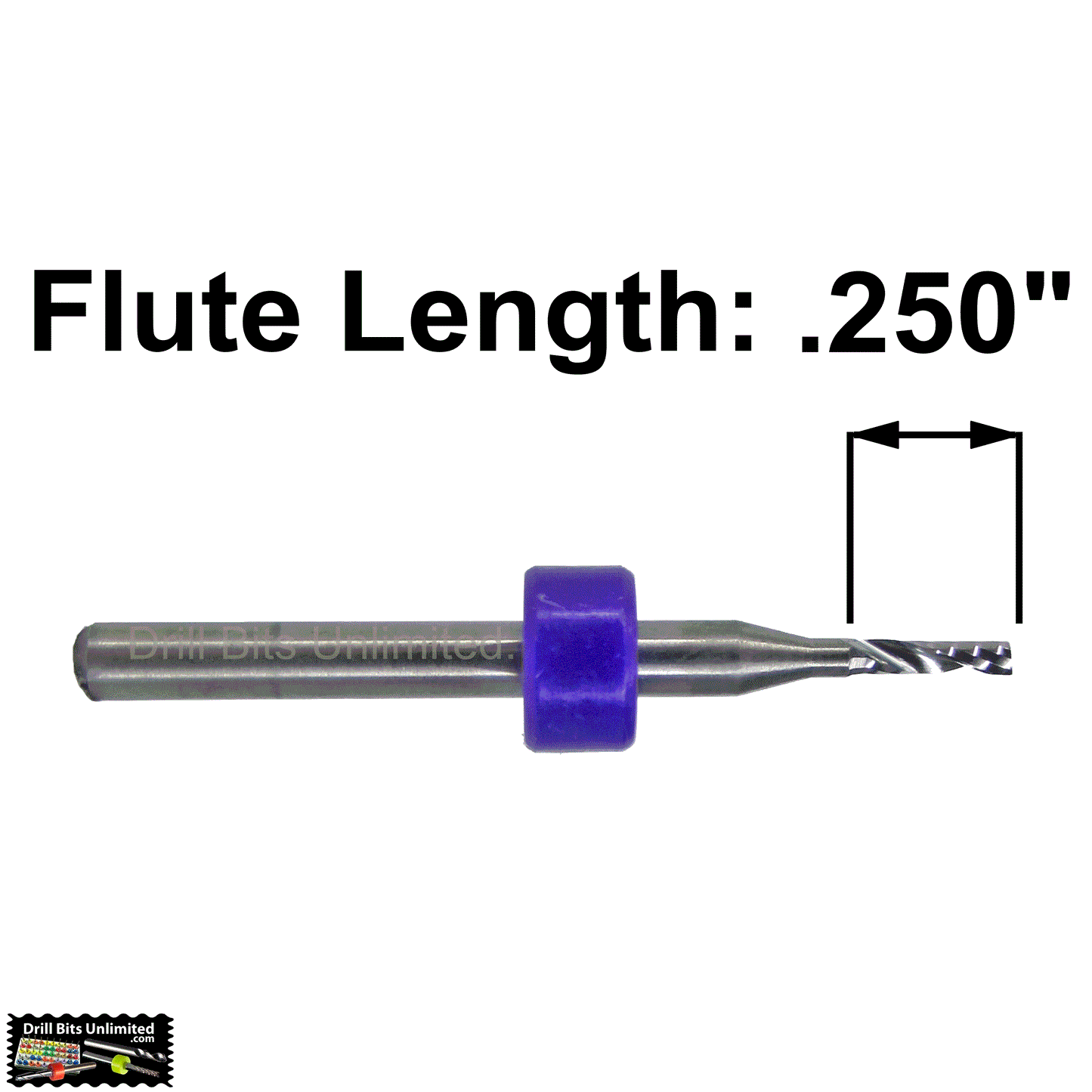

| Length of Cut (Flute Length)(inch): |
1/4 (0.250) |
| Shank Diameter (Inch) : | 1/8 (.125) |
| Overall Length (inch): | 1.50 |
| Material: | Solid Tungsten Carbide |
| Finish/Coating: | Bright |
| Cutting Direction: | Right Hand |
| Flute Direction: | Right Hand (Up Cut) |
| Flute Type: | Spiral |
| Helix Angle: | 24 |
| Center Cutting?: | Yes |
| Plunge Tip: | Square End |
| Applications: | Plastics,Aluminum,Soft Metals |
