Drill Bits Unlimted

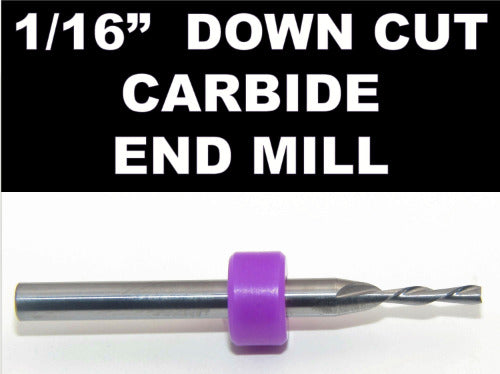

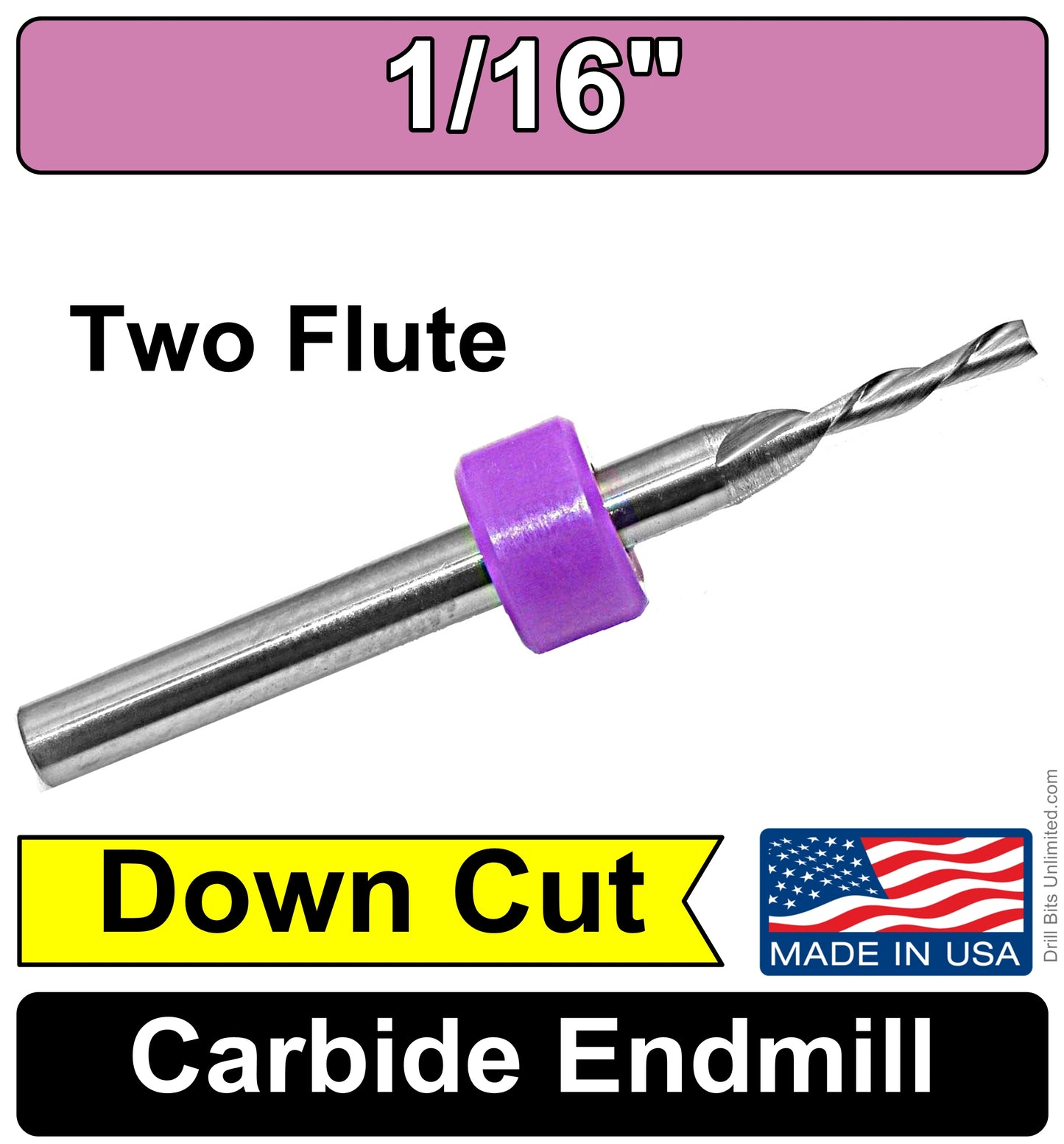

1/16" Down Cut End Mill x .300" Depth Two Flute Down Cut Carbide End Mill M192

1/16" Down Cut End Mill x .300" Depth Two Flute Down Cut Carbide End Mill M192

Regular price $10.95 USD
Regular price Sale price $10.95 USD
Sale Sold out

295 left in stock

SKU: M192

Click HERE for Feed and Speed Recommendations

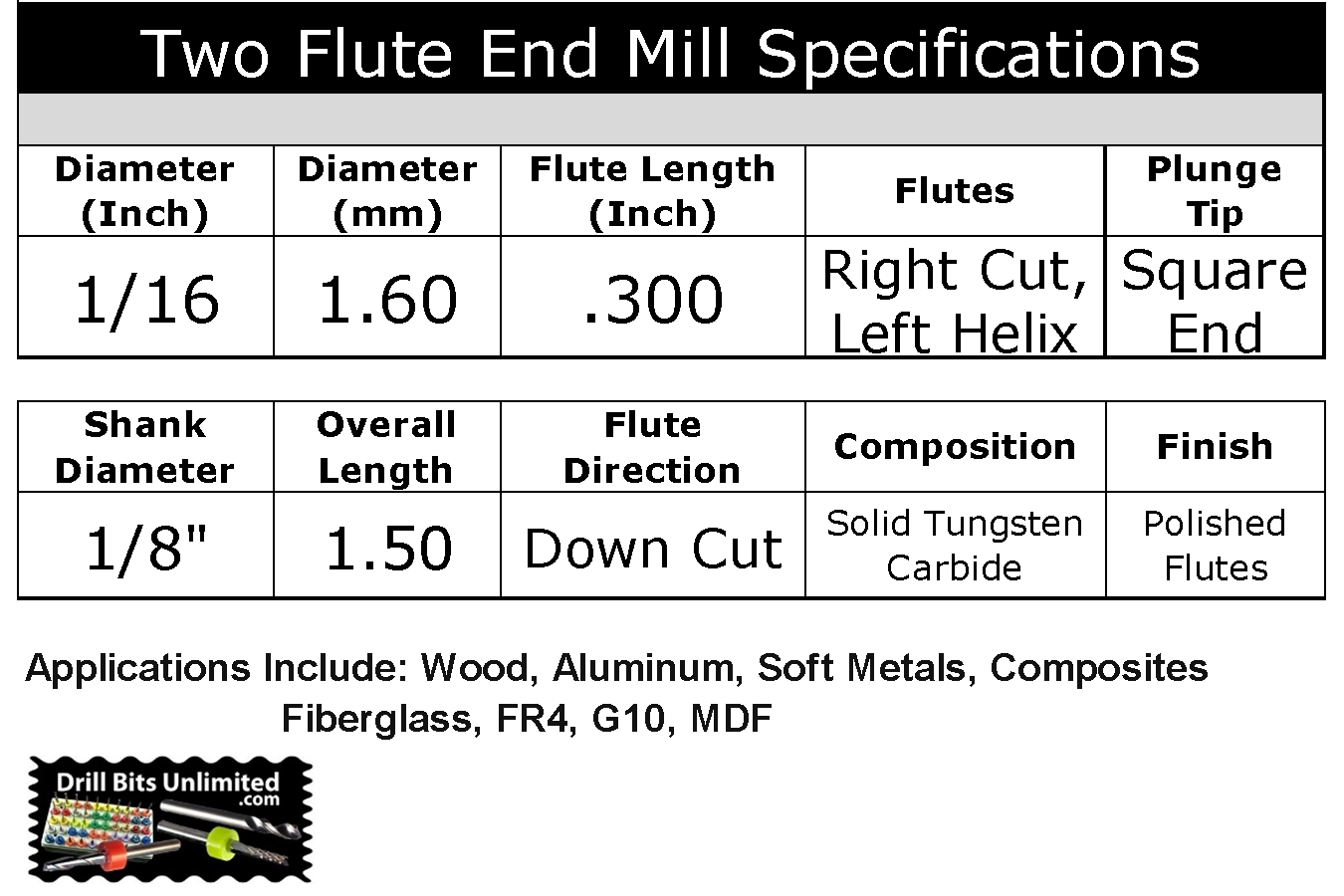

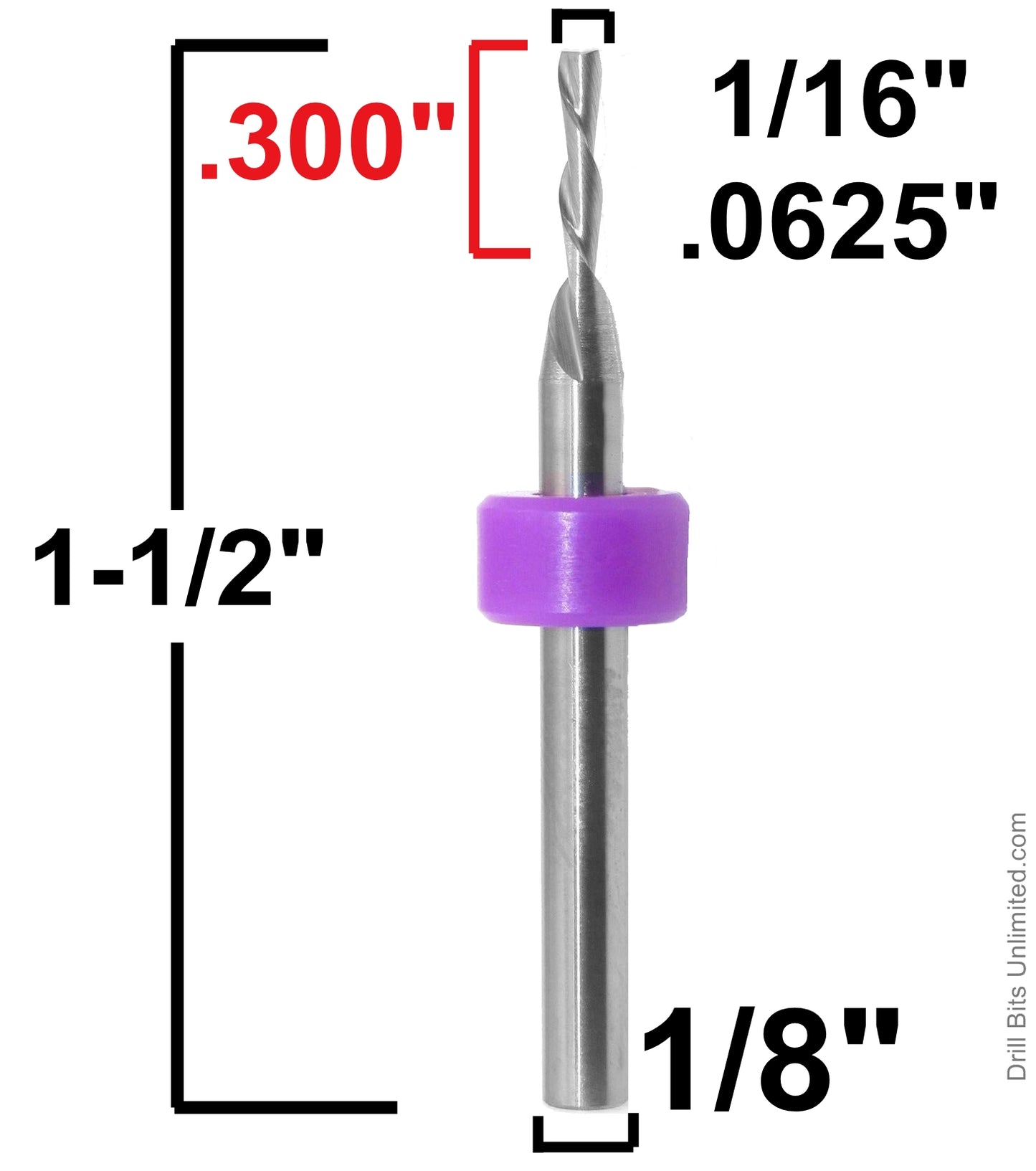

Mill Diameter (Inch) : 1/16
Mill Diameter (mm) : 1.60
# of Flutes: 2
Length of Cut (inch): .300
Shank Diameter (Inch) : 1/8
Overall Length (inch): 1.50
Material: Solid Tungsten Carbide
Finish/Coating: N/A
Cutting Direction: Right Hand
Flute Direction: Left Hand (Down Cut)
Flute Type: Spiral
Helix Angle: 30
Center Cutting?: Yes
Plunge Tip: Square End
Applications: Wood,Plastics,Soft Metals

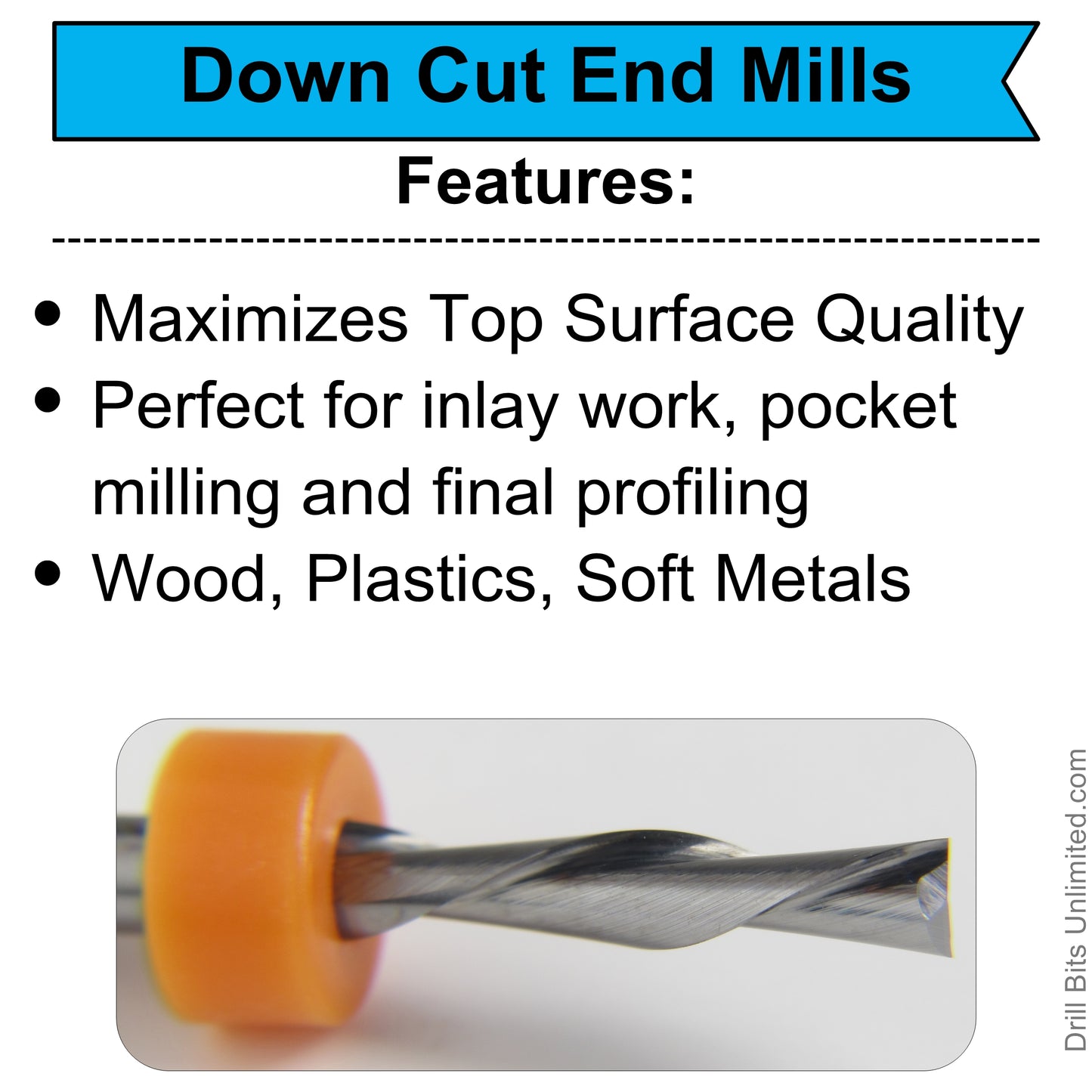

Down cut flutes maximize top surface quality.  Perfect for pocket milling and inlay applications.

Our Two Flute Carbide End Mills are perfect for milling square slots, pockets, and final profiling in a variety of materials. Whether you're working with wood, non-ferrous metals such as aluminum, brass, and copper, PCB boards or even most composites, these end mills deliver exceptional results. With their large flute clearance, chip evacuation is increased, minimizing friction and heat buildup for a superior finish. Upgrade your milling game with our reliable and high-performing Two Flute Carbide End Mills.
