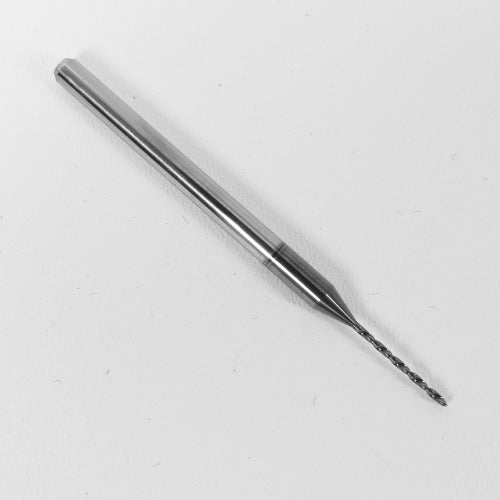

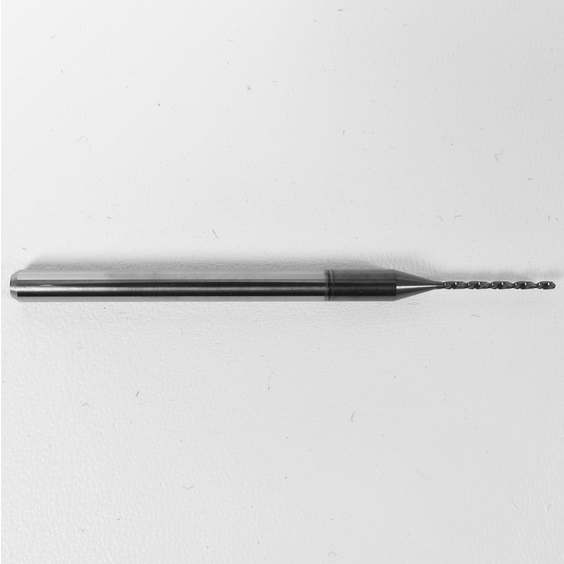

1/32" 0.80mm Diameter LEFT HAND Extended Flute Drill Bit, 3mm Shank,Carbide, AlTiN Coated K013

1/32" 0.80mm Diameter LEFT HAND Extended Flute Drill Bit, 3mm Shank,Carbide, AlTiN Coated K013

Regular price $9.95 USD
Regular price Sale price $9.95 USD
Sale Sold out

20 left in stock

Drill Bit Point Angle: 130 Degrees Drill Bit Dimension Type: Metric
Number of Pieces: 1 List Number: 226
Drill Bit Finish: AlTiN Cutting Direction: Right Hand
Drill Bit Size: 0.80mm Point Type: 4 Facet
Item: Micro Drill Bit Shank Dia.: 0.1181"
Number of Flutes: 2 Grade: Micrograin Carbide
Shank Type: Straight Decimal Equivalent: 0.0315
Coolant Through: No Flute Length: 0.4330"
Application: Metalworking Drill Bit Material: Solid Carbide
Overall Length: 50.00mm Coolant Fed: Non-Coolant Through
Spiral Direction: Right Hand Finish - Machining: AlTiN
Circuit Board Drill: No Measurement System: Metric
Flute Type: Spiral Primary Material Application: Brass, Cast Iron, CFRP, Cobalt, Composite, Copper Alloy, Graphite, Nickel, Titanium
Drill Diameter Tolerance: +0.000mm/-0.008mm Web Thinning: X-Thinned
Material - Machining: Carbide Shank Type - Machining: Straight
Drill Bit Point Type: 4 Facet Point Maximum Drilling Depth: 0.4330"
Primary Material Application ISO Code: H, M, P Drill Length Class: Micro Length
Aircraft Drill: No Series: 226
Material Grade - Machining: Sub Micron Web Construction: Split
Standards: Not Rated Country of Origin (subject to change): United States
