Drill Bits Unlimted

1/8" x 60 Degree, Scoring / Engraving, Trace Isolation V-Bit Engraver High Precision - Made in U.S.A. E107

1/8" x 60 Degree, Scoring / Engraving, Trace Isolation V-Bit Engraver High Precision - Made in U.S.A. E107

Regular price $14.99 USD
Regular price Sale price $14.99 USD
Sale Sold out

71 left in stock

SKU: E107

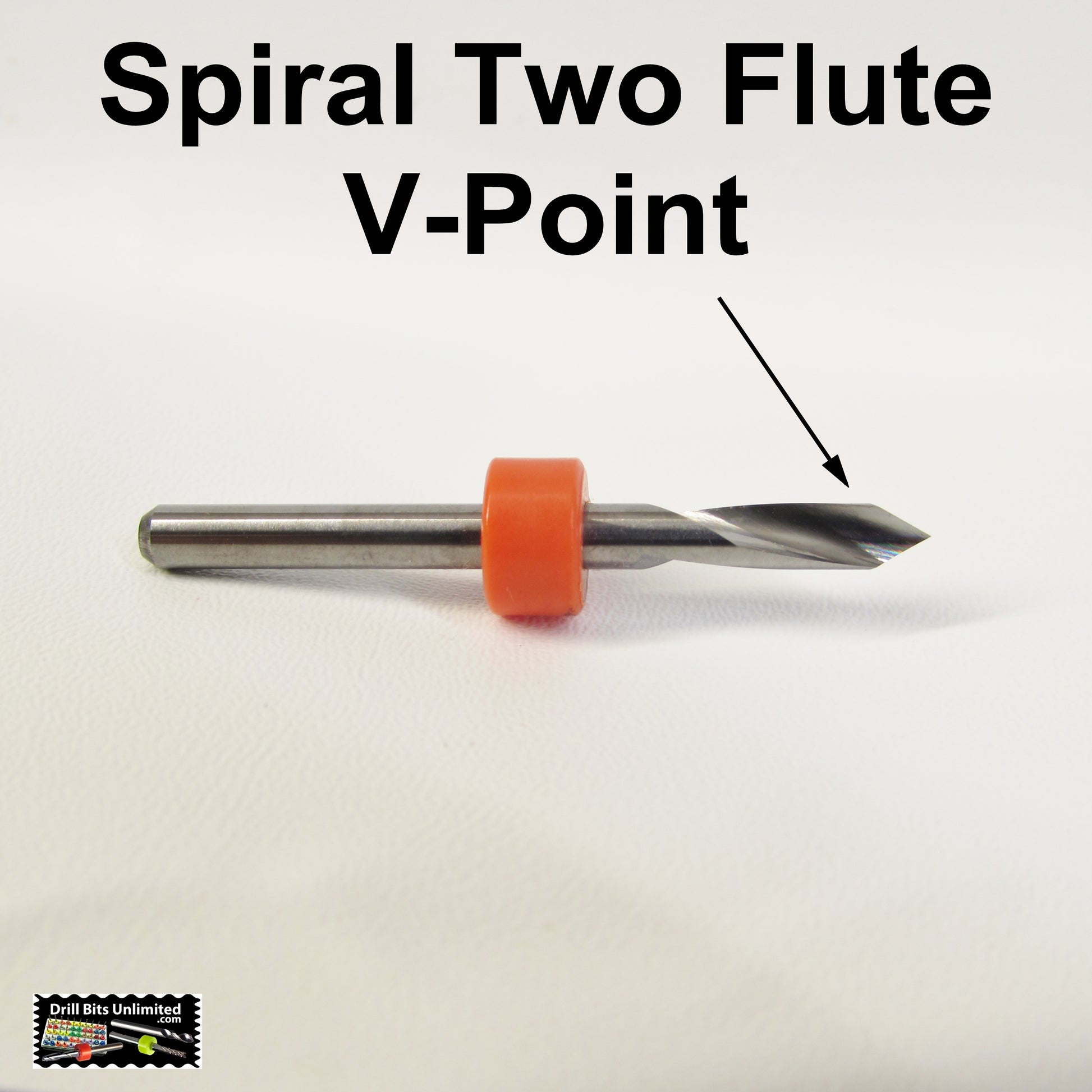

True Spiral 2-flute "V" point Bits.

  • These high precision carbide tools offer an optimum combination of high resolution cutting and tip strength while the cutting edge geometry virtually eliminates chatter at high feed rates.

  • The plunge style tip geometry insures reliable copper or other substrate removal at all isolation widths.

  • 1/8" fits most CNC and other equipment.

  • Compatible with LPKF, T-Tech,X-Carve MITS, AccurateCNC desktop PCB prototyping machines and most similar equipment.

  • Anticipated Life - 6,000 linear inches (Micarta®, Black Max®)



Tool Type: V-Point Two Flute Scoring/Engraving Tool
Cutting Diameter (Inch) : 1/8 - 125
Cutting Diameter (mm) : 3.175mm

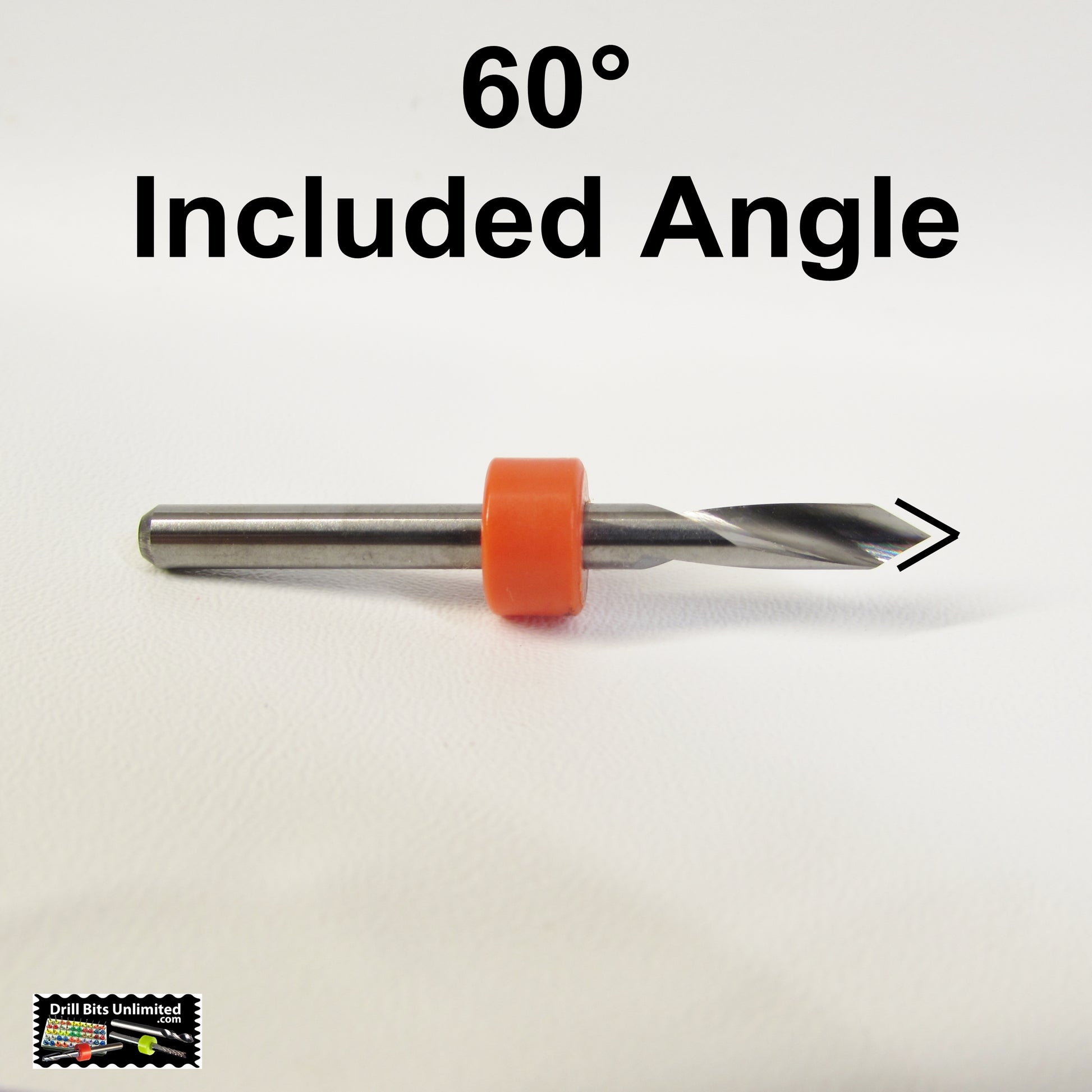

Tip Angle (Degrees): 60
# of Flutes: 2

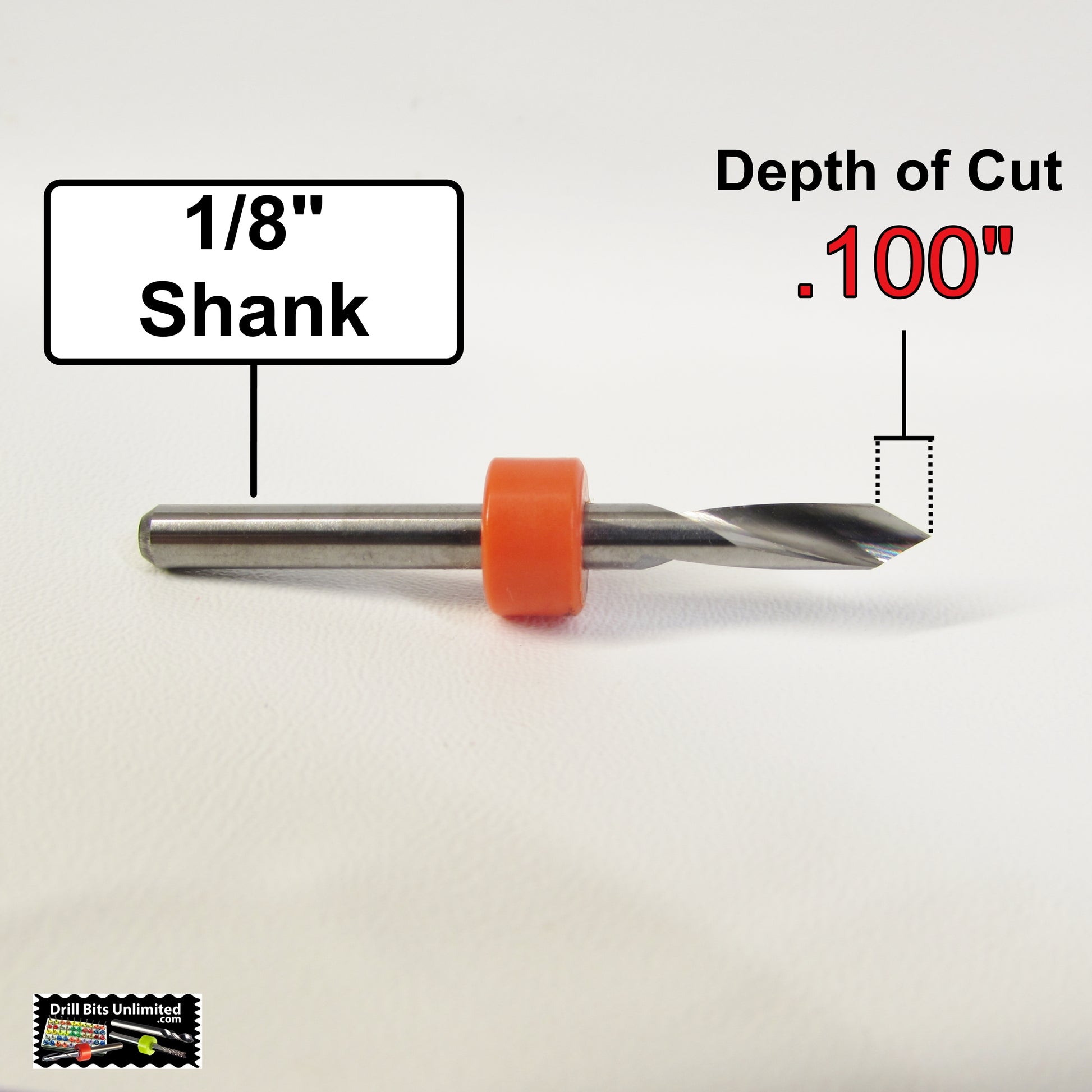

Length of Cut ,LOC (inch): .100
Reach: .550
Shank Diameter (Inch) : 1/8
Shank Diameter (mm) : 3.175
Overall Length (inch): 1.50
Material: Solid Tungsten Carbide
Finish: N/A
Cutting Direction: Right Hand
Flute Direction: Right Hand (Up Cut)
Flute Type: Spiral
