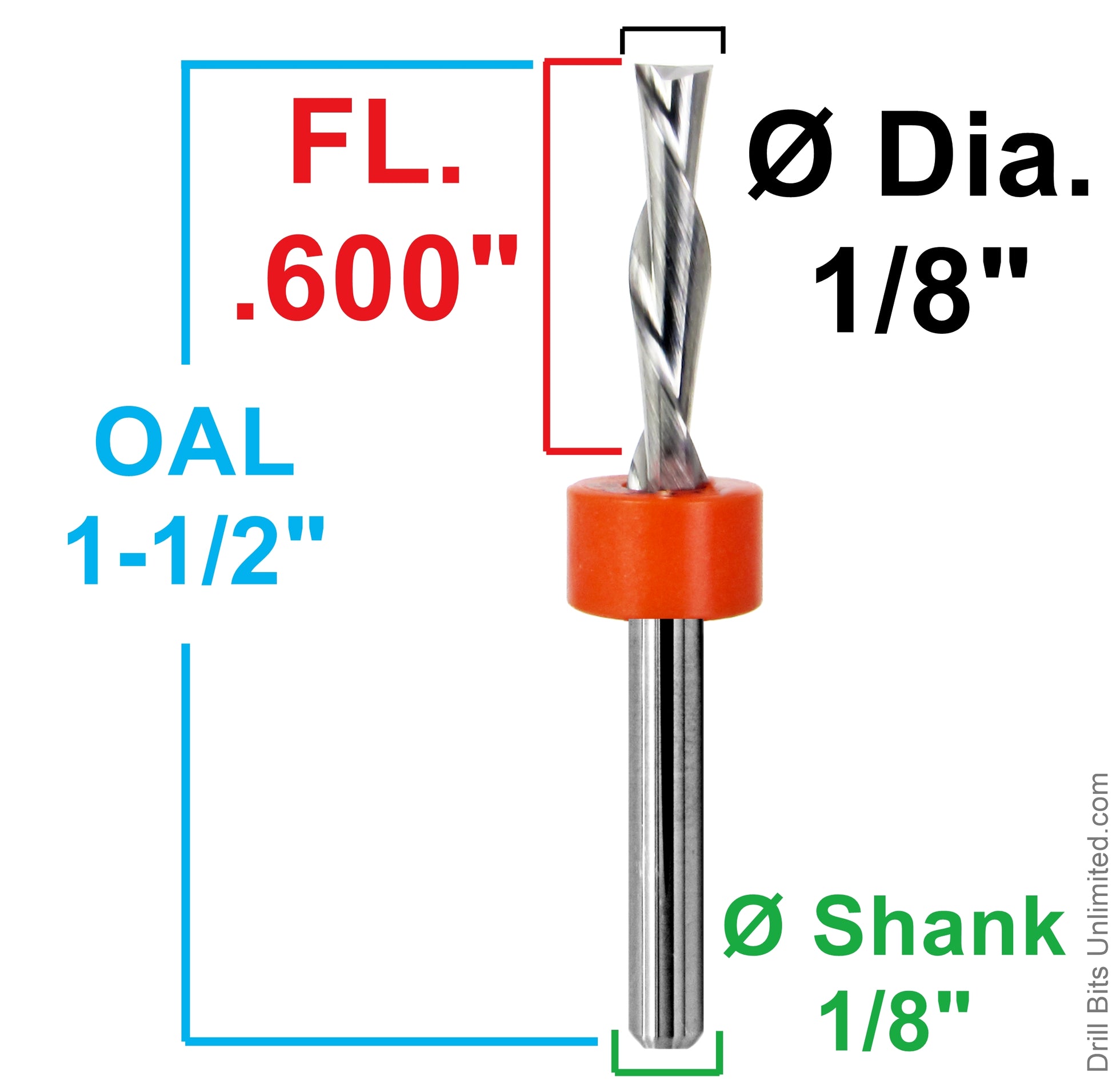

0.1250" / 1/8" Down-Cut 2-Flute Square End Mill, .600" LOC, 1/8" Shank M2-170

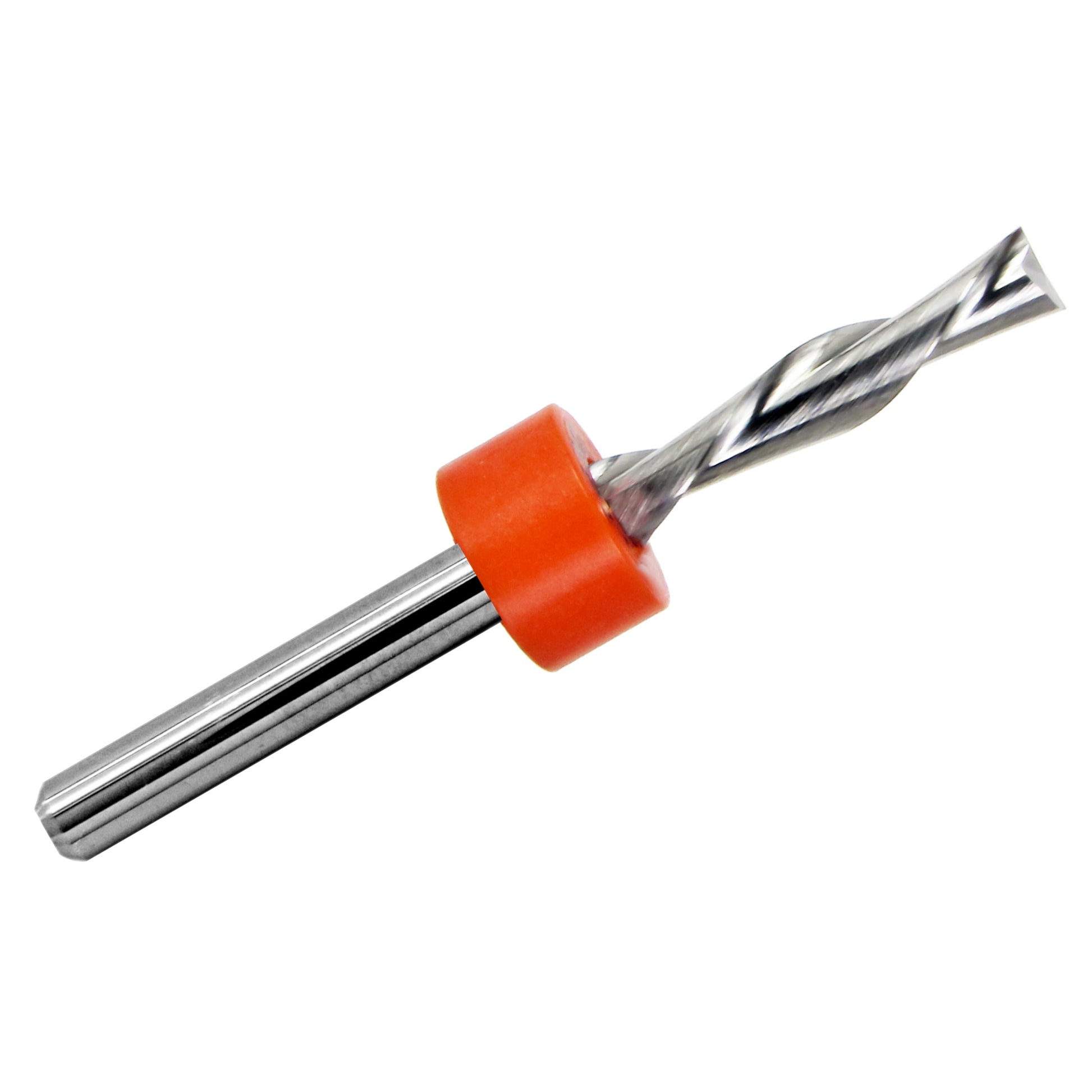

0.1250" / 1/8" down-cut square-end carbide end mill with .600" LOC and standard 1/8" shank.

This solid carbide end mill is designed for CNC cutting, profiling, and detail work where clean top-edge finish is important. The down-cut flute direction helps push chips downward, which can improve top-surface edge quality in wood, plastics, and similar sheet or panel materials.

The square-end geometry is useful for slotting, profiling, pockets, contours, and flat-bottom cuts in appropriate materials.

Common Applications

• Woodworking and CNC routing
• Plastic, acrylic, and soft material cutting
• Clean top-edge cuts in sheet and panel materials
• Slotting, profiling, pockets, and contours
• Ice sculpting, foam, and other specialty soft-material applications
• Hobby CNC, prototype work, and light production setups

Benefits

• Down-cut geometry can improve top-edge surface quality
• 1/8" cutting diameter is useful for general small CNC routing and milling work
• .600" LOC provides more reach than shorter stub-length tools
• Square-end geometry works well for profiles, slots, pockets, and flat-bottom cuts
• Solid carbide construction provides rigidity and wear resistance
• Standard 1/8" shank fits many compact CNC routers and precision collet setups

Specifications

Down-cut note: Down-cut end mills are commonly used when top-edge finish is important. Because chips are pushed downward, use proper feeds, speeds, chip clearing, and shallow passes as needed for your material and machine.

Former SKU / item number: M193
