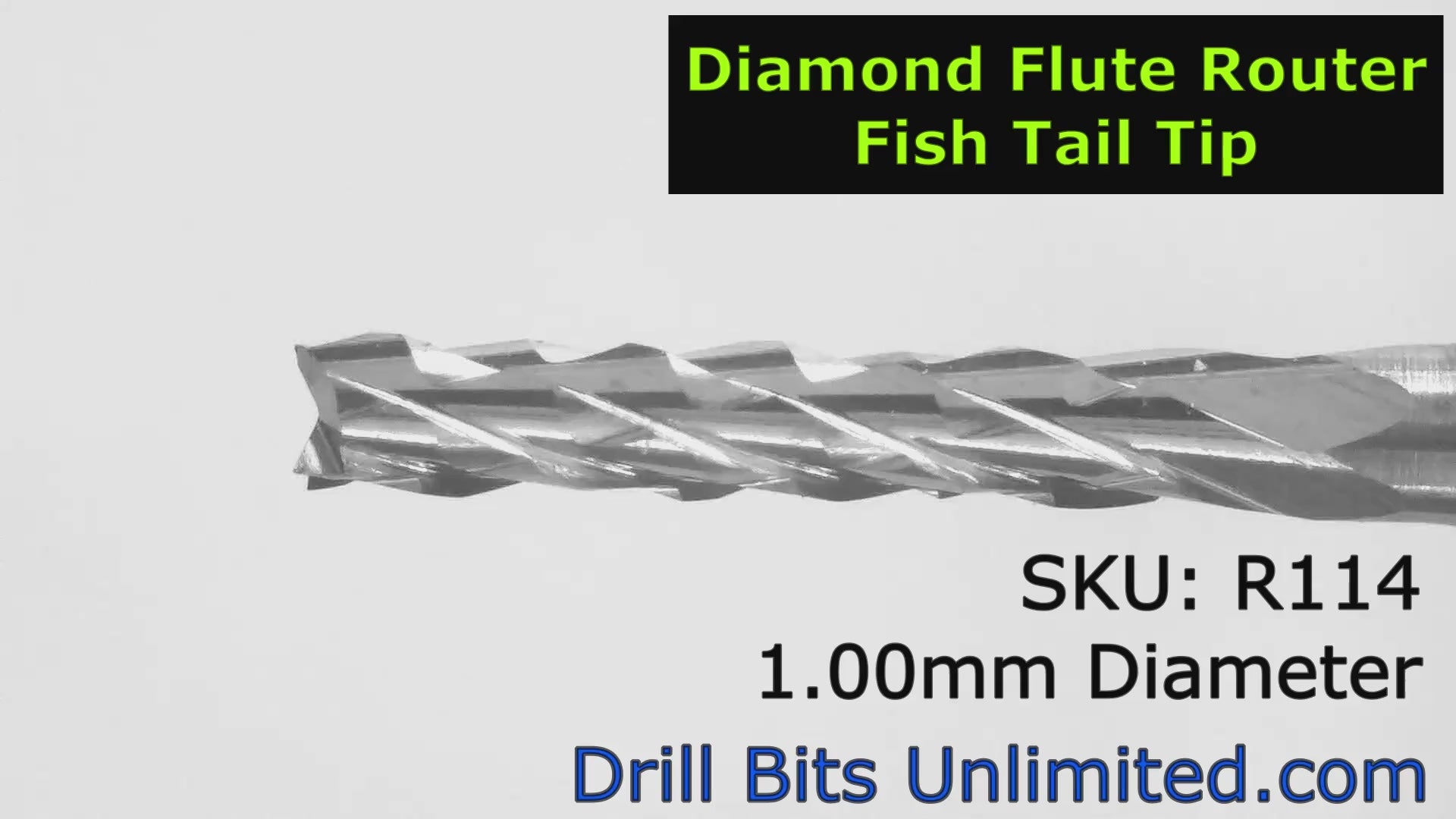

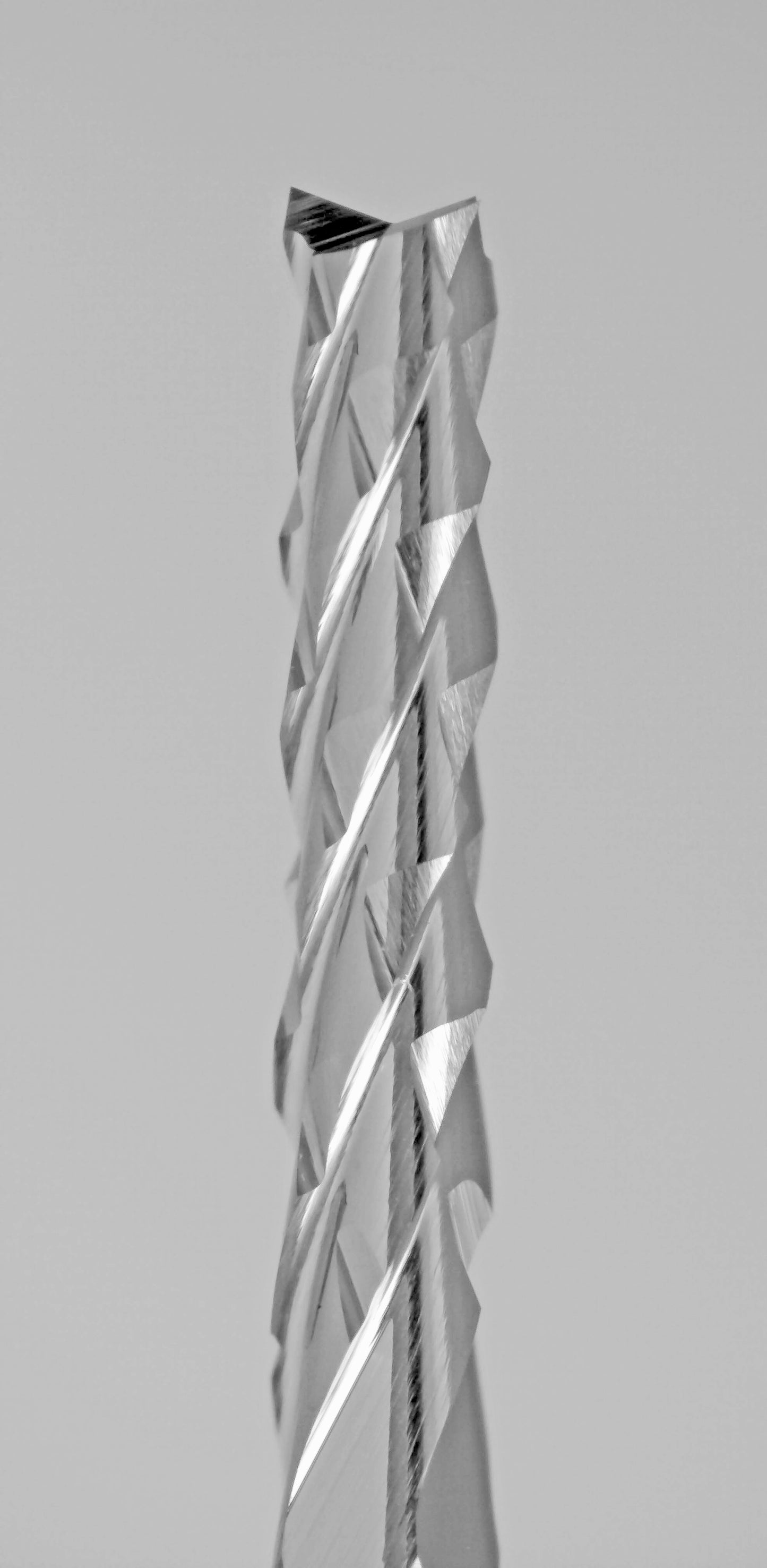

1mm x .197" LOC Diamond Pattern Carbide Router Bit - Fish Tail Tip R114

Click HERE for Feed and Speed Recommendations

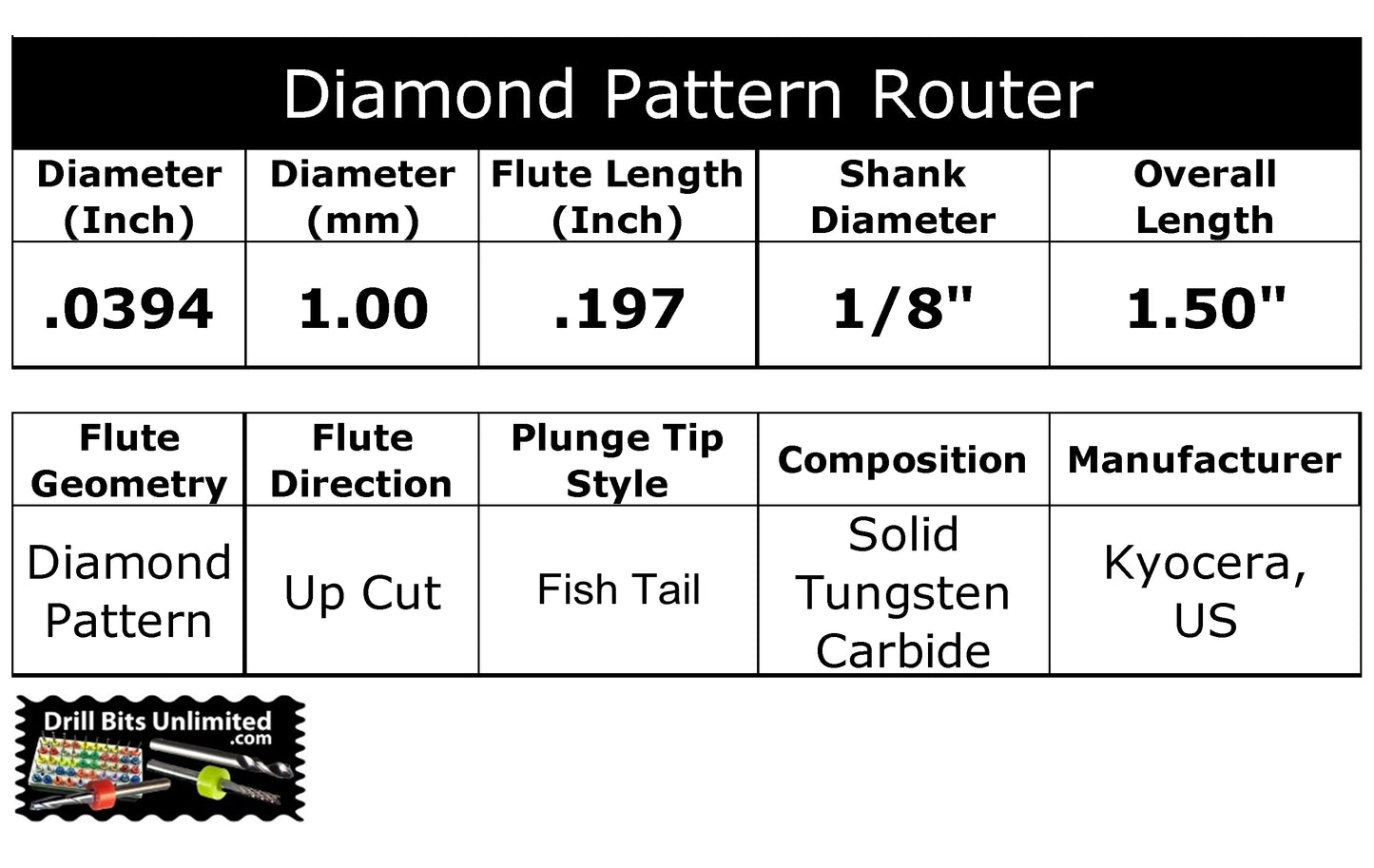

Router Style:	Diamond Cut

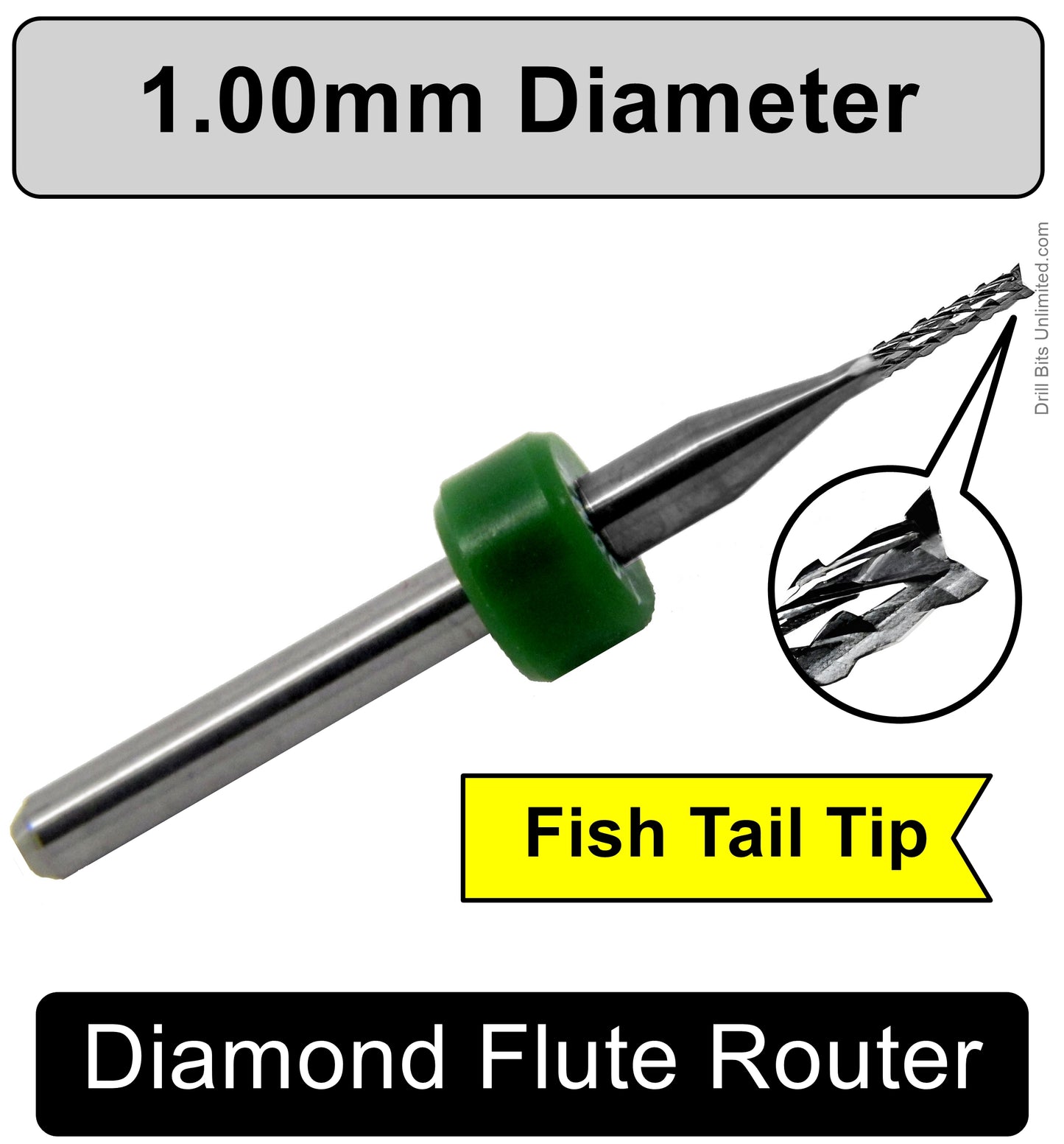

Plunge Tip:	Fish Tail

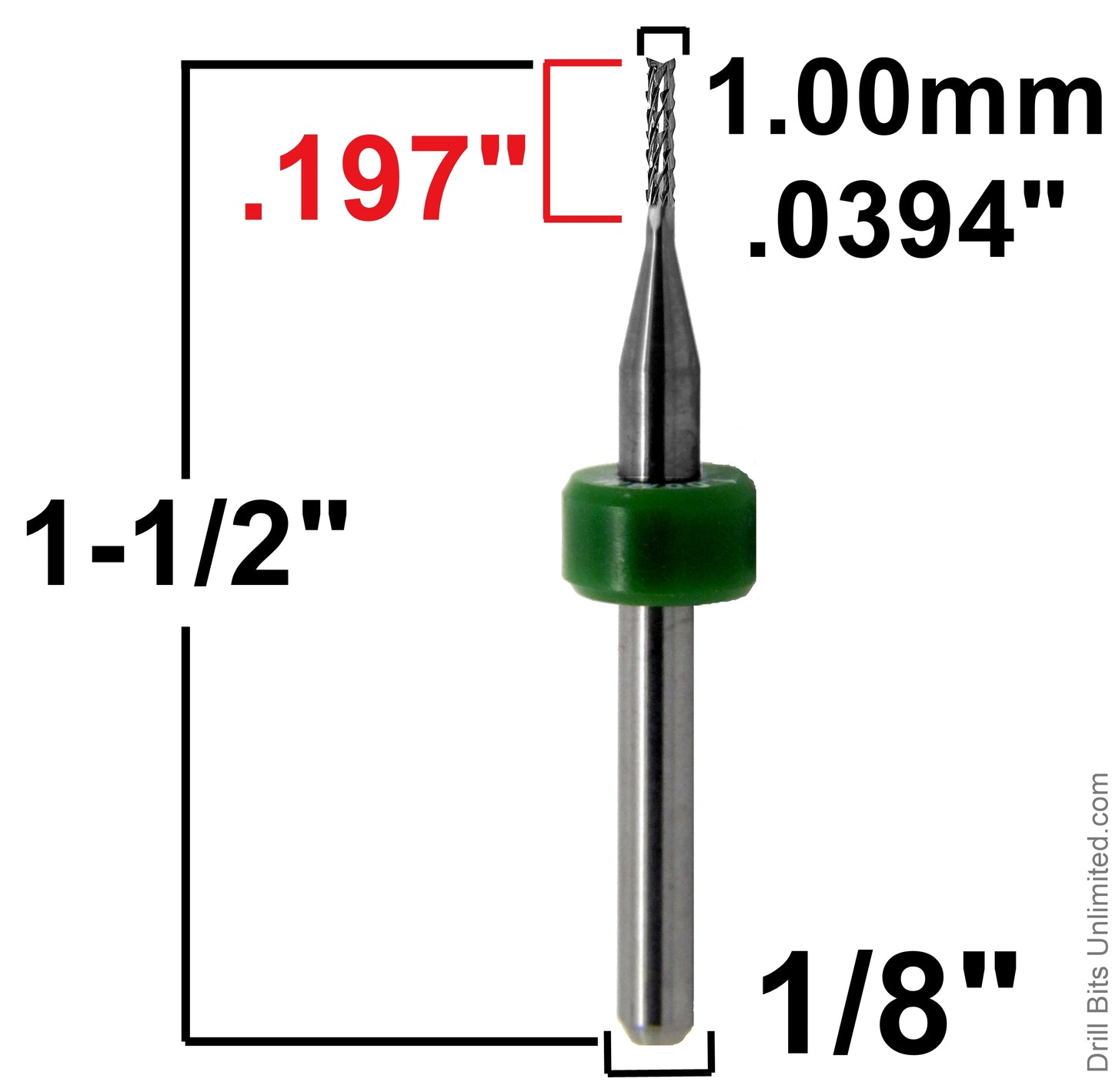

Mill Diameter (Inch) :	.0394
Mill Diameter (mm) :	1.00
Depth of Cut (inch):	.197
Shank Diameter (Inch) :	1/8
Overall Length (inch):	1.50
Material:	Solid Tungsten Carbide
Coating/Finish:	n/a
Cutting Direction:	Right Hand
Flute Direction:	Right Hand (Up Cut)
Flute Type:	n/a
Center Cutting?:	Yes

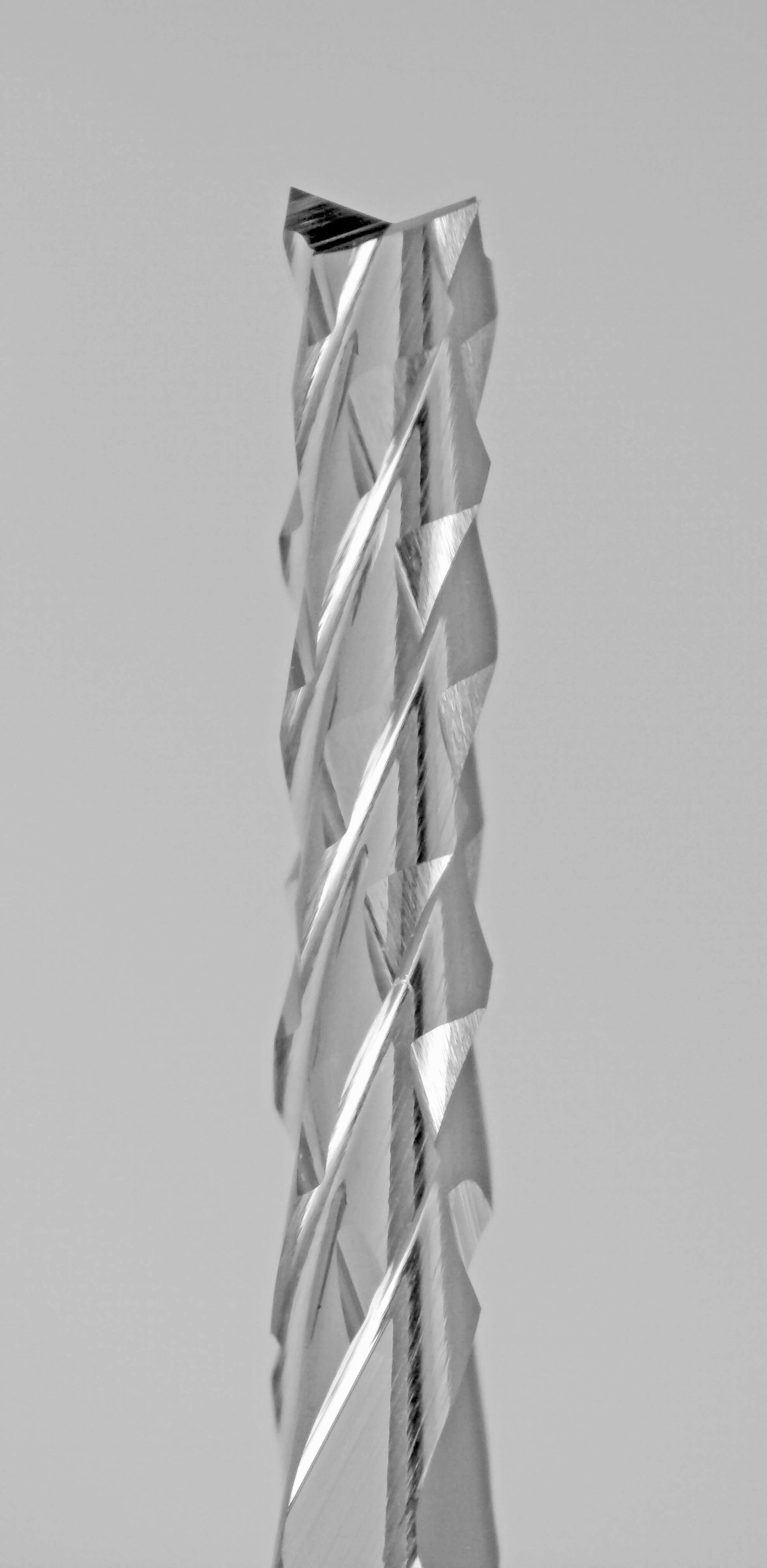

Numerous diamond-shaped cutting surfaces is gentle on material, leaving a clean and smooth edge without delamination, cracking or fraying.

Perfect for milling hard and abrasive materials including carbon fiber, G10, FR4, fiberglass substrates, ceramics, etc.

Drill point plunge tip holds up to high plunge rates and dense materials.
